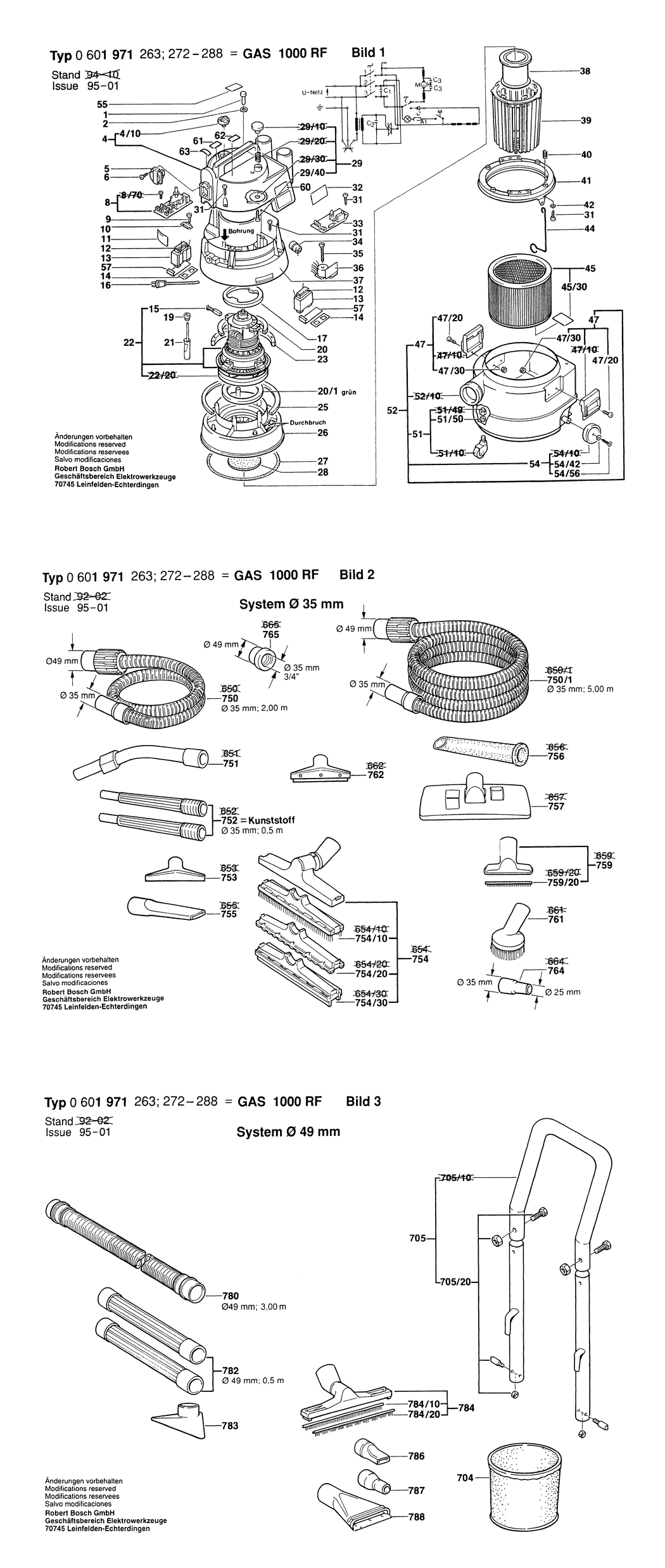

An exploded drawing and listing for the Bosch GAS 1000 RF / 0601971281 / GB 110 Volt
Ex VAT Inc VAT
1 - INDICATOR LAMP BSD-1609201654.A18 1609201654 £6.52 £7.83
2 - SEAL RING BSD-1609201655.A38 1609201655 £1.75 £2.10
4 - COVERING HOOD BSD-1609202365.A34 1609202365 -
4/10 - SWITCH BUTTON BSD-1609203721.A7 1609203721 -
6 - TAPPING SCREW DIN 7983-ST3.9x19-C-H BSD-2910612519.A5 2910612519 -
8 - ON-OFF SWITCH BSD-1609201658.A39 1609201658 -
9 - TAPPING SCREW DIN 7971-B2.9x19 BSD-2910211208.A20 2910211208 -
10 - CLAMP BSD-1609201659.A3 1609201659 -
11 - NAMEPLATE BSD-1601110870.A0 1601110870 -
12 - DAMPING PLATE BSD-1609201660.A46 1609201660 £1.75 £2.10
13 - ATTACHMENT VIBRATOR 100-110V BSD-1609201703.A3 1609201703 £93.88 £112.65
14 - SEALING DISK BSD-1609201663.A26 1609201663 £2.16 £2.59
15 - CARBON-BRUSH SET BSD-1609201699.A7 1609201699 -
17 - AIR-DEFLECTOR RING BSD-1609201666.A84 1609201666 -
19 - SEAL RING BSD-1609201668.A25 1609201668 £2.16 £2.59
20 - SEAL RING BSD-1609201669.A56 1609201669 £5.58 £6.70
20/1 - SEAL RING BSD-1609201669.A57 1609201669 £5.58 £6.70
21 - GUIDE SLEEVE BSD-1609202573.A14 1609202573 £3.72 £4.47
22 - SUCTION BLOWER 110-115V BSD-1609202369.A0 1609202369 -
23 - AIR FILTER BSD-1609201672.A58 1609201672 -
25 - AIR FILTER BSD-1609201674.A5 1609201674 -
26 - INTERMEDIATE FLANGE BSD-1609201675.A21 1609201675 -
27 - SEAL RING BSD-1609201676.A2 1609201676 -
28 - AIR FILTER BSD-1609201677.A71 1609201677 £1.95 £2.34
29 - PUSH-BUTTON BSD-1609201678.A2 1609201678 -
29/40 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A125 2910611015 £1.75 £2.10
31 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A126 2910611015 £1.75 £2.10
32 - MANUFACTURER'S NAMEPLATE BSD-1601110712.A12 1601110712 -
33 - CONNECTION PLATE BSD-1609201701.A0 1609201701 -
34 - PRESSURE SWITCH BSD-1609201680.A2 1609201680 -
35 - TAPPING SCREW 3.5x32 MM BSD-1609201681.A52 1609201681 -
36 - AUTOMATIC SWITCHING UNIT BSD-1609202227.A3 1609202227 -
37 - INTERMEDIATE HOUSING BSD-1609201683.A2 1609201683 -
38 - FLOAT BSD-1609200952.A68 1609200952 -
39 - SUCTION BASKET BSD-1609201684.A29 1609201684 -
40 - COMPRESSION SPRING BSD-1609201685.A45 1609201685 £2.16 £2.59
41 - RETAINING SNAP RING BSD-1609203182.A34 1609203182 -
42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A72 1609202726 £1.75 £2.10
44 - RETAINING BRACKET BSD-1609202406.A9 1609202406 -
45 - AIR FILTER dia 245x194 MM BSD-1609202378.A7 1609202378 -
45/30 - REFERENCE PLATE BSD-1601110830.A9 1601110830 £2.61 £3.13
47 - BENT-LEVER CLOSURE BSD-1609201690.A24 1609201690 -
47/20 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8 BSD-2910021193.A71 2910021193 £1.75 £2.10
47/30 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1405 2915011007 -
51 - IMPELLER BSD-1609201691.A39 1609201691 -
51/50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A111 2915011009 £2.61 £3.13
52 - DUST CONTAINER BSD-1609201692.A24 1609201692 -
54 - IMPELLER BSD-1609202221.A2 1609202221 -
54/42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A73 1609202726 £1.75 £2.10
54/56 - TAPPING SCREW DIN 7981-B4.2x19 BSD-2910611027.A20 2910611027 -
55 - REFERENCE PLATE BSD-1601110724.A10 1601110724 -
57 - LEAF SPRING BSD-1609202192.A53 1609202192 -
704 - DUST SEPARATOR BSD-2607432010.A29 2607432010 -
705 - GUIDE BRACKET BSD-1609201627.A52 1609201627 -
705/20 - PARTS SET BSD-1609201661.A5 1609201661 -
750 - AIR HOSE dia 35 MM. 2 M.1 BSD-2607000163.A35 2607000163 -
750/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A0 1609202230 £85.74 £102.89
751 - SETTING TUBE dia 35 MM BSD-2607000164.A48 2607000164 £22.56 £27.07
752 - SUCTION PIPE dia 35 MM. 0.5 M BSD-2607000162.A54 2607000162 £27.98 £33.57
753 - SUCTION NOZZLE dia 35 MM BSD-2607000170.A63 2607000170 £13.12 £15.74
754 - SUCTION NOZZLE dia 35 MM BSD-1609390478.A64 1609390478 £34.99 £41.99
754/10 - FLAT BRUSH BSD-1609390493.A66 1609390493 £21.68 £26.01
754/20 - FLAT BRUSH BSD-1609390494.A35 1609390494 -
754/30 - STRIP BRUSH BSD-1609390495.A66 1609390495 £16.41 £19.69
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A45 2607000165 £5.24 £6.29
756 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A78 1609201229 £17.49 £20.99
757 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A60 1609201230 £41.99 £50.39
759 - SUCTION NOZZLE dia 35 MM BSD-2607000166.A53 2607000166 £8.74 £10.49
759/20 - BRUSH INSERT BSD-1609202534.A21 1609202534 £2.80 £3.36
761 - SUCTION BRUSH dia 35 MM BSD-1609390481.A21 1609390481 £8.74 £10.49
762 - SUCTION NOZZLE dia 35 MM BSD-2607000168.A53 2607000168 -
764 - FITTING dia 25x35 MM BSD-1600499005.A66 1600499005 £3.49 £4.19
765 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A139 1609200933 £7.21 £8.65
780 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A35 2607000167 £64.74 £77.69
782 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A121 1609200968 £12.24 £14.69
783 - SUCTION NOZZLE dia 49 MM BSD-2607000169.A12 2607000169 -
784 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A117 1609200970 £26.24 £31.49
784/10 - FLAT BRUSH BSD-1609201109.A105 1609201109 -
784/20 - FLAT BRUSH BSD-1609201110.A22 1609201110 -
786 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A5 1609200971 £7.87 £9.44
787 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A141 1609200976 £3.61 £4.33
788 - SUCTION NOZZLE dia 49 MM BSD-1609201235.A32 1609201235 -
