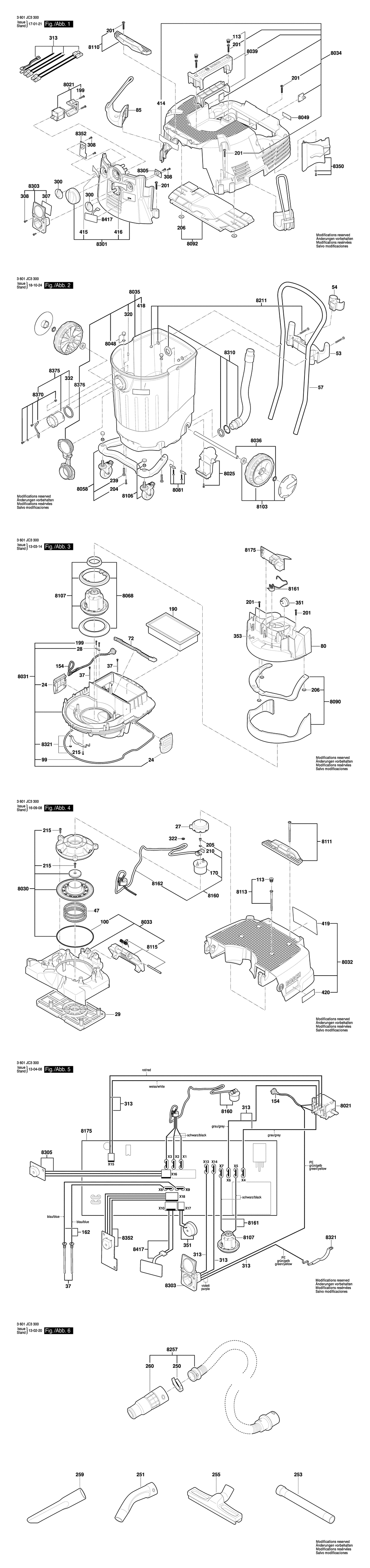

An exploded drawing and listing for the Bosch GAS 55 M AFC / 3601JC3360 / GB 230 Volt
Ex VAT Inc VAT
24 - LOCKING PIECE BSD-2609200425.A14 2609200425 £8.67 £10.41
27 - MAGNET BSD-2609200401.A10 2609200401 £7.36 £8.83
28 - CLAMPING PIECE BSD-2609200423.A14 2609200423 £7.36 £8.83
29 - SUPPORT BSD-2609200390.A14 2609200390 £12.04 £14.45
37 - SENSOR BSD-2609200427.A14 2609200427 £3.72 £4.47
47 - SPRING BSD-2609200483.A8 2609200483 £10.10 £12.12
53 - SUPPORT BSD-2609200464.A0 2609200464 £16.41 £19.69
54 - SUPPORT BSD-2609200465.A3 2609200465 £11.30 £13.56
57 - STRAP-SHAPED HANDLE BSD-2609200466.A0 2609200466 £63.50 £76.20
72 - SEAL BSD-2609200420.A2 2609200420 £11.30 £13.56
80 - MOTOR HOUSING BSD-2609200409.A6 2609200409 £48.38 £58.06
85 - HOSE HOLDER BSD-2609200436.A14 2609200436 £33.74 £40.49
99 - CORD BSD-2609200424.A2 2609200424 £8.67 £10.41
100 - O-RING BSD-2609200392.A14 2609200392 £1.75 £2.10
113 - PLUG BSD-2609200406.A4 2609200406 £1.75 £2.10
124 - FERRITE CORE BSD-2609200569.A1 2609200569 £5.58 £6.70
154 - MAINS CABLE GB BSD-2609200517.A1 2609200517 -
170 - MAGNET BSD-2609200460.A0 2609200460 £81.81 £98.17
190 - FILTER BSD-2607432026.A5 2607432026 £72.18 £86.62
199 - SCREW BSD-2609200422.A2 2609200422 £1.75 £2.10
201 - SCREW BSD-2609200410.A4 2609200410 £1.75 £2.10
204 - SCREW BSD-2609200470.A2 2609200470 £1.75 £2.10
205 - SCREW BSD-2609200400.A2 2609200400 £1.75 £2.10
206 - POSITIONING ELEMENT BSD-2609200414.A3 2609200414 £1.75 £2.10
210 - SERRATED LOCK-WASHER BSD-2609200399.A10 2609200399 £1.75 £2.10
215 - LENS HEAD SCREW BSD-2609200397.A14 2609200397 £1.75 £2.10
239 - SCREW BSD-2609200469.A0 2609200469 £1.75 £2.10
250 - CLAMPING RING BSD-2609200454.A3 2609200454 £2.49 £2.99
251 - PIPE ELBOW BSD-2608000A13.A8 2608000A13 £31.64 £37.97
253 - SUCTION PIPE BSD-2608000A15.A2 2608000A15 £58.76 £70.51
255 - NOZZLE BSD-2609200455.A13 2609200455 £27.23 £32.68
259 - NOZZLE BSD-2609200462.A1 2609200462 £10.10 £12.12
260 - SOCKET BSD-2609200463.A8 2609200463 £45.67 £54.80
300 - ROTARY KNOB BSD-2609200445.A3 2609200445 £1.75 £2.10
307 - STICKER 1800W BSD-2609200512.A3 2609200512 £7.36 £8.83
308 - SCREW BSD-2609200438.A13 2609200438 £1.75 £2.10
313 - ELECTRICAL ACCESSORIES BSD-2609200439.A2 2609200439 £21.68 £26.01
320 - BOLT BSD-2609200456.A3 2609200456 £2.61 £3.13
322 - FASTENING PART BSD-2609200461.A15 2609200461 £1.75 £2.10
332 - SEAL RING BSD-2609200457.A7 2609200457 £3.72 £4.47
351 - HORN BSD-2609200408.A3 2609200408 £23.86 £28.63
353 - HOSE BSD-2609200411.A5 2609200411 £14.91 £17.89
414 - STICKER BSD-2609200441.A3 2609200441 £5.58 £6.70
415 - STICKER BSD-2609200442.A5 2609200442 £4.26 £5.11
416 - STICKER BSD-2609200443.A3 2609200443 £4.26 £5.11
418 - PLATE BSD-2609200459.A7 2609200459 £6.52 £7.83
419 - WARNING PLATE BSD-2609200403.A1 2609200403 £14.91 £17.89
420 - MANUFACTURER'S NAMEPLATE BSD-2609200475.A0 2609200475 £4.26 £5.11
8021 - SWITCH BSD-2609200388.A3 2609200388 £45.67 £54.80
8025 - SUPPORT BSD-2609200473.A0 2609200473 £12.04 £14.45
8030 - VALVE PLATE BSD-2609200396.A2 2609200396 £45.67 £54.80
8031 - HOUSING BSD-2609200421.A5 2609200421 £135.25 £162.30
8032 - COVER BSD-2609200474.A3 2609200474 £93.88 £112.65
8033 - COVER BSD-2609200391.A3 2609200391 £48.38 £58.06
8034 - HOOD BSD-2609200430.A4 2609200430 £102.57 £123.08
8035 - CONTAINER BSD-1600A01A4N.A0 1600A01A4N £116.15 £139.38
8036 - AXLE BSD-2609200458.A1 2609200458 £16.41 £19.69
8039 - HANDLE BSD-2609200444.A13 2609200444 £18.96 £22.75
8048 - FASTENING PARTS KIT BSD-2609200468.A3 2609200468 £12.04 £14.45
8049 - NAMEPLATE GAS 55 M AFC BSD-2609200514.A0 2609200514 £5.58 £6.70
8058 - CASTER WHEEL BSD-2609200419.A0 2609200419 £45.67 £54.80
8068 - SEAL KIT BSD-2609200431.A12 2609200431 £27.23 £32.68
8081 - SUPPORT BSD-2609200472.A3 2609200472 £14.91 £17.89
8090 - SOUND INSULATION MAT BSD-2609200413.A13 2609200413 £21.68 £26.01
8092 - SOUND INSULATION MAT BSD-2609200437.A2 2609200437 £14.91 £17.89
8103 - WHEEL BSD-2609200432.A4 2609200432 £27.23 £32.68
8106 - CASTER WHEEL BSD-2609200471.A0 2609200471 £40.80 £48.96
8107 - MOTOR BSD-2609200415.A11 2609200415 £195.26 £234.31
8110 - HOLDER BSD-2609200435.A2 2609200435 £16.41 £19.69
8111 - HOLDER BSD-2609200407.A11 2609200407 £16.41 £19.69
8113 - FASTENING PARTS KIT BSD-2609200405.A11 2609200405 £14.91 £17.89
8115 - FILTER COVER BSD-2609200393.A2 2609200393 £21.68 £26.01
8160 - MAGNET BSD-2609200398.A2 2609200398 £81.81 £98.17
8161 - CABLE BSD-2609200412.A3 2609200412 -
8162 - CABLE BSD-1600A01A4J.A9 1600A01A4J -
8175 - WAFER BSD-2609200384.A4 2609200384 £251.67 £302.00
8211 - FASTENING PARTS KIT BSD-2609200418.A3 2609200418 £16.41 £19.69
8257 - HOSE BSD-2608000A06.A4 2608000A06 £251.67 £302.00
8301 - OPERATOR PANEL BSD-2609200440.A5 2609200440 £45.67 £54.80
8303 - SOCKET BSD-2609200516.A3 2609200516 £59.53 £71.44
8305 - WAFER BSD-2609200383.A3 2609200383 £40.80 £48.96
8310 - DRAINAGE FITTING BSD-2609200395.A1 2609200395 £37.27 £44.72
8321 - SPRING HOUSING BSD-2609200428.A3 2609200428 £18.96 £22.75
8350 - MOLDED PART BSD-2609200433.A6 2609200433 £16.41 £19.69
8352 - WAFER BSD-2609200382.A0 2609200382 £102.57 £123.08
8370 - COUPLING BSD-2609200417.A6 2609200417 £31.64 £37.97
8375 - COUPLING BSD-2609200416.A2 2609200416 £31.64 £37.97
8376 - CONNECTION PIECE BSD-1600A01A4L.A5 1600A01A4L £21.42 £25.71
8417 - FOIL KEYBOARD BSD-2609200387.A12 2609200387 £48.38 £58.06
