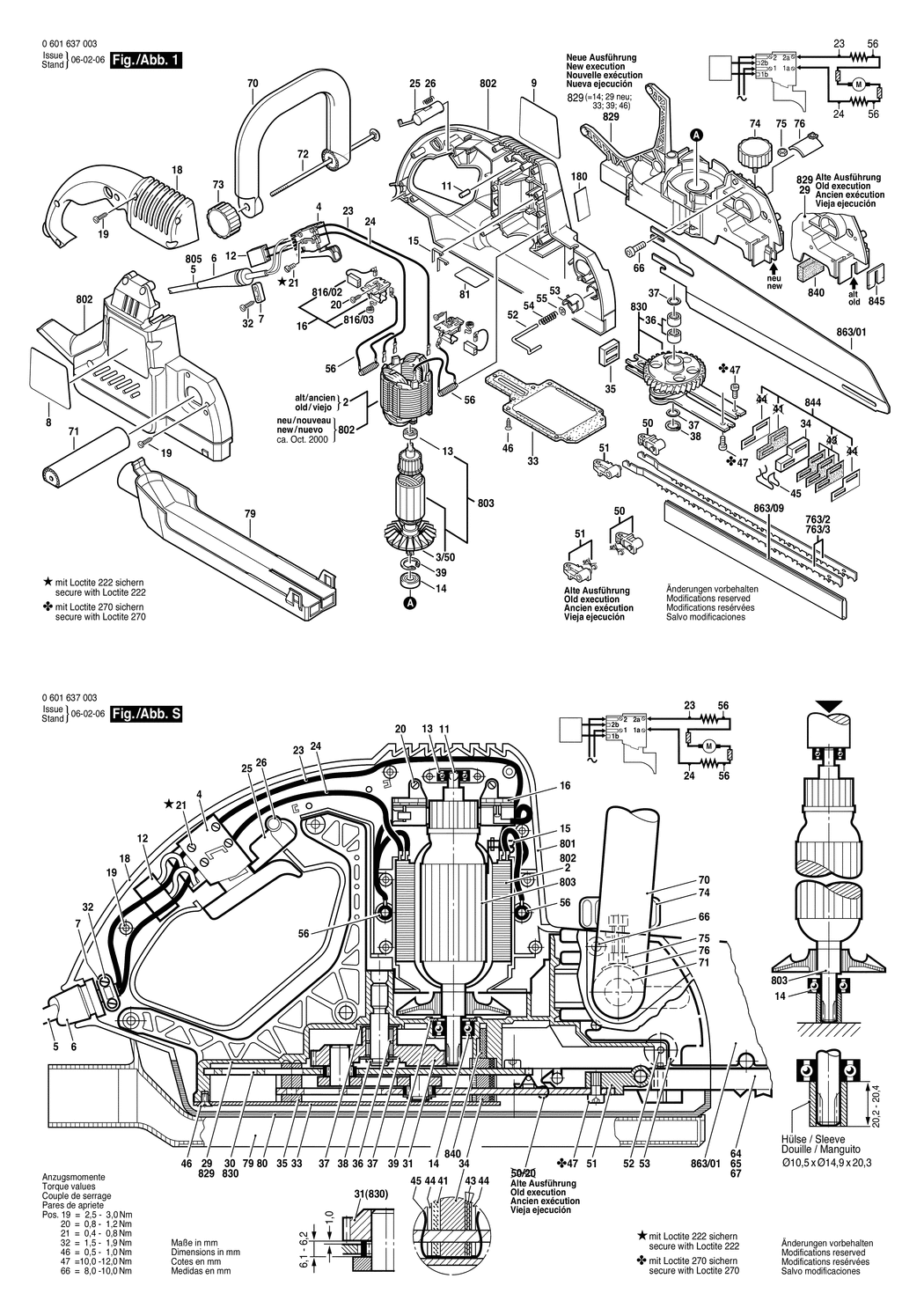

An exploded drawing and listing for the Bosch GFZ 14-35 A / 0601637032 / CH 230 Volt
Ex VAT Inc VAT
3/50 - FAN BSD-3606610002.A49 3606610002 £2.33 £2.80
4 - SWITCH BSD-3607200066.A18 3607200066 £11.30 £13.56
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460403.A24 1604460403 £16.41 £19.69
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A62 1600703026 £2.16 £2.59
7 - CABLE CLIP BSD-2601035001.A1921 2601035001 £1.75 £2.10
8 - NAMEPLATE BSD-3601110306.A0 3601110306 -
9 - MANUFACTURER'S NAMEPLATE BSD-3601110261.A1 3601110261 £3.80 £4.56
11 - RUBBER BUFFER BSD-1603100036.A56 1603100036 £1.75 £2.10
12 - SUPPRESSION FILTER BSD-1607328028.A379 1607328028 £5.30 £6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A317 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING BSD-1600900042.A74 1600900042 £5.58 £6.70
15 - CONTACT SPRING BSD-3604680003.A1 3604680003 £1.75 £2.10
16 - BRUSH HOLDER BSD-3604336002.A1 3604336002 £11.30 £13.56
18 - HOUSING COVER BSD-3605500130.A2 3605500130 £9.49 £11.39
19 - TAPPING SCREW TORX ST 3.9x19-C-Z BSD-3603435009.A4 3603435009 -
20 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A428 2910211006 £1.75 £2.10
21 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1432 2603410001 £1.75 £2.10
23 - CONNECTING CABLE L=280 MM BSD-3604411036.A1 3604411036 £3.72 £4.47
24 - CONNECTING CABLE L=180 MM BSD-3604411038.A7 3604411038 £2.52 £3.02
25 - REJECTION SLIDE BSD-3602329028.A11 3602329028 £1.75 £2.10
26 - COMPRESSION SPRING BSD-3604610041.A11 3604610041 £1.75 £2.10
32 - SCREW 4x16 BSD-2603490022.A1664 2603490022 £1.75 £2.10
33 - GEAR COVER BSD-3605500133.A18 3605500133 £12.04 £14.45
34 - PLAIN BEARING BSD-3600929027.A11 3600929027 £6.52 £7.83
35 - PLAIN BEARING BSD-3600929030.A8 3600929030 £5.30 £6.36
36 - NEEDLE BEARING BSD-3600913008.A30 3600913008 £3.72 £4.47
37 - FRICTION WASHER BSD-3600102045.A15 3600102045 £1.75 £2.10
38 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A17 2916650903 £1.75 £2.10
39 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A115 2916660010 £1.75 £2.10
45 - CLAMP SPRING BSD-3604651020.A8 3604651020 £2.61 £3.13
46 - THREAD-FORMING TAP. SCREW M3x8 BSD-3603391003.A38 3603391003 £2.16 £2.59
47 - HEX SOCKET HEAD CAP SCREW M 6x16 MM BSD-3603410020.A2 3603410020 £1.75 £2.10
50 - BASE BODY BSD-3602319021.A2 3602319021 £12.04 £14.45
51 - BASE BODY BSD-3602319022.A17 3602319022 £12.04 £14.45
52 - BOW BSD-3601921005.A9 3601921005 £5.58 £6.70
53 - ACTUATING ELEMENT BSD-3600522002.A8 3600522002 £3.72 £4.47
54 - COMPRESSION SPRING BSD-3604682004.A18 3604682004 £2.16 £2.59
55 - LOCKING WASHER BSD-3600112002.A14 3600112002 £1.75 £2.10
56 - SUPPRESSION FILTER BSD-3604463010.A12 3604463010 £5.87 £7.04
66 - HEX SOCKET HEAD CAP SCREW M6 BSD-3603386041.A12 3603386041 £1.75 £2.10
70 - AUXILIARY HANDLE BSD-3605132063.A9 3605132063 £18.96 £22.75
71 - DISTANCE PIPE BSD-3600723012.A2 3600723012 £7.36 £8.83
72 - ROUND-HEAD BOLT BSD-3603300015.A16 3603300015 £2.80 £3.36
73 - HANDWHEEL M6 BSD-3602317021.A10 3602317021 £4.26 £5.11
74 - HANDWHEEL M6 BSD-3602317020.A9 3602317020 £4.26 £5.11
75 - HEX NUT BSD-3603435044.A12 3603435044 £2.16 £2.59
76 - CLAMPING PIECE BSD-3601329018.A10 3601329018 £1.75 £2.10
79 - SUCTION CHANNEL BSD-3602317017.A10 3602317017 £21.52 £25.83
81 - REFERENCE PLATE BSD-3601110332.A8 3601110332 £2.61 £3.13
763/2 - SAW BLADE SET 350 MM BSD-2608632120.A10 2608632120 £22.56 £27.07
763/3 - SAW BLADE SET 350 MM BSD-2608632123.A0 2608632123 £45.12 £54.14
802 - FIELD 230V BSD-1607000711.A2 1607000711 £61.98 £74.38
803 - ARMATURE 220-230V BSD-3604010077.A1 3604010077 -
816/02 - CARBON BRUSH BSD-3604321012.A2 3604321012 £12.04 £14.45
816/03 - SPIRAL SPRING BSD-3604652500.A11 3604652500 £1.75 £2.10
829 - GEAR HOUSING BSD-3605109010.A0 3605109010 £81.81 £98.17
830 - LIFT GEAR Z=78 BSD-3602319020.A15 3602319020 £120.11 £144.13
840 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A186 1602381006 £1.75 £2.10
844 - SEAL KIT BSD-3600929039.A10 3600929039 £16.41 £19.69
845 - LATERAL GUIDE BSD-3600929034.A9 3600929034 -
863/01 - SWORD 350 MM BSD-2608045017.A5 2608045017 £33.74 £40.49
863/09 - GUARD PROFILE 350 MM BSD-2601329049.A10 2601329049 £2.80 £3.36
