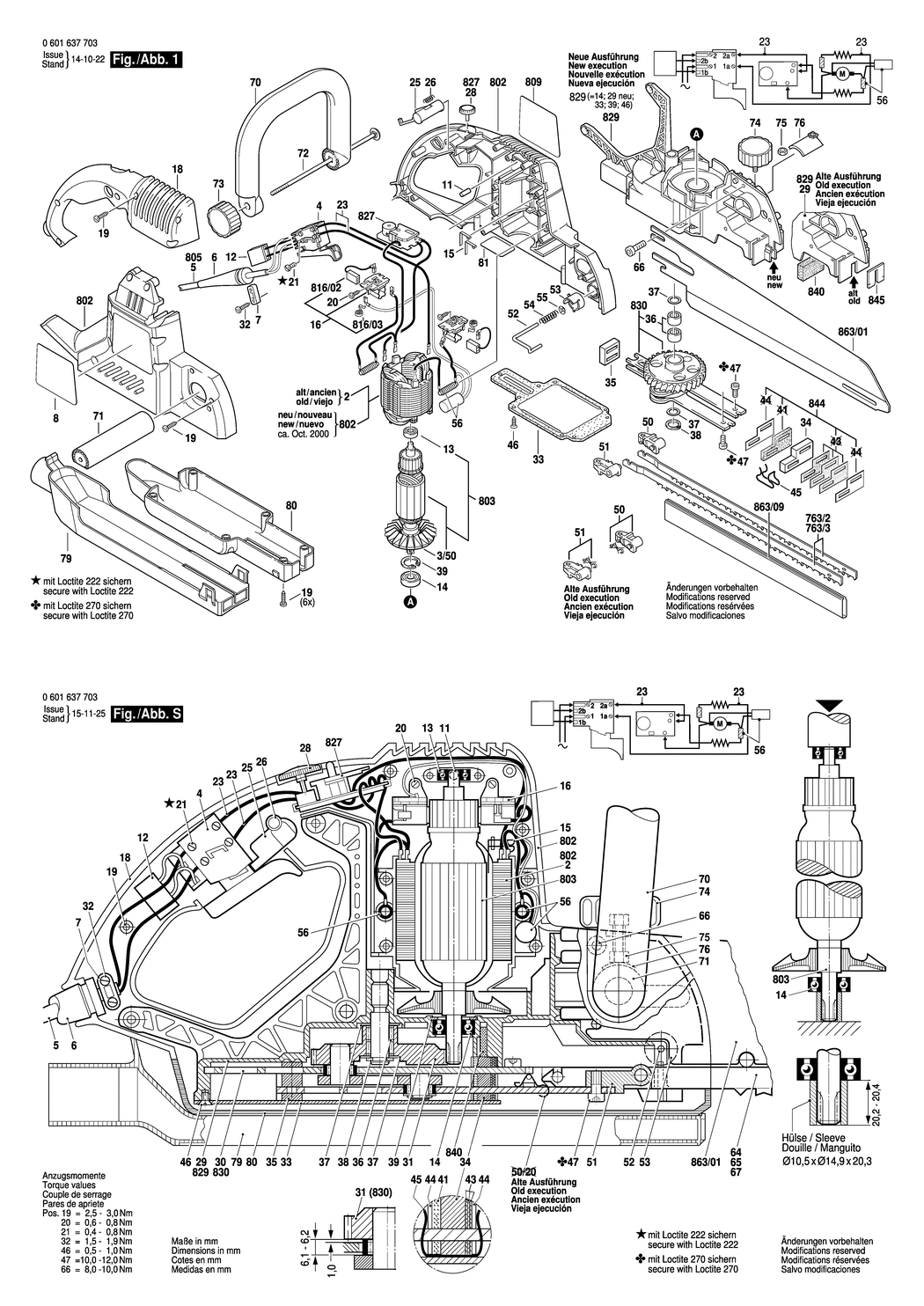

An exploded drawing and listing for the Bosch GFZ 16-35 AC / 0601637741 / GB 110 Volt
Ex VAT Inc VAT
2 - FIELD 127V BSD-1604220267.A1 1604220267 -
3/50 - FAN BSD-3606610002.A56 3606610002 £2.33 £2.80
4 - SWITCH BSD-3607200066.A11 3607200066 £11.30 £13.56
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07RN-F BSD-1604460203.A46 1604460203 £33.74 £40.49
6 - GROMMET BSD-2609005766.A80 2609005766 £2.80 £3.36
7 - CABLE CLIP BSD-1611035005.A267 1611035005 £2.16 £2.59
8 - NAMEPLATE BSD-3601110322.A0 3601110322 -
11 - RUBBER BUFFER BSD-1603100036.A50 1603100036 £1.75 £2.10
12 - SUPPRESSION FILTER BSD-1607328028.A378 1607328028 £5.30 £6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A321 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING BSD-1600900042.A68 1600900042 £5.58 £6.70
15 - CONTACT SPRING BSD-3604680003.A7 3604680003 £1.75 £2.10
16 - BRUSH HOLDER BSD-3604336007.A0 3604336007 -
18 - HOUSING COVER BSD-3605500131.A3 3605500131 £11.30 £13.56
19 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A683 2603490023 £1.75 £2.10
20 - TORX OVAL-HEAD SCREW BSD-2914208465.A4 2914208465 £1.75 £2.10
21 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1435 2603410001 £1.75 £2.10
23 - CONNECTING CABLE L=280 MM BSD-3604411036.A4 3604411036 £3.72 £4.47
25 - REJECTION SLIDE BSD-3602329028.A18 3602329028 £1.75 £2.10
26 - COMPRESSION SPRING BSD-3604610041.A14 3604610041 £1.75 £2.10
28 - THUMBWHEEL BSD-3602317022.A4 3602317022 £2.80 £3.36
32 - SCREW 4x16 BSD-2603490022.A1662 2603490022 £1.75 £2.10
33 - GEAR COVER BSD-3605500133.A11 3605500133 £12.04 £14.45
34 - PLAIN BEARING BSD-3600929027.A16 3600929027 £6.52 £7.83
35 - PLAIN BEARING BSD-3600929030.A3 3600929030 £5.30 £6.36
36 - NEEDLE BEARING BSD-3600913008.A26 3600913008 £3.72 £4.47
37 - FRICTION WASHER BSD-3600102045.A11 3600102045 £1.75 £2.10
38 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A12 2916650903 £1.75 £2.10
39 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A120 2916660010 £1.75 £2.10
45 - CLAMP SPRING BSD-3604651020.A6 3604651020 £2.61 £3.13
46 - THREAD-FORMING TAP. SCREW M3x8 BSD-3603391003.A30 3603391003 £2.16 £2.59
47 - HEX SOCKET HEAD CAP SCREW M 6x16 MM BSD-3603410020.A10 3603410020 £1.75 £2.10
50 - BASE BODY BSD-3602319021.A9 3602319021 £12.04 £14.45
51 - BASE BODY BSD-3602319022.A10 3602319022 £12.04 £14.45
52 - BOW BSD-3601921005.A6 3601921005 £5.58 £6.70
53 - ACTUATING ELEMENT BSD-3600522002.A3 3600522002 £3.72 £4.47
54 - COMPRESSION SPRING BSD-3604682004.A12 3604682004 £2.16 £2.59
55 - LOCKING WASHER BSD-3600112002.A19 3600112002 £1.75 £2.10
56 - SUPPRESSION FILTER BSD-3604463013.A0 3604463013 -
66 - HEX SOCKET HEAD CAP SCREW M6 BSD-3603386041.A19 3603386041 £1.75 £2.10
70 - AUXILIARY HANDLE BSD-3605132063.A3 3605132063 £18.96 £22.75
71 - DISTANCE PIPE BSD-3600723012.A7 3600723012 £7.36 £8.83
72 - ROUND-HEAD BOLT BSD-3603300015.A9 3603300015 £2.80 £3.36
73 - HANDWHEEL M6 BSD-3602317021.A13 3602317021 £4.26 £5.11
74 - HANDWHEEL M6 BSD-3602317020.A6 3602317020 £4.26 £5.11
75 - HEX NUT BSD-3603435044.A18 3603435044 £2.16 £2.59
76 - CLAMPING PIECE BSD-3601329018.A13 3601329018 £1.75 £2.10
79 - SUCTION CHANNEL BSD-3602317017.A13 3602317017 £21.52 £25.83
80 - BASE PAN BSD-3605500092.A2 3605500092 £21.68 £26.01
81 - REFERENCE PLATE BSD-3601110332.A3 3601110332 £2.61 £3.13
763/2 - SAW BLADE SET 350 MM BSD-2608632120.A4 2608632120 £22.56 £27.07
763/3 - SAW BLADE SET 350 MM BSD-2608632123.A6 2608632123 £45.12 £54.14
802 - FIELD 100-120V BSD-1607000710.A0 1607000710 £70.24 £84.29
803 - ARMATURE 120V BSD-1604010497.A0 1604010497 £103.14 £123.77
809 - MANUFACTURER'S NAMEPLATE BSD-3601110613.A5 3601110613 £3.72 £4.47
816/02 - CARBON BRUSH BSD-3604321025.A0 3604321025 -
816/03 - SPIRAL SPRING BSD-3604652500.A13 3604652500 £1.75 £2.10
827 - SPEED GOVERNOR 110V BSD-3607233003.A0 3607233003 -
829 - GEAR HOUSING BSD-3605109010.A7 3605109010 £81.81 £98.17
830 - LIFT GEAR Z=78 BSD-3602319020.A9 3602319020 £120.11 £144.13
840 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A192 1602381006 £1.75 £2.10
844 - SEAL KIT BSD-3600929039.A3 3600929039 £16.41 £19.69
845 - LATERAL GUIDE BSD-3600929034.A16 3600929034 -
863/01 - SWORD 350 MM BSD-2608045017.A9 2608045017 £33.74 £40.49
863/09 - GUARD PROFILE 350 MM BSD-2601329049.A5 2601329049 £2.80 £3.36
