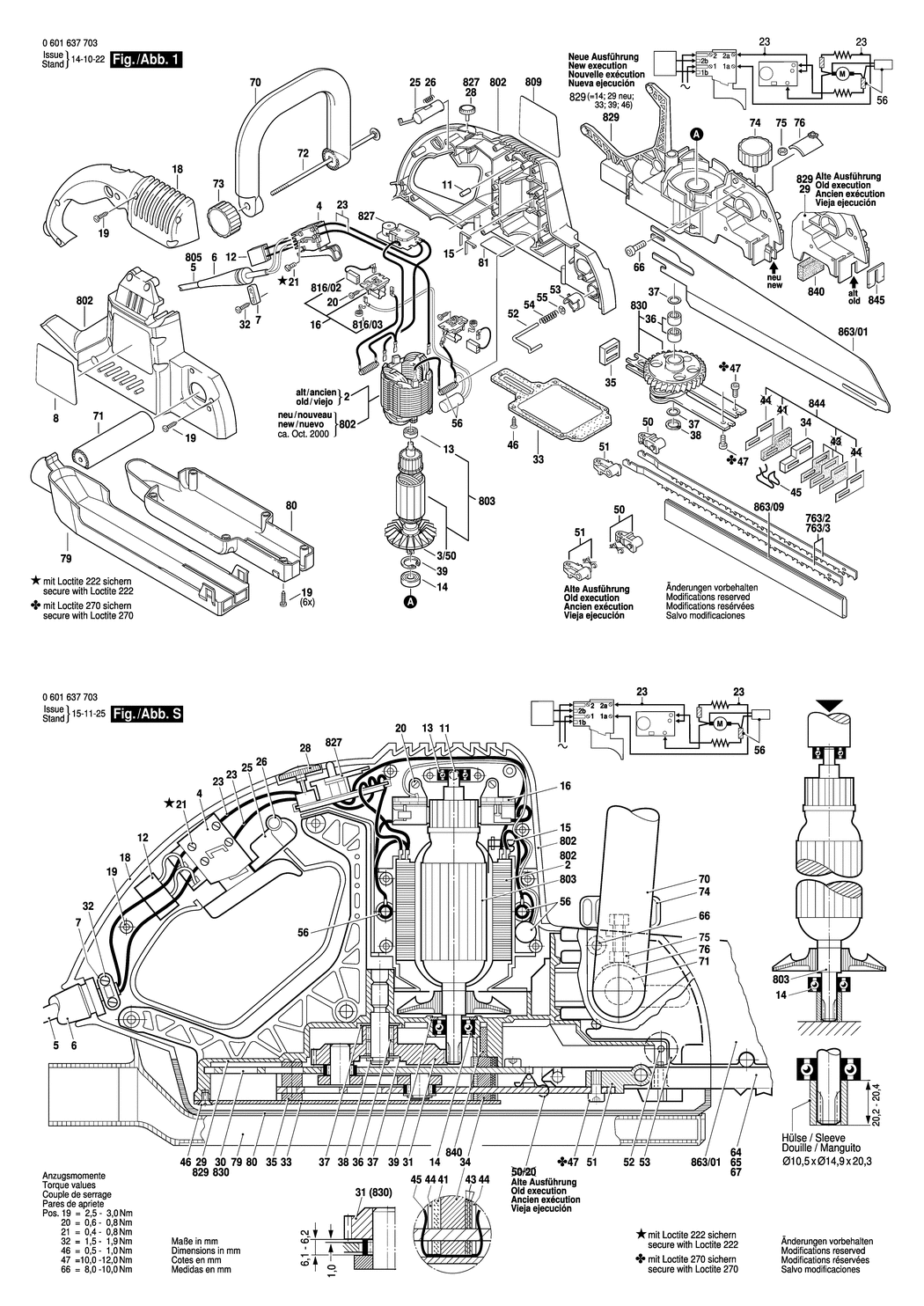

An exploded drawing and listing for the Bosch GFZ 16-35 AC / 0601637742 / GB 240 Volt
Ex VAT Inc VAT
3/50 - FAN BSD-3606610002.A55 3606610002 £2.33 £2.80
4 - SWITCH BSD-3607200066.A12 3607200066 £11.30 £13.56
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.00mm H05RN-F BSD-3604460079.A1 3604460079 £16.41 £19.69
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A67 1600703026 £2.16 £2.59
7 - CABLE CLIP BSD-2601035001.A1923 2601035001 £1.75 £2.10
8 - NAMEPLATE BSD-3601110323.A0 3601110323 -
11 - RUBBER BUFFER BSD-1603100036.A49 1603100036 £1.75 £2.10
12 - SUPPRESSION FILTER BSD-1607328028.A377 1607328028 £5.30 £6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A322 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING BSD-1600900042.A67 1600900042 £5.58 £6.70
15 - CONTACT SPRING BSD-3604680003.A8 3604680003 £1.75 £2.10
16 - BRUSH HOLDER BSD-3604336002.A3 3604336002 £11.30 £13.56
18 - HOUSING COVER BSD-3605500131.A2 3605500131 £11.30 £13.56
19 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A684 2603490023 £1.75 £2.10
20 - TORX OVAL-HEAD SCREW BSD-2914208465.A5 2914208465 £1.75 £2.10
21 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1436 2603410001 £1.75 £2.10
23 - CONNECTING CABLE L=280 MM BSD-3604411036.A5 3604411036 £3.72 £4.47
25 - REJECTION SLIDE BSD-3602329028.A19 3602329028 £1.75 £2.10
26 - COMPRESSION SPRING BSD-3604610041.A13 3604610041 £1.75 £2.10
28 - THUMBWHEEL BSD-3602317022.A5 3602317022 £2.80 £3.36
32 - SCREW 4x16 BSD-2603490022.A1661 2603490022 £1.75 £2.10
33 - GEAR COVER BSD-3605500133.A12 3605500133 £12.04 £14.45
34 - PLAIN BEARING BSD-3600929027.A17 3600929027 £6.52 £7.83
35 - PLAIN BEARING BSD-3600929030.A2 3600929030 £5.30 £6.36
36 - NEEDLE BEARING BSD-3600913008.A24 3600913008 £3.72 £4.47
37 - FRICTION WASHER BSD-3600102045.A9 3600102045 £1.75 £2.10
38 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A11 2916650903 £1.75 £2.10
39 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A121 2916660010 £1.75 £2.10
45 - CLAMP SPRING BSD-3604651020.A5 3604651020 £2.61 £3.13
46 - THREAD-FORMING TAP. SCREW M3x8 BSD-3603391003.A31 3603391003 £2.16 £2.59
47 - HEX SOCKET HEAD CAP SCREW M 6x16 MM BSD-3603410020.A9 3603410020 £1.75 £2.10
50 - BASE BODY BSD-3602319021.A10 3602319021 £12.04 £14.45
51 - BASE BODY BSD-3602319022.A9 3602319022 £12.04 £14.45
52 - BOW BSD-3601921005.A1 3601921005 £5.58 £6.70
53 - ACTUATING ELEMENT BSD-3600522002.A0 3600522002 £3.72 £4.47
54 - COMPRESSION SPRING BSD-3604682004.A10 3604682004 £2.16 £2.59
55 - LOCKING WASHER BSD-3600112002.A11 3600112002 £1.75 £2.10
56 - SUPPRESSION FILTER BSD-3604463012.A4 3604463012 £14.91 £17.89
66 - HEX SOCKET HEAD CAP SCREW M6 BSD-3603386041.A11 3603386041 £1.75 £2.10
70 - AUXILIARY HANDLE BSD-3605132063.A0 3605132063 £18.96 £22.75
71 - DISTANCE PIPE BSD-3600723012.A10 3600723012 £7.36 £8.83
72 - ROUND-HEAD BOLT BSD-3603300015.A17 3603300015 £2.80 £3.36
73 - HANDWHEEL M6 BSD-3602317021.A17 3602317021 £4.26 £5.11
74 - HANDWHEEL M6 BSD-3602317020.A2 3602317020 £4.26 £5.11
75 - HEX NUT BSD-3603435044.A20 3603435044 £2.16 £2.59
76 - CLAMPING PIECE BSD-3601329018.A18 3601329018 £1.75 £2.10
79 - SUCTION CHANNEL BSD-3602317017.A17 3602317017 £21.52 £25.83
80 - BASE PAN BSD-3605500092.A4 3605500092 £21.68 £26.01
81 - REFERENCE PLATE BSD-3601110332.A0 3601110332 £2.61 £3.13
763/2 - SAW BLADE SET 350 MM BSD-2608632120.A2 2608632120 £22.56 £27.07
763/3 - SAW BLADE SET 350 MM BSD-2608632123.A8 2608632123 £45.12 £54.14
802 - FIELD 230-240V BSD-1607000709.A3 1607000709 £68.42 £82.10
803 - ARMATURE 230-240V BSD-3604010078.A3 3604010078 £120.11 £144.13
809 - MANUFACTURER'S NAMEPLATE BSD-3601110613.A1 3601110613 £3.72 £4.47
816/02 - CARBON BRUSH BSD-3604321012.A7 3604321012 £12.04 £14.45
816/03 - SPIRAL SPRING BSD-3604652500.A17 3604652500 £1.75 £2.10
827 - SPEED GOVERNOR 230-240V BSD-3607233001.A2 3607233001 £81.81 £98.17
829 - GEAR HOUSING BSD-3605109010.A9 3605109010 £81.81 £98.17
830 - LIFT GEAR Z=78 BSD-3602319020.A17 3602319020 £120.11 £144.13
840 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A182 1602381006 £1.75 £2.10
844 - SEAL KIT BSD-3600929039.A1 3600929039 £16.41 £19.69
845 - LATERAL GUIDE BSD-3600929034.A18 3600929034 -
863/01 - SWORD 350 MM BSD-2608045017.A0 2608045017 £33.74 £40.49
863/09 - GUARD PROFILE 350 MM BSD-2601329049.A0 2601329049 £2.80 £3.36
