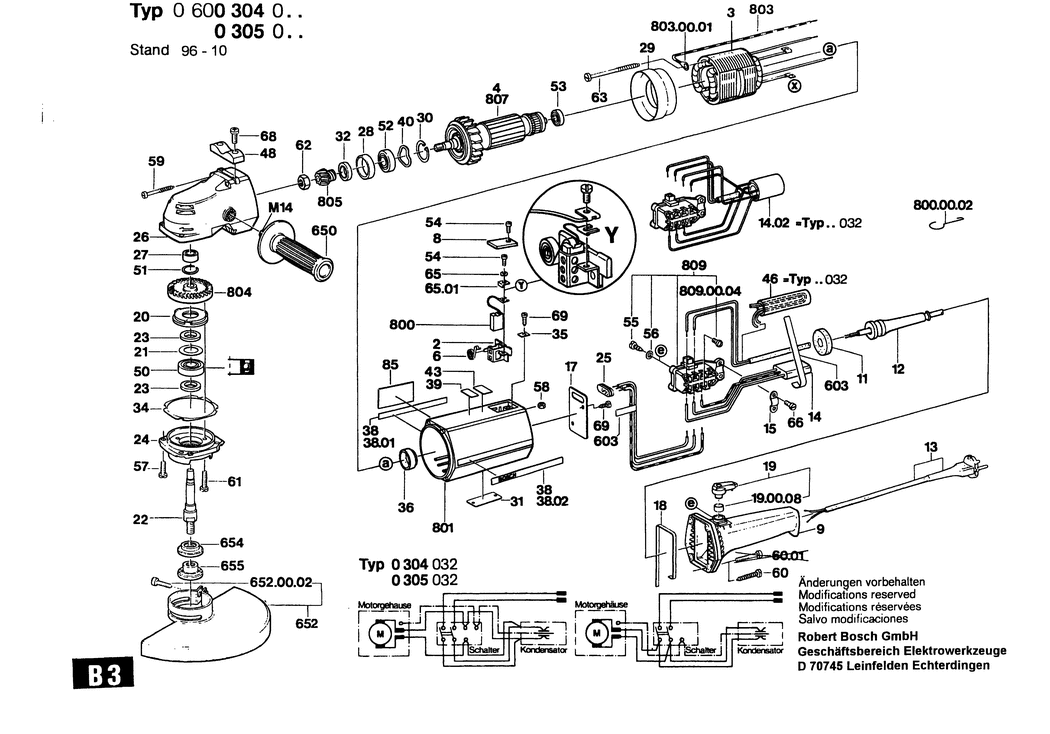

An exploded drawing and listing for the Bosch ---- / 0600304003 / EU 220 Volt
Ex VAT Inc VAT
2 - BRUSH HOLDER BSD-1604336008.A104 1604336008 £21.52 £25.83
3 - FIELD 220V BSD-1604220109.A16 1604220109 -
4 - ARMATURE 220V BSD-1604011223.A0 1604011223 -
6 - SPIRAL SPRING BSD-1604652015.A188 1604652015 £2.80 £3.36
8 - SEALING CAP BSD-1605500089.A199 1605500089 -
9 - HANDLE BSD-1605132079.A75 1605132079 -
11 - SEAL BSD-1600113002.A226 1600113002 £1.75 £2.10
12 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1100 3600703011 £2.80 £3.36
12 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A472 1600703009 £5.58 £6.70
13 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A45 1607000227 £23.86 £28.63
14 - SUPPRESSION FILTER BSD-1607328034.A459 1607328034 £4.26 £5.11
15 - FASTENING CLAMP BSD-1601302013.A104 1601302013 £1.75 £2.10
17 - COVER PLATE BSD-1601037006.A43 1601037006 -
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A198 1601014005 -
19 - CONTROL LEVER BSD-1602026041.A2 1602026041 -
19/00/08 - FELT WASHER BSD-1600205019.A51 1600205019 £1.75 £2.10
20 - BEARING COVER BSD-1605808054.A202 1605808054 -
21 - COVER DISC BSD-1600102012.A152 1600102012 -
22 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A67 1603523032 £37.27 £44.72
23 - SEALING DISK BSD-1600108055.A53 1600108055 £1.75 £2.10
24 - BEARING FLANGE BSD-1607000229.A223 1607000229 -
25 - GROMMET BSD-1600306001.A70 1600306001 £2.61 £3.13
26 - GEAR HOUSING BSD-1605806362.A28 1605806362 -
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A373 1600910010 £45.67 £54.80
28 - RUBBER RING 10 MM BSD-1600206014.A9 1600206014 £1.75 £2.10
29 - AIR-DEFLECTOR RING BSD-1600502007.A0 1600502007 -
30 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A74 2916660017 £4.26 £5.11
31 - NAMEPLATE BSD-160111A3H3.A4890 160111A3H3 £2.61 £3.13
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A9 1600290008 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190004.A7 1600190004 -
34 - SHIM 0.2 MM BSD-1600190005.A277 1600190005 £1.32 £1.58
35 - TAB WASHER BSD-1601030022.A537 1601030022 £1.75 £2.10
36 - RUBBER BUSHING BSD-1600502006.A174 1600502006 £1.75 £2.10
38 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A332 1601110003 -
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A67 1600150007 £1.75 £2.10
50 - GROOVE BALL BEARING 17x40x12 BSD-1900905281.A92 1900905281 £31.64 £37.97
51 - RETAINING RING dia22 MM BSD-2916620011.A48 2916620011 £1.75 £2.10
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A267 1900905234 £31.64 £37.97
53 - GROOVE BALL BEARING 10x26x8 BSD-1900900407.A12 1900900407 -
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A827 2910021118 £1.75 £2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A361 2910211006 £1.75 £2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A284 2916011005 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-8.8 BSD-2910021157.A0 2910021157 £1.32 £1.58
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A341 2915011005 £1.75 £2.10
59 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A243 1613435009 £1.75 £2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A109 2910211036 £1.75 £2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-8.8 BSD-2910021162.A10 2910021162 -
62 - HEX NUT M12x1.5 MM BSD-1603300009.A68 1603300009 £1.75 £2.10
63 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A213 1603435006 -
65 - SPRING WASHER DIN 137-A4 BSD-1600150006.A593 1600150006 -
65/01 - TAB WASHER BSD-1611331007.A38 1611331007 £1.32 £1.58
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A403 2910021122 £2.16 £2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A395 2910211011 £1.75 £2.10
85 - REFERENCE PLATE BSD-1601110060.A2 1601110060 -
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1291 1602025022 £13.41 £16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1031 1602025030 £18.96 £22.75
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A67 2607950511 £4.26 £5.11
652 - PROTECTIVE COVER dia180 MM BSD-1605510199.A0 1605510199 -
652/00/02 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A180 2910141242 £1.75 £2.10
653 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A299 2607950004 £1.75 £2.10
653 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A5 1907950007 £5.30 £6.36
654 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A55 2600501006 £16.43 £19.72
655 - ROUND NUT M14 BSD-2603345004.A71 2603345004 £6.52 £7.83
800 - CARBON-BRUSH SET BSD-1607014103.A49 1607014103 £14.91 £17.89
800/00/02 - EXTRACTOR HOOK BSD-1604682006.A11 1604682006 £1.75 £2.10
801 - ASSEMBLY OF SERVICE PARTS BSD-1605108902.A57 1605108902 -
803 - CONNECTING CABLE BSD-1604440004.A8 1604440004 -
803/00/01 - TERMINAL LUG BSD-1601353003.A64 1601353003 -
804 - BEVEL GEAR Z=52 BSD-1606333147.A23 1606333147 -
805 - BEVEL GEAR Z=17 BSD-1606333148.A2 1606333148 -
809 - SWITCH KIT BSD-1607000034.A428 1607000034 -
809/00/04 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A166 2910091118 £1.75 £2.10
