Bosch ---- / 0600305003 / EU 220 Volt Spare Parts

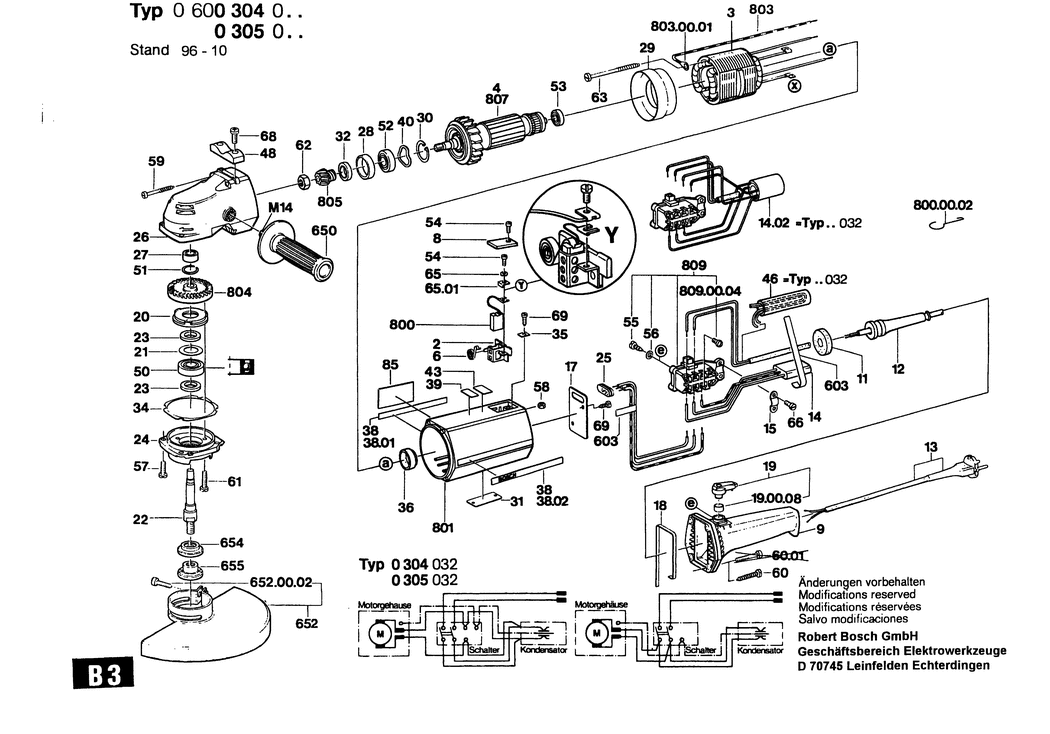

An exploded drawing and listing for the Bosch ---- / 0600305003 / EU 220 Volt

	Ex VAT	Inc VAT
2 - BRUSH HOLDER BSD-1604336008.A155 1604336008	£21.52	£25.83
3 - FIELD 220V BSD-1604220109.A15 1604220109	-
4 - ARMATURE 220V BSD-1604011223.A7 1604011223	-
6 - SPIRAL SPRING BSD-1604652015.A546 1604652015	£2.80	£3.36
8 - SEALING CAP BSD-1605500089.A109 1605500089	-
9 - HANDLE BSD-1605132079.A46 1605132079	-
11 - SEAL BSD-1600113002.A208 1600113002	£1.75	£2.10
12 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A187 3600703011	£2.80	£3.36
12 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A146 1600703009	£5.58	£6.70
13 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A745 1607000227	£23.86	£28.63
14 - SUPPRESSION FILTER BSD-1607328034.A239 1607328034	£4.26	£5.11
15 - FASTENING CLAMP BSD-1601302013.A437 1601302013	£1.75	£2.10
17 - COVER PLATE BSD-1601037006.A194 1601037006	-
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A106 1601014005	-
19/00/08 - FELT WASHER BSD-1600205019.A46 1600205019	£1.75	£2.10
20 - BEARING COVER BSD-1605808054.A198 1605808054	-
21 - COVER DISC BSD-1600102012.A156 1600102012	-
22 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A72 1603523032	£37.27	£44.72
23 - SEALING DISK BSD-1600108055.A49 1600108055	£1.75	£2.10
24 - BEARING FLANGE BSD-1607000229.A227 1607000229	-
25 - GROMMET BSD-1600306001.A74 1600306001	£2.61	£3.13
26 - GEAR HOUSING BSD-1605806362.A32 1605806362	-
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A379 1600910010	£45.67	£54.80
28 - RUBBER RING 10 MM BSD-1600206014.A15 1600206014	£1.75	£2.10
29 - AIR-DEFLECTOR RING BSD-1600502007.A6 1600502007	-
30 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A72 2916660017	£4.26	£5.11
31 - NAMEPLATE BSD-160111A3H3.A4884 160111A3H3	£2.61	£3.13
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A3 1600290008	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190004.A1 1600190004	-
34 - SHIM 0.2 MM BSD-1600190005.A283 1600190005	£1.32	£1.58
35 - TAB WASHER BSD-1601030022.A542 1601030022	£1.75	£2.10
36 - RUBBER BUSHING BSD-1600502006.A168 1600502006	£1.75	£2.10
38 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A337 1601110003	-
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A73 1600150007	£1.75	£2.10
50 - GROOVE BALL BEARING 17x40x12 BSD-1900905281.A96 1900905281	£31.64	£37.97
51 - RETAINING RING dia22 MM BSD-2916620011.A50 2916620011	£1.75	£2.10
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A263 1900905234	£31.64	£37.97
53 - GROOVE BALL BEARING 10x26x8 BSD-1900900407.A16 1900900407	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A832 2910021118	£1.75	£2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A364 2910211006	£1.75	£2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A282 2916011005	£1.75	£2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-8.8 BSD-2910021157.A4 2910021157	£1.32	£1.58
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A343 2915011005	£1.75	£2.10
59 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A246 1613435009	£1.75	£2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A107 2910211036	£1.75	£2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-8.8 BSD-2910021162.A6 2910021162	-
62 - HEX NUT M12x1.5 MM BSD-1603300009.A73 1603300009	£1.75	£2.10
63 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A208 1603435006	-
65 - SPRING WASHER DIN 137-A4 BSD-1600150006.A587 1600150006	-
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A400 2910021122	£2.16	£2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A391 2910211011	£1.75	£2.10
85 - REFERENCE PLATE BSD-1601110061.A3 1601110061	-
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1295 1602025022	£13.41	£16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1027 1602025030	£18.96	£22.75
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A63 2607950511	£4.26	£5.11
652 - PROTECTIVE COVER dia230 MM BSD-1605510198.A85 1605510198	-
652/00/02 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A176 2910141242	£1.75	£2.10
653 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A303 2607950004	£1.75	£2.10
653 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A9 1907950007	£5.30	£6.36
654 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A51 2600501006	£16.43	£19.72
655 - ROUND NUT M14 BSD-2603345004.A67 2603345004	£6.52	£7.83
800 - CARBON-BRUSH SET BSD-1607014103.A45 1607014103	£14.91	£17.89
800/00/02 - EXTRACTOR HOOK BSD-1604682006.A7 1604682006	£1.75	£2.10
801 - ASSEMBLY OF SERVICE PARTS BSD-1605108902.A61 1605108902	-
803 - CONNECTING CABLE BSD-1604440004.A4 1604440004	-
803/00/01 - TERMINAL LUG BSD-1601353003.A60 1601353003	-
804 - CROWN GEAR Z=59 BSD-1606333144.A26 1606333144	-
805 - BEVEL GEAR Z=15 BSD-1606333145.A0 1606333145	-
809 - SWITCH KIT BSD-1607000034.A431 1607000034	-
809/00/04 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A170 2910091118	£1.75	£2.10
