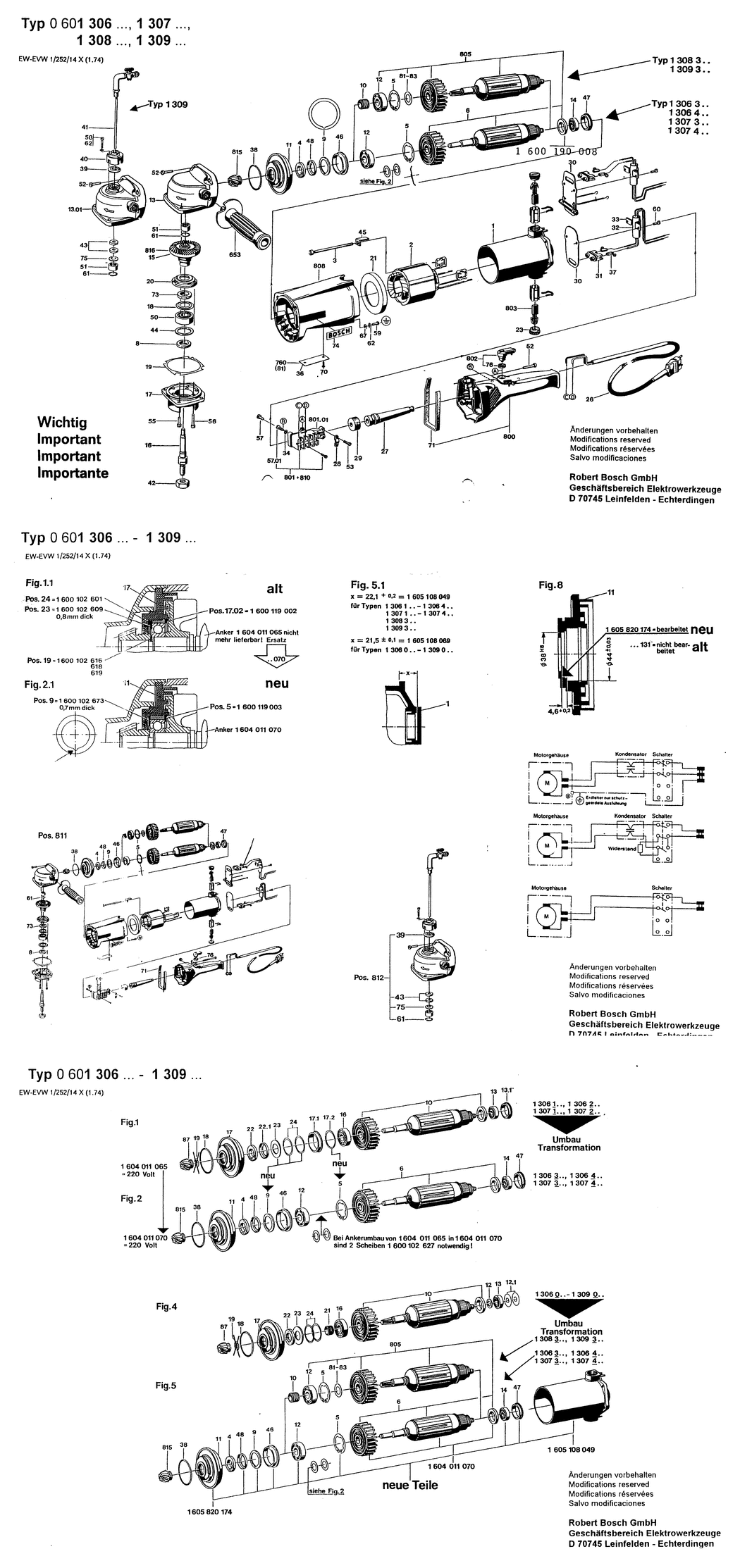

An exploded drawing and listing for the Bosch ---- / 0601309308 / EU 250 Volt
Ex VAT Inc VAT
1 - POLE HOUSING BSD-1605108049.A65 1605108049 -
2 - POLE SHOE 240-250V BSD-1604220092.A1 1604220092 -
3 - SOCKET HEAD CAP SCREW BSD-1603410008.A184 1603410008 -
10 - THREADED RING BSD-1603344018.A1 1603344018 -
11 - BEARING FLANGE BSD-1605820174.A65 1605820174 -
12 - GROOVE BALL BEARING 6203-TH/C3 DIN 625 BSD-1900900413.A111 1900900413 -
13 - GEAR HOUSING BSD-1605806169.A4 1605806169 -
14 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A400 1900905121 £18.96 £22.75
15 - BEVEL GEAR Z=54 BSD-1606333038.A3 1606333038 -
16 - GRINDING SPINDLE M20 BSD-1603523073.A3 1603523073 -
17 - BEARING FLANGE dia 14.8 MM BSD-1605805044.A68 1605805044 -
18 - PLAIN WASHER BSD-2100551000.A13 2100551000 -
19 - SHIM 0.10 MM BSD-1601038020.A65 1601038020 -
19 - SHIM 0.20 MM BSD-1601038021.A4 1601038021 -
20 - CONICAL SPRING WASHER BSD-1600521013.A13 1600521013 -
21 - AIR-DEFLECTOR RING BSD-1600502001.A74 1600502001 -
23 - SCREW PLUG BSD-1603465003.A79 1603465003 -
28 - FASTENING CLAMP BSD-1601302013.A20 1601302013 £1.75 £2.10
29 - SEALING PLATE BSD-1600113003.A110 1600113003 £2.80 £3.36
31 - GROMMET BSD-1600306002.A3 1600306002 -
32 - SUPPRESSION CAPACITOR BSD-1607329003.A1 1607329003 -
33 - FASTENING CLAMP BSD-1601302003.A6 1601302003 -
33 - FASTENING CLAMP BSD-1601302004.A2 1601302004 -
34 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A642 2916011005 £1.75 £2.10
37 - SLEEVE TERMINAL BSD-1600390006.A3 1600390006 -
40 - CONNECTING FLANGE BSD-1600328012.A31 1600328012 -
41 - SHUT-OFF TAP BSD-1607415002.A30 1607415002 -
42 - HEX NUT BSD-1603300000.A2 1603300000 -
43 - REFERENCE PLATE BSD-1601110058.A205 1601110058 £1.75 £2.10
44 - SHIM BSD-1600102674.A67 1600102674 -
45 - HOLDING BRACKET BSD-1601331032.A33 1601331032 -
50 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A211 1900900352 £27.23 £32.68
51 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A184 1600910010 £45.67 £54.80
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A522 2910021122 £2.16 £2.59
55 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A79 2910011157 -
56 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8 BSD-2910011164.A156 2910011164 -
57 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A210 2910021050 £1.75 £2.10
57 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A789 2910211006 £1.75 £2.10
58 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A131 2910021130 £1.75 £2.10
59 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A3 2910110120 £1.75 £2.10
60 - SELF-CUTTING SCREW dia 3.9x13 MM BSD-1603435000.A3 1603435000 -
62 - SPRING WASHER DIN 137-A4 BSD-1600150006.A347 1600150006 -
67 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A276 2916010409 -
70 - ROUND-HEAD GROOVED PIN DIN 1476-2x3-St BSD-2917721031.A85 2917721031 £1.75 £2.10
74 - MANUFACTURER'S NAMEPLATE BSD-1601110011.A72 1601110011 -
76 - FELT WASHER BSD-1600205008.A147 1600205008 £1.75 £2.10
81 - SHIM 0.05 MM BSD-1600101612.A3 1600101612 -
81 - SHIM 0.05 MM BSD-1600101650.A92 1600101650 £2.61 £3.13
82 - SHIM 1.0 MM BSD-1600101606.A6 1600101606 -
83 - SHIM BSD-1600101608.A2 1600101608 -
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A403 1907950007 £5.30 £6.36
651 - SINGLE-HEAD ENG. WRENCH SW19 BSD-1907950511.A9 1907950511 £11.78 £14.13
652 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A831 2607950511 £4.26 £5.11
653 - AUXILIARY HANDLE M14 BSD-1602025022.A343 1602025022 £13.41 £16.09
653 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A454 1602025030 £18.96 £22.75
654 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A99 2607950004 £1.75 £2.10
655 - PROTECTIVE COVER dia180 MM BSD-1605510199.A80 1605510199 -
655 - PROTECTIVE COVER dia230 MM BSD-1605510198.A7 1605510198 -
657 - ROUND NUT M14 BSD-2603345004.A227 2603345004 £6.52 £7.83
800 - HANDLE BSD-1605132060.A2 1605132060 -
802 - CONTROL LEVER BSD-1602026030.A3 1602026030 £10.10 £12.12
803 - CARBON-BRUSH SET BSD-1607014100.A11 1607014100 -
805 - ARMATURE 250V BSD-1604011921.A0 1604011921 -
808 - MOTOR HOUSING BSD-1605102041.A66 1605102041 -
810 - SWITCH KIT BSD-1607000034.A100 1607000034 -
811 - SEAL KIT BSD-1607000040.A46 1607000040 -
812 - SEAL KIT BSD-1607000044.A3 1607000044 £9.49 £11.39
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A572 1607000228 £23.86 £28.63
835/020 - END SPLICE BSD-3604477009.A323 3604477009 £2.61 £3.13
888 - NAMEPLATE BSD-160111A3H3.A630 160111A3H3 £2.61 £3.13
