Bosch ---- / 0601314008 / EU 220 Volt Spare Parts

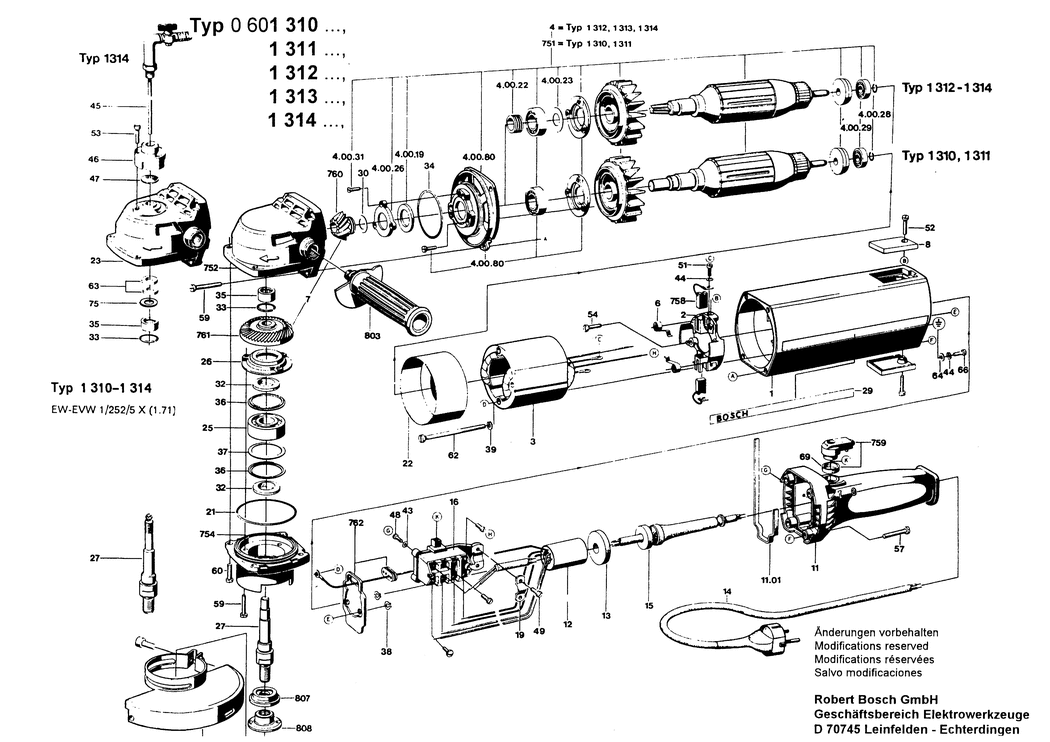

An exploded drawing and listing for the Bosch ---- / 0601314008 / EU 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108065.A69 1605108065	-
2 - BRUSH HOLDER BSD-1604336006.A252 1604336006	-
3 - POLE SHOE 220-240V BSD-1604220079.A11 1604220079	-
4 - ARMATURE 220-240V BSD-1604011211.A3 1604011211	-
4/00/19 - FELT DISC BSD-1600108018.A85 1600108018	£2.61	£3.13
4/00/22 - THREADED RING BSD-1603344030.A39 1603344030	£59.53	£71.44
4/00/23 - SHIM 0.05 MM BSD-1600101635.A11 1600101635	-
4/00/23 - SHIM 0.05 MM BSD-1600101636.A97 1600101636	-
4/00/23 - SHIM 0.05 MM BSD-1600101637.A11 1600101637	-
4/00/26 - COVER DISC BSD-1600501024.A160 1600501024	£16.41	£19.69
4/00/28 - RETAINING RING BSD-1604601013.A53 1604601013	-
4/00/29 - GROOVE BALL BEARING BSD-1600900015.A58 1600900015	-
4/00/31 - COUNTERSUNK-HEAD SCREW BSD-2910511122.A75 2910511122	-
4/00/80 - INTERMEDIATE BEARING BSD-1605820901.A3 1605820901	-
6 - SPIRAL SPRING BSD-1604652015.A147 1604652015	£2.80	£3.36
8 - NAMEPLATE BSD-160111A3H3.A1924 160111A3H3	£2.61	£3.13
11 - HANDLE BSD-3605132048.A224 3605132048	£63.50	£76.20
11/01 - SEALING CORD BSD-1601014000.A210 1601014000	£2.80	£3.36
12 - SUPPRESSION CAPACITOR BSD-1607329005.A88 1607329005	-
13 - SEAL BSD-1600113002.A394 1600113002	£1.75	£2.10
14 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A400 1607000228	£23.86	£28.63
15 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1311 3600703011	£2.80	£3.36
16 - SWITCH KIT BSD-1607000034.A142 1607000034	-
19 - FASTENING CLAMP BSD-1601302013.A256 1601302013	£1.75	£2.10
21 - O-RING 66.0x3.0 MM BSD-1600210005.A75 1600210005	£2.80	£3.36
22 - AIR-DEFLECTOR RING BSD-1600209008.A11 1600209008	-
23 - GEAR HOUSING BSD-1605806261.A40 1605806261	-
25 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A241 1900900352	£27.23	£32.68
26 - CONICAL SPRING WASHER BSD-1600521013.A120 1600521013	-
27 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A154 1603523032	£37.27	£44.72
27 - GRINDING SPINDLE BSD-1603523034.A13 1603523034	-
27 - GRINDING SPINDLE 5/8-UNC-2A BSD-1603523091.A124 1603523091	-
29 - REFERENCE PLATE BSD-1601110006.A45 1601110006	-
30 - SHIM 0.1 MM BSD-1600101616.A167 1600101616	£2.61	£3.13
30 - SHIM 0.2 MM BSD-1600101617.A29 1600101617	£1.75	£2.10
30 - SHIM 0.3 MM BSD-1600101618.A223 1600101618	£2.61	£3.13
30 - SHIM 0.05 MM BSD-1600101619.A29 1600101619	£2.16	£2.59
32 - SEALING DISK BSD-1600108048.A67 1600108048	£1.75	£2.10
33 - RETAINING RING dia22 MM BSD-2916620011.A259 2916620011	£1.75	£2.10
34 - O-RING 54.0x3.0 MM BSD-1600210004.A76 1600210004	£2.80	£3.36
35 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A13 1600910010	£45.67	£54.80
36 - PLAIN WASHER BSD-2100551000.A66 2100551000	-
37 - SHIM 0.05 MM BSD-1600102638.A147 1600102638	£3.34	£4.01
37 - SHIM 0.1 MM BSD-1600102639.A87 1600102639	-
37 - SHIM 0.15 MM BSD-1600102640.A147 1600102640	-
38 - SPRING RETAINING RING BSD-1600118001.A39 1600118001	-
39 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A482 2916680006	-
43 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A353 2916060003	£1.32	£1.58
44 - SPRING WASHER DIN 137-A4 BSD-1600150006.A139 1600150006	-
45 - SHUT-OFF TAP BSD-1607415002.A82 1607415002	-
46 - CONNECTING FLANGE BSD-1600328012.A88 1600328012	-
47 - CUPPED WASHER BSD-1600109002.A69 1600109002	-
48 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A314 2910021050	£1.75	£2.10
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A80 2910011122	-
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8 BSD-2910011120.A183 2910011120	£1.75	£2.10
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A55 2910021125	£1.75	£2.10
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A235 2910021130	£1.75	£2.10
54 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2413 2910211019	£1.75	£2.10
57 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8 BSD-2910011166.A86 2910011166	£1.75	£2.10
59 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8 BSD-2910011164.A175 2910011164	-
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A156 2910011157	-
62 - SOCKET HEAD CAP SCREW DIN 84-BM5x82 BSD-1603410001.A1 1603410001	-
64 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A183 2916010410	-
66 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A144 2910110118	£1.75	£2.10
69 - FELT WASHER BSD-1600205008.A69 1600205008	£1.75	£2.10
75 - SHIM 0.3 MM BSD-1600101641.A78 1600101641	£3.72	£4.47
754 - FLANGED BEARING BSD-1605805038.A40 1605805038	-
758 - CARBON-BRUSH SET BSD-1607014102.A67 1607014102	-
759 - CONTROL LEVER BSD-1602026030.A227 1602026030	£10.10	£12.12
761 - BEVEL GEAR Z=54 BSD-1606333082.A80 1606333082	£120.11	£144.13
762 - SEALING PLATE BSD-1602388007.A311 1602388007	£12.04	£14.45
803 - AUXILIARY HANDLE M14 BSD-1602025022.A930 1602025022	£13.41	£16.09
803 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A137 1602025030	£18.96	£22.75
804 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A514 2607950511	£4.26	£5.11
805 - PROTECTIVE COVER dia 125 MM BSD-1605510022.A27 1605510022	-
805 - PROTECTIVE COVER dia180 MM BSD-1605510199.A150 1605510199	-
806 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A232 2607950004	£1.75	£2.10
807 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A334 2600501006	£16.43	£19.72
808 - ROUND NUT M14 BSD-2603345004.A324 2603345004	£6.52	£7.83
