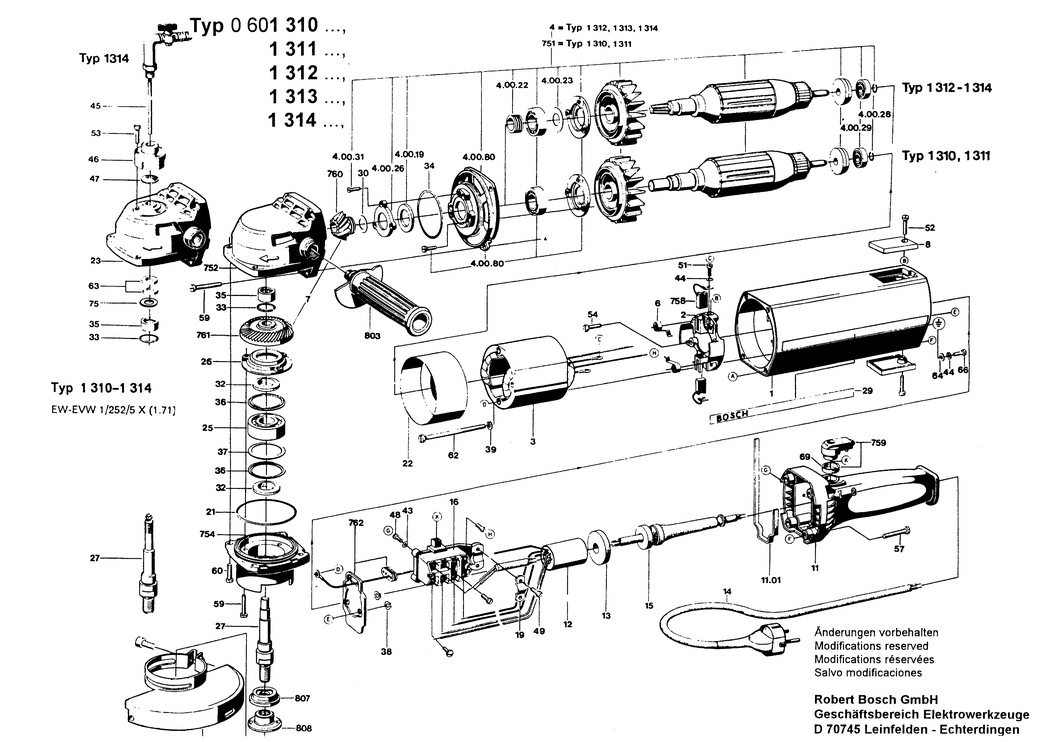

1 - MOTOR HOUSING
BSD-1605108065.A76
1605108065
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A237
1604336006
|
-
|
|
|
|
3 - POLE SHOE 220-240V
BSD-1604220079.A14
1604220079
|
-
|
|
|
|
4 - ARMATURE 220-240V
BSD-1604011211.A0
1604011211
|
-
|
|
|
|
4/00/19 - FELT DISC
BSD-1600108018.A99
1600108018
|
£2.61
|
£3.13
|
|
|
4/00/22 - THREADED RING
BSD-1603344030.A25
1603344030
|
£59.53
|
£71.44
|
|
|
4/00/23 - SHIM 0.05 MM
BSD-1600101635.A15
1600101635
|
-
|
|
|
|
4/00/23 - SHIM 0.05 MM
BSD-1600101636.A93
1600101636
|
-
|
|
|
|
4/00/23 - SHIM 0.05 MM
BSD-1600101637.A15
1600101637
|
-
|
|
|
|
4/00/26 - COVER DISC
BSD-1600501024.A147
1600501024
|
£16.41
|
£19.69
|
|
|
4/00/28 - RETAINING RING
BSD-1604601013.A38
1604601013
|
-
|
|
|
|
4/00/29 - GROOVE BALL BEARING
BSD-1600900015.A45
1600900015
|
-
|
|
|
|
4/00/31 - COUNTERSUNK-HEAD SCREW
BSD-2910511122.A61
2910511122
|
-
|
|
|
|
4/00/80 - INTERMEDIATE BEARING
BSD-1605820901.A0
1605820901
|
-
|
|
|
|
6 - SPIRAL SPRING
BSD-1604652015.A144
1604652015
|
£2.80
|
£3.36
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A1910
160111A3H3
|
£2.61
|
£3.13
|
|
|
11 - HANDLE
BSD-3605132048.A208
3605132048
|
£63.50
|
£76.20
|
|
|
11/01 - SEALING CORD
BSD-1601014000.A216
1601014000
|
£2.80
|
£3.36
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1607329005.A73
1607329005
|
-
|
|
|
|
13 - SEAL
BSD-1600113002.A380
1600113002
|
£1.75
|
£2.10
|
|
|
14 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A385
1607000228
|
£23.86
|
£28.63
|
|
|
15 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1300
3600703011
|
£2.80
|
£3.36
|
|
|
16 - SWITCH KIT
BSD-1607000034.A139
1607000034
|
-
|
|
|
|
19 - FASTENING CLAMP
BSD-1601302013.A251
1601302013
|
£1.75
|
£2.10
|
|
|
21 - O-RING 66.0x3.0 MM
BSD-1600210005.A80
1600210005
|
£2.80
|
£3.36
|
|
|
22 - AIR-DEFLECTOR RING
BSD-1600209008.A16
1600209008
|
-
|
|
|
|
23 - GEAR HOUSING
BSD-1605806261.A25
1605806261
|
-
|
|
|
|
25 - GROOVE BALL BEARING 17x47x14
BSD-1900900352.A226
1900900352
|
£27.23
|
£32.68
|
|
|
26 - CONICAL SPRING WASHER
BSD-1600521013.A115
1600521013
|
-
|
|
|
|
27 - GRINDING SPINDLE M14x1.5 MM
BSD-1603523032.A140
1603523032
|
£37.27
|
£44.72
|
|
|
27 - GRINDING SPINDLE
BSD-1603523034.A23
1603523034
|
-
|
|
|
|
27 - GRINDING SPINDLE 5/8-UNC-2A
BSD-1603523091.A111
1603523091
|
-
|
|
|
|
29 - REFERENCE PLATE
BSD-1601110006.A40
1601110006
|
-
|
|
|
|
30 - SHIM 0.1 MM
BSD-1600101616.A171
1600101616
|
£2.61
|
£3.13
|
|
|
30 - SHIM 0.2 MM
BSD-1600101617.A25
1600101617
|
£1.75
|
£2.10
|
|
|
30 - SHIM 0.3 MM
BSD-1600101618.A227
1600101618
|
£2.61
|
£3.13
|
|
|
30 - SHIM 0.05 MM
BSD-1600101619.A25
1600101619
|
£2.16
|
£2.59
|
|
|
32 - SEALING DISK
BSD-1600108048.A53
1600108048
|
£1.75
|
£2.10
|
|
|
33 - RETAINING RING dia22 MM
BSD-2916620011.A249
2916620011
|
£1.75
|
£2.10
|
|
|
34 - O-RING 54.0x3.0 MM
BSD-1600210004.A71
1600210004
|
£2.80
|
£3.36
|
|
|
35 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A1
1600910010
|
£45.67
|
£54.80
|
|
|
36 - PLAIN WASHER
BSD-2100551000.A63
2100551000
|
-
|
|
|
|
37 - SHIM 0.05 MM
BSD-1600102638.A133
1600102638
|
£3.34
|
£4.01
|
|
|
37 - SHIM 0.1 MM
BSD-1600102639.A101
1600102639
|
-
|
|
|
|
37 - SHIM 0.15 MM
BSD-1600102640.A133
1600102640
|
-
|
|
|
|
38 - SPRING RETAINING RING
BSD-1600118001.A35
1600118001
|
-
|
|
|
|
39 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A468
2916680006
|
-
|
|
|
|
43 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A339
2916060003
|
£1.32
|
£1.58
|
|
|
44 - SPRING WASHER DIN 137-A4
BSD-1600150006.A126
1600150006
|
-
|
|
|
|
45 - SHUT-OFF TAP
BSD-1607415002.A97
1607415002
|
-
|
|
|
|
46 - CONNECTING FLANGE
BSD-1600328012.A82
1600328012
|
-
|
|
|
|
47 - CUPPED WASHER
BSD-1600109002.A83
1600109002
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8
BSD-2910021050.A310
2910021050
|
£1.75
|
£2.10
|
|
|
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8
BSD-2910011122.A94
2910011122
|
-
|
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A169
2910011120
|
£1.75
|
£2.10
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A35
2910021125
|
£1.75
|
£2.10
|
|
|
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8
BSD-2910021130.A233
2910021130
|
£1.75
|
£2.10
|
|
|
54 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2406
2910211019
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8
BSD-2910011166.A90
2910011166
|
£1.75
|
£2.10
|
|
|
59 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8
BSD-2910011164.A171
2910011164
|
-
|
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A142
2910011157
|
-
|
|
|
|
62 - SOCKET HEAD CAP SCREW DIN 84-BM5x82
BSD-1603410001.A17
1603410001
|
-
|
|
|
|
64 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A181
2916010410
|
-
|
|
|
|
66 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A128
2910110118
|
£1.75
|
£2.10
|
|
|
69 - FELT WASHER
BSD-1600205008.A63
1600205008
|
£1.75
|
£2.10
|
|
|
75 - SHIM 0.3 MM
BSD-1600101641.A74
1600101641
|
£3.72
|
£4.47
|
|
|
754 - FLANGED BEARING
BSD-1605805038.A37
1605805038
|
-
|
|
|
|
758 - CARBON-BRUSH SET
BSD-1607014102.A64
1607014102
|
-
|
|
|
|
759 - CONTROL LEVER
BSD-1602026030.A211
1602026030
|
£10.10
|
£12.12
|
|
|
761 - BEVEL GEAR Z=54
BSD-1606333082.A83
1606333082
|
£120.11
|
£144.13
|
|
|
762 - SEALING PLATE
BSD-1602388007.A327
1602388007
|
£12.04
|
£14.45
|
|
|
803 - AUXILIARY HANDLE M14
BSD-1602025022.A914
1602025022
|
£13.41
|
£16.09
|
|
|
803 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A153
1602025030
|
£18.96
|
£22.75
|
|
|
804 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A530
2607950511
|
£4.26
|
£5.11
|
|
|
805 - PROTECTIVE COVER dia 125 MM
BSD-1605510022.A24
1605510022
|
-
|
|
|
|
805 - PROTECTIVE COVER dia180 MM
BSD-1605510199.A153
1605510199
|
-
|
|
|
|
806 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A216
2607950004
|
£1.75
|
£2.10
|
|
|
807 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A318
2600501006
|
£16.43
|
£19.72
|
|
|
808 - ROUND NUT M14
BSD-2603345004.A323
2603345004
|
£6.52
|
£7.83
|
|
