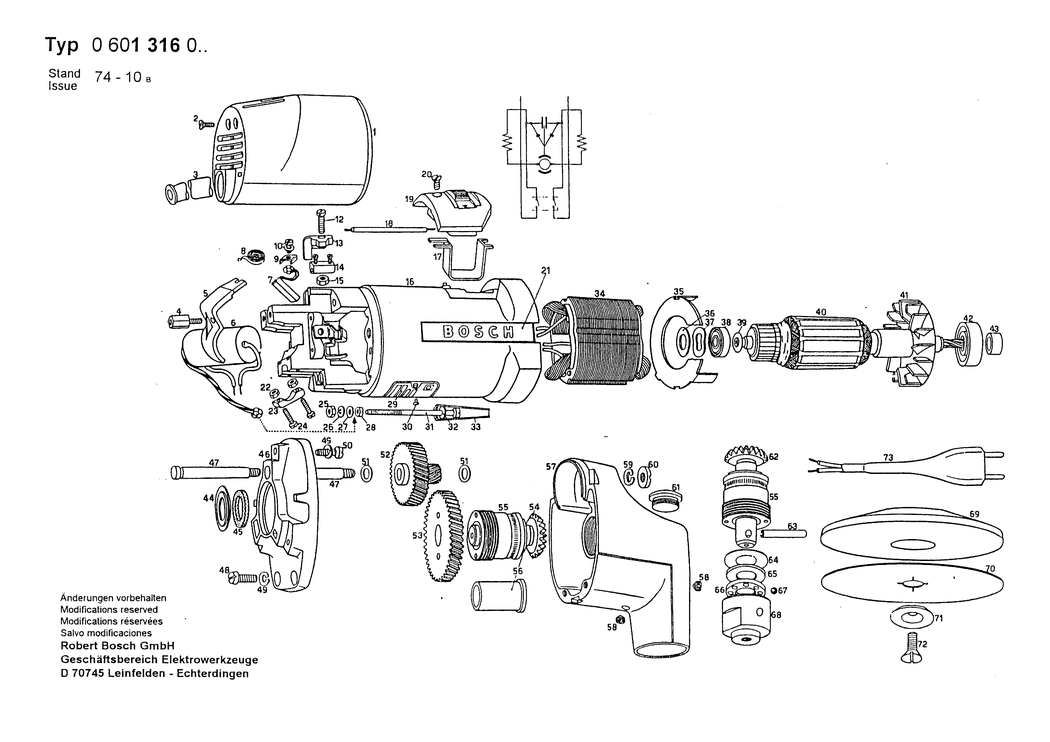

An exploded drawing and listing for the Bosch ---- / 0601316003 / EU 220 Volt
Ex VAT Inc VAT
1 - HOUSING COVER BSD-3600508023.A74 3600508023 £13.41 £16.09
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A55 2910501084 -
3 - GROMMET dia7 MM BSD-2600703007.A390 2600703007 -
3 - GROMMET dia8.2 MM BSD-2600703008.A8 2600703008 £1.75 £2.10
3 - GROMMET dia8.2 MM BSD-2600703008.A9 2600703008 £1.75 £2.10
3 - GROMMET dia9.5 MM BSD-2600703006.A5 2600703006 -
4 - HEX SCREW BSD-2603527004.A66 2603527004 £1.75 £2.10
5 - FASTENING CLAMP BSD-2601301002.A64 2601301002 £2.16 £2.59
6 - SUPPRESSION FILTER BSD-2607329048.A64 2607329048 -
7 - CARBON-BRUSH SET BSD-2604320905.A56 2604320905 -
8 - SPIRAL SPRING BSD-2604652000.A208 2604652000 -
9 - CLAMPING SADDLE BSD-2601321005.A54 2601321005 -
10 - SOCKET HEAD CAP SCREW BSD-2603410010.A401 2603410010 -
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84 BSD-2910011028.A20 2910011028 -
13 - CLAMPING PIECE BSD-2602305034.A21 2602305034 -
14 - CONNECTING TERMINAL BSD-2604490003.A69 2604490003 -
15 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A38 2915011002 -
16 - MOTOR HOUSING BSD-2605108032.A66 2605108032 -
17 - INSULATING PART BSD-2601322002.A54 2601322002 £1.75 £2.10
18 - CABLE BSD-2604411061.A12 2604411061 -
19 - SWITCH BSD-2607200045.A38 2607200045 -
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A43 2910501048 -
21 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A328 2601007003 -
22 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A39 2915011002 -
23 - CABLE CLIP BSD-2601035005.A4 2601035005 £1.75 £2.10
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8 BSD-2910011033.A31 2910011033 -
25 - HEX NUT DIN 439-BM 3 BSD-2915051103.A28 2915051103 £1.75 £2.10
26 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A154 2916690001 -
27 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A362 2916011005 £1.75 £2.10
28 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A83 2915011003 £1.75 £2.10
29 - NAMEPLATE BSD-2601100038.A84 2601100038 -
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST BSD-2917724031.A54 2917724031 -
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A92 2910011074 £1.75 £2.10
32 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A361 2916011005 £1.75 £2.10
33 - CABLE CLIP BSD-2601099015.A0 2601099015 £1.75 £2.10
34 - FIELD 220-230V BSD-2604220269.A33 2604220269 -
35 - SEAL RING BSD-2600113019.A29 2600113019 £2.80 £3.36
36 - SHIM BSD-2600100699.A69 2600100699 £1.75 £2.10
37 - SHIM BSD-2600150002.A96 2600150002 -
38 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A14 1900905015 £30.42 £36.51
39 - SHIM 0.3 MM BSD-2600100612.A112 2600100612 £2.61 £3.13
40 - ARMATURE 220-230V BSD-2604010275.A19 2604010275 -
41 - FAN BSD-2606610038.A15 2606610038 -
42 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A122 1900905007 -
43 - SEAL BUSHING BSD-2600300047.A7 2600300047 £2.61 £3.13
44 - CUPPED WASHER BSD-2600500017.A54 2600500017 £1.75 £2.10
45 - FELT WASHER BSD-2600108026.A54 2600108026 £1.75 £2.10
46 - BEARING FLANGE BSD-2605700077.A23 2605700077 -
47 - BEARING BOLT BSD-2603520001.A43 2603520001 -
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A140 2910011122 -
49 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1117 2916690003 £1.75 £2.10
50 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A139 2910011122 -
51 - SHIM BSD-2600100593.A5 2600100593 -
51 - SHIM BSD-2600100595.A0 2600100595 -
51 - PLAIN WASHER 0.2 MM BSD-2600100590.A5 2600100590 -
51 - SHIM 0.3 MM BSD-2600100607.A66 2600100607 £1.75 £2.10
51 - PLAIN WASHER 0.5 MM BSD-2600100592.A10 2600100592 -
52 - CYLINDRICAL GEAR Z=13/43 BSD-2606328033.A15 2606328033 -
53 - CYLINDRICAL GEAR Z=57 BSD-2606319041.A0 2606319041 -
54 - BEVEL GEAR Z=19/57 BSD-2606333010.A10 2606333010 -
54 - BEVEL GEAR Z=19 BSD-2606333009.A5 2606333009 -
55 - THREADED BUSHING BSD-2600364000.A0 2600364000 -
56 - BUSHING BSD-2600301015.A0 2600301015 -
57 - GEAR HOUSING BSD-2605806054.A4 2605806054 -
58 - SET SCREW M 5x5 DIN 553-5.8 BSD-2912001147.A10 2912001147 -
59 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A28 2916690004 £1.75 £2.10
60 - ROUND NUT BSD-2603341002.A31 2603341002 -
61 - ADJUSTING SCREW BSD-2603463010.A0 2603463010 -
62 - BEVEL GEAR Z=19 BSD-2606333005.A0 2606333005 -
63 - SLOTTED SPRING PIN DIN 1481 4x24 BSD-2917760101.A5 2917760101 -
64 - SHIM BSD-2600101630.A4 2600101630 -
64 - SHIM BSD-2600101625.A1 2600101625 -
64 - SHIM BSD-2600101626.A4 2600101626 -
64 - SHIM BSD-2600101627.A1 2600101627 -
65 - SPACER RING BSD-2600103000.A1 2600103000 -
66 - BALL CAGE BSD-2600903010.A1 2600903010 -
67 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A683 1903230007 £1.75 £2.10
68 - VALVE BUSHING BSD-2600363015.A5 2600363015 -
69 - POLISHING CAP BSD-1609200245.A4 1609200245 £3.40 £4.08
70 - GRINDING WHEEL BSD-2608604000.A1 2608604000 -
70 - GRINDING WHEEL BSD-2608604001.A4 2608604001 -
71 - BACKUP RING BSD-2600250000.A1 2600250000 -
72 - COUNTERSUNK-HEAD SCREW BSD-2603421193.A5 2603421193 -
73 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A70 1607000228 £23.86 £28.63
605 - KEY CHUCK BSD-1608571008.A1 1608571008 -
888 - NAMEPLATE BSD-160111A3H3.A5311 160111A3H3 £2.61 £3.13
