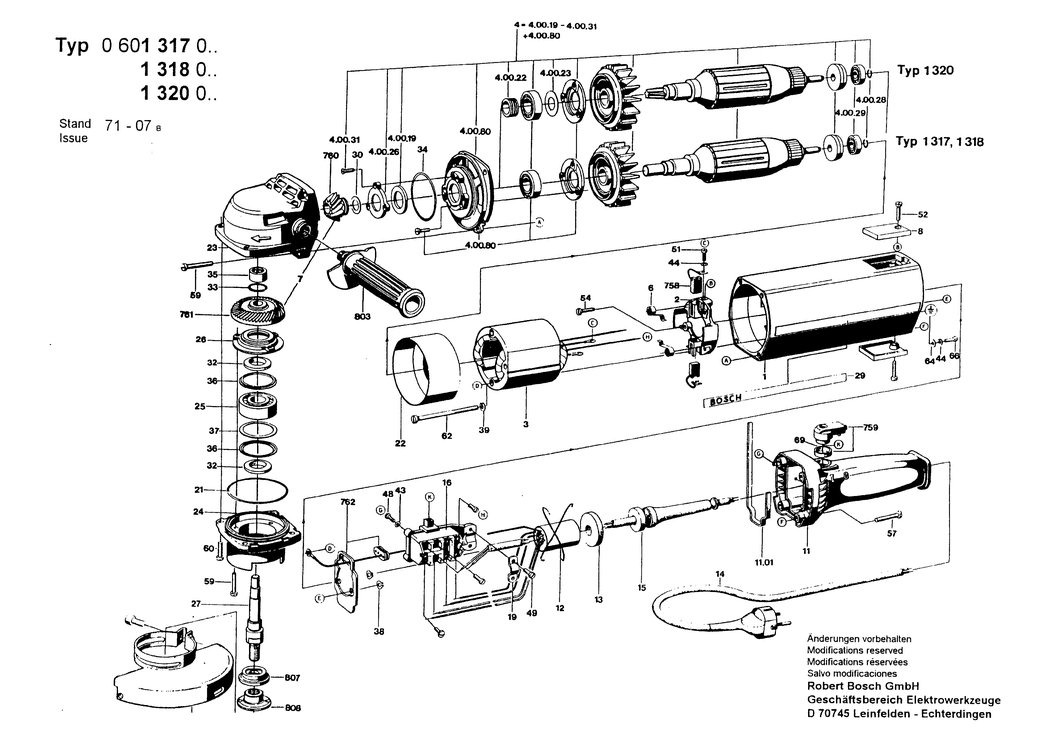

1 - MOTOR HOUSING
BSD-1605108065.A85
1605108065
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A110
1604336006
|
-
|
|
|
|
3 - POLE SHOE 220V
BSD-1604220078.A40
1604220078
|
-
|
|
|
|
4 - ARMATURE 220V
BSD-1604011213.A0
1604011213
|
-
|
|
|
|
4/19 - FELT DISC
BSD-1600108018.A362
1600108018
|
£2.61
|
£3.13
|
|
|
4/22 - THREADED RING
BSD-1603344029.A15
1603344029
|
£68.42
|
£82.10
|
|
|
4/23 - SHIM 0.05 MM
BSD-1600101635.A106
1600101635
|
-
|
|
|
|
4/23 - SHIM 0.05 MM
BSD-1600101636.A7
1600101636
|
-
|
|
|
|
4/23 - SHIM 0.05 MM
BSD-1600101637.A101
1600101637
|
-
|
|
|
|
4/26 - COVER DISC
BSD-1600501024.A299
1600501024
|
£16.41
|
£19.69
|
|
|
4/28 - RETAINING RING
BSD-1604601013.A86
1604601013
|
-
|
|
|
|
4/29 - GROOVE BALL BEARING
BSD-1600900015.A16
1600900015
|
-
|
|
|
|
4/31 - COUNTERSUNK-HEAD SCREW
BSD-2910511122.A86
2910511122
|
-
|
|
|
|
4/80 - INTERMEDIATE BEARING
BSD-1605820901.A88
1605820901
|
-
|
|
|
|
6 - SPIRAL SPRING
BSD-1604652015.A630
1604652015
|
£2.80
|
£3.36
|
|
|
8 - SEALING CAP
BSD-1605500059.A13
1605500059
|
-
|
|
|
|
11 - HANDLE
BSD-1605132051.A12
1605132051
|
-
|
|
|
|
11/01 - SEALING CORD
BSD-1601014000.A411
1601014000
|
£2.80
|
£3.36
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1607329005.A102
1607329005
|
-
|
|
|
|
13 - SEAL
BSD-1600113002.A142
1600113002
|
£1.75
|
£2.10
|
|
|
14 - POWER SUPPLY CORD
BSD-1604460014.A5
1604460014
|
-
|
|
|
|
15 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A18
3600703011
|
£2.80
|
£3.36
|
|
|
16 - SWITCH KIT
BSD-1607000034.A406
1607000034
|
-
|
|
|
|
19 - FASTENING CLAMP
BSD-1601302013.A389
1601302013
|
£1.75
|
£2.10
|
|
|
21 - O-RING 66.0x3.0 MM
BSD-1600210005.A38
1600210005
|
£2.80
|
£3.36
|
|
|
22 - AIR-DEFLECTOR RING
BSD-1600209008.A86
1600209008
|
-
|
|
|
|
23 - GEAR HOUSING
BSD-1605806172.A5
1605806172
|
-
|
|
|
|
24 - FLANGED BEARING
BSD-1605805038.A93
1605805038
|
-
|
|
|
|
25 - GROOVE BALL BEARING 17x47x14
BSD-1900900352.A73
1900900352
|
£27.23
|
£32.68
|
|
|
26 - CONICAL SPRING WASHER
BSD-1600521013.A216
1600521013
|
-
|
|
|
|
27 - GRINDING SPINDLE M14x1.5 MM
BSD-1603523032.A103
1603523032
|
£37.27
|
£44.72
|
|
|
27 - GRINDING SPINDLE 5/8-UNC-2A
BSD-1603523091.A14
1603523091
|
-
|
|
|
|
29 - REFERENCE PLATE
BSD-1601110006.A9
1601110006
|
-
|
|
|
|
30 - SHIM 0.1 MM
BSD-1600101616.A10
1600101616
|
£2.61
|
£3.13
|
|
|
30 - SHIM 0.2 MM
BSD-1600101617.A186
1600101617
|
£1.75
|
£2.10
|
|
|
30 - SHIM 0.3 MM
BSD-1600101618.A10
1600101618
|
£2.61
|
£3.13
|
|
|
30 - SHIM 0.05 MM
BSD-1600101619.A183
1600101619
|
£2.16
|
£2.59
|
|
|
32 - SEALING DISK
BSD-1600108048.A179
1600108048
|
£1.75
|
£2.10
|
|
|
33 - RETAINING RING dia22 MM
BSD-2916620011.A110
2916620011
|
£1.75
|
£2.10
|
|
|
34 - O-RING 54.0x3.0 MM
BSD-1600210004.A149
1600210004
|
£2.80
|
£3.36
|
|
|
35 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A324
1600910010
|
£45.67
|
£54.80
|
|
|
36 - PLAIN WASHER
BSD-2100551000.A227
2100551000
|
-
|
|
|
|
37 - SHIM 0.05 MM
BSD-1600102638.A71
1600102638
|
£3.34
|
£4.01
|
|
|
37 - SHIM 0.1 MM
BSD-1600102639.A163
1600102639
|
-
|
|
|
|
37 - SHIM 0.15 MM
BSD-1600102640.A71
1600102640
|
-
|
|
|
|
38 - SPRING RETAINING RING
BSD-1600118001.A66
1600118001
|
-
|
|
|
|
39 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A167
2916680006
|
-
|
|
|
|
43 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A150
2916060003
|
£1.32
|
£1.58
|
|
|
44 - SPRING WASHER DIN 137-A4
BSD-1600150006.A507
1600150006
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8
BSD-2910021050.A19
2910021050
|
£1.75
|
£2.10
|
|
|
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8
BSD-2910011122.A153
2910011122
|
-
|
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A43
2910011120
|
£1.75
|
£2.10
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A477
2910021125
|
£1.75
|
£2.10
|
|
|
54 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A962
2910211019
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8
BSD-2910011166.A43
2910011166
|
£1.75
|
£2.10
|
|
|
59 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8
BSD-2910011164.A80
2910011164
|
-
|
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A442
2910011157
|
-
|
|
|
|
62 - SOCKET HEAD CAP SCREW DIN 84-BM5x82
BSD-1603410001.A190
1603410001
|
-
|
|
|
|
64 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A219
2916010410
|
-
|
|
|
|
66 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A12
2910110118
|
£1.75
|
£2.10
|
|
|
69 - FELT WASHER
BSD-1600205008.A439
1600205008
|
£1.75
|
£2.10
|
|
|
758 - CARBON-BRUSH SET
BSD-1607014102.A243
1607014102
|
-
|
|
|
|
759 - CONTROL LEVER
BSD-1602026030.A497
1602026030
|
£10.10
|
£12.12
|
|
|
760 - BEVEL GEAR Z=15
BSD-1606333053.A11
1606333053
|
-
|
|
|
|
761 - BEVEL GEAR Z=46
BSD-3606333031.A14
3606333031
|
-
|
|
|
|
762 - SEALING PLATE
BSD-1602388007.A108
1602388007
|
£12.04
|
£14.45
|
|
|
803 - AUXILIARY HANDLE M14
BSD-1602025022.A1227
1602025022
|
£13.41
|
£16.09
|
|
|
803 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A1089
1602025030
|
£18.96
|
£22.75
|
|
|
804 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A42
2607950511
|
£4.26
|
£5.11
|
|
|
805 - PROTECTIVE COVER dia230 MM
BSD-1605510198.A79
1605510198
|
-
|
|
|
|
805 - PROTECTIVE COVER dia180 MM
BSD-1605510199.A9
1605510199
|
-
|
|
|
|
806 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A324
2607950004
|
£1.75
|
£2.10
|
|
|
807 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A62
2600501006
|
£16.43
|
£19.72
|
|
|
808 - ROUND NUT M14
BSD-2603345004.A10
2603345004
|
£6.52
|
£7.83
|
|
|
809 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A54
1907950007
|
£5.30
|
£6.36
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5336
160111A3H3
|
£2.61
|
£3.13
|
|
