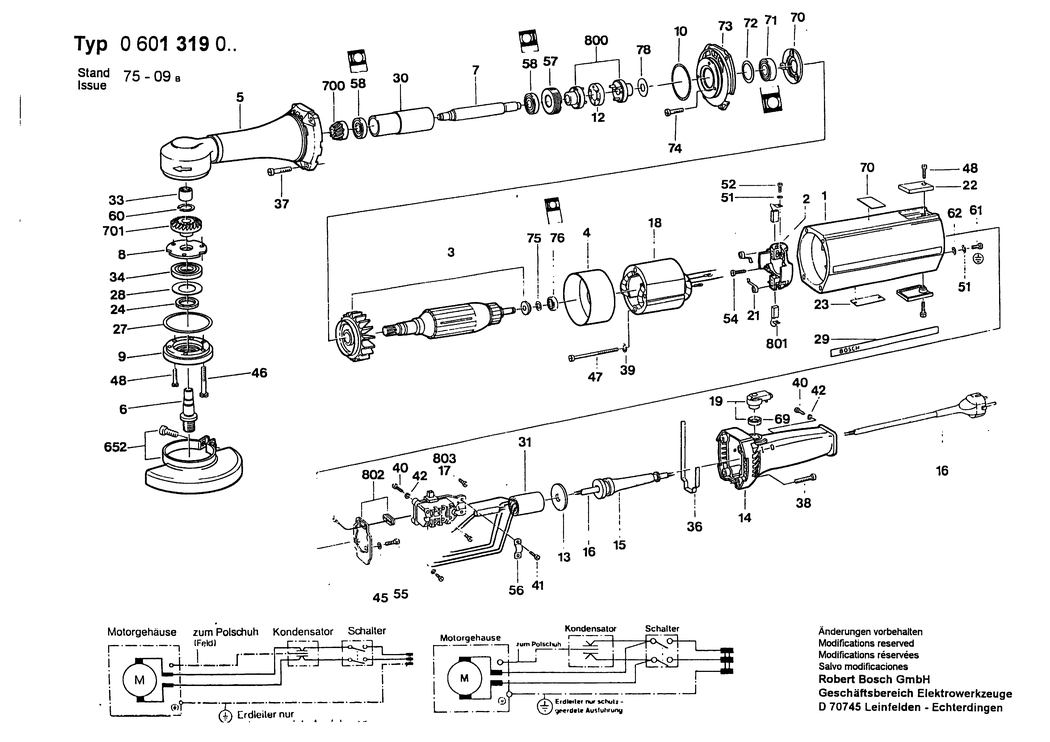

1 - MOTOR HOUSING
BSD-1605108042.A85
1605108042
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A103
1604336006
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604010103.A5
1604010103
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A309
1600209002
|
£5.30
|
£6.36
|
|
|
5 - GEAR HOUSING
BSD-1605806286.A13
1605806286
|
-
|
|
|
|
6 - STUD BOLT M14
BSD-1603523065.A13
1603523065
|
-
|
|
|
|
7 - DRIVE SHAFT
BSD-1603022020.A9
1603022020
|
-
|
|
|
|
9 - BEARING COVER
BSD-1605808046.A1
1605808046
|
-
|
|
|
|
10 - O-RING 45x3MM
BSD-1900210146.A314
1900210146
|
£4.26
|
£5.11
|
|
|
12 - CARRIER
BSD-1606442000.A25
1606442000
|
£5.58
|
£6.70
|
|
|
13 - SEAL
BSD-1600113002.A126
1600113002
|
£1.75
|
£2.10
|
|
|
14 - HANDLE
BSD-3605132048.A379
3605132048
|
£63.50
|
£76.20
|
|
|
15 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A31
3600703011
|
£2.80
|
£3.36
|
|
|
16 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07RN-F
BSD-1604460447.A33
1604460447
|
£21.68
|
£26.01
|
|
|
17 - SWITCH KIT
BSD-1607000034.A371
1607000034
|
-
|
|
|
|
18 - POLE SHOE 220V
BSD-1604220031.A34
1604220031
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026030.A487
1602026030
|
£10.10
|
£12.12
|
|
|
21 - SPIRAL SPRING
BSD-1604652015.A614
1604652015
|
£2.80
|
£3.36
|
|
|
22 - SEALING CAP
BSD-3605500057.A58
3605500057
|
-
|
|
|
|
23 - NAMEPLATE
BSD-160111A3H3.A5355
160111A3H3
|
£2.61
|
£3.13
|
|
|
24 - SEALING DISK
BSD-1600108054.A9
1600108054
|
-
|
|
|
|
27 - SHIM
BSD-1600102667.A8
1600102667
|
-
|
|
|
|
28 - SHIM
BSD-1600102666.A7
1600102666
|
-
|
|
|
|
29 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A319
1601110003
|
-
|
|
|
|
30 - SPACER SLEEVE
BSD-1600420004.A8
1600420004
|
-
|
|
|
|
33 - NEEDLE-ROLLER BEARING dia 17 MM
BSD-1600910009.A5
1600910009
|
-
|
|
|
|
34 - GROOVE BALL BEARING 16 004/C3 DIN 625
BSD-1900900209.A5
1900900209
|
-
|
|
|
|
36 - SEALING CORD
BSD-1601014000.A429
1601014000
|
£2.80
|
£3.36
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A218
2910011162
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW AM 5x28 DIN 84-5.8
BSD-2910011165.A11
2910011165
|
-
|
|
|
|
39 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A148
2916680006
|
-
|
|
|
|
40 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A339
2910211006
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A483
2910021122
|
£2.16
|
£2.59
|
|
|
42 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A326
2916011005
|
£1.75
|
£2.10
|
|
|
45 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A74
2916011006
|
£1.75
|
£2.10
|
|
|
46 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8
BSD-2910011166.A24
2910011166
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW
BSD-1603410008.A116
1603410008
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A447
2910021125
|
£1.75
|
£2.10
|
|
|
51 - SPRING WASHER DIN 137-A4
BSD-1600150006.A489
1600150006
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A66
2910011120
|
£1.75
|
£2.10
|
|
|
54 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A951
2910211019
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A176
2910211004
|
-
|
|
|
|
56 - FASTENING CLAMP
BSD-1601302014.A585
1601302014
|
£2.61
|
£3.13
|
|
|
57 - THREADED RING
BSD-1603344044.A7
1603344044
|
-
|
|
|
|
58 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A216
1900905121
|
£18.96
|
£22.75
|
|
|
60 - SPRING RETAINING RING dia 17 MM
BSD-1600119001.A9
1600119001
|
-
|
|
|
|
61 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A367
2910110116
|
£1.75
|
£2.10
|
|
|
62 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A241
2916010410
|
-
|
|
|
|
69 - FELT WASHER
BSD-1600205008.A457
1600205008
|
£1.75
|
£2.10
|
|
|
70 - BEARING COVER
BSD-1600501019.A132
1600501019
|
£23.86
|
£28.63
|
|
|
71 - GROOVE BALL BEARING 17x35x10
BSD-1600900020.A7
1600900020
|
-
|
|
|
|
72 - SHIM
BSD-1600102002.A39
1600102002
|
-
|
|
|
|
73 - BEARING FLANGE
BSD-3605820064.A140
3605820064
|
£68.42
|
£82.10
|
|
|
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A448
2910021125
|
£1.75
|
£2.10
|
|
|
75 - SHIM 0.10 MM
BSD-1420100023.A265
1420100023
|
-
|
|
|
|
75 - SHIM 0.2 MM
BSD-1600100632.A218
1600100632
|
£1.75
|
£2.10
|
|
|
76 - BALL BEARING 7x22x7
BSD-1900905018.A111
1900905018
|
£18.96
|
£22.75
|
|
|
78 - SHIM
BSD-1600101626.A16
1600101626
|
-
|
|
|
|
652 - PROTECTIVE COVER
BSD-1605510053.A6
1605510053
|
-
|
|
|
|
700 - BEVEL GEAR Z=17
BSD-1606333127.A3
1606333127
|
-
|
|
|
|
701 - BEVEL GEAR Z=33
BSD-1606333126.A6
1606333126
|
-
|
|
|
|
800 - CARRIER
BSD-1600320026.A43
1600320026
|
£48.38
|
£58.06
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014102.A223
1607014102
|
-
|
|
|
|
802 - SEALING PLATE
BSD-1602388007.A119
1602388007
|
£12.04
|
£14.45
|
|
|
803 - SWITCH KIT
BSD-1607000034.A373
1607000034
|
-
|
|
|
