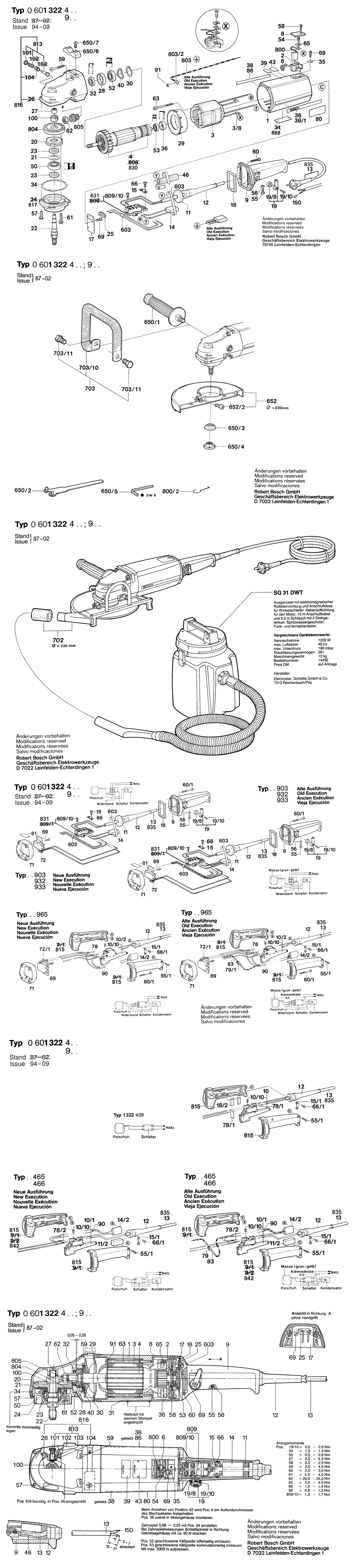

An exploded drawing and listing for the Bosch ---- / 0601322447 / F 110 Volt
Ex VAT Inc VAT
2 - BRUSH HOLDER BSD-1604336008.A232 1604336008 £21.52 £25.83
3 - FIELD 100V BSD-1604220216.A0 1604220216 -
6 - SPIRAL SPRING BSD-1604652015.A447 1604652015 £2.80 £3.36
8 - SEALING CAP BSD-1605500089.A88 1605500089 -
9 - HANDLE BSD-1605132093.A46 1605132093 -
11 - SEAL BSD-1600113002.A54 1600113002 £1.75 £2.10
12 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A454 3600703011 £2.80 £3.36
13 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07RN-F BSD-1604460203.A63 1604460203 £33.74 £40.49
14 - SUPPRESSION FILTER BSD-1607328034.A163 1607328034 £4.26 £5.11
15 - FASTENING CLAMP BSD-1601302013.A540 1601302013 £1.75 £2.10
17 - COVER PLATE BSD-1601037009.A24 1601037009 -
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A36 1601014005 -
19 - CONTROL LEVER BSD-1602026058.A36 1602026058 -
19/8 - FELT WASHER BSD-1600205019.A54 1600205019 £1.75 £2.10
20 - BEARING COVER BSD-1605808054.A295 1605808054 -
21 - COVER DISC BSD-1600102012.A295 1600102012 -
22 - GRINDING SPINDLE M14. L=101 MM BSD-1603523090.A125 1603523090 -
23 - SEALING DISK BSD-1600108055.A68 1600108055 £1.75 £2.10
25 - GROMMET BSD-1600306001.A124 1600306001 £2.61 £3.13
27 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A249 2600910001 £4.26 £5.11
28 - RUBBER RING 7 MM BSD-1600206020.A663 1600206020 £1.75 £2.10
29 - AIR-DEFLECTOR RING BSD-1600502017.A29 1600502017 -
30 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A39 2916660017 £4.26 £5.11
32 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A174 1600290013 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190004.A113 1600190004 -
34 - SHIM 0.2 MM BSD-1600190005.A170 1600190005 £1.32 £1.58
35 - TAB WASHER BSD-1601030022.A417 1601030022 £1.75 £2.10
36 - RUBBER RING BSD-1600206015.A70 1600206015 £2.16 £2.59
38 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A237 1601110003 -
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A40 1600150007 £1.75 £2.10
50 - GROOVE BALL BEARING 17x40x12 BSD-1900905203.A17 1900905203 -
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A177 1900905234 £31.64 £37.97
53 - GROOVE BALL BEARING BSD-1600900029.A46 1600900029 -
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A278 2910021118 £1.75 £2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A80 2910211006 £1.75 £2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A124 2916011005 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A364 2910011157 -
58 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A549 2910211020 £2.16 £2.59
59 - TAPPING SCREW B4.8x57.5 MM BSD-1603429000.A55 1603429000 £1.75 £2.10
60 - TAPPING SCREW B4.8x57.5 MM BSD-1603429000.A56 1603429000 £1.75 £2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A324 2910011162 £1.75 £2.10
62 - HEX NUT BSD-1603300018.A28 1603300018 -
63 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A160 1603435006 -
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A169 2910021122 £2.16 £2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A492 2910211011 £1.75 £2.10
100 - GROOVED RING BSD-1600390011.A40 1600390011 -
650/1 - AUXILIARY HANDLE M14 BSD-1602025022.A1468 1602025022 £13.41 £16.09
650/1 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1313 1602025030 £18.96 £22.75
652/2 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A135 2910141242 £1.75 £2.10
703/10 - STRAP-SHAPED HANDLE BSD-1600793004.A12 1600793004 -
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A431 2603450007 £5.58 £6.70
800 - CARBON-BRUSH SET BSD-1607014103.A72 1607014103 £14.91 £17.89
801 - ASSEMBLY OF SERVICE PARTS BSD-1605108902.A33 1605108902 -
804 - CROWN GEAR Z=59 BSD-1606333200.A4 1606333200 -
805 - BEVEL GEAR Z=14. dia 10 MM BSD-1606333218.A2 1606333218 -
809 - SWITCH KIT BSD-1607000034.A215 1607000034 -
809/10 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A149 2910091118 £1.75 £2.10
816 - PARTS SET BSD-1607000905.A7 1607000905 -
830 - ARMATURE 100V BSD-1604011131.A0 1604011131 -
888 - NAMEPLATE BSD-160111A3H3.A3836 160111A3H3 £2.61 £3.13
