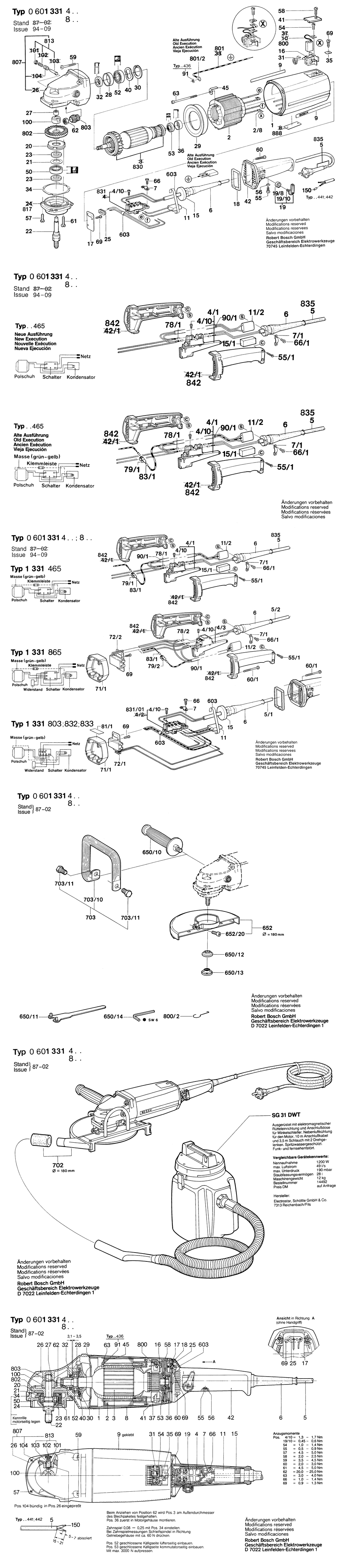

An exploded drawing and listing for the Bosch ---- / 0601331832 / CH 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108124.A3 1605108124 -
2 - FIELD 230V BSD-1604220249.A6 1604220249 -
2/8 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A47 1901350003 £1.75 £2.10
5/1 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07RN-F BSD-1604460447.A41 1604460447 £21.68 £26.01
9 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A296 1601110003 -
16 - BRUSH HOLDER BSD-1604336008.A111 1604336008 £21.52 £25.83
19 - CONTROL LEVER BSD-1602026058.A74 1602026058 -
19/8 - FELT WASHER BSD-1600205019.A6 1600205019 £1.75 £2.10
20 - BEARING COVER BSD-1605808054.A156 1605808054 -
21 - COVER DISC BSD-1600102012.A166 1600102012 -
22 - GRINDING SPINDLE M14. L=101 MM BSD-1603523090.A137 1603523090 -
23 - SEALING DISK BSD-1600108055.A5 1600108055 £1.75 £2.10
27 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A519 2600910001 £4.26 £5.11
28 - RUBBER RING dia41xdia37x11 MM BSD-1600206028.A15 1600206028 -
28 - BACKUP RING dia44xdia41x11.8 MM BSD-1600200024.A10 1600200024 -
29 - GUIDE PULLEY BSD-1600502013.A69 1600502013 -
30 - SPRING RETAINING RING BSD-1600119004.A55 1600119004 £2.80 £3.36
31 - SPIRAL SPRING BSD-1604652015.A585 1604652015 £2.80 £3.36
34 - SHIM 0.1 MM BSD-1600190004.A45 1600190004 -
34 - SHIM 0.2 MM BSD-1600190005.A239 1600190005 £1.32 £1.58
35 - TAB WASHER BSD-1601030022.A619 1601030022 £1.75 £2.10
36 - RUBBER RING BSD-1600206015.A124 1600206015 £2.16 £2.59
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM BSD-1600150009.A7 1600150009 £2.80 £3.36
41 - SEALING CAP BSD-1605500089.A117 1605500089 -
42 - HANDLE BSD-1605132093.A40 1605132093 -
45 - HOLDING BRACKET BSD-1601331032.A89 1601331032 -
50 - GROOVE BALL BEARING 17x40x12 BSD-1900905203.A42 1900905203 -
52 - GROOVE BALL BEARING 37x12x12 BSD-1600900028.A34 1600900028 -
53 - GROOVE BALL BEARING BSD-1600900029.A116 1600900029 -
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A940 2910021118 £1.75 £2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A317 2910211006 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A495 2910011157 -
58 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A399 2910211020 £2.16 £2.59
59 - TAPPING SCREW B4.8x45 MM BSD-1603412005.A14 1603412005 -
60/1 - TAPPING SCREW B4.8x57.5 MM BSD-1603429000.A79 1603429000 £1.75 £2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A264 2910011162 £1.75 £2.10
62 - HEX NUT M12x1.5 MM BSD-1603300009.A34 1603300009 £1.75 £2.10
63 - TAPPING SCREW B4.8x85 MM BSD-1603429001.A5 1603429001 -
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A456 2910021122 £2.16 £2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A362 2910211011 £1.75 £2.10
72 - WIREWOUND RESISTOR BSD-1604503005.A11 1604503005 -
100 - GROOVED RING BSD-1600390011.A15 1600390011 -
650/10 - AUXILIARY HANDLE M14 BSD-1602025022.A1158 1602025022 £13.41 £16.09
650/10 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1158 1602025030 £18.96 £22.75
650/11 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A354 2607950004 £1.75 £2.10
650/13 - ROUND NUT M14 BSD-2603345004.A42 2603345004 £6.52 £7.83
650/14 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A40 1907950007 £5.30 £6.36
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8 BSD-2910141240.A30 2910141240 £1.32 £1.58
702 - PROTECTIVE COVER dia 180 MM BSD-1605510138.A12 1605510138 -
702 - UNION dia32.3xdia34.9x75 MM BSD-1600309009.A47 1600309009 -
702/10 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A230 2915191007 £3.72 £4.47
702/11 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A106 2916011016 £1.75 £2.10
702/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8 BSD-2910141240.A29 2910141240 £1.32 £1.58
703 - PARTS SET BSD-1607000140.A62 1607000140 -
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A329 2603450007 £5.58 £6.70
800 - CARBON-BRUSH SET BSD-1607014103.A6 1607014103 £14.91 £17.89
802 - CROWN GEAR Z=51 BSD-1606333210.A27 1606333210 -
803 - BEVEL GEAR Z=18 BSD-1606333209.A3 1606333209 -
807 - PARTS SET BSD-1607000917.A33 1607000917 -
813 - PARTS SET BSD-1607000161.A85 1607000161 -
817 - BEARING FLANGE BSD-1607000229.A217 1607000229 -
830 - ARMATURE 220V BSD-1604012044.A21 1604012044 -
831/01 - ON-OFF SWITCH BSD-1607200098.A3 1607200098 -
888 - NAMEPLATE BSD-160111A3H3.A5283 160111A3H3 £2.61 £3.13
