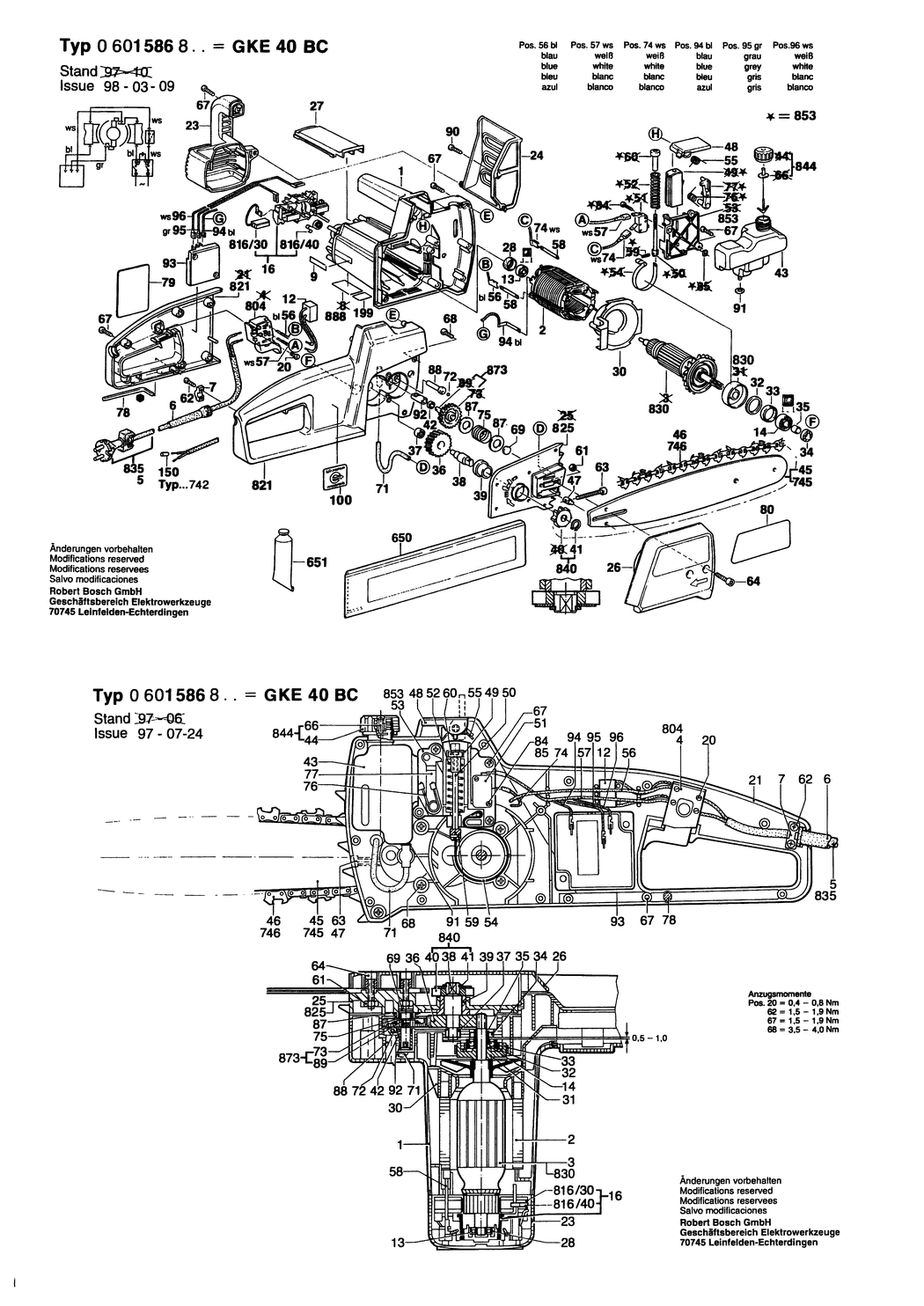

1 - MOTOR HOUSING
BSD-3605108103.A1
3605108103
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220357.A10
1604220357
|
£40.80
|
£48.96
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F
BSD-3604460084.A48
3604460084
|
£21.68
|
£26.01
|
|
|
5 - STRAIN-RELIEF CLAMP
BSD-2601398012.A43
2601398012
|
-
|
|
|
|
6 - GROMMET dia9.6-dia10.2x70 MM
BSD-1600703025.A22
1600703025
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A222
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110483.A65
1601110483
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A601
1607328028
|
£5.30
|
£6.36
|
|
|
13 - GROOVE BALL BEARING
BSD-3600905135.A26
3600905135
|
£7.36
|
£8.83
|
|
|
14 - GROOVE BALL BEARING
BSD-3600905136.A7
3600905136
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336024.A13
1604336024
|
£14.75
|
£17.70
|
|
|
20 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A129
2603410001
|
£1.75
|
£2.10
|
|
|
23 - SEALING CAP
BSD-3605500084.A17
3605500084
|
-
|
|
|
|
24 - PROTECTIVE SHIELD
BSD-3602311018.A52
3602311018
|
-
|
|
|
|
26 - PROTECTIVE COVER
BSD-3605500037.A24
3605500037
|
-
|
|
|
|
27 - COVER STRIP
BSD-3601012000.A49
3601012000
|
-
|
|
|
|
28 - INTERMEDIATE RING
BSD-1600502011.A81
1600502011
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-3600591003.A2
3600591003
|
-
|
|
|
|
32 - CONICAL SPRING WASHER
BSD-3600190007.A23
3600190007
|
-
|
|
|
|
33 - INTERMEDIATE RING
BSD-1600206026.A62
1600206026
|
£1.75
|
£2.10
|
|
|
34 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A424
1600290016
|
£2.61
|
£3.13
|
|
|
35 - INTERMEDIATE RING
BSD-1600300090.A173
1600300090
|
£3.72
|
£4.47
|
|
|
36 - CYLINDRICAL GEAR Z=41
BSD-3606317021.A8
3606317021
|
-
|
|
|
|
37 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A658
1600910018
|
£5.30
|
£6.36
|
|
|
38 - DRIVE SHAFT
BSD-3603124011.A8
3603124011
|
-
|
|
|
|
39 - HEADED BUSH
BSD-3600323000.A8
3600323000
|
-
|
|
|
|
41 - SPRING RETAINING RING DIN 471-12x1-FSTM
BSD-2916650903.A95
2916650903
|
£1.75
|
£2.10
|
|
|
42 - ROTARY SHAFT LIP SEAL 8X12X3
BSD-3600283034.A23
3600283034
|
£5.58
|
£6.70
|
|
|
43 - OIL RESERVOIR
BSD-3607030320.A71
3607030320
|
-
|
|
|
|
47 - STUD BOLT
BSD-3603121004.A32
3603121004
|
-
|
|
|
|
48 - SWIVELLING LEVER
BSD-3601990001.A51
3601990001
|
-
|
|
|
|
55 - COILED SPRING
BSD-3604651002.A40
3604651002
|
£1.32
|
£1.58
|
|
|
56 - CONNECTING CABLE L=420 MM
BSD-3604431018.A38
3604431018
|
-
|
|
|
|
57 - CONNECTING CABLE L=180 MM
BSD-3604431012.A18
3604431012
|
-
|
|
|
|
58 - BLADE TERMINAL
BSD-1604477005.A60
1604477005
|
£2.61
|
£3.13
|
|
|
61 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1139
2915011007
|
-
|
|
|
|
62 - LENS HEAD SCREW DIN 7981-ST3.9x16-C-H
BSD-3603414026.A18
3603414026
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW
BSD-3603410001.A54
3603410001
|
-
|
|
|
|
64 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8
BSD-2910141203.A120
2910141203
|
£1.75
|
£2.10
|
|
|
67 - OVAL-HEAD SCREW 4x18 MM.TORX T20
BSD-2914201506.A158
2914201506
|
£1.75
|
£2.10
|
|
|
68 - THREAD-FORMING TAP. SCREW DIN 7500-CM 5x12-ST
BSD-2914411403.A21
2914411403
|
-
|
|
|
|
69 - COVER PLATE
BSD-3600000006.A17
3600000006
|
-
|
|
|
|
71 - HOSE
BSD-3600703001.A28
3600703001
|
-
|
|
|
|
72 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A280
1903230007
|
£1.75
|
£2.10
|
|
|
74 - CONNECTING CABLE L=260 MM
BSD-3604431013.A38
3604431013
|
-
|
|
|
|
75 - COMPRESSION SPRING
BSD-3604630000.A31
3604630000
|
-
|
|
|
|
78 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A414
1907950006
|
£4.26
|
£5.11
|
|
|
79 - REFERENCE PLATE
BSD-3601119077.A17
3601119077
|
-
|
|
|
|
80 - REFERENCE PLATE
BSD-3601110241.A3
3601110241
|
£4.26
|
£5.11
|
|
|
87 - PLAIN WASHER 0.5 MM
BSD-1600101023.A75
1600101023
|
£1.75
|
£2.10
|
|
|
88 - DETENT PIN
BSD-3603121003.A23
3603121003
|
-
|
|
|
|
90 - MICROENCAPSULATED SCREW DIN 84-AM4x12-8.8
BSD-2914552107.A3
2914552107
|
£1.75
|
£2.10
|
|
|
90 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A710
2910211006
|
£1.75
|
£2.10
|
|
|
91 - O-RING 4.0x1.0 MM
BSD-3600210015.A108
3600210015
|
£3.72
|
£4.47
|
|
|
92 - SINTERED-METAL BUSHING 14 MM
BSD-3600301007.A17
3600301007
|
£4.75
|
£5.70
|
|
|
93 - SPEED GOVERNOR 230-240V
BSD-3607218001.A6
3607218001
|
-
|
|
|
|
94 - CONNECTING CABLE L=300 MM
BSD-3604438005.A2
3604438005
|
£1.95
|
£2.34
|
|
|
95 - CONNECTING CABLE L=300 MM
BSD-3604438004.A7
3604438004
|
-
|
|
|
|
96 - CONNECTING CABLE L=420 MM
BSD-3604438006.A7
3604438006
|
-
|
|
|
|
100 - REFERENCE PLATE
BSD-1601110310.A28
1601110310
|
-
|
|
|
|
150 - END SPLICE
BSD-3604477009.A320
3604477009
|
£2.61
|
£3.13
|
|
|
199 - REFERENCE PLATE
BSD-1601110286.A2
1601110286
|
-
|
|
|
|
650 - PROTECTIVE COVER
BSD-3605500038.A33
3605500038
|
-
|
|
|
|
745 - GUIDE RAIL 400 MM
BSD-3602317011.A7
3602317011
|
-
|
|
|
|
746 - SAW CHAIN 400 MM
BSD-3604730008.A1
3604730008
|
£30.28
|
£36.33
|
|
|
804 - ON-OFF SWITCH
BSD-1607200107.A6
1607200107
|
-
|
|
|
|
816/30 - CARBON-BRUSH SET
BSD-1607014129.A67
1607014129
|
£16.41
|
£19.69
|
|
|
816/40 - SPIRAL SPRING
BSD-2604652008.A12
2604652008
|
-
|
|
|
|
821 - HOUSING SECTION
BSD-3607031214.A3
3607031214
|
£59.53
|
£71.44
|
|
|
825 - GEAR COVER
BSD-3605500082.A39
3605500082
|
£14.72
|
£17.67
|
|
|
830 - ARMATURE 220-240V
BSD-3604010050.A7
3604010050
|
£134.16
|
£160.99
|
|
|
840 - SPROCKET WHEEL
BSD-3607031199.A38
3607031199
|
-
|
|
|
|
844 - RESERVOIR CAP
BSD-3603317002.A17
3603317002
|
-
|
|
|
|
853 - BRAKING DEVICE
BSD-3607031182.A35
3607031182
|
-
|
|
|
|
873 - SPINDLE WITH GEAR Z=38
BSD-3606317031.A35
3606317031
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A984
160111A3H3
|
£2.61
|
£3.13
|
|
