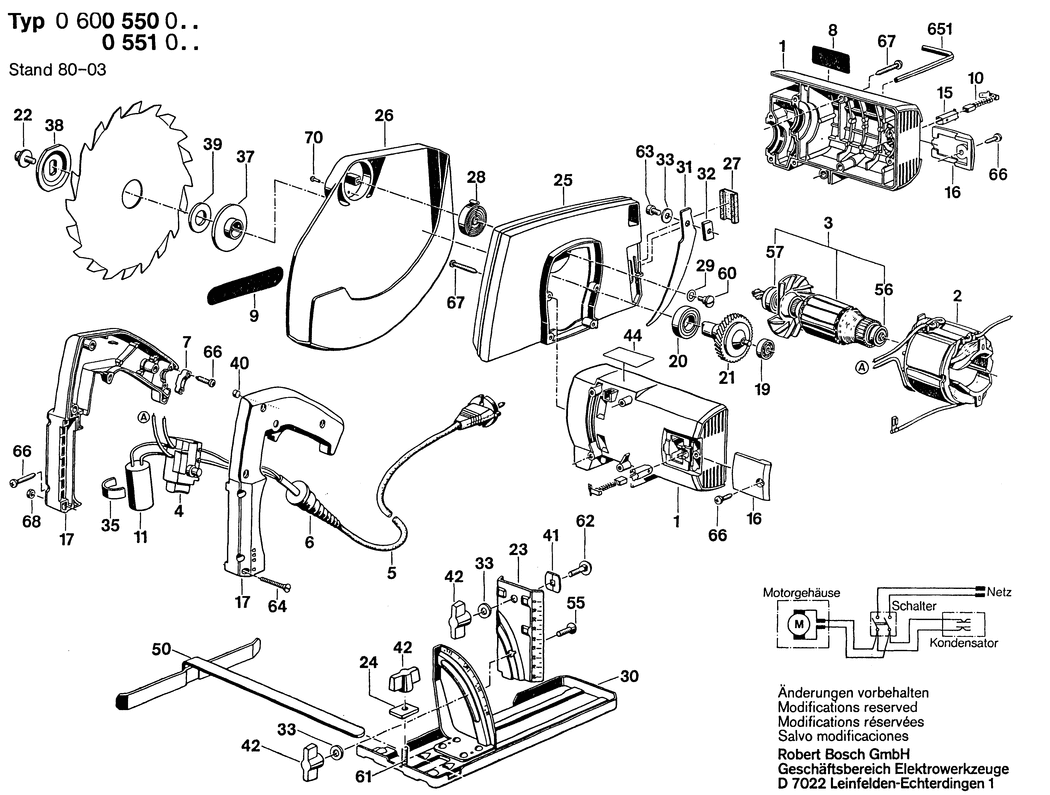

1 - MOTOR HOUSING
BSD-1609200074.A7
1609200074
|
-
|
|
|
|
2 - POLE SHOE 110-115V
BSD-1609200513.A1
1609200513
|
-
|
|
|
|
3 - ARMATURE 110-115V
BSD-1609200662.A1
1609200662
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609200748.A22
1609200748
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A749
1607000227
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia9x90 MM
BSD-1609207001.A173
1609207001
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609213000.A10
1609213000
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110017.A87
1601110017
|
-
|
|
|
|
9 - NAMEPLATE
BSD-160111A3H3.A4896
160111A3H3
|
£2.61
|
£3.13
|
|
|
10 - CARBON-BRUSH SET
BSD-1609202417.A25
1609202417
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-1609200750.A72
1609200750
|
-
|
|
|
|
12 - CONTACT SPRING
BSD-1609200049.A1
1609200049
|
-
|
|
|
|
15 - BRUSH HOLDER
BSD-1609200032.A27
1609200032
|
-
|
|
|
|
16 - SEALING CAP
BSD-1609200079.A31
1609200079
|
-
|
|
|
|
17 - HANDLE
BSD-1609200075.A4
1609200075
|
-
|
|
|
|
19 - BALL BEARING 7x19x6
BSD-2600905032.A2199
2600905032
|
£5.30
|
£6.36
|
|
|
20 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A329
1900905163
|
£11.30
|
£13.56
|
|
|
21 - CYLINDRICAL GEAR Z=37
BSD-1609200665.A3
1609200665
|
-
|
|
|
|
22 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A6
1603414007
|
£2.29
|
£2.75
|
|
|
23 - DIAL
BSD-1608000076.A48
1608000076
|
-
|
|
|
|
24 - CLAMPING PIECE
BSD-1601030024.A22
1601030024
|
-
|
|
|
|
25 - PROTECTIVE COVER
BSD-1609200518.A0
1609200518
|
-
|
|
|
|
26 - PIVOTING BLADE GUARD
BSD-1609200519.A32
1609200519
|
-
|
|
|
|
27 - RUBBER BUFFER
BSD-1602386002.A105
1602386002
|
-
|
|
|
|
28 - SPIRAL SPRING
BSD-1609246001.A19
1609246001
|
-
|
|
|
|
29 - PLAIN WASHER 0.3 MM
BSD-1600100633.A104
1600100633
|
-
|
|
|
|
30 - BASE PLATE 110x298 MM
BSD-1608000075.A2
1608000075
|
-
|
|
|
|
31 - RIVING KNIFE
BSD-1600025012.A8
1600025012
|
-
|
|
|
|
32 - PERFORATED PANEL M6-20x10x5 MM
BSD-1601030025.A44
1601030025
|
-
|
|
|
|
33 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A83
1609201082
|
-
|
|
|
|
34 - STRIP TERMINAL
BSD-1901091110.A116
1901091110
|
£1.75
|
£2.10
|
|
|
37 - INTERMEDIATE FLANGE
BSD-1609257000.A103
1609257000
|
-
|
|
|
|
38 - CONICAL SPRING WASHER
BSD-1609257001.A18
1609257001
|
-
|
|
|
|
39 - INTERMEDIATE RING
BSD-1609201003.A18
1609201003
|
-
|
|
|
|
40 - PLUG
BSD-1609200048.A14
1609200048
|
-
|
|
|
|
41 - SLIDE PLATE
BSD-1601030026.A29
1601030026
|
-
|
|
|
|
42 - WING NUT M6
BSD-1609233000.A61
1609233000
|
-
|
|
|
|
50 - END STOP
BSD-1601036004.A2
1601036004
|
-
|
|
|
|
55 - COUNTERSUNK-HEAD SCREW M6x20 MM
BSD-1603490000.A18
1603490000
|
-
|
|
|
|
56 - GROOVE BALL BEARING 607 LLB C3/3K DIN 625
BSD-1609200716.A35
1609200716
|
-
|
|
|
|
57 - GROOVE BALL BEARING
BSD-1609200717.A19
1609200717
|
-
|
|
|
|
60 - PAN HEAD SCREW DIN 923-M5x5-5.8
BSD-2910271147.A53
2910271147
|
-
|
|
|
|
61 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A180
2910281196
|
-
|
|
|
|
62 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A151
2910281203
|
£2.61
|
£3.13
|
|
|
63 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A73
2910375193
|
-
|
|
|
|
64 - COUNTERSUNK-HEAD SCREW DIN 63-BM4x30-5.8
BSD-2910501134.A154
2910501134
|
-
|
|
|
|
66 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A459
2912401020
|
£2.16
|
£2.59
|
|
|
67 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A64
2910611082
|
£1.75
|
£2.10
|
|
|
68 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A575
2915011007
|
-
|
|
|
|
70 - ROUND-HEAD GROOVED PIN 2.6x3 DIN 1476-ST
BSD-2917721051.A112
2917721051
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A1136
1907950006
|
£4.26
|
£5.11
|
|
