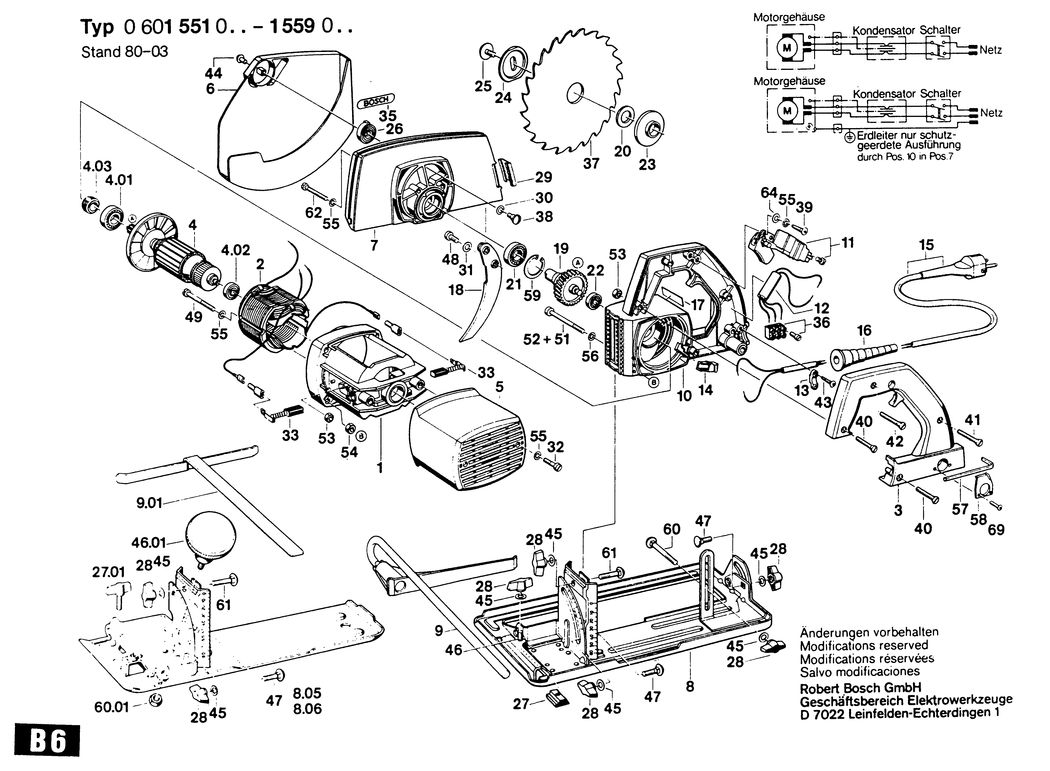

1 - MOTOR HOUSING
BSD-1609251002.A6
1609251002
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-1609242853.A2
1609242853
|
-
|
|
|
|
3 - HANDLE COVER
BSD-1609251001.A31
1609251001
|
-
|
|
|
|
4 - ARMATURE 220V
BSD-1609240005.A2
1609240005
|
-
|
|
|
|
4/18 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A217
1610900025
|
£16.41
|
£19.69
|
|
|
5 - HOUSING COVER
BSD-1609255000.A23
1609255000
|
-
|
|
|
|
6 - PIVOTING BLADE GUARD
BSD-1609200519.A41
1609200519
|
-
|
|
|
|
7 - PROTECTIVE COVER
BSD-1609255003.A12
1609255003
|
-
|
|
|
|
8 - BASE PLATE
BSD-1609280003.A7
1609280003
|
-
|
|
|
|
9 - PARALLEL-GUIDE
BSD-1609281000.A41
1609281000
|
-
|
|
|
|
10 - INTERMEDIATE FLANGE
BSD-1609258000.A17
1609258000
|
-
|
|
|
|
11 - ON-OFF SWITCH
BSD-1609272003.A52
1609272003
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1609200750.A130
1609200750
|
-
|
|
|
|
13 - FASTENING CLAMP
BSD-1609213000.A106
1609213000
|
-
|
|
|
|
14 - GROMMET
BSD-1609207000.A11
1609207000
|
-
|
|
|
|
15 - POWER SUPPLY CORD
BSD-1604461009.A37
1604461009
|
-
|
|
|
|
16 - GROMMET
BSD-1600703013.A40
1600703013
|
-
|
|
|
|
19 - CYLINDRICAL GEAR Z=50
BSD-1609263002.A12
1609263002
|
-
|
|
|
|
20 - INTERMEDIATE RING
BSD-1609201003.A71
1609201003
|
-
|
|
|
|
21 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A78
1900905163
|
£11.30
|
£13.56
|
|
|
22 - GROOVE BALL BEARING 627 Y DIN 625
BSD-1900900235.A68
1900900235
|
-
|
|
|
|
23 - INTERMEDIATE FLANGE
BSD-1609257000.A40
1609257000
|
-
|
|
|
|
24 - CONICAL SPRING WASHER SW 46
BSD-1605703069.A5
1605703069
|
-
|
|
|
|
25 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A130
1603414007
|
£2.29
|
£2.75
|
|
|
26 - SPIRAL SPRING
BSD-1609246001.A26
1609246001
|
-
|
|
|
|
27 - CLAMPING PIECE
BSD-1609223000.A32
1609223000
|
-
|
|
|
|
28 - WING NUT M6
BSD-1609233000.A100
1609233000
|
-
|
|
|
|
29 - RUBBER BUFFER
BSD-1602386002.A9
1602386002
|
-
|
|
|
|
30 - PLAIN WASHER 0.3 MM
BSD-1600100633.A9
1600100633
|
-
|
|
|
|
31 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A143
1609201082
|
-
|
|
|
|
32 - SOCKET HEAD CAP SCREW
BSD-1609234001.A104
1609234001
|
-
|
|
|
|
33 - CARBON-BRUSH SET
BSD-1609243000.A6
1609243000
|
-
|
|
|
|
35 - MANUFACTURER'S NAMEPLATE
BSD-1601110017.A17
1601110017
|
-
|
|
|
|
36 - SLEEVE TERMINAL
BSD-1609210001.A38
1609210001
|
-
|
|
|
|
37 - CIRCULAR SAW BLADE dia 190x30 MM. Z=40
BSD-1609286007.A13
1609286007
|
-
|
|
|
|
38 - PAN HEAD SCREW DIN 923-M5x5-5.8
BSD-2910271147.A129
2910271147
|
-
|
|
|
|
39 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A21
2910611018
|
-
|
|
|
|
40 - COUNTERSUNK-HEAD SCREW DIN 63-BM4x30-5.8
BSD-2910501134.A54
2910501134
|
-
|
|
|
|
41 - COUNTERSUNK-HEAD SCREW AM 4x25 DIN 63-5.8
BSD-2910501132.A72
2910501132
|
-
|
|
|
|
42 - COUNTERSUNK-HEAD SCREW
BSD-2910501136.A72
2910501136
|
-
|
|
|
|
43 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A130
2912401020
|
£2.16
|
£2.59
|
|
|
44 - ROUND-HEAD GROOVED PIN 2.6x3 DIN 1476-ST
BSD-2917721051.A13
2917721051
|
-
|
|
|
|
45 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A251
2916011014
|
£1.75
|
£2.10
|
|
|
46 - STUD BM 6x20 DIN 938-5.6
BSD-2912171201.A55
2912171201
|
-
|
|
|
|
47 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A77
2910281196
|
-
|
|
|
|
48 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A90
2910375193
|
-
|
|
|
|
49 - SOCKET HEAD CAP SCREW DIN 84-BM4x65-8.8
BSD-2910021658.A33
2910021658
|
-
|
|
|
|
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x60-8.8
BSD-2910141178.A12
2910141178
|
-
|
|
|
|
52 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8
BSD-2910141170.A74
2910141170
|
£2.61
|
£3.13
|
|
|
53 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A54
2915011005
|
£1.75
|
£2.10
|
|
|
54 - HEX NUT DIN 439-AM5-04
BSD-2915051105.A23
2915051105
|
-
|
|
|
|
55 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A102
2916060005
|
£1.75
|
£2.10
|
|
|
56 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A153
2916060006
|
£1.32
|
£1.58
|
|
|
57 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A773
1907950006
|
£4.26
|
£5.11
|
|
|
58 - HOLDING SPRING
BSD-1609213001.A55
1609213001
|
-
|
|
|
|
59 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A103
2916660014
|
£1.75
|
£2.10
|
|
|
60 - ROUND-HEAD BOLT DIN 603 M6x55
BSD-2910281215.A64
2910281215
|
-
|
|
|
|
61 - ROUND-HEAD BOLT DIN 603 - M6x30
BSD-2910281205.A16
2910281205
|
-
|
|
|
|
62 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A89
2910611082
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW B 4.8x32 DIN 7981
BSD-2910611037.A25
2910611037
|
-
|
|
|
|
64 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A273
2916011010
|
£1.75
|
£2.10
|
|
|
69 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A390
2603490017
|
£2.16
|
£2.59
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3953
160111A3H3
|
£2.61
|
£3.13
|
|
