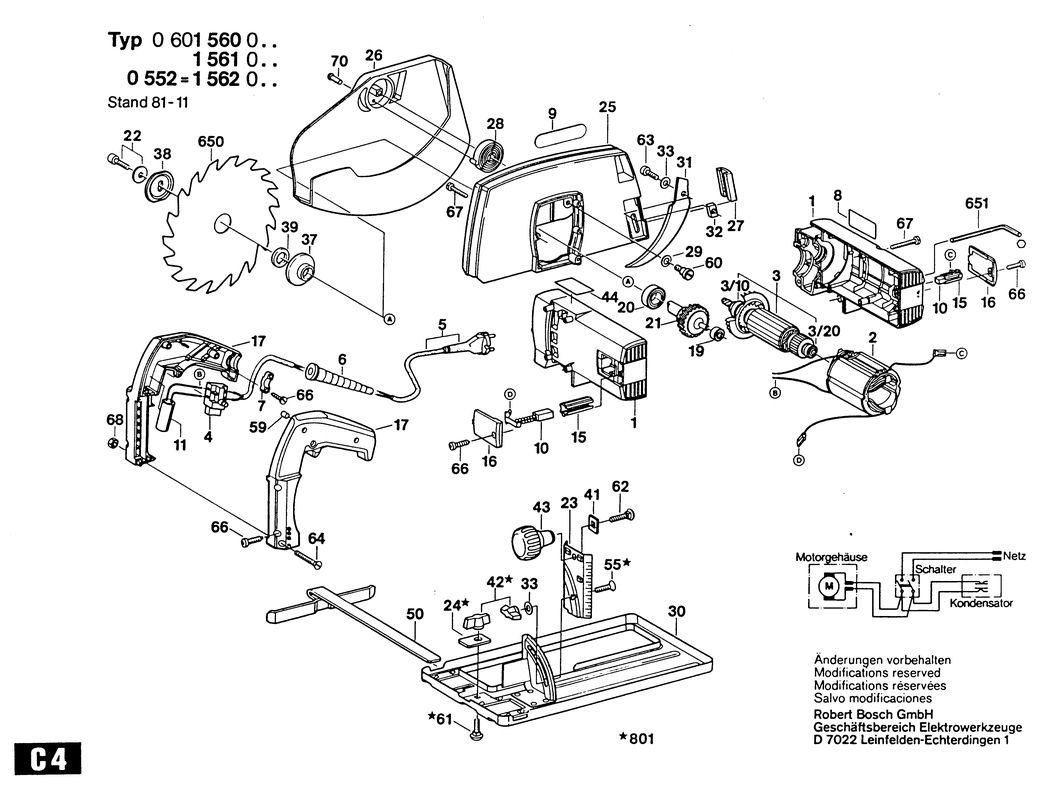

1 - MOTOR HOUSING
BSD-1609200681.A7
1609200681
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-1609200753.A1
1609200753
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1609200752.A2
1609200752
|
-
|
|
|
|
3/10 - GROOVE BALL BEARING
BSD-1609200717.A36
1609200717
|
-
|
|
|
|
3/20 - GROOVE BALL BEARING 607 LLB C3/3K DIN 625
BSD-1609200716.A20
1609200716
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609200748.A14
1609200748
|
-
|
|
|
|
6 - GROMMET dia9x90 MM
BSD-1609207001.A107
1609207001
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609213000.A83
1609213000
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110016.A32
1601110016
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-1609202417.A8
1609202417
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-1609200750.A81
1609200750
|
-
|
|
|
|
15 - BRUSH HOLDER
BSD-1609200032.A9
1609200032
|
-
|
|
|
|
16 - SEALING CAP
BSD-1609200079.A17
1609200079
|
-
|
|
|
|
17 - HANDLE
BSD-1609200075.A18
1609200075
|
-
|
|
|
|
19 - BALL BEARING 7x19x6
BSD-2600905032.A1974
2600905032
|
£5.30
|
£6.36
|
|
|
20 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A361
1900905163
|
£11.30
|
£13.56
|
|
|
21 - CYLINDRICAL GEAR Z=36
BSD-1609200684.A18
1609200684
|
-
|
|
|
|
22 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A47
1603414007
|
£2.29
|
£2.75
|
|
|
23 - DIAL
BSD-1608000076.A30
1608000076
|
-
|
|
|
|
24 - CLAMPING PIECE
BSD-1601030024.A4
1601030024
|
-
|
|
|
|
25 - PROTECTIVE COVER
BSD-1609200095.A6
1609200095
|
-
|
|
|
|
26 - PIVOTING BLADE GUARD
BSD-1609200094.A5
1609200094
|
-
|
|
|
|
27 - RUBBER BUFFER
BSD-1602386002.A81
1602386002
|
-
|
|
|
|
28 - SPIRAL SPRING
BSD-1604652009.A31
1604652009
|
-
|
|
|
|
29 - PLAIN WASHER 0.3 MM
BSD-1600100633.A87
1600100633
|
-
|
|
|
|
30 - BASE PLATE 110x298 MM
BSD-1608000075.A20
1608000075
|
-
|
|
|
|
31 - RIVING KNIFE
BSD-1600025012.A14
1600025012
|
-
|
|
|
|
32 - PERFORATED PANEL M6-20x10x5 MM
BSD-1601030025.A62
1601030025
|
-
|
|
|
|
33 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A55
1609201082
|
-
|
|
|
|
37 - INTERMEDIATE FLANGE
BSD-1609257000.A76
1609257000
|
-
|
|
|
|
38 - CONICAL SPRING WASHER SW 46
BSD-1605703069.A64
1605703069
|
-
|
|
|
|
39 - INTERMEDIATE RING
BSD-1609201003.A39
1609201003
|
-
|
|
|
|
41 - SLIDE PLATE
BSD-1601030026.A9
1601030026
|
-
|
|
|
|
42 - WING NUT M6
BSD-1609233000.A54
1609233000
|
-
|
|
|
|
43 - BALL HANDLE
BSD-1609200637.A19
1609200637
|
-
|
|
|
|
44 - REFERENCE PLATE
BSD-1601110058.A32
1601110058
|
£1.75
|
£2.10
|
|
|
50 - END STOP
BSD-1601336004.A50
1601336004
|
-
|
|
|
|
55 - COUNTERSUNK-HEAD SCREW M6x20 MM
BSD-1603490000.A5
1603490000
|
-
|
|
|
|
59 - PLUG
BSD-1609200048.A24
1609200048
|
-
|
|
|
|
60 - PAN HEAD SCREW DIN 923-M5x5-5.8
BSD-2910271147.A108
2910271147
|
-
|
|
|
|
61 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A124
2910281196
|
-
|
|
|
|
62 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A131
2910281203
|
£2.61
|
£3.13
|
|
|
63 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A19
2910375193
|
-
|
|
|
|
64 - COUNTERSUNK-HEAD SCREW DIN 63-BM4x30-5.8
BSD-2910501134.A104
2910501134
|
-
|
|
|
|
66 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A418
2912401020
|
£2.16
|
£2.59
|
|
|
67 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A23
2910611082
|
£1.75
|
£2.10
|
|
|
68 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A294
2915011005
|
£1.75
|
£2.10
|
|
|
70 - ROUND-HEAD GROOVED PIN 2.6x3 DIN 1476-ST
BSD-2917721051.A90
2917721051
|
-
|
|
|
|
650 - CIRCULAR SAW BLADE
BSD-1609200904.A0
1609200904
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A998
1907950006
|
£4.26
|
£5.11
|
|
|
706 - PARTS SET
BSD-1609200872.A9
1609200872
|
-
|
|
|
|
801 - PARTS SET
BSD-1609200686.A22
1609200686
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A39
1607000228
|
£23.86
|
£28.63
|
|
|
835/020 - END SPLICE
BSD-3604477009.A196
3604477009
|
£2.61
|
£3.13
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5483
160111A3H3
|
£2.61
|
£3.13
|
|
