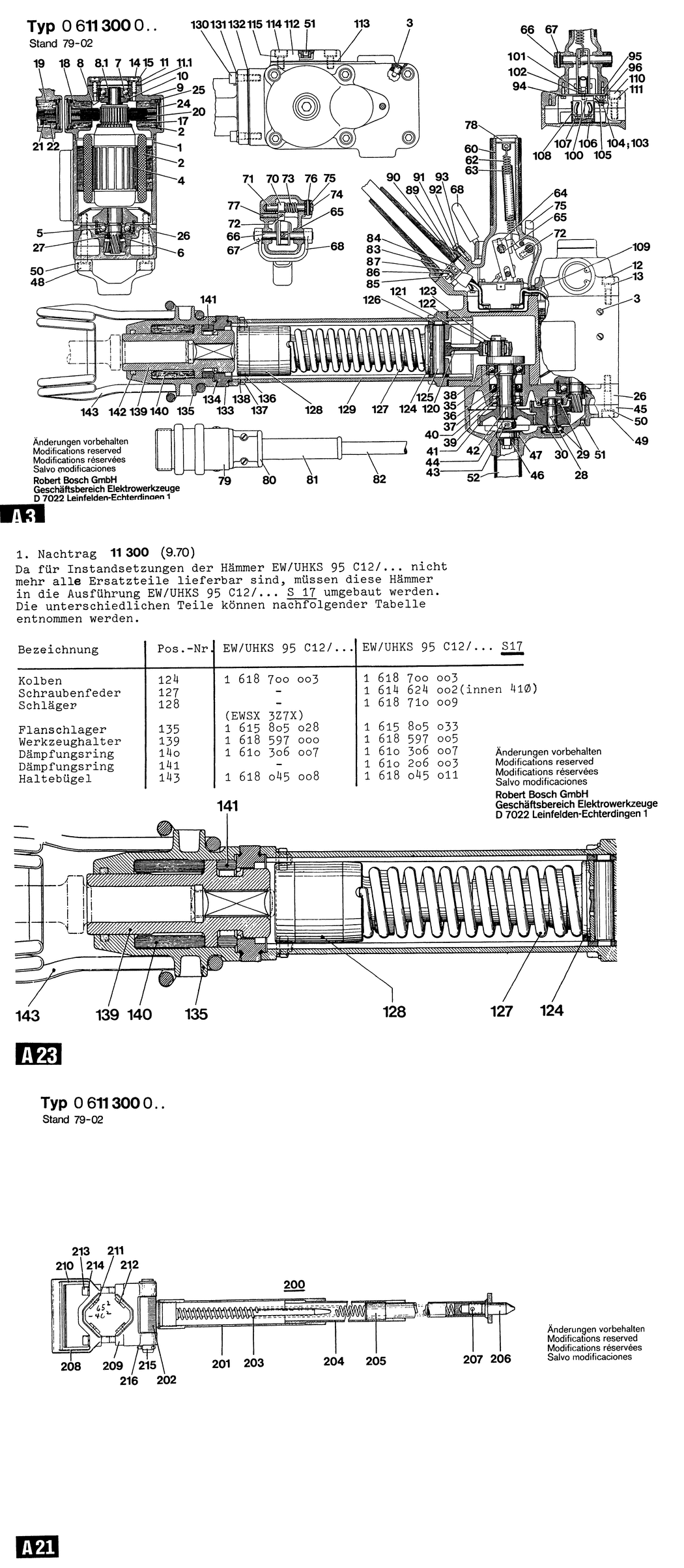

An exploded drawing and listing for the Bosch ---- / 0611300001 / EU 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106003.A2 1615106003	-
2 - POLE SHOE 110V BSD-1614220011.A0 1614220011	-
3 - SET SCREW DIN 417-M8x15-5.8 BSD-2912051237.A40 2912051237	-
4 - ARMATURE 110V BSD-1614011005.A0 1614011005	-
5 - MAGNETO BALL BEARING BO17T M DIN 615 BSD-1900900114.A0 1900900114	-
6 - INTERMEDIATE RING BSD-1610201001.A1 1610201001	-
7 - MAGNETO BALL BEARING BO15T M DIN 615 BSD-1900900112.A5 1900900112	-
8 - SHIM 0.1 MM BSD-1610101602.A0 1610101602	-
8 - GUIDE BUSHING BSD-1610222001.A0 1610222001	-
8 - SHIM 0.2 MM BSD-1610101603.A2 1610101603	£1.75	£2.10
9 - COMMUTATOR END SHIELD BSD-1615850002.A2 1615850002	-
10 - RETAINING SNAP RING BSD-1610220005.A2 1610220005	-
11 - SEALING CAP BSD-1615500008.A1 1615500008	-
11 - SEALING PLATE BSD-1610051000.A2 1610051000	-
12 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A21 2910141244	£1.75	£2.10
13 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A130 2916680009	-
14 - SOCKET HEAD CAP SCREW DIN 84-AM6x15-8.8 BSD-2910021196.A38 2910021196	-
15 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A27 2916060007	£1.75	£2.10
17 - BRUSH HOLDER BSD-1614330004.A1 1614330004	-
18 - BRUSH HOLDER BSD-1614330005.A1 1614330005	-
19 - FLAT KEY BSD-1612300009.A2 1612300009	-
21 - SOCKET HEAD CAP SCREW BSD-1613412000.A0 1613412000	-
21 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x5-8.8 BSD-2910021081.A0 2910021081	-
22 - COMPRESSION SPRING BSD-1614612000.A1 1614612000	-
23 - RUBBER RING BSD-1610109000.A2 1610109000	-
24 - INSULATING WASHER BSD-1610502002.A1 1610502002	-
25 - RETAINING RING BSD-1610119001.A1 1610119001	-
26 - FLANGED BEARING BSD-1615805013.A1 1615805013	-
27 - SEAL RING BSD-1600108008.A3 1600108008	-
28 - CYLINDRICAL GEAR Z=33/49 BSD-1616328001.A1 1616328001	-
29 - MAGNETO BALL BEARING DIN 615-E 10 TM BSD-1900900118.A4 1900900118	-
30 - SHIM 0.2 MM BSD-1610101600.A0 1610101600	-
30 - SHIM 0.1 MM BSD-1610101601.A2 1610101601	-
35 - ECCENTRIC SHAFT BSD-1616110006.A3 1616110006	-
36 - ROTARY SHAFT LIP SEAL DIN 6503 20x40x10 BSD-2916730011.A5 2916730011	-
37 - SPACER BUSHING BSD-1610322001.A3 1610322001	-
39 - GROOVE BALL BEARING 6203 DIN 625 BSD-1900900305.A4 1900900305	-
40 - SHIM 0.1 MM BSD-1710101610.A5 1710101610	-
41 - CYLINDRICAL GEAR Z=54 BSD-1616317001.A2 1616317001	-
42 - WOODRUFF KEY BSD-1610023001.A0 1610023001	-
43 - HEX NUT DIN 985-M12X1 BSD-1613313000.A18 1613313000	£2.80	£3.36
44 - SHIM BSD-1600101626.A6 1600101626	-
45 - GEAR COVER R 3/4 BSD-1615808001.A4 1615808001	-
45 - GEAR COVER M 27x2 MM BSD-1615808005.A1 1615808005	-
46 - CLAMPING RING BSD-1613344001.A1 1613344001	-
47 - STRAIGHT PIN 4x5MM BSD-2917500391.A2 2917500391	-
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M 8x60-8.8 BSD-2910140258.A1 2910140258	-
49 - HEX SOCKET HEAD CAP SCREW DIN 912-M 8x50-8.8 BSD-2910141254.A5 2910141254	-
50 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A129 2916680009	-
51 - LUBRIC. HEAD BSD-1617401000.A1 1617401000	-
52 - HANDLE BSD-1610763001.A4 1610763001	-
60 - HANDLE BSD-1615132002.A4 1615132002	-
62 - EXTENSION SPRING BSD-1614650000.A10 1614650000	-
64 - CONTROL LEVER BSD-1611321005.A1 1611321005	-
65 - SET SCREW DIN 417-M6x18-5.8 BSD-2912051199.A2 2912051199	-
66 - BEARING BOLT BSD-1603103002.A3 1603103002	-
67 - COILED SPRING PIN DIN 1481-4x18 BSD-2917760098.A18 2917760098	-
68 - CONTROL LEVER BSD-1612098001.A4 1612098001	-
70 - LATCH BSD-1612305000.A0 1612305000	-
71 - BEARING BOLT BSD-1613103000.A1 1613103000	-
72 - STUD M 6x12 DIN 417-5.8 BSD-2912051193.A3 2912051193	-
73 - COILED SPRING BSD-1614651000.A3 1614651000	-
74 - CONTROL LEVER BSD-1612026900.A1 1612026900	-
75 - CONTROL LEVER BSD-1612026001.A1 1612026001	-
76 - COILED SPRING PIN DIN 1481-4x18 BSD-2917760098.A19 2917760098	-
77 - STRAIGHT PIN 6 H 8x28 DIN 7 BSD-2917500154.A3 2917500154	-
78 - SEALING CAP BSD-1615500058.A1 1615500058	-
79 - POWER SUPPLY CORD BSD-1614461007.A1 1614461007	-
79 - POWER SUPPLY CORD BSD-1614461010.A1 1614461010	-
80 - CONNECTOR PLUG BSD-1614482003.A1 1614482003	-
81 - GROMMET BSD-1600703013.A51 1600703013	-
81 - RUBBER BUSHING BSD-1610306002.A1 1610306002	-
82 - POWER SUPPLY CORD BSD-6288375150.A0 6288375150	-
83 - GROMMET BSD-1610703011.A2 1610703011	£14.91	£17.89
84 - FASTENING CLAMP BSD-1601302002.A5 1601302002	-
85 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A861 2910021125	£1.75	£2.10
86 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A180 2915011005	£1.75	£2.10
87 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A935 2916690003	£1.75	£2.10
88 - SPACER BUSHING BSD-1610300027.A1 1610300027	-
89 - PLAIN WASHER BSD-1600102006.A12 1600102006	£2.16	£2.59
90 - GROMMET BSD-1600328027.A4 1600328027	-
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A862 2910021125	£1.75	£2.10
92 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A936 2916690003	£1.75	£2.10
93 - PLAIN WASHER BSD-2330100002.A4 2330100002	-
94 - FIXING PLATE BSD-1600136001.A13 1600136001	-
95 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A108 2910021118	£1.75	£2.10
96 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A934 2916690003	£1.75	£2.10
100 - ON-OFF SWITCH BSD-1617200005.A2 1617200005	-
101 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A109 2910021118	£1.75	£2.10
102 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A933 2916690003	£1.75	£2.10
103 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A414 2910110120	£1.75	£2.10
104 - SPRING WASHER DIN 137-A4 BSD-1600150006.A830 1600150006	-
105 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A305 2916010410	-
106 - INSULATING PLATE BSD-1611007006.A2 1611007006	-
107 - INSULATING PLATE BSD-1611006003.A3 1611006003	-
108 - INSULATING CAP BSD-1610583001.A2 1610583001	-
109 - GROMMET BSD-1610306012.A2 1610306012	-
110 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A20 2910141244	£1.75	£2.10
111 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A128 2916680009	-
112 - HOUSING COVER BSD-1615500004.A0 1615500004	-
113 - SEALING DISK BSD-1611015000.A0 1611015000	-
114 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x15-8.8 BSD-2910141237.A8 2910141237	-
115 - SPRING WASHER A 8 DIN 137-ST BSD-2916060008.A9 2916060008	-
120 - CONNECTING ROD BSD-1612001010.A3 1612001010	-
121 - NEEDLE-ROLLER BEARING BSD-1610910000.A0 1610910000	-
121 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A82 1900900302	-
122 - ADAPTOR PLATE BSD-1610142001.A3 1610142001	-
122 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A775 2916660013	£2.16	£2.59
123 - SPLIT PIN DIN 94-4x22-ST BSD-1904681520.A2 1904681520	-
123 - HEX NUT DIN 985-M12X1 BSD-1613313000.A19 1613313000	£2.80	£3.36
123 - CYL. ROLLER BEARING BSD-3607020263.A2 3607020263	£68.42	£82.10
123 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A20 2916660010	£1.75	£2.10
124 - HAMMER PISTON BSD-1618700005.A3 1618700005	-
125 - PISTON PIN BSD-1613124012.A5 1613124012	-
126 - GUIDE PLATE BSD-1611030002.A2 1611030002	-
127 - COMPRESSION SPRING dia 36 MM BSD-1614624004.A0 1614624004	-
127 - COMPRESSION SPRING BSD-1614624002.A3 1614624002	-
128 - STRIKER BSD-1618710011.A3 1618710011	-
128 - STRIKER BSD-1618710009.A2 1618710009	-
129 - GUIDE TUBE BSD-1615806005.A2 1615806005	-
130 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8 BSD-2910141246.A8 2910141246	-
131 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A132 2916680009	-
132 - SHIM BSD-1611038005.A5 1611038005	-
133 - INTERMEDIATE FLANGE BSD-1615700003.A2 1615700003	-
133 - PRESS-IN SOCKET BSD-1610300017.A2 1610300017	-
134 - O-RING 60x4 MM BSD-1900210156.A5 1900210156	£8.67	£10.41
135 - FLANGED BEARING BSD-1615805033.A5 1615805033	-
136 - HEX SOCKET HEAD CAP SCREW M 8x50 DIN 912-8.8 BSD-2910140254.A5 2910140254	-
137 - HEX NUT DIN 934 M 8 BSD-2915011109.A3 2915011109	-
138 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A131 2916680009	-
139 - TOOLHOLDER BSD-1618597005.A5 1618597005	-
140 - DAMPING RING BSD-1610306007.A0 1610306007	-
141 - DAMPING RING BSD-1610206003.A0 1610206003	-
141 - PLAIN WASHER BSD-1610103009.A3 1610103009	-
142 - FELT STRIP BSD-1611005001.A2 1611005001	-
142 - BUSHING BSD-1610501010.A2 1610501010	-
143 - RETAINING BRACKET BSD-1618045011.A3 1618045011	-
143 - RETAINING BRACKET BSD-1618045015.A2 1618045015	-
151 - GROOVED NAIL DIN 1476 3x10 BSD-2917721036.A2 2917721036	-
160 - ROUND-NOSED PLIERS BSD-1617954000.A0 1617954000	-
161 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A201 1907950007	£5.30	£6.36
162 - CARBON-BRUSH SET BSD-1617014101.A2 1617014101	-
163 - GREASE GUN BSD-1615437500.A10 1615437500	-
164 - HOOK WRENCH BSD-1907950562.A2 1907950562	-
165 - LIFTING PIN BSD-1613101000.A2 1613101000	-
200 - SPRING STRUT BSD-1618180000.A0 1618180000	-
201 - SUPPORT TUBE BSD-1610760008.A3 1610760008	-
202 - CONTROL LEVER BSD-1612123001.A0 1612123001	-
203 - COMPRESSION SPRING BSD-1614615000.A0 1614615000	-
204 - SUPPORT TUBE BSD-1610700012.A5 1610700012	-
205 - GUIDE TUBE BSD-1610760009.A2 1610760009	-
206 - STUD BOLT BSD-1613523002.A5 1613523002	-
207 - SLOTTED SPRING PIN BSD-2917760179.A0 2917760179	-
208 - CLAMPING SADDLE BSD-1618040002.A3 1618040002	-
209 - CLAMPING SADDLE BSD-1618040001.A2 1618040001	-
210 - CLAMPING PIECE BSD-1618040004.A2 1618040004	-
211 - INSULATING PLATE BSD-1611035002.A0 1611035002	-
212 - GROOVED NAIL DIN 1477-4x10-ST BSD-2917740094.A0 2917740094	-
213 - HEX SOCKET HEAD CAP SCREW M 12x70 DIN 912-10.9 BSD-2910150356.A5 2910150356	-
214 - SPRING LOCK WASHER BSD-2916690009.A0 2916690009	-
215 - PIVOT PIN BSD-1610700000.A0 1610700000	-
216 - SPLIT PIN DIN 94-5x36-ST BSD-1904681650.A3 1904681650	-
217 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A143 1907950009	£21.68	£26.01
888 - NAMEPLATE BSD-160111A3H3.A3051 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
