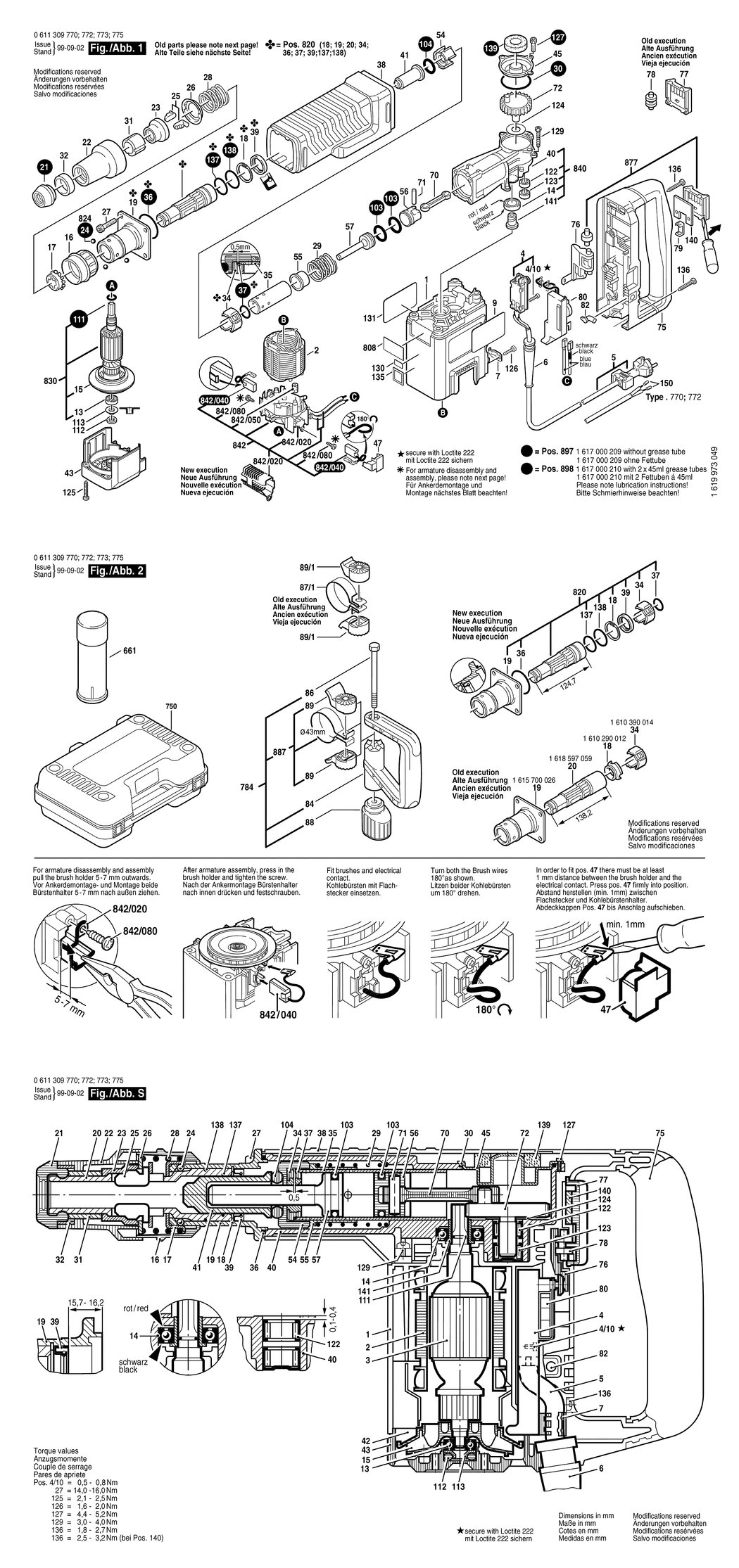

1 - MOTOR HOUSING
BSD-1615102146.A8
1615102146
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220343.A65
1604220343
|
£33.74
|
£40.49
|
|
|
4 - SWITCH
BSD-1617200048.A90
1617200048
|
£18.96
|
£22.75
|
|
|
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8
BSD-2910011088.A145
2910011088
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD IL 4.15m 2 x 1.0mm H07 RN-F
BSD-1614460047.A7
1614460047
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia9.7-dia12x89 MM
BSD-1610703053.A168
1610703053
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A748
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A750
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110712.A3
1611110712
|
-
|
|
|
|
13 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A137
1610900025
|
£16.41
|
£19.69
|
|
|
14 - GROOVE BALL BEARING 15x32x9
BSD-1610905027.A6
1610905027
|
-
|
|
|
|
15 - FAN
BSD-1616610071.A42
1616610071
|
£9.49
|
£11.39
|
|
|
16 - RATCHET SLEEVE
BSD-1610499016.A27
1610499016
|
-
|
|
|
|
17 - RETAINING SNAP RING
BSD-1610590002.A4
1610590002
|
£3.72
|
£4.47
|
|
|
18 - SPRING RETAINING RING DIN 472 37x1.5MM
BSD-2916660016.A4
2916660016
|
£2.61
|
£3.13
|
|
|
19 - CLAMPING-FLANGE
BSD-1615700033.A12
1615700033
|
-
|
|
|
|
21 - PROTECTIVE CAP
BSD-1610508017.A62
1610508017
|
£3.72
|
£4.47
|
|
|
22 - PROTECTION SLEEVE
BSD-1610499015.A4
1610499015
|
£4.75
|
£5.70
|
|
|
23 - STOP SLEEVE
BSD-1610520001.A137
1610520001
|
£12.04
|
£14.45
|
|
|
25 - STOPPING DEVICE
BSD-1612300027.A17
1612300027
|
£11.30
|
£13.56
|
|
|
26 - INDEXING DISK
BSD-1610290025.A92
1610290025
|
£6.52
|
£7.83
|
|
|
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A171
2910141201
|
£2.61
|
£3.13
|
|
|
28 - COMPRESSION SPRING
BSD-1614621000.A103
1614621000
|
£2.80
|
£3.36
|
|
|
29 - COMPRESSION SPRING
BSD-1614615002.A6
1614615002
|
£1.95
|
£2.34
|
|
|
30 - O-RING 60.0x1.5 MM
BSD-1610210092.A5
1610210092
|
-
|
|
|
|
31 - SPACER TUBE
BSD-1610390015.A10
1610390015
|
-
|
|
|
|
32 - CYLINDER SLEEVE
BSD-1610202016.A77
1610202016
|
-
|
|
|
|
34 - SPACER TUBE
BSD-1610390030.A0
1610390030
|
-
|
|
|
|
35 - HAMMER PIPE
BSD-1615806086.A6
1615806086
|
-
|
|
|
|
36 - O-RING 48.0x2.0 MM
BSD-1610210022.A6
1610210022
|
£1.66
|
£1.99
|
|
|
37 - O-RING 30x2.5 MM
BSD-1900210131.A37
1900210131
|
£4.26
|
£5.11
|
|
|
38 - COVERING HOOD
BSD-1615190034.A3
1615190034
|
-
|
|
|
|
39 - ROTARY SHAFT LIP SEAL
BSD-1610283027.A4
1610283027
|
£4.75
|
£5.70
|
|
|
41 - STRIKER PIN
BSD-1618710052.A4
1618710052
|
£16.74
|
£20.09
|
|
|
43 - BEARING COVER
BSD-1615808074.A6
1615808074
|
-
|
|
|
|
45 - HOUSING COVER
BSD-1615500286.A10
1615500286
|
-
|
|
|
|
47 - COVER
BSD-1610591012.A37
1610591012
|
£1.75
|
£2.10
|
|
|
54 - CONTROL DISC
BSD-1610190010.A6
1610190010
|
-
|
|
|
|
55 - CONTROL BUSHING
BSD-1610420004.A10
1610420004
|
-
|
|
|
|
56 - HAMMER PISTON
BSD-1618700057.A4
1618700057
|
-
|
|
|
|
57 - STRIKER
BSD-1618710077.A2
1618710077
|
-
|
|
|
|
70 - CONNECTING ROD
BSD-1612001031.A4
1612001031
|
-
|
|
|
|
71 - STRAIGHT PIN
BSD-1613101005.A10
1613101005
|
£1.32
|
£1.58
|
|
|
72 - ECCENTRIC COG WHEEL Z=43
BSD-1616317037.A10
1616317037
|
£103.14
|
£123.77
|
|
|
75 - HANDLE
BSD-1615132043.A10
1615132043
|
-
|
|
|
|
76 - CONTROL LEVER
BSD-1612026029.A7
1612026029
|
£5.30
|
£6.36
|
|
|
77 - SHIFT PLATE
BSD-1617000299.A7
1617000299
|
-
|
|
|
|
78 - SHIFT PLATE
BSD-1617000297.A15
1617000297
|
-
|
|
|
|
79 - BEARING PEDESTAL
BSD-1615819016.A4
1615819016
|
-
|
|
|
|
80 - SPEED GOVERNOR 220-240V
BSD-1617233026.A37
1617233026
|
£46.82
|
£56.18
|
|
|
82 - LIGHT CONDUCTOR
BSD-1615510000.A28
1615510000
|
£2.16
|
£2.59
|
|
|
84 - STRAP-SHAPED HANDLE
BSD-1615132044.A11
1615132044
|
£14.91
|
£17.89
|
|
|
86 - HEX SCREW DIN 931-M8x130-8.8
BSD-2911011270.A70
2911011270
|
£4.26
|
£5.11
|
|
|
88 - STAR KNOB M8
BSD-1613349018.A9
1613349018
|
-
|
|
|
|
89 - CLAMPING PIECE
BSD-1618040068.A8
1618040068
|
£5.01
|
£6.01
|
|
|
89 - CLAMPING BAND dia 43 MM
BSD-1617000171.A16
1617000171
|
-
|
|
|
|
103 - O-RING 24.0x4.0 MM
BSD-1610210091.A10
1610210091
|
£3.72
|
£4.47
|
|
|
104 - O-RING 17.0x8.0 MM
BSD-1610210093.A10
1610210093
|
£1.75
|
£2.10
|
|
|
111 - O-RING 10.0x1.0 MM
BSD-1610210081.A58
1610210081
|
£3.72
|
£4.47
|
|
|
112 - CLAMPING RING
BSD-1610210090.A23
1610210090
|
£5.01
|
£6.01
|
|
|
113 - BACKUP RING
BSD-1610328013.A28
1610328013
|
-
|
|
|
|
122 - NEEDLE BEARING
BSD-1610910069.A20
1610910069
|
-
|
|
|
|
123 - NOZZLE SOCKET
BSD-1610910072.A11
1610910072
|
-
|
|
|
|
124 - THRUST BEARING DISC 1.0 MM
BSD-1610101008.A74
1610101008
|
-
|
|
|
|
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z
BSD-2912401036.A93
2912401036
|
£1.32
|
£1.58
|
|
|
126 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A589
2910211019
|
£1.75
|
£2.10
|
|
|
127 - MICROENCAPSULATED SCREW DIN 912 M 4x8-8.8
BSD-2914555131.A13
2914555131
|
£2.16
|
£2.59
|
|
|
129 - TAPPING SCREW DIN7981-ST4.8x25-C-Z
BSD-2912401036.A92
2912401036
|
£1.32
|
£1.58
|
|
|
135 - REFERENCE PLATE
BSD-1611110387.A63
1611110387
|
£1.75
|
£2.10
|
|
|
136 - TAPPING SCREW DIN 7971-ST4.8x25-C
BSD-2910211236.A12
2910211236
|
£1.75
|
£2.10
|
|
|
137 - O-RING 26.0x2.0 MM
BSD-1610210101.A27
1610210101
|
£2.80
|
£3.36
|
|
|
138 - O-RING 33.0x2.0 MM
BSD-1610210103.A10
1610210103
|
£2.61
|
£3.13
|
|
|
139 - FELT WASHER
BSD-1610205006.A10
1610205006
|
-
|
|
|
|
140 - SUPPORT PLATE
BSD-1611098004.A7
1611098004
|
-
|
|
|
|
141 - HEADED BUSH
BSD-1610322007.A5
1610322007
|
-
|
|
|
|
661 - GREASE TUBE 30 ML
BSD-1615430009.A22
1615430009
|
£13.12
|
£15.75
|
|
|
750 - CARRYING CASE
BSD-1615438204.A0
1615438204
|
-
|
|
|
|
784 - AUXILIARY HANDLE
BSD-2602025080.A0
2602025080
|
£27.23
|
£32.68
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A164
160111A3HC
|
£2.61
|
£3.13
|
|
|
820 - TOOL HOLDER SET
BSD-1617000984.A0
1617000984
|
-
|
|
|
|
824 - BALL DIN 5401-5 MM-III-ST
BSD-1617000239.A6
1617000239
|
-
|
|
|
|
830 - ARMATURE 220-240V
BSD-1614010180.A17
1614010180
|
-
|
|
|
|
840 - ASSEMBLY OF SERVICE PARTS
BSD-1617000948.A10
1617000948
|
-
|
|
|
|
842 - BRUSH HOLDER
BSD-1614336009.A48
1614336009
|
-
|
|
|
|
842/020 - BRUSH GUIDE
BSD-1614336043.A41
1614336043
|
-
|
|
|
|
842/040 - CARBON-BRUSH SET
BSD-1617014122.A48
1617014122
|
£18.96
|
£22.75
|
|
|
842/050 - RUBBER BUFFER
BSD-1613212004.A55
1613212004
|
£3.72
|
£4.47
|
|
|
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A286
2912401005
|
£1.75
|
£2.10
|
|
|
877 - SHIFT PLATE
BSD-1617000299.A8
1617000299
|
-
|
|
|
|
887 - CLAMPING BAND dia 43 MM
BSD-1617000171.A14
1617000171
|
-
|
|
|
|
897 - WEAR AND TEAR PART SET
BSD-1617000209.A3
1617000209
|
-
|
|
|
|
898 - WEAR AND TEAR PART SET
BSD-1617000210.A0
1617000210
|
-
|
|
|
