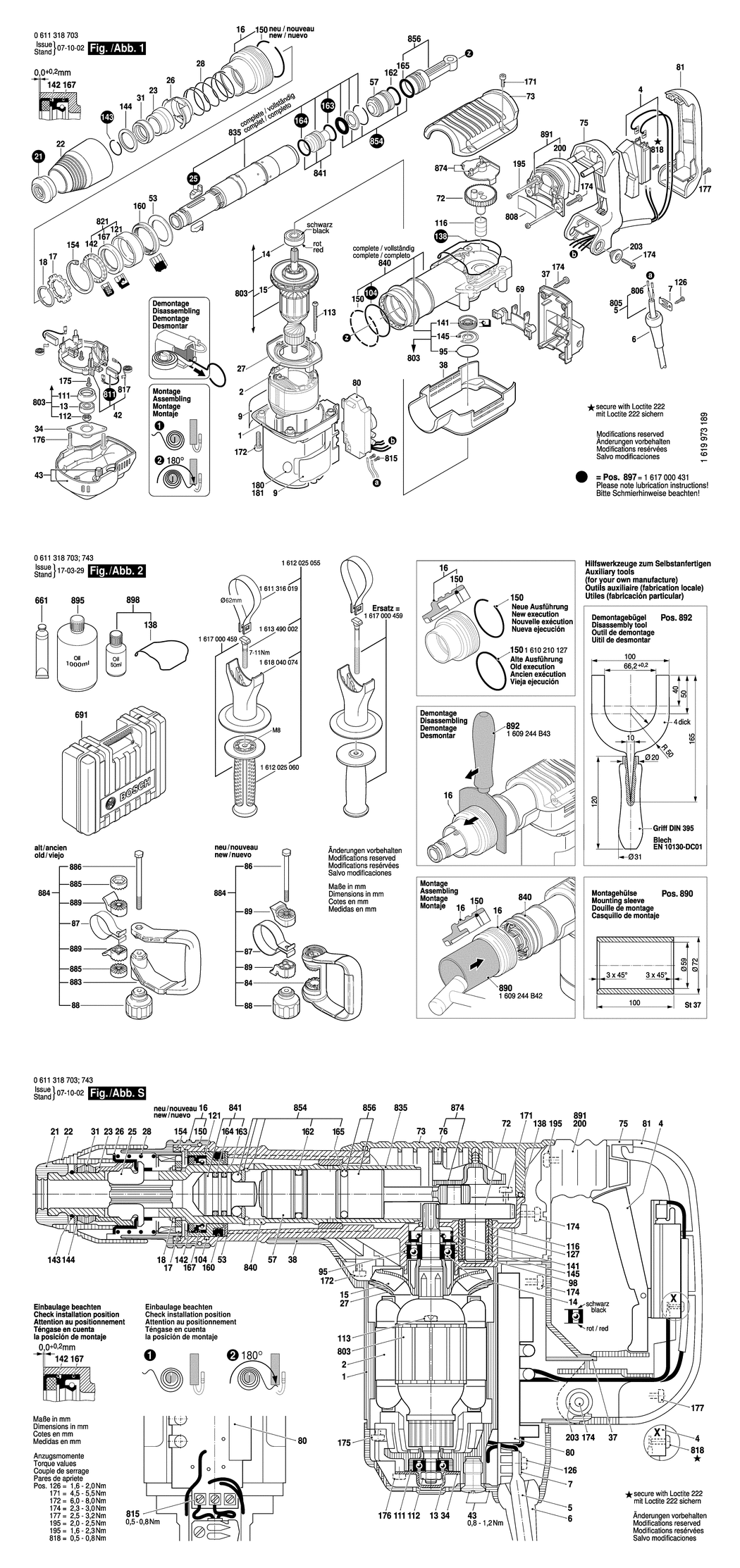

An exploded drawing and listing for the Bosch GSH 5 E / 0611318741 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615102155.A3 1615102155 £21.42 £25.71
2 - FIELD 100-115V BSD-1614220162.A0 1614220162 £33.74 £40.49
4 - SWITCH BSD-1617200095.A0 1617200095 £21.68 £26.01
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460201.A36 1604460201 £37.27 £44.72
6 - GROMMET dia8.7-dia9.6x66 MM BSD-1600703035.A41 1600703035 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302018.A784 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110C41.A1 1611110C41 £3.72 £4.47
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A1 1610900026 £12.04 £14.45
14 - GROOVE BALL BEARING 12x32x10 BSD-1610905028.A7 1610905028 £16.41 £19.69
15 - FAN BSD-1616610090.A18 1616610090 £12.04 £14.45
16 - RATCHET SLEEVE BSD-1610499055.A8 1610499055 £7.36 £8.83
17 - CATCH DISK BSD-1610241000.A22 1610241000 £3.72 £4.47
18 - RETAINING RING BSD-1614601030.A2 1614601030 £2.61 £3.13
21 - PROTECTIVE CAP BSD-1610508038.A17 1610508038 £8.13 £9.76
22 - PROTECTION SLEEVE BSD-1610591030.A7 1610591030 £5.30 £6.36
23 - STOP SLEEVE BSD-1610520001.A107 1610520001 £12.04 £14.45
25 - STOPPING DEVICE BSD-1612300036.A15 1612300036 £13.12 £15.75
26 - INDEXING DISK BSD-1610290076.A10 1610290076 £6.52 £7.83
27 - AIR-DEFLECTOR RING BSD-1610591028.A27 1610591028 £2.61 £3.13
28 - COMPRESSION SPRING BSD-1614621000.A86 1614621000 £2.80 £3.36
31 - DAMPING RING BSD-1610290049.A30 1610290049 £2.80 £3.36
34 - FLANGE BSD-1610516013.A31 1610516013 £1.75 £2.10
37 - BEARING PEDESTAL BSD-1615500321.A2 1615500321 £5.30 £6.36
38 - COVERING HOOD BSD-1615190105.A0 1615190105 £16.41 £19.69
42 - BRUSH HOLDER BSD-1614336046.A1 1614336046 £37.27 £44.72
43 - FAN COVER BSD-1615500410.A17 1615500410 £13.12 £15.75
53 - SUPPORT DISC BSD-1610102054.A2 1610102054 £3.72 £4.47
57 - STRIKER BSD-1618710073.A1 1618710073 £27.23 £32.68
69 - RETAINING BRACKET BSD-1610099005.A9 1610099005 £2.16 £2.59
72 - ECCENTRIC COG WHEEL BSD-1616317062.A2 1616317062 £51.22 £61.47
73 - HOUSING COVER BSD-1615500360.A6 1615500360 £16.74 £20.09
75 - HANDLE BSD-1615132087.A6 1615132087 £45.67 £54.80
80 - SPEED GOVERNOR 100-120V BSD-1617233038.A0 1617233038 -
81 - HANDLE COVER BSD-1615132088.A1 1615132088 £21.68 £26.01
84 - AUXILIARY HANDLE BSD-160202508D.A19 160202508D £18.96 £22.75
86 - HEX SCREW BSD-2911021267.A24 2911021267 £3.72 £4.47
87 - CLAMPING BAND BSD-1611316022.A7 1611316022 £10.10 £12.12
88 - STAR KNOB M8 BSD-1619P16922.A28 1619P16922 £6.45 £7.74
89 - CLAMPING PIECE BSD-1600A00748.A19 1600A00748 £2.80 £3.36
95 - O-RING 32.0x1.5 MM BSD-1610210173.A32 1610210173 £2.16 £2.59
104 - O-RING 55.0x2.0 MM BSD-1610210095.A41 1610210095 £2.61 £3.13
111 - BUSHING BSD-1610290064.A13 1610290064 £1.75 £2.10
112 - HEX NUT DIN 936-M8x1-8 BSD-1613300008.A7 1613300008 £2.61 £3.13
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A159 1613435009 £1.75 £2.10
116 - INNER RING BSD-1610311017.A24 1610311017 £6.52 £7.83
121 - BUSHING BSD-1610328018.A5 1610328018 £14.91 £17.89
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A633 2910211019 £1.75 £2.10
138 - SEALING FRAME BSD-1611015050.A10 1611015050 £9.47 £11.36
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A13 1610290066 £10.10 £12.12
142 - ROTARY SHAFT LIP SEAL BSD-1610290061.A13 1610290061 £5.58 £6.70
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A61 1614601021 £7.36 £8.83
144 - SUPPORTING DISC BSD-1610251006.A11 1610251006 £5.58 £6.70
145 - SPRING RETAINING RING BSD-1610119012.A24 1610119012 £2.61 £3.13
150 - RETAINING RING BSD-1614601041.A10 1614601041 £1.75 £2.10
154 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A21 2916660024 £5.30 £6.36
160 - DAMPING RING BSD-1610210172.A12 1610210172 £6.52 £7.83
162 - O-RING 24.0x4.0 MM BSD-1610210091.A36 1610210091 £3.72 £4.47
163 - SEAL RING BSD-1610290065.A48 1610290065 £8.13 £9.76
164 - O-RING 22.0x3.0 MM BSD-1610210144.A27 1610210144 £5.30 £6.36
165 - O-RING 25.0x4.0 MM BSD-1610210153.A3 1610210153 £7.36 £8.83
167 - ROTARY SHAFT LIP SEAL BSD-1610290062.A9 1610290062 £3.72 £4.47
171 - TORX OVAL-HEAD SCREW M5x16-TORX.T25 BSD-1613435014.A2 1613435014 £2.16 £2.59
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A59 1613435013 £2.16 £2.59
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A4 1613435012 £2.16 £2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A182 2912401018 £1.75 £2.10
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A5 1613435012 £2.16 £2.59
177 - TAPPING SCREW ST3.9x32 BSD-1603435051.A89 1603435051 £1.95 £2.34
195 - TORX OVAL-HEAD SCREW BSD-1613435020.A15 1613435020 -
200 - BELLOWS BSD-1610284000.A31 1610284000 £10.10 £12.12
203 - SUPPORT DISC BSD-1610322009.A0 1610322009 £2.33 £2.80
661 - GREASE TUBE 30 ML BSD-1615430010.A174 1615430010 £6.52 £7.83
691 - CARRYING CASE BSD-16054381CC.A3 16054381CC £45.67 £54.80
803 - ARMATURE 110-115V BSD-1614011105.A0 1614011105 £135.25 £162.30
806 - END SPLICE BSD-3604477009.A13 3604477009 £2.61 £3.13
808 - NAMEPLATE BSD-160111A3H5.A220 160111A3H5 £2.61 £3.13
811 - CARBON-BRUSH SET BSD-1617014144.A32 1617014144 £21.52 £25.83
811 - CARBON-BRUSH SET 10 x 1 617 014 144 BSD-1607000492.A13 1607000492 £120.11 £144.13
815 - SOCKET HEAD CAP SCREW BSD-1609271281.A4 1609271281 £1.75 £2.10
817 - SPIRAL SPRING BSD-1614652004.A16 1614652004 £7.36 £8.83
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A42 2910011082 £1.75 £2.10
821 - BUSHING BSD-1617000835.A5 1617000835 £21.68 £26.01
835 - HAMMER PIPE BSD-1617000432.A7 1617000432 £179.37 £215.24
840 - IMPACT MECHANISM HOUSING BSD-1617000837.A4 1617000837 £57.02 £68.42
841 - STRIKER PIN BSD-1617000452.A7 1617000452 £40.80 £48.96
854 - STOP DISC BSD-1617000442.A8 1617000442 £37.27 £44.72
856 - HAMMER PISTON BSD-1617000836.A10 1617000836 £27.23 £32.68
874 - HOLDING-DOWN-APPLIANCE BSD-1617000422.A7 1617000422 £13.12 £15.75
883 - AUXILIARY HANDLE BSD-1615132109.A5 1615132109 £23.86 £28.63
884 - AUXILIARY HANDLE BSD-1602025097.A16 1602025097 £40.80 £48.96
885 - CATCH DISK BSD-1610190053.A8 1610190053 £2.49 £2.99
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A37 2911011270 £4.26 £5.11
889 - CLAMPING PIECE BSD-1618040084.A7 1618040084 £2.80 £3.36
890 - MOUNTING SLEEVE BSD-1609244B42.A17 1609244B42 -
891 - SPRING PACK BSD-1617000853.A2 1617000853 £21.68 £26.01
892 - BOW BSD-1609244B43.A5 1609244B43 -
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A43 1615430019 £59.53 £71.44
897 - WEAR AND TEAR PART SET BSD-1617000431.A2 1617000431 £27.23 £32.68
898 - OIL RESERVOIR 50 ML BSD-1615437512.A13 1615437512 £13.12 £15.75
