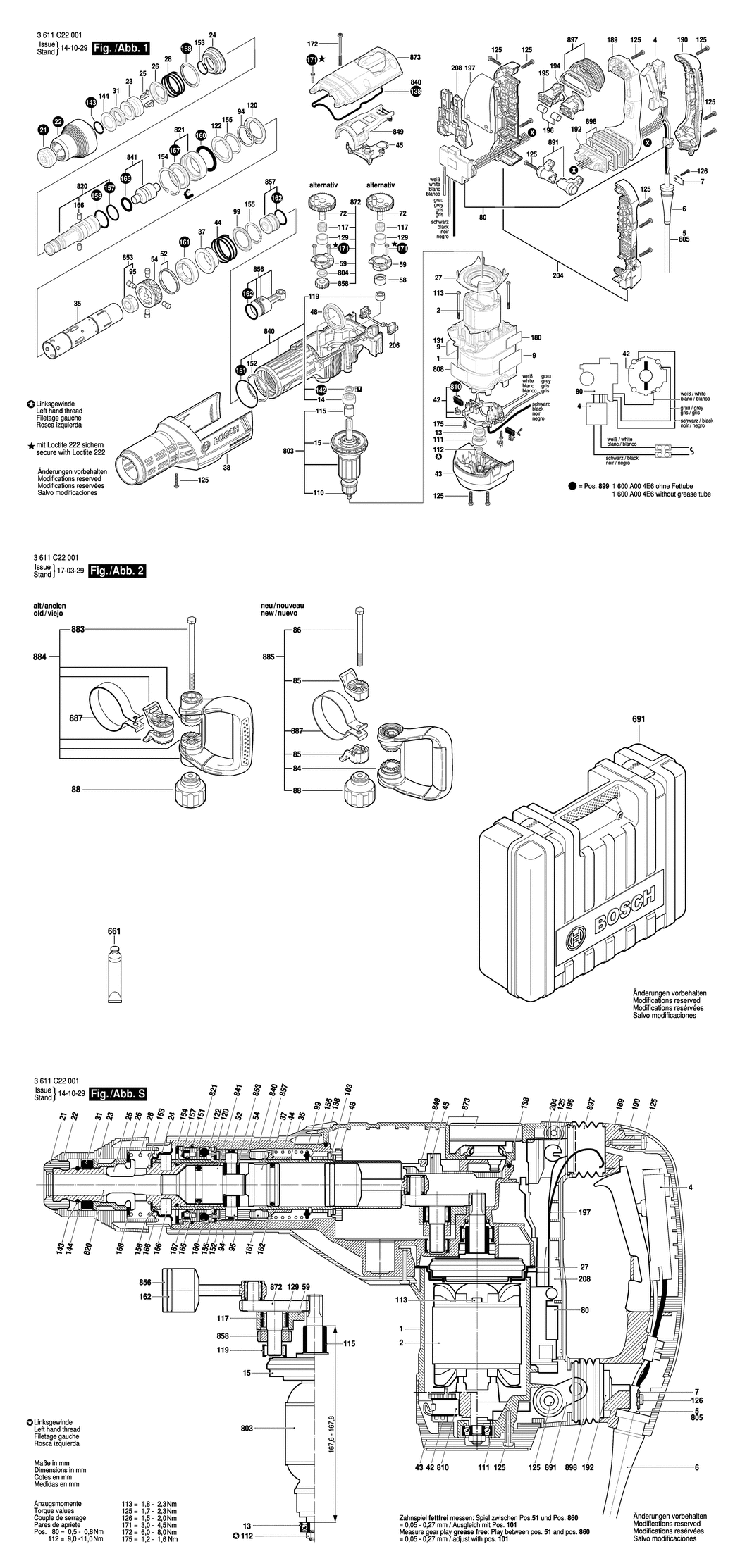

An exploded drawing and listing for the Bosch GSH 7 VC / 3611C22031 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615108165.A4 1615108165 £31.64 £37.97
2 - FIELD 220-240V BSD-1614220124.A10 1614220124 £31.64 £37.97
4 - SWITCH BSD-161720030B.A0 161720030B £31.64 £37.97
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07 RN-F BSD-1604460449.A13 1604460449 £27.23 £32.68
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A7 1610703053 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A86 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111A48C.A2 160111A48C £3.72 £4.47
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A96 1610900026 £12.04 £14.45
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A9 1610910089 -
15 - FAN BSD-1616610109.A6 1616610109 £16.41 £19.69
21 - PROTECTIVE CAP BSD-1610508038.A42 1610508038 £8.13 £9.76
22 - PROTECTION SLEEVE BSD-1610591051.A7 1610591051 £12.04 £14.45
23 - STOP SLEEVE BSD-1610520006.A2 1610520006 £18.96 £22.75
24 - HEADED BUSH BSD-1610500025.A3 1610500025 £10.10 £12.12
25 - STOPPING DEVICE BSD-1612300027.A9 1612300027 £11.30 £13.56
26 - INDEXING DISK BSD-1600A019WL.A12 1600A019WL £5.01 £6.01
27 - AIR-DEFLECTOR RING BSD-160059105C.A16 160059105C £2.61 £3.13
28 - COMPRESSION SPRING BSD-1614621010.A3 1614621010 £4.26 £5.11
31 - DAMPING RING BSD-1610290129.A13 1610290129 £6.52 £7.83
35 - HAMMER PIPE BSD-1615806249.A1 1615806249 £98.11 £117.73
37 - CONTROL BUSHING BSD-1610322018.A4 1610322018 £7.36 £8.83
38 - COVERING HOOD BSD-1615190177.A1 1615190177 £31.64 £37.97
42 - BRUSH HOLDER BSD-1614336090.A10 1614336090 £45.67 £54.80
43 - BRUSH-COVER BSD-1615500435.A3 1615500435 £11.30 £13.56
44 - COMPRESSION SPRING BSD-1614621020.A13 1614621020 £2.61 £3.13
45 - HOLDING-DOWN-APPLIANCE BSD-1610591052.A9 1610591052 £2.16 £2.59
48 - CLUTCH SLEEVE BSD-1619990186.A3 1619990186 £7.36 £8.83
52 - RETAINING SNAP RING BSD-1610224015.A1 1610224015 £1.75 £2.10
54 - SPACER TUBE BSD-1610190071.A6 1610190071 £5.87 £7.04
58 - LOCKING BUSH BSD-1600A0014J.A1 1600A0014J £5.58 £6.70
59 - BEARING PEDESTAL BSD-1615805074.A3 1615805074 £10.10 £12.12
72 - ECCENTRIC COG WHEEL BSD-1616317090.A1 1616317090 £68.42 £82.10
80 - SPEED GOVERNOR BSD-16072335AS.A4 16072335AS -
84 - AUXILIARY HANDLE BSD-1602025081.A7 1602025081 £21.52 £25.83
85 - CLAMPING PIECE BSD-1600A008BL.A11 1600A008BL £2.61 £3.13
86 - HEX SCREW BSD-2911021267.A55 2911021267 £3.72 £4.47
88 - STAR KNOB M8 BSD-1619P16922.A75 1619P16922 £6.45 £7.74
94 - SUPPORTING DISC BSD-1610290111.A4 1610290111 £2.16 £2.59
95 - DRIVING PIN BSD-1613120023.A13 1613120023 £4.26 £5.11
99 - BACKUP RING BSD-1600220029.A13 1600220029 £2.80 £3.36
110 - SEAL RING BSD-1610190073.A10 1610190073 £1.75 £2.10
111 - BUSHING BSD-1610290046.A5 1610290046 £2.80 £3.36
112 - HEX NUT BSD-1613300007.A12 1613300007 £1.75 £2.10
113 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A159 1613412001 £1.75 £2.10
115 - BUSHING BSD-1610300086.A12 1610300086 £5.58 £6.70
117 - NEEDLE-ROLLER ASSEMBLY BSD-1610913023.A7 1610913023 £18.96 £22.75
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A16 1610910081 £14.91 £17.89
120 - SPACER TUBE BSD-1610190080.A14 1610190080 £12.04 £14.45
122 - SPACER RING BSD-1610290128.A2 1610290128 £7.36 £8.83
125 - TORX OVAL-HEAD SCREW BSD-1613435040.A29 1613435040 £2.16 £2.59
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1461 2603490023 £1.75 £2.10
129 - BUSHING BSD-1610300080.A14 1610300080 £4.26 £5.11
131 - MANUFACTURER'S NAMEPLATE BSD-160111C21M.A3 160111C21M £2.61 £3.13
138 - SEALING FRAME BSD-1611015064.A5 1611015064 £6.52 £7.83
142 - ROTARY SHAFT LIP SEAL BSD-1610290112.A11 1610290112 £4.26 £5.11
143 - RETAINING RING BSD-1614601072.A6 1614601072 £2.61 £3.13
144 - SUPPORTING DISC BSD-1610103025.A16 1610103025 £3.72 £4.47
151 - O-RING BSD-1610210222.A2 1610210222 £1.75 £2.10
152 - RETAINING RING BSD-1614601073.A10 1614601073 £1.75 £2.10
153 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A6 2916540017 £2.16 £2.59
154 - SPRING RETAINING RING DIN 472 62x2 MM BSD-2916660027.A2 2916660027 £4.26 £5.11
155 - RETAINING RING BSD-1614601074.A6 1614601074 £1.75 £2.10
157 - O-RING 33.0x2.0 MM BSD-1610210103.A34 1610210103 £2.61 £3.13
158 - O-RING BSD-1610210224.A14 1610210224 £1.75 £2.10
160 - O-RING BSD-1610210246.A5 1610210246 £1.75 £2.10
161 - DAMPING RING BSD-1610210227.A2 1610210227 £8.67 £10.41
162 - O-RING BSD-1600210080.A3 1600210080 £2.61 £3.13
165 - SEAL RING BSD-1610290125.A14 1610290125 £11.30 £13.56
166 - CYLINDRICAL ROLLER BSD-1613200020.A14 1613200020 £2.80 £3.36
167 - ROTARY SHAFT LIP SEAL BSD-161029012A.A2 161029012A £4.26 £5.11
168 - PACKING WASHER BSD-1610206027.A15 1610206027 £2.61 £3.13
171 - TORX SOCKET BUTTON SCREW BSD-1613414026.A7 1613414026 £2.61 £3.13
172 - TORX OVAL-HEAD SCREW BSD-1613435041.A0 1613435041 £1.75 £2.10
175 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A702 2603490021 £1.75 £2.10
189 - HANDLE BSD-1615133038.A19 1615133038 £14.91 £17.89
190 - HANDLE COVER BSD-1615500438.A25 1615500438 £16.41 £19.69
192 - ROCKER FOOT BSD-1614611028.A3 1614611028 £5.58 £6.70
194 - SCREW PLATE BSD-1610099018.A12 1610099018 £2.16 £2.59
195 - SCREW PLATE BSD-1610099019.A0 1610099019 £2.16 £2.59
196 - DAMPING RUBBER BSD-1610026004.A8 1610026004 £1.75 £2.10
197 - LEAF SPRING BSD-1616232000.A2 1616232000 £11.30 £13.56
204 - REAR HOUSING SECTION BSD-1615102162.A9 1615102162 £21.52 £25.83
206 - HOLDING STRIP BSD-1612386006.A15 1612386006 £1.75 £2.10
208 - DIAPHRAGM BSD-1615190180.A2 1615190180 £5.30 £6.36
661 - GREASE TUBE 30 ML BSD-1615430010.A208 1615430010 £6.52 £7.83
691 - CARRYING CASE BSD-161543851A.A4 161543851A £45.67 £54.80
803 - ARMATURE 230V BSD-1614010267.A9 1614010267 £179.37 £215.24
804 - STOP DISC BSD-1610190027.A35 1610190027 £5.58 £6.70
808 - NAMEPLATE BSD-160111A3H5.A301 160111A3H5 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617000A50.A5 1617000A50 £27.23 £32.68
820 - TOOLHOLDER BSD-1618597102.A12 1618597102 £120.11 £144.13
821 - PLAIN BEARING BSD-1610508058.A14 1610508058 £27.23 £32.68
840 - IMPACT MECHANISM HOUSING BSD-1607000C38.A6 1607000C38 £179.37 £215.24
841 - STRIKER PIN BSD-1617000A4R.A14 1617000A4R £54.42 £65.30
849 - CONTROL FORK BSD-1617000A31.A14 1617000A31 £7.36 £8.83
853 - GUIDE BUSHING BSD-1610231004.A9 1610231004 £27.23 £32.68
856 - HAMMER PISTON BSD-1617000A32.A2 1617000A32 £48.38 £58.06
857 - STRIKER BSD-1617000A33.A14 1617000A33 £27.23 £32.68
858 - CYLINDRICAL GEAR BSD-1616317620.A9 1616317620 £13.12 £15.75
872 - ECCENTRIC BSD-1617000A35.A2 1617000A35 £103.14 £123.77
873 - HOUSING COVER BSD-1617000A4S.A2 1617000A4S £68.42 £82.10
883 - HEX SCREW BSD-1613490019.A7 1613490019 £2.61 £3.13
884 - AUXILIARY HANDLE BSD-160202508T.A8 160202508T £37.27 £44.72
885 - AUXILIARY HANDLE BSD-160202508J.A9 160202508J £54.42 £65.30
887 - CLAMPING BAND BSD-1611316029.A9 1611316029 £8.49 £10.19
891 - ROCKER ARM BSD-1612099005.A16 1612099005 £11.30 £13.56
897 - BELLOWS BSD-1610415005.A10 1610415005 £10.10 £12.12
898 - BELLOWS BSD-1610415004.A2 1610415004 £10.10 £12.12
899 - SERVICE PACKAGE BSD-1600A004E6.A9 1600A004E6 £59.53 £71.44
