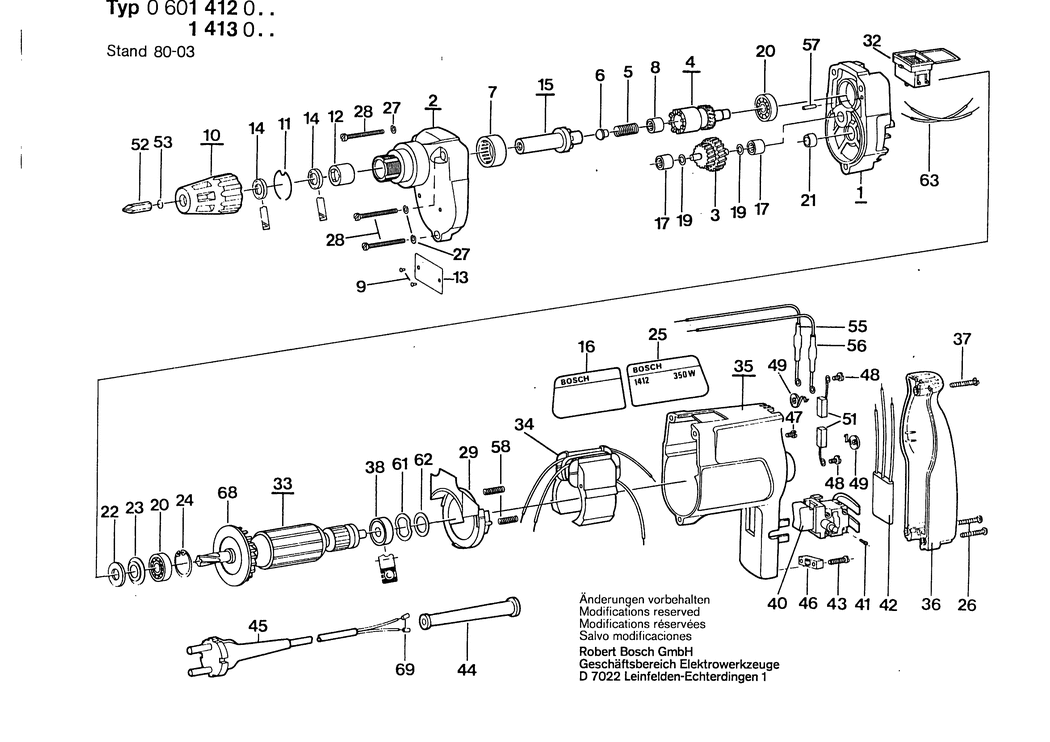

1 - BEARING FLANGE
BSD-2605700925.A21
2605700925
|
-
|
|
|
|
2 - GEAR HOUSING
BSD-2605806957.A11
2605806957
|
-
|
|
|
|
3 - TOOTHED SHAFT Z=25/41
BSD-2606311901.A3
2606311901
|
-
|
|
|
|
4 - COUPLING HALF Z= 24
BSD-2606490904.A2
2606490904
|
-
|
|
|
|
5 - COMPRESSION SPRING
BSD-2604611037.A18
2604611037
|
-
|
|
|
|
6 - PRESSURE SPINDLE
BSD-2603126006.A11
2603126006
|
-
|
|
|
|
7 - NEEDLE BEARING
BSD-2600914013.A26
2600914013
|
£5.58
|
£6.70
|
|
|
8 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A787
2600910001
|
£4.26
|
£5.11
|
|
|
9 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A53
2917724032
|
-
|
|
|
|
10 - DEPTH-GAUGE
BSD-2600460007.A6
2600460007
|
-
|
|
|
|
10 - DEPTH-GAUGE
BSD-2600460008.A25
2600460008
|
£16.96
|
£20.35
|
|
|
10 - DEPTH-GAUGE
BSD-2600460009.A0
2600460009
|
-
|
|
|
|
10 - DEPTH-GAUGE
BSD-2600460014.A11
2600460014
|
-
|
|
|
|
11 - STOP SPRING
BSD-2604601012.A45
2604601012
|
£2.52
|
£3.02
|
|
|
12 - BUSHING
BSD-2600499002.A7
2600499002
|
-
|
|
|
|
13 - NAMEPLATE
BSD-160111A3H3.A786
160111A3H3
|
£2.61
|
£3.13
|
|
|
14 - SEAL RING
BSD-2600283012.A23
2600283012
|
£2.80
|
£3.36
|
|
|
15 - COUPLING HALF
BSD-2606490905.A9
2606490905
|
-
|
|
|
|
15 - COUPLING HALF
BSD-2606490907.A14
2606490907
|
-
|
|
|
|
16 - MANUFACTURER'S NAMEPLATE
BSD-2601110099.A25
2601110099
|
-
|
|
|
|
17 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A707
2600914010
|
£2.80
|
£3.36
|
|
|
19 - SHIM 0.3 MM
BSD-2600100607.A715
2600100607
|
£1.75
|
£2.10
|
|
|
20 - BALL BEARING 8x22x7
BSD-1900905029.A264
1900905029
|
£21.52
|
£25.83
|
|
|
21 - SEAL BUSHING
BSD-2600300049.A58
2600300049
|
-
|
|
|
|
22 - FELT DISC
BSD-2600108000.A189
2600108000
|
-
|
|
|
|
23 - CUPPED WASHER
BSD-2600500030.A90
2600500030
|
-
|
|
|
|
24 - SPRING RETAINING RING
BSD-2600119000.A63
2600119000
|
£1.75
|
£2.10
|
|
|
25 - STICKER
BSD-2601110111.A0
2601110111
|
-
|
|
|
|
26 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A639
2910211021
|
£1.75
|
£2.10
|
|
|
27 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A87
2916690003
|
£1.75
|
£2.10
|
|
|
28 - SOCKET HEAD CAP SCREW DIN 84-AM4x35-8.8
BSD-2910021136.A17
2910021136
|
-
|
|
|
|
29 - COVER DISC
BSD-2601328041.A16
2601328041
|
-
|
|
|
|
32 - CHANGE-OVER SWITCH
BSD-2607200114.A39
2607200114
|
-
|
|
|
|
33 - ARMATURE 110-115V
BSD-2604010532.A5
2604010532
|
-
|
|
|
|
34 - POLE SHOE 110-115V
BSD-2604222301.A5
2604222301
|
-
|
|
|
|
34 - CENTERING SLEEVE
BSD-2600409013.A63
2600409013
|
-
|
|
|
|
35 - MOTOR HOUSING
BSD-2605104954.A45
2605104954
|
-
|
|
|
|
35 - MOTOR HOUSING
BSD-2605104954.A46
2605104954
|
-
|
|
|
|
36 - HOUSING COVER
BSD-2605132042.A7
2605132042
|
-
|
|
|
|
36 - HOUSING COVER
BSD-2605132017.A51
2605132017
|
-
|
|
|
|
37 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A268
2910211020
|
£2.16
|
£2.59
|
|
|
38 - BALL BEARING 7x22x7
BSD-1900905018.A913
1900905018
|
£18.96
|
£22.75
|
|
|
40 - ON-OFF SWITCH
BSD-2607200043.A170
2607200043
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A419
2603410023
|
-
|
|
|
|
42 - SUPPRESSION CAPACITOR
BSD-2607329102.A9
2607329102
|
-
|
|
|
|
43 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1571
2910211019
|
£1.75
|
£2.10
|
|
|
44 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1230
2600703012
|
£2.80
|
£3.36
|
|
|
44 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A189
2600703013
|
£2.61
|
£3.13
|
|
|
44 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A238
2600703011
|
£2.80
|
£3.36
|
|
|
45 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05VV-F
BSD-2604460206.A5
2604460206
|
-
|
|
|
|
46 - CABLE CLIP
BSD-2601035001.A394
2601035001
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A355
2910211004
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW
BSD-2603410010.A27
2603410010
|
-
|
|
|
|
49 - SPIRAL SPRING
BSD-2604652003.A15
2604652003
|
-
|
|
|
|
51 - CARBON-BRUSH SET
BSD-2604320902.A179
2604320902
|
-
|
|
|
|
52 - SCREWDRIVER BLADE NR.2.1/4
BSD-1608521004.A39
1608521004
|
-
|
|
|
|
53 - RETAINING RING
BSD-2604601004.A545
2604601004
|
£1.75
|
£2.10
|
|
|
55 - SUPPRESSOR BOX
BSD-2604465026.A32
2604465026
|
-
|
|
|
|
56 - SUPPRESSOR BOX
BSD-2604465027.A33
2604465027
|
-
|
|
|
|
57 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A380
1903201042
|
£2.16
|
£2.59
|
|
|
58 - COMPRESSION SPRING
BSD-2604611026.A229
2604611026
|
-
|
|
|
|
61 - SHIM
BSD-2600150004.A174
2600150004
|
£2.16
|
£2.59
|
|
|
62 - SHIM 0.3 MM
BSD-2600101023.A150
2600101023
|
£1.75
|
£2.10
|
|
|
62 - SHIM 0.2 MM
BSD-2600101022.A453
2600101022
|
£1.75
|
£2.10
|
|
|
62 - SHIM 0.5 MM
BSD-2600101020.A196
2600101020
|
£1.75
|
£2.10
|
|
|
63 - CABLE
BSD-2604411524.A16
2604411524
|
-
|
|
|
|
68 - FAN
BSD-2606610021.A24
2606610021
|
-
|
|
|
