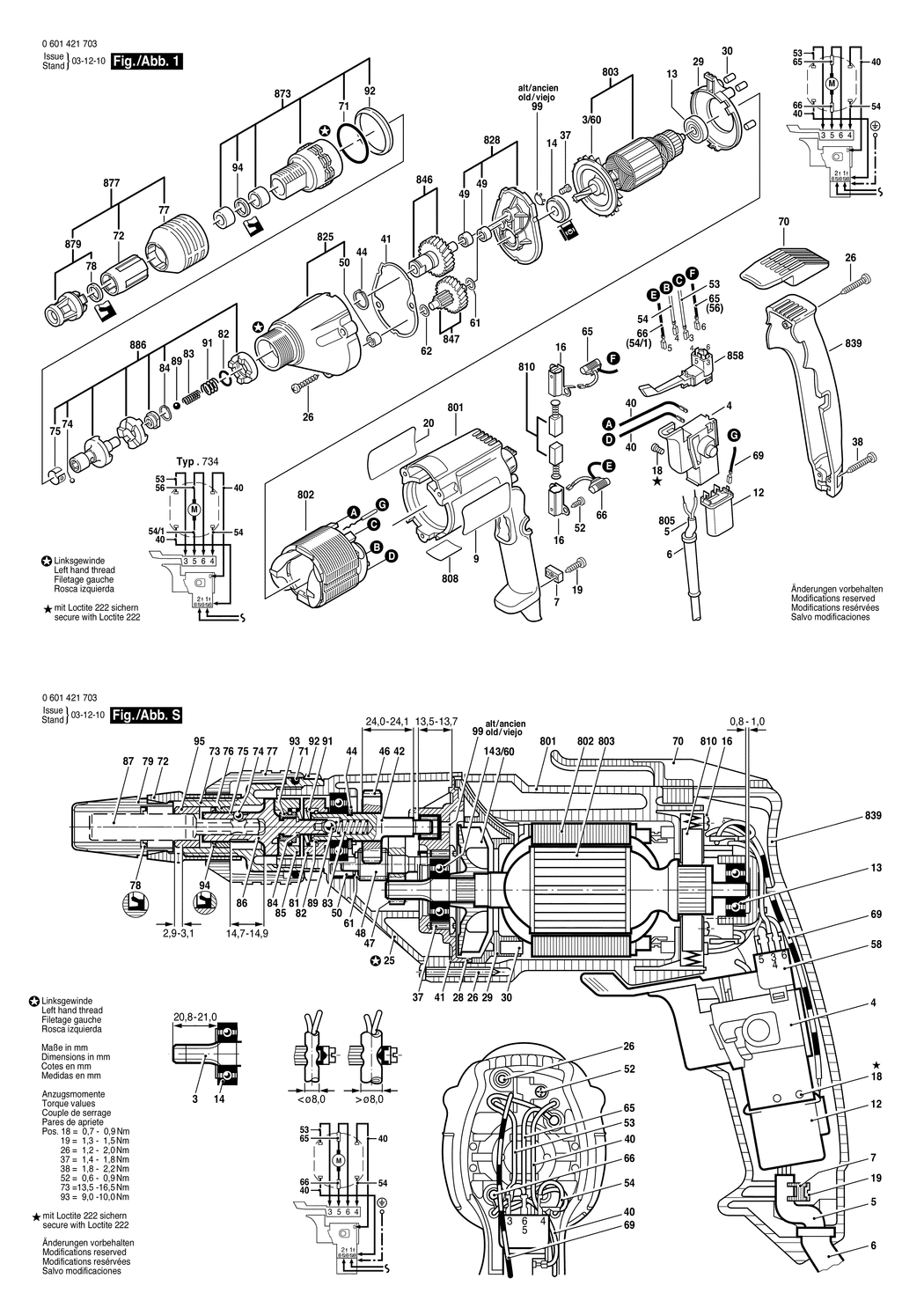

3/60 - FAN
BSD-1606610116.A209
1606610116
|
£2.52
|
£3.02
|
|
4 - SWITCH
BSD-2607200203.A4
2607200203
|
-
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460207.A22
2604460207
|
£18.96
|
£22.75
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A238
2600703012
|
£2.80
|
£3.36
|
|
7 - CABLE CLIP
BSD-2601035001.A1905
2601035001
|
£1.75
|
£2.10
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116667.A2
2601116667
|
-
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A328
2607329114
|
-
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A118
1900905018
|
£18.96
|
£22.75
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A284
2600905095
|
£12.04
|
£14.45
|
|
16 - BRUSH HOLDER
BSD-2604337003.A72
2604337003
|
£2.16
|
£2.59
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1865
2603410001
|
£1.75
|
£2.10
|
|
19 - SCREW 4x16
BSD-2603490022.A1935
2603490022
|
£1.75
|
£2.10
|
|
20 - REFERENCE PLATE
BSD-9920490130.A8
9920490130
|
£1.75
|
£2.10
|
|
26 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A111
2603490025
|
£1.75
|
£2.10
|
|
29 - COVER DISC
BSD-3600590505.A28
3600590505
|
£1.75
|
£2.10
|
|
30 - RUBBER BUFFER
BSD-3602391503.A36
3602391503
|
-
|
|
|
37 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A96
2603410048
|
£1.75
|
£2.10
|
|
38 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A622
2603490023
|
£1.75
|
£2.10
|
|
40 - CABLE L=130 MM
BSD-2604448005.A288
2604448005
|
£1.75
|
£2.10
|
|
41 - FLAT SEAL RING
BSD-3601016502.A29
3601016502
|
-
|
|
|
44 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A155
2916650003
|
£1.75
|
£2.10
|
|
49 - NEEDLE BEARING
BSD-2600917004.A65
2600917004
|
£3.72
|
£4.47
|
|
50 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A35
1610910057
|
£2.80
|
£3.36
|
|
52 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A656
2603490017
|
£2.16
|
£2.59
|
|
53 - CONNECTING CABLE L=98 MM
BSD-2604448074.A96
2604448074
|
£2.16
|
£2.59
|
|
54 - CONNECTING CABLE L=68 MM
BSD-2604448100.A148
2604448100
|
£1.75
|
£2.10
|
|
61 - SHIM 0.5 MM
BSD-2600100628.A252
2600100628
|
£1.75
|
£2.10
|
|
62 - SHIM 0.3 MM
BSD-2600101654.A26
2600101654
|
£2.33
|
£2.80
|
|
65 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A232
2604465086
|
£5.58
|
£6.70
|
|
66 - SUPPRESSION FILTER L=126 MM
BSD-2604465097.A112
2604465097
|
£5.58
|
£6.70
|
|
69 - EARTH CONDUCTOR
BSD-2604448097.A2
2604448097
|
£1.75
|
£2.10
|
|
70 - CLIP
BSD-3600690503.A1
3600690503
|
-
|
|
|
71 - O-RING
BSD-2600210043.A20
2600210043
|
£1.75
|
£2.10
|
|
72 - SPACER SLEEVE
BSD-3600360505.A17
3600360505
|
£7.78
|
£9.33
|
|
74 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A123
1903230006
|
£2.16
|
£2.59
|
|
75 - BALL SUPPORT
BSD-3600034504.A18
3600034504
|
£2.52
|
£3.02
|
|
77 - LOCKING RING
BSD-3600390502.A27
3600390502
|
£6.61
|
£7.93
|
|
78 - SEAL RING
BSD-3600290502.A5
3600290502
|
£3.72
|
£4.47
|
|
82 - RETAINING RING
BSD-3600200516.A15
3600200516
|
£1.75
|
£2.10
|
|
83 - SPRING
BSD-3604613507.A8
3604613507
|
£1.95
|
£2.34
|
|
84 - SPRING RETAINING RING
BSD-3600118502.A18
3600118502
|
£2.33
|
£2.80
|
|
89 - BALL DIN 5401-6 G28
BSD-1903230011.A446
1903230011
|
£2.61
|
£3.13
|
|
91 - SPRING
BSD-3604613506.A26
3604613506
|
£1.95
|
£2.34
|
|
92 - INSULATING SLEEVE
BSD-3600113506.A18
3600113506
|
£1.75
|
£2.10
|
|
94 - SEAL RING
BSD-3600290503.A16
3600290503
|
£2.52
|
£3.02
|
|
99 - LOCKING WASHER
BSD-3600171504.A2
3600171504
|
-
|
|
|
801 - MOTOR HOUSING
BSD-3605108557.A8
3605108557
|
£23.86
|
£28.63
|
|
802 - FIELD 100V
BSD-2604220446.A1
2604220446
|
£21.52
|
£25.83
|
|
803 - ARMATURE 115V
BSD-2604010801.A0
2604010801
|
-
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A5121
160111A3H3
|
£2.61
|
£3.13
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A129
2604321905
|
£11.30
|
£13.56
|
|
825 - GEAR HOUSING
BSD-3605190518.A4
3605190518
|
-
|
|
|
828 - BEARING BRACKET
BSD-3605806537.A18
3605806537
|
£27.23
|
£32.68
|
|
839 - HOUSING COVER
BSD-3605133521.A22
3605133521
|
£8.67
|
£10.41
|
|
846 - DRIVE SHAFT Z=33
BSD-3606120566.A3
3606120566
|
-
|
|
|
847 - TOOTHED SHAFT Z=41/17
BSD-3606319522.A3
3606319522
|
-
|
|
|
858 - CHANGE-OVER SWITCH
BSD-2607200231.A58
2607200231
|
£16.41
|
£19.69
|
|
873 - CLUTCH
BSD-3605190520.A1
3605190520
|
-
|
|
|
877 - DEPTH-GAUGE
BSD-3600552509.A5
3600552509
|
£24.45
|
£29.34
|
|
879 - DEPTH-GAUGE
BSD-3600552505.A3
3600552505
|
-
|
|
|
886 - CLUTCH
BSD-3606441503.A23
3606441503
|
-
|
|
|
