Bosch GSR 6-45 TE / 3601D40361 / GB 110 Volt Spare Parts

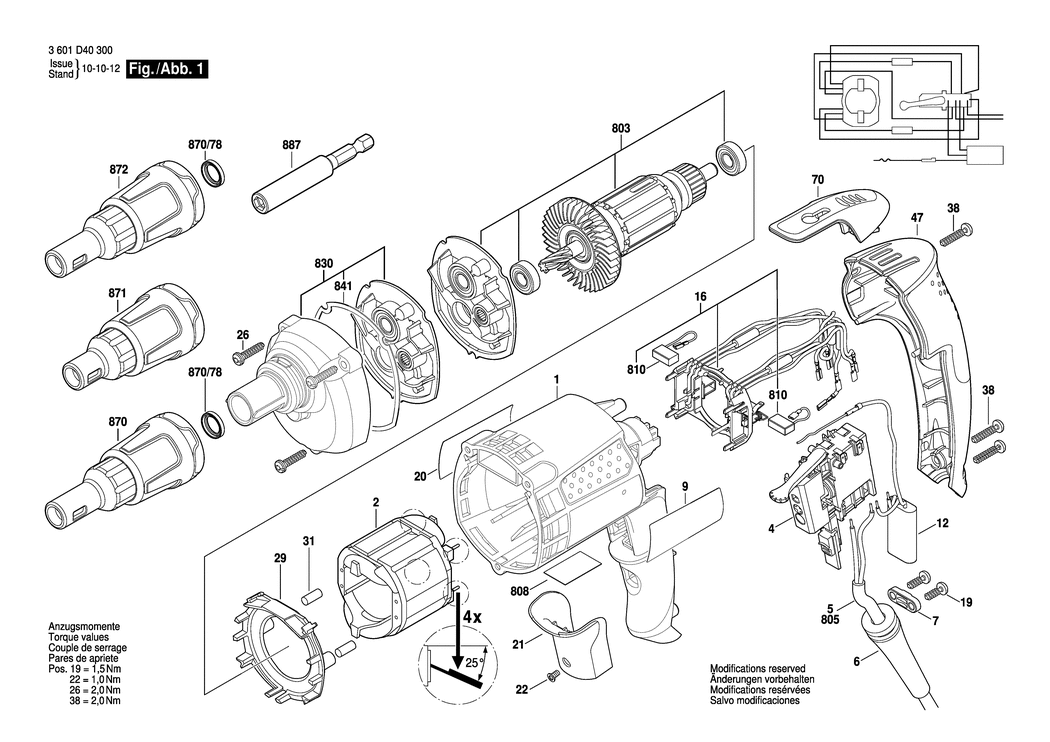

An exploded drawing and listing for the Bosch GSR 6-45 TE / 3601D40361 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605108083.A43 2605108083	£27.23	£32.68
2 - FIELD 100-127V BSD-2604220455.A7 2604220455	£23.86	£28.63
4 - SWITCH BSD-2607200641.A1 2607200641	£40.80	£48.96
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460204.A41 2604460204	£31.64	£37.97
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A632 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035004.A46 2601035004	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601115057.A6 2601115057	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-2607329151.A5 2607329151	£8.67	£10.41
16 - BRUSH PLATE BSD-2605807124.A40 2605807124	£18.96	£22.75
19 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A421 2603490021	£1.75	£2.10
20 - REFERENCE PLATE BSD-2601115265.A6 2601115265	£2.61	£3.13
21 - SWITCH COVER BSD-2605500196.A45 2605500196	£2.61	£3.13
22 - COUNTERSUNK-HEAD SCREW DIN 7991 M3x8-8.8 BSD-2910541050.A42 2910541050	£1.75	£2.10
26 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A237 2603490024	£1.75	£2.10
29 - COVER DISC BSD-2601328078.A14 2601328078	£2.80	£3.36
31 - RUBBER BUFFER BSD-2602391004.A44 2602391004	£2.16	£2.59
38 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1188 2603490023	£1.75	£2.10
47 - HOUSING COVER BSD-2605132061.A6 2605132061	£13.12	£15.75
70 - BELT HOLDER CLIP BSD-2601329113.A12 2601329113	£5.30	£6.36
803 - ARMATURE 120-127V BSD-2604011927.A1 2604011927	£63.50	£76.20
808 - MARKING PLATE BSD-2601115557.A0 2601115557	-
810 - CARBON-BRUSH SET BSD-2604321943.A49 2604321943	£10.10	£12.12
830 - GEAR UNIT BSD-2606200209.A6 2606200209	-
841 - SEAL BSD-2601015097.A45 2601015097	£3.72	£4.47
870 - DEPTH-GAUGE BSD-2602025165.A11 2602025165	£12.04	£14.45
870/78 - SEAL RING BSD-3600290502.A67 3600290502	£3.72	£4.47
871 - DEPTH-GAUGE BSD-2602025166.A12 2602025166	£12.04	£14.45
872 - DEPTH-GAUGE BSD-2602025167.A11 2602025167	£12.04	£14.45
887 - TOOLHOLDER 1/4 BSD-3603008500.A52 3603008500	£14.91	£17.89

Attribute Name	Value
Brand	Bosch
