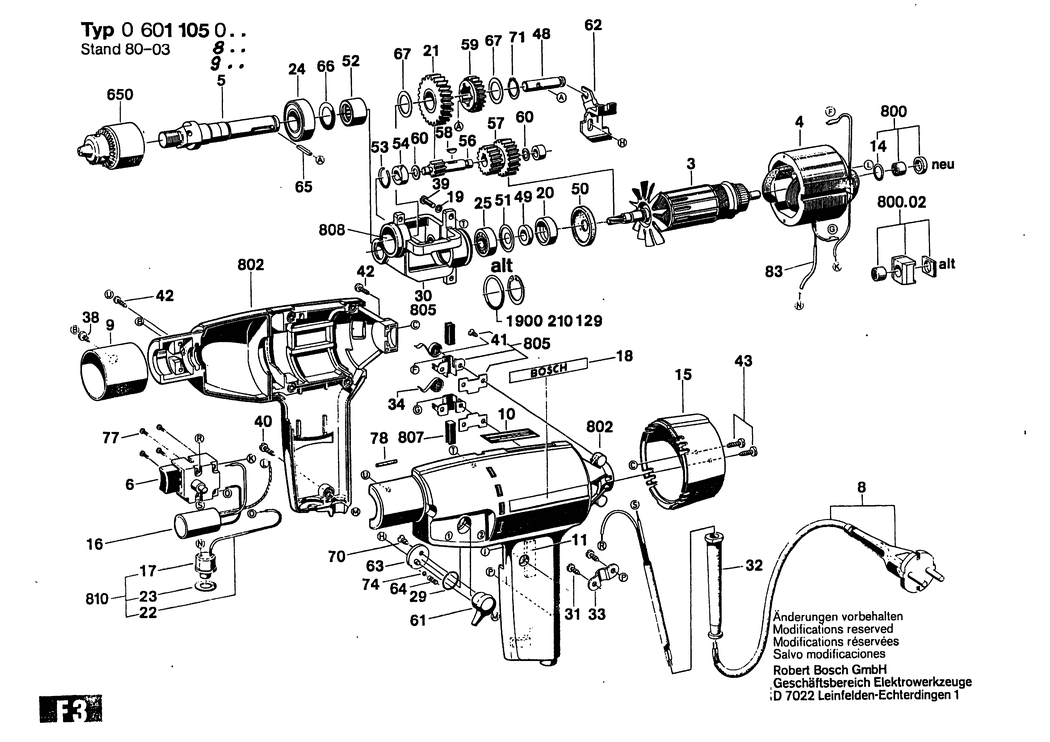

3 - ARMATURE WITH FAN 110-115V
BSD-1604010119.A2
1604010119
|
-
|
|
|
|
4 - POLE SHOE 110-115V
BSD-1604220070.A9
1604220070
|
-
|
|
|
|
5 - DRILLING SPINDLE
BSD-1603523062.A22
1603523062
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-1607200060.A11
1607200060
|
-
|
|
|
|
8 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A539
1607000227
|
£23.86
|
£28.63
|
|
|
9 - GUIDE SLEEVE dia38xdia43x40 MM
BSD-1600400900.A35
1600400900
|
-
|
|
|
|
10 - NAMEPLATE
BSD-160111A3H5.A11
160111A3H5
|
£2.61
|
£3.13
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A221
1602381001
|
-
|
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A153
1610210014
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A117
1605500066
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500071.A38
1605500071
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500092.A47
1605500092
|
-
|
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A444
1601110481
|
£2.16
|
£2.59
|
|
|
19 - SPRING LOCK WASHER
BSD-2616690003.A5
2616690003
|
-
|
|
|
|
20 - BACKUP RING
BSD-1600501055.A6
1600501055
|
-
|
|
|
|
21 - TOOTHED GEAR Z=38
BSD-1606320052.A4
1606320052
|
-
|
|
|
|
24 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A48
1900905102
|
-
|
|
|
|
25 - GROOVE BALL BEARING 627 Y DIN 625
BSD-1900900235.A111
1900900235
|
-
|
|
|
|
29 - O-RING 12.0x1.0 MM
BSD-1600210024.A5
1600210024
|
-
|
|
|
|
31 - TAPPING SCREW
BSD-2603435011.A27
2603435011
|
-
|
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A107
1600703016
|
£1.75
|
£2.10
|
|
|
32 - GROMMET dia9.5 MM
BSD-2600703006.A113
2600703006
|
-
|
|
|
|
33 - FASTENING CLAMP
BSD-1601302014.A371
1601302014
|
£2.61
|
£3.13
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A66
1604652004
|
£2.61
|
£3.13
|
|
|
38 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A84
2910211016
|
-
|
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8
BSD-2910021120.A116
2910021120
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A29
2910211019
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7976-ST2.9x6.5-C-H
BSD-2910601304.A9
2910601304
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A192
2910211006
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A3
2910211017
|
-
|
|
|
|
48 - CONTROL SHAFT
BSD-2603105011.A11
2603105011
|
-
|
|
|
|
49 - SEAL RING
BSD-1600108052.A15
1600108052
|
-
|
|
|
|
50 - O-RING
BSD-1600502008.A11
1600502008
|
-
|
|
|
|
51 - CUPPED WASHER
BSD-1600500017.A12
1600500017
|
-
|
|
|
|
52 - NEEDLE-ROLLER BEARING
BSD-1600910008.A34
1600910008
|
-
|
|
|
|
53 - RETAINING RING 14 DIN 9045
BSD-2916600008.A198
2916600008
|
£2.80
|
£3.36
|
|
|
54 - BUSHING dia8G7xdia14R6x6MM
BSD-2600301043.A33
2600301043
|
-
|
|
|
|
56 - TOOTHED SHAFT Z=10
BSD-1606312008.A14
1606312008
|
-
|
|
|
|
57 - TOOTHED GEAR Z=20/36
BSD-1606328099.A4
1606328099
|
-
|
|
|
|
58 - WOODRUFF KEY DIN 6888-3x3.7-ST-60
BSD-1900023004.A20
1900023004
|
-
|
|
|
|
59 - CYLINDRICAL GEAR
BSD-1606320053.A13
1606320053
|
-
|
|
|
|
60 - SHIM 1.2 MM
BSD-1600100611.A131
1600100611
|
£1.75
|
£2.10
|
|
|
61 - CONTROL LEVER
BSD-1602026040.A26
1602026040
|
-
|
|
|
|
62 - CONTROL FORK
BSD-1601328001.A19
1601328001
|
-
|
|
|
|
63 - ECCENTRIC DISC
BSD-1600148005.A33
1600148005
|
-
|
|
|
|
64 - COMPRESSION SPRING
BSD-1604611016.A20
1604611016
|
-
|
|
|
|
65 - FLAT KEY
BSD-1602300017.A20
1602300017
|
-
|
|
|
|
66 - SEAL RING 13.0x4.0 MM
BSD-2600210025.A3
2600210025
|
-
|
|
|
|
67 - SHIM dia14.5x21.5x0.5 MM
BSD-2000101600.A36
2000101600
|
-
|
|
|
|
70 - TAPPING SCREW DIN 7981-B 3.9x9.5
BSD-2910611017.A50
2910611017
|
-
|
|
|
|
71 - SPRING RETAINING RING 14x1MM DIN 471
BSD-2916652005.A5
2916652005
|
-
|
|
|
|
74 - BALL 3 MM DIN 5401
BSD-1903230304.A9
1903230304
|
-
|
|
|
|
77 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2581
2603410001
|
£1.75
|
£2.10
|
|
|
78 - ROUND RUBBER dia3x9.5 MM
BSD-5541468300.A13
5541468300
|
-
|
|
|
|
650 - KEY CHUCK dia1.0-10MM.1/2
BSD-1608571081.A7
1608571081
|
£27.23
|
£32.68
|
|
|
800 - SINTERED-METAL BUSHING
BSD-1600301900.A20
1600301900
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-1605104910.A15
1605104910
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-1605104923.A9
1605104923
|
-
|
|
|
|
805 - BRUSH HOLDER
BSD-1601323901.A64
1601323901
|
-
|
|
|
|
807 - CARBON BRUSH
BSD-1604321900.A88
1604321900
|
-
|
|
|
|
808 - ASSEMBLY OF SERVICE PARTS
BSD-1605807906.A8
1605807906
|
-
|
|
|
