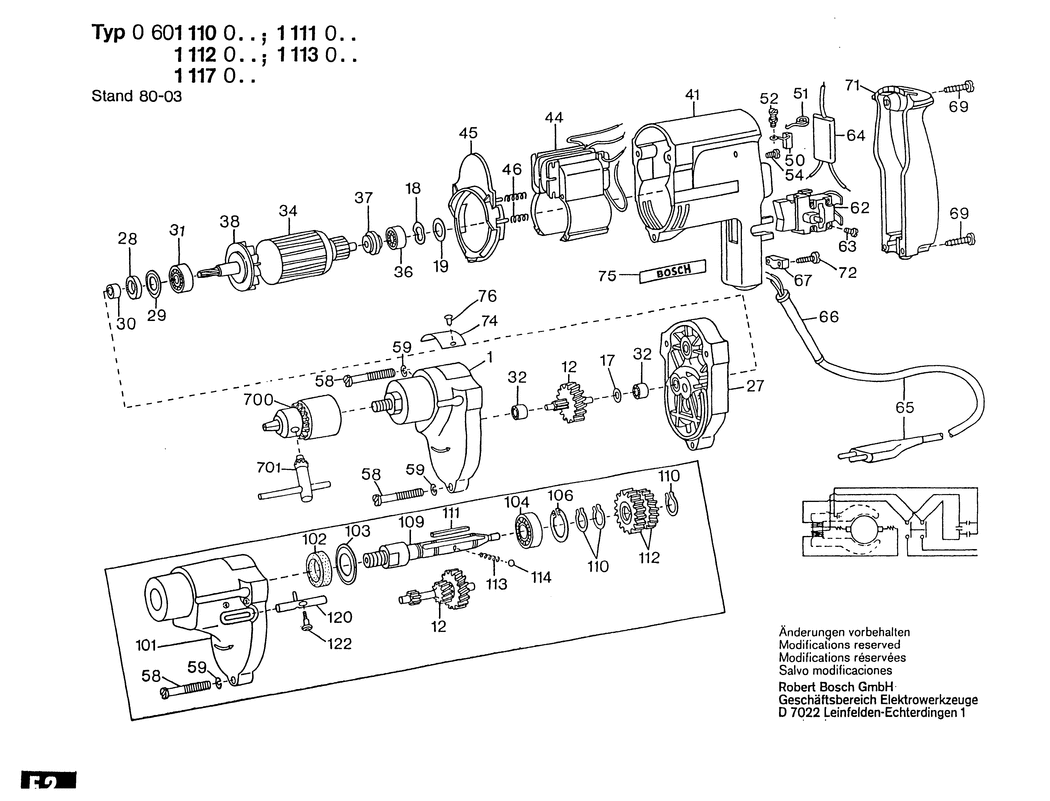

12 - SPINDLE WITH GEAR Z= 37/19/10
BSD-2606100954.A0
2606100954
|
-
|
|
|
|
17 - SHIM 0.3 MM
BSD-2600100570.A45
2600100570
|
£1.75
|
£2.10
|
|
|
18 - SHIM
BSD-2600150003.A31
2600150003
|
£2.16
|
£2.59
|
|
|
19 - SHIM 0.2 MM
BSD-2600101022.A75
2600101022
|
£1.75
|
£2.10
|
|
|
19 - SHIM 0.3 MM
BSD-2600101023.A472
2600101023
|
£1.75
|
£2.10
|
|
|
19 - SHIM 0.5 MM
BSD-2600101020.A557
2600101020
|
£1.75
|
£2.10
|
|
|
27 - INTERMEDIATE FLANGE
BSD-2605700903.A7
2605700903
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108020.A73
2600108020
|
-
|
|
|
|
29 - CUPPED WASHER
BSD-2600500008.A92
2600500008
|
-
|
|
|
|
30 - RECEPTACLE
BSD-2600400020.A40
2600400020
|
-
|
|
|
|
31 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A77
2600905007
|
-
|
|
|
|
32 - NEEDLE BEARING
BSD-2600914004.A135
2600914004
|
£4.26
|
£5.11
|
|
|
36 - BALL BEARING 7x22x7
BSD-1900905018.A239
1900905018
|
£18.96
|
£22.75
|
|
|
37 - ARMATURE PLATE
BSD-2600121002.A74
2600121002
|
-
|
|
|
|
38 - FAN
BSD-2606610011.A35
2606610011
|
-
|
|
|
|
41 - MOTOR HOUSING
BSD-2605104903.A9
2605104903
|
-
|
|
|
|
45 - COVER DISC
BSD-2601328018.A31
2601328018
|
-
|
|
|
|
46 - COMPRESSION SPRING
BSD-2604611026.A10
2604611026
|
-
|
|
|
|
50 - CARBON-BRUSH SET
BSD-2604320906.A56
2604320906
|
-
|
|
|
|
51 - SPIRAL SPRING
BSD-2604652002.A52
2604652002
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW
BSD-2603410010.A376
2603410010
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A233
2910211004
|
-
|
|
|
|
58 - PAN HEAD SCREW
BSD-2603410026.A68
2603410026
|
-
|
|
|
|
59 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1036
2916690003
|
£1.75
|
£2.10
|
|
|
62 - ON-OFF SWITCH
BSD-2607200043.A99
2607200043
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A229
2603410023
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-2607329051.A111
2607329051
|
-
|
|
|
|
66 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A798
2600703011
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A350
2600703012
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A768
2600703013
|
£2.61
|
£3.13
|
|
|
67 - CABLE CLIP
BSD-2601035001.A1766
2601035001
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A393
2910211021
|
£1.75
|
£2.10
|
|
|
71 - HOUSING COVER
BSD-2605132007.A101
2605132007
|
-
|
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A864
2910211019
|
£1.75
|
£2.10
|
|
|
74 - NAMEPLATE
BSD-2601100038.A132
2601100038
|
-
|
|
|
|
75 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A303
2601007003
|
-
|
|
|
|
76 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A80
2917724032
|
-
|
|
|
|
101 - GEAR HOUSING
BSD-2605806250.A26
2605806250
|
-
|
|
|
|
102 - FELT WASHER
BSD-2600108033.A120
2600108033
|
£1.75
|
£2.10
|
|
|
103 - CUPPED WASHER
BSD-2600500033.A8
2600500033
|
£2.61
|
£3.13
|
|
|
104 - GROOVE BALL BEARING 12x32x10
BSD-1900900302.A30
1900900302
|
-
|
|
|
|
106 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A560
2916660013
|
£2.16
|
£2.59
|
|
|
109 - STUD BOLT
BSD-2603523006.A10
2603523006
|
-
|
|
|
|
110 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A134
2916650003
|
£1.75
|
£2.10
|
|
|
111 - FLAT KEY
BSD-2602300014.A36
2602300014
|
-
|
|
|
|
112 - CYLINDRICAL GEAR Z=43/35
BSD-2606328037.A34
2606328037
|
-
|
|
|
|
113 - COMPRESSION SPRING
BSD-2604611016.A33
2604611016
|
-
|
|
|
|
114 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A152
1903230006
|
£2.16
|
£2.59
|
|
|
120 - SWITCHING PIN
BSD-2603103017.A26
2603103017
|
-
|
|
|
|
122 - PUSH-BUTTON
BSD-2603231006.A29
2603231006
|
-
|
|
|
|
657 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A46
2602025032
|
-
|
|
|
|
700 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A381
1608571069
|
£23.86
|
£28.63
|
|
|
701 - CHUCK WRENCH SG2
BSD-2607950007.A191
2607950007
|
£6.52
|
£7.83
|
|
