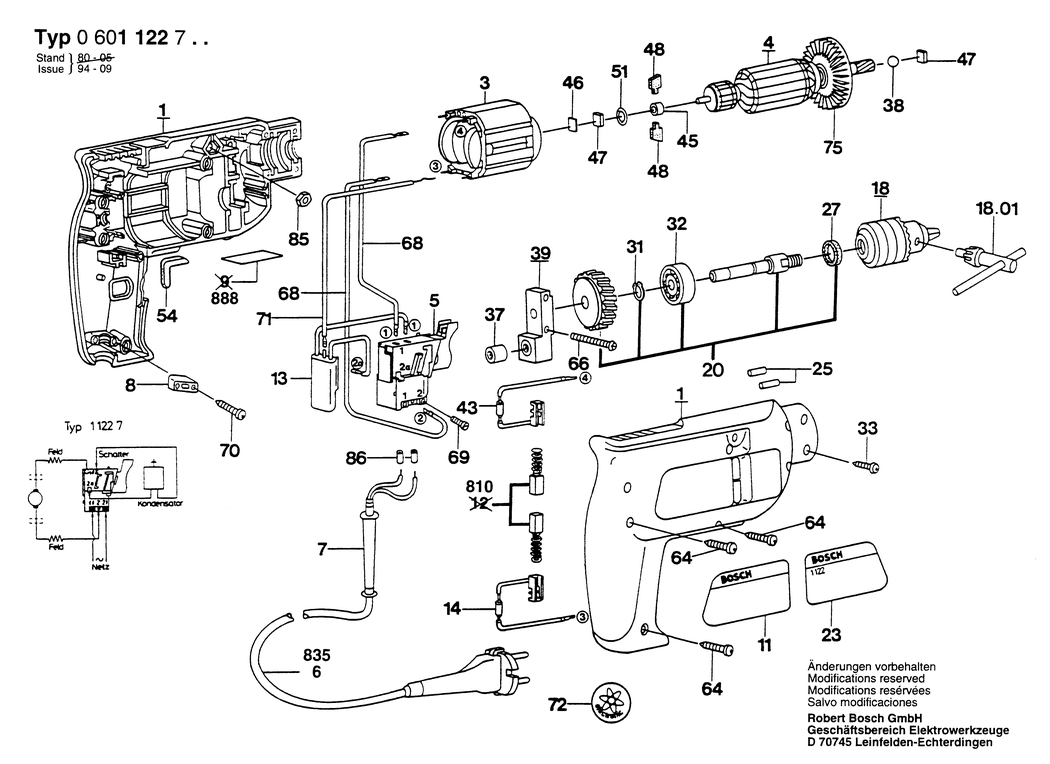

1 - HOUSING SECTION
BSD-2605104949.A19
2605104949
|
-
|
|
|
|
3 - FIELD 240V
BSD-2604220398.A23
2604220398
|
-
|
|
|
|
5 - SWITCH
BSD-1617200089.A10
1617200089
|
-
|
|
|
|
7 - GROMMET dia6.9 MM
BSD-2600707059.A142
2600707059
|
£3.72
|
£4.47
|
|
|
8 - CABLE CLIP
BSD-2601035001.A2615
2601035001
|
£1.75
|
£2.10
|
|
|
11 - STICKER
BSD-2601110079.A1
2601110079
|
-
|
|
|
|
13 - SUPPRESSION FILTER
BSD-2607329096.A157
2607329096
|
£7.36
|
£8.83
|
|
|
14 - SUPPRESSOR BOX
BSD-2604465099.A84
2604465099
|
-
|
|
|
|
14 - BRUSH HOLDER
BSD-1604449002.A21
1604449002
|
£1.75
|
£2.10
|
|
|
18 - CHUCK WRENCH SG2
BSD-2607950007.A799
2607950007
|
£6.52
|
£7.83
|
|
|
18 - KEYLESS CHUCK dia 1-10 MM. 3/8
BSD-1608572018.A0
1608572018
|
-
|
|
|
|
20 - DRILLING SPINDLE Z=46
BSD-2606135901.A7
2606135901
|
-
|
|
|
|
23 - STICKER
BSD-2601110880.A7
2601110880
|
-
|
|
|
|
25 - O-RING 54.0x3.0 MM
BSD-1600210004.A226
1600210004
|
£2.80
|
£3.36
|
|
|
27 - FELT WASHER
BSD-2600205002.A4
2600205002
|
-
|
|
|
|
31 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A263
2916650001
|
£2.61
|
£3.13
|
|
|
32 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A137
1900905232
|
£21.68
|
£26.01
|
|
|
33 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A470
2603490017
|
£2.16
|
£2.59
|
|
|
37 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A124
1610910057
|
£2.80
|
£3.36
|
|
|
38 - BALL DIN 5401-5 G28
BSD-1903230009.A523
1903230009
|
£1.75
|
£2.10
|
|
|
39 - BEARING BRACKET
BSD-2605807904.A38
2605807904
|
-
|
|
|
|
43 - CARB BRUSH HOLD W-SUPR
BSD-2604465081.A15
2604465081
|
-
|
|
|
|
45 - SINTERED-METAL BUSHING
BSD-1900301004.A74
1900301004
|
£13.41
|
£16.09
|
|
|
46 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A41
2601000018
|
-
|
|
|
|
46 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A42
2601000018
|
-
|
|
|
|
47 - PRESSURE PLATE 1.5 MM
BSD-1601000013.A73
1601000013
|
-
|
|
|
|
48 - LUBRICATING FELT
BSD-2601020005.A74
2601020005
|
-
|
|
|
|
51 - O-RING 8.0x2.5 MM
BSD-1610210014.A146
1610210014
|
-
|
|
|
|
54 - DAMPING PLATE
BSD-2601022000.A131
2601022000
|
£1.75
|
£2.10
|
|
|
64 - SCREW 4x16
BSD-2603490022.A2284
2603490022
|
£1.75
|
£2.10
|
|
|
66 - LENS HEAD SCREW 4x32
BSD-2603490026.A122
2603490026
|
£1.75
|
£2.10
|
|
|
68 - CONNECTING CABLE L=154 MM
BSD-2604448000.A138
2604448000
|
-
|
|
|
|
69 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2575
2603410001
|
£1.75
|
£2.10
|
|
|
70 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A57
2910211019
|
£1.75
|
£2.10
|
|
|
71 - CABLE
BSD-2604448003.A88
2604448003
|
-
|
|
|
|
72 - STICKER
BSD-2601110041.A25
2601110041
|
-
|
|
|
|
75 - FAN
BSD-2606610047.A55
2606610047
|
-
|
|
|
|
85 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A32
2915011007
|
-
|
|
|
|
86 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A75
1900452012
|
£1.75
|
£2.10
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A104
2604321904
|
£10.10
|
£12.12
|
|
|
835 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A41
1607000385
|
£14.91
|
£17.89
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4326
160111A3H3
|
£2.61
|
£3.13
|
|
