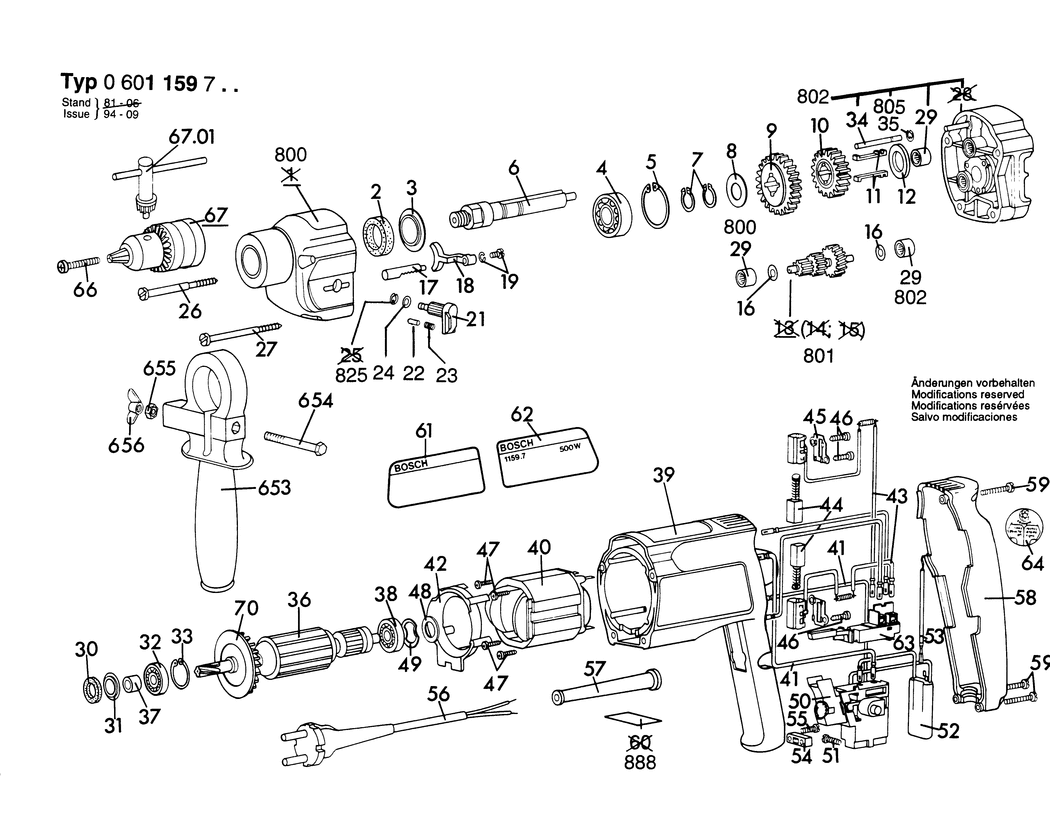

An exploded drawing and listing for the Bosch ELECTRONIC R/L / 0601159703 / EU 220 Volt
Ex VAT Inc VAT
2 - FELT WASHER BSD-2600108076.A42 2600108076 -
3 - CUPPED WASHER BSD-2600550019.A22 2600550019 -
4 - BALL BEARING dia15 MM BSD-1900905110.A81 1900905110 £10.10 £12.12
5 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A217 2916660013 £2.16 £2.59
6 - DRILLING SPINDLE 1/2. SW 17 BSD-2606135011.A55 2606135011 £27.31 £32.77
7 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A309 2916650006 £1.75 £2.10
8 - SHIM 0.5 MM BSD-2600100695.A194 2600100695 £1.75 £2.10
9 - CYLINDRICAL GEAR BSD-2606316316.A32 2606316316 £27.23 £32.68
10 - CYLINDRICAL GEAR Z=45 BSD-2606316105.A24 2606316105 -
11 - FLAT KEY BSD-2602300033.A32 2602300033 £5.58 £6.70
12 - SHIM 1.5 MM BSD-2600101668.A55 2600101668 £2.80 £3.36
16 - SHIM 0.3 MM BSD-2600100607.A1018 2600100607 £1.75 £2.10
17 - TOOTHED RACK BSD-2603070010.A15 2603070010 -
18 - FORK LEVER BSD-2602033002.A38 2602033002 -
19 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A127 2914501011 £1.75 £2.10
21 - ROTARY KNOB BSD-2602026023.A50 2602026023 -
22 - RATCHET CAP BSD-2600590006.A1096 2600590006 £1.75 £2.10
23 - RATCHET CAP BSD-2600590006.A1097 2600590006 £1.75 £2.10
24 - SHIM WASHER BSD-2600100618.A187 2600100618 £1.75 £2.10
26 - HEADLESS SCREW BSD-2603435017.A53 2603435017 £2.61 £3.13
27 - HEADLESS SCREW BSD-2603435018.A21 2603435018 -
29 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A457 2600914010 £2.80 £3.36
30 - FELT WASHER BSD-2600108077.A0 2600108077 £1.75 £2.10
31 - CUPPED WASHER BSD-2600500002.A214 2600500002 £1.75 £2.10
32 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A640 2600905021 £8.67 £10.41
33 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A793 2916660008 £2.16 £2.59
34 - HOLDING PIN BSD-2603100036.A40 2603100036 -
35 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A92 2916080906 £1.75 £2.10
36 - ARMATURE 230-240V BSD-2604010858.A11 2604010858 £48.38 £58.06
37 - RECEPTACLE BSD-2600400008.A313 2600400008 £1.75 £2.10
38 - BALL BEARING 7x22x7 BSD-1900905018.A1182 1900905018 £18.96 £22.75
39 - MOTOR HOUSING BSD-2605104116.A33 2605104116 -
40 - FIELD 220-230V BSD-2604220445.A23 2604220445 £27.23 £32.68
41 - CABLE L=130 MM BSD-2604448005.A467 2604448005 £1.75 £2.10
42 - COVER DISC BSD-2601328033.A99 2601328033 -
43 - SUPPRESSOR BOX L=93/85 MM BSD-2604465071.A9 2604465071 -
44 - CARBON-BRUSH SET BSD-2604321905.A371 2604321905 £11.30 £13.56
45 - BRUSH HOLDER BSD-2604337003.A177 2604337003 £2.16 £2.59
46 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1518 2603490017 £2.16 £2.59
47 - TAPPING SCREW BSD-2603435086.A374 2603435086 £1.75 £2.10
48 - SHIM 0.3 MM BSD-2600101023.A228 2600101023 £1.75 £2.10
48 - SHIM 0.2 MM BSD-2600101022.A371 2600101022 £1.75 £2.10
48 - SHIM 0.5 MM BSD-2600101020.A261 2600101020 £1.75 £2.10
49 - SHIM BSD-2600150004.A260 2600150004 £2.16 £2.59
50 - SWITCH BSD-2607200209.A141 2607200209 £40.80 £48.96
51 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1042 2603410001 £1.75 £2.10
52 - SUPPRESSION CAPACITOR BSD-2607329110.A18 2607329110 -
53 - CABLE BSD-2604448003.A279 2604448003 -
54 - CABLE CLIP BSD-2601035001.A1155 2601035001 £1.75 £2.10
55 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A63 2910611019 £2.80 £3.36
56 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F BSD-1607000388.A0 1607000388 £12.04 £14.45
57 - GROMMET dia6.9 MM BSD-2600707059.A681 2600707059 £3.72 £4.47
57 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A3 2600707060 £2.61 £3.13
57 - GROMMET dia8.8 MM BSD-2600707061.A378 2600707061 £2.80 £3.36
58 - HOUSING COVER BSD-2605132040.A61 2605132040 -
59 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1563 2603490023 £1.75 £2.10
61 - STICKER BSD-2601110913.A3 2601110913 -
62 - STICKER BSD-2601110093.A69 2601110093 -
63 - CHANGE-OVER SWITCH BSD-2607200198.A23 2607200198 -
64 - STICKER BSD-2601110230.A15 2601110230 -
66 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A18 2603421226 £1.75 £2.10
67 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A196 1608571069 £23.86 £28.63
67 - CHUCK WRENCH SG2 BSD-2607950007.A1013 2607950007 £6.52 £7.83
70 - FAN BSD-2606610049.A397 2606610049 £2.16 £2.59
653 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A234 1619P10682 £12.49 £14.99
654 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A905 2915011007 -
655 - CLAMPING PLATE M6 BSD-2608040014.A372 2608040014 -
656 - WING SCREW M6x(15)55 BSD-1613480007.A311 1613480007 £1.75 £2.10
656 - WING SCREW M6x20 MM BSD-1613480008.A111 1613480008 £1.75 £2.10
800 - GEAR HOUSING BSD-2605806972.A20 2605806972 -
801 - TOOTHED SHAFT Z= 10/20/29 BSD-2606308911.A27 2606308911 -
802 - INTERMEDIATE FLANGE BSD-2605700932.A23 2605700932 -
805 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A344 2916080005 -
825 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A13 2916080007 £2.61 £3.13
888 - NAMEPLATE BSD-160111A3H3.A2339 160111A3H3 £2.61 £3.13
