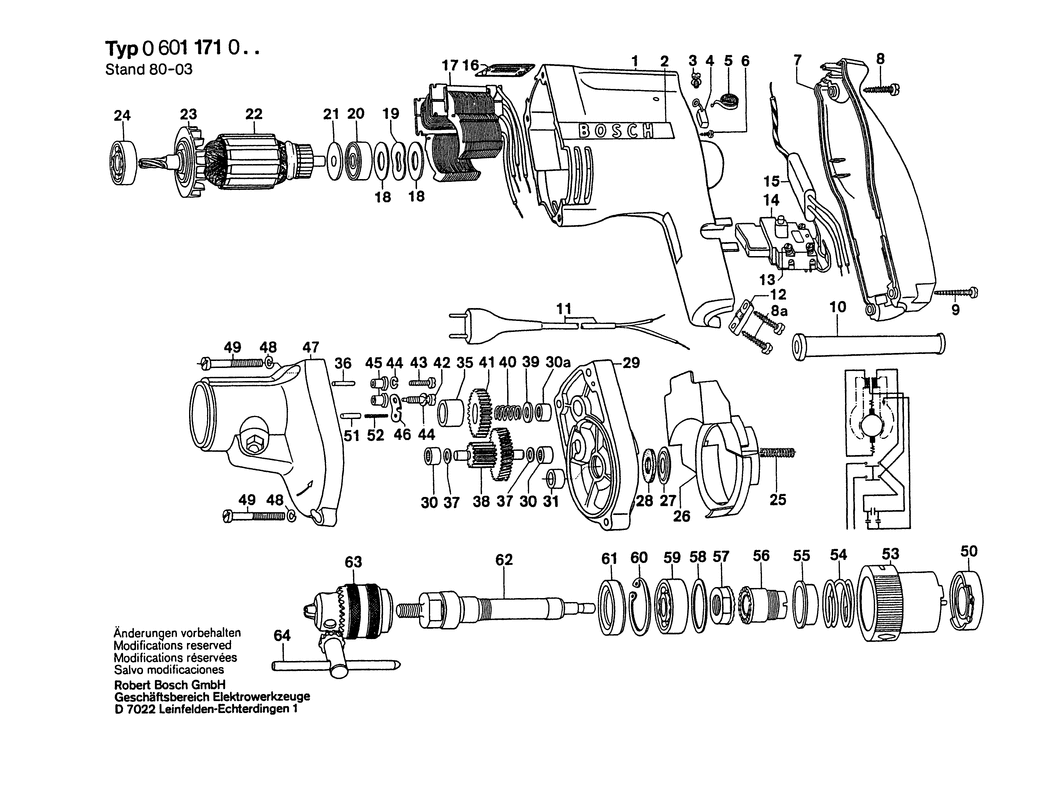

1 - MOTOR HOUSING
BSD-2605104900.A6
2605104900
|
-
|
|
|
|
2 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A257
2601007003
|
-
|
|
|
|
3 - SOCKET HEAD CAP SCREW
BSD-2603410010.A308
2603410010
|
-
|
|
|
|
4 - CARBON-BRUSH SET
BSD-2604320902.A119
2604320902
|
-
|
|
|
|
5 - SPIRAL SPRING
BSD-2604652002.A64
2604652002
|
-
|
|
|
|
6 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A272
2910211004
|
-
|
|
|
|
7 - HOUSING COVER
BSD-2605132005.A61
2605132005
|
-
|
|
|
|
8 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A429
2910211020
|
£2.16
|
£2.59
|
|
|
8 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A735
2910211019
|
£1.75
|
£2.10
|
|
|
9 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A361
2910211021
|
£1.75
|
£2.10
|
|
|
10 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A864
2600703011
|
£2.80
|
£3.36
|
|
|
10 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A259
2600703012
|
£2.80
|
£3.36
|
|
|
10 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A832
2600703013
|
£2.61
|
£3.13
|
|
|
11 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A171
2604460053
|
-
|
|
|
|
12 - CABLE CLIP
BSD-2601035001.A1569
2601035001
|
£1.75
|
£2.10
|
|
|
13 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A286
2603410023
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-2607200043.A128
2607200043
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-2607200065.A75
2607200065
|
-
|
|
|
|
15 - SUPPRESSION FILTER
BSD-2607329051.A141
2607329051
|
-
|
|
|
|
16 - NAMEPLATE
BSD-160111A3H3.A5049
160111A3H3
|
£2.61
|
£3.13
|
|
|
17 - POLE SHOE 220V
BSD-2604222221.A16
2604222221
|
-
|
|
|
|
18 - SHIM 0.2 MM
BSD-2600101655.A89
2600101655
|
-
|
|
|
|
18 - SHIM 0.3 MM
BSD-2600101656.A92
2600101656
|
-
|
|
|
|
18 - SHIM 0.5 MM
BSD-2600101657.A89
2600101657
|
-
|
|
|
|
19 - SHIM
BSD-2600150003.A58
2600150003
|
£2.16
|
£2.59
|
|
|
20 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A217
1900905019
|
£14.91
|
£17.89
|
|
|
21 - PLAIN WASHER
BSD-2600121000.A0
2600121000
|
-
|
|
|
|
22 - ARMATURE WITH FAN 220V
BSD-2604010298.A16
2604010298
|
-
|
|
|
|
23 - FAN
BSD-2606610013.A65
2606610013
|
-
|
|
|
|
24 - BALL BEARING 8x22x7
BSD-1900905029.A27
1900905029
|
£21.52
|
£25.83
|
|
|
25 - COMPRESSION SPRING
BSD-2604611026.A50
2604611026
|
-
|
|
|
|
26 - COVER DISC
BSD-2601328016.A31
2601328016
|
-
|
|
|
|
27 - CUPPED WASHER
BSD-2600500030.A158
2600500030
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108000.A148
2600108000
|
-
|
|
|
|
29 - INTERMEDIATE FLANGE
BSD-2605700905.A4
2605700905
|
-
|
|
|
|
30 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A76
2600914010
|
£2.80
|
£3.36
|
|
|
31 - SEAL BUSHING
BSD-2600300049.A184
2600300049
|
-
|
|
|
|
35 - SPACER BUSHING
BSD-2600309002.A6
2600309002
|
-
|
|
|
|
36 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A75
1903201042
|
£2.16
|
£2.59
|
|
|
37 - SHIM 0.3 MM
BSD-2600100607.A221
2600100607
|
£1.75
|
£2.10
|
|
|
38 - TOOTHED GEAR Z=41/17
BSD-2606100048.A5
2606100048
|
-
|
|
|
|
39 - SHIM 0.3 MM
BSD-2600100570.A84
2600100570
|
£1.75
|
£2.10
|
|
|
40 - COMPRESSION SPRING
BSD-2604611027.A41
2604611027
|
-
|
|
|
|
41 - TOOTHED GEAR Z=35
BSD-2606316039.A6
2606316039
|
-
|
|
|
|
42 - SOCKET HEAD CAP SCREW
BSD-2603412003.A0
2603412003
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8
BSD-2910011122.A179
2910011122
|
-
|
|
|
|
44 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1087
2916690003
|
£1.75
|
£2.10
|
|
|
45 - GUIDE BUSHING
BSD-2600322042.A5
2600322042
|
-
|
|
|
|
46 - PRESSURE PLATE
BSD-2601034024.A5
2601034024
|
-
|
|
|
|
47 - GEAR HOUSING
BSD-2605806905.A0
2605806905
|
-
|
|
|
|
48 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1088
2916690003
|
£1.75
|
£2.10
|
|
|
51 - STRAIGHT PIN
BSD-2600556001.A40
2600556001
|
-
|
|
|
|
52 - COMPRESSION SPRING
BSD-2604612001.A41
2604612001
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-2604616000.A29
2604616000
|
-
|
|
|
|
55 - CAPSULE
BSD-2600521016.A42
2600521016
|
-
|
|
|
|
56 - DRIVE BUSHING
BSD-2600362028.A6
2600362028
|
-
|
|
|
|
57 - LOCATING WASHER
BSD-2600190009.A17
2600190009
|
-
|
|
|
|
58 - SHIM
BSD-2600102654.A32
2600102654
|
-
|
|
|
|
59 - GROOVE BALL BEARING 15x32x9
BSD-1900900272.A27
1900900272
|
-
|
|
|
|
60 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A554
2916660013
|
£2.16
|
£2.59
|
|
|
61 - ROTARY SHAFT LIP SEAL
BSD-2600283009.A40
2600283009
|
-
|
|
|
|
62 - STUD BOLT 3/8
BSD-2603523032.A0
2603523032
|
-
|
|
|
|
63 - CHUCK
BSD-2603571003.A5
2603571003
|
-
|
|
|
|
64 - ASSEMBLY WRENCH
BSD-2607950028.A10
2607950028
|
-
|
|
|
|
65 - SHIM
BSD-2600102036.A46
2600102036
|
£2.61
|
£3.13
|
|
|
66 - O-RING 32.0x2.0 MM
BSD-2600210024.A22
2600210024
|
£1.75
|
£2.10
|
|
|
71 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A627
2915011007
|
-
|
|
|
