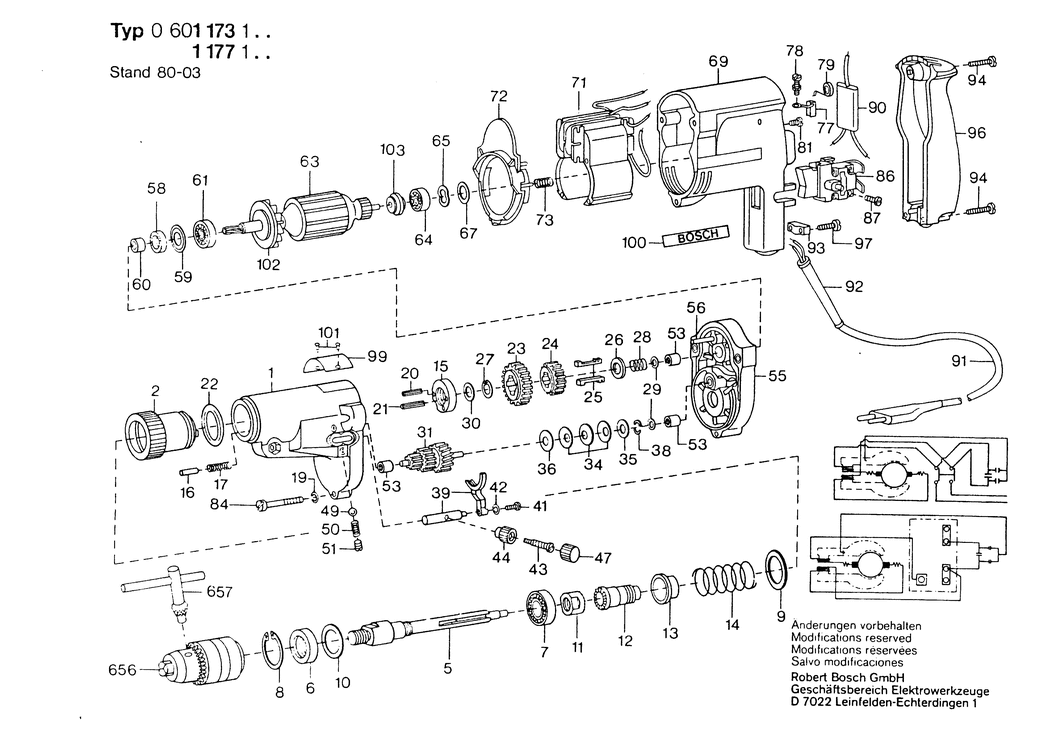

1 - GEAR HOUSING
BSD-2605806935.A4
2605806935
|
-
|
|
|
|
2 - RECEPTACLE
BSD-2605801002.A8
2605801002
|
-
|
|
|
|
5 - DRILLING SPINDLE 1/2
BSD-2603523034.A33
2603523034
|
-
|
|
|
|
6 - ROTARY SHAFT LIP SEAL
BSD-2600283009.A48
2600283009
|
-
|
|
|
|
7 - GROOVE BALL BEARING 15x32x9
BSD-1900900272.A34
1900900272
|
-
|
|
|
|
8 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A538
2916660013
|
£2.16
|
£2.59
|
|
|
9 - SHIM
BSD-2600102654.A39
2600102654
|
-
|
|
|
|
10 - SHIM
BSD-2600102036.A38
2600102036
|
£2.61
|
£3.13
|
|
|
11 - LOCATING WASHER
BSD-2600190009.A4
2600190009
|
-
|
|
|
|
12 - THREADED BUSHING
BSD-2600324002.A11
2600324002
|
-
|
|
|
|
13 - CAPSULE
BSD-2600521016.A28
2600521016
|
-
|
|
|
|
14 - COMPRESSION SPRING
BSD-2604616000.A43
2604616000
|
-
|
|
|
|
15 - ROUND NUT
BSD-2603340008.A11
2603340008
|
-
|
|
|
|
16 - STRAIGHT PIN
BSD-2600556001.A29
2600556001
|
-
|
|
|
|
17 - COMPRESSION SPRING
BSD-2604612001.A29
2604612001
|
-
|
|
|
|
19 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1058
2916690003
|
£1.75
|
£2.10
|
|
|
20 - SLOTTED SPRING PIN 3x16 DIN 1481
BSD-2917760079.A28
2917760079
|
-
|
|
|
|
21 - SLOTTED SPRING PIN 3x20 DIN 1481
BSD-2917760081.A6
2917760081
|
-
|
|
|
|
22 - O-RING 32.0x2.0 MM
BSD-2600210024.A16
2600210024
|
£1.75
|
£2.10
|
|
|
23 - CYLINDRICAL GEAR Z=42
BSD-2606316078.A4
2606316078
|
-
|
|
|
|
24 - CYLINDRICAL GEAR Z=33
BSD-2606316077.A11
2606316077
|
-
|
|
|
|
25 - FLAT KEY
BSD-2602300001.A21
2602300001
|
-
|
|
|
|
26 - PLAIN WASHER
BSD-2600101001.A14
2600101001
|
-
|
|
|
|
27 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A146
2916650003
|
£1.75
|
£2.10
|
|
|
28 - COMPRESSION SPRING
BSD-2604611027.A30
2604611027
|
-
|
|
|
|
29 - SHIM 0.3 MM
BSD-2600100570.A71
2600100570
|
£1.75
|
£2.10
|
|
|
30 - SHIM
BSD-2600101607.A10
2600101607
|
-
|
|
|
|
30 - SHIM
BSD-2600101610.A8
2600101610
|
-
|
|
|
|
31 - OVERLOAD CLUTCH Z= 13/22/27
BSD-2606308908.A2
2606308908
|
-
|
|
|
|
31 - TOOTHED SHAFT Z= 13
BSD-2606308019.A14
2606308019
|
-
|
|
|
|
34 - DISC SPRING
BSD-2600550008.A97
2600550008
|
£1.75
|
£2.10
|
|
|
35 - COVER DISC
BSD-2600114001.A57
2600114001
|
-
|
|
|
|
36 - SHIM 0.5 MM
BSD-2600100682.A63
2600100682
|
-
|
|
|
|
36 - SHIM 0.3 MM
BSD-2600100683.A1
2600100683
|
-
|
|
|
|
36 - SHIM 0.2 MM
BSD-2600100684.A60
2600100684
|
-
|
|
|
|
38 - LOCKING WASHER
BSD-2600116001.A34
2600116001
|
-
|
|
|
|
39 - AXLE
BSD-2607010007.A31
2607010007
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A140
2910011048
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A172
2916690001
|
-
|
|
|
|
43 - PAN HEAD SCREW
BSD-2603413020.A39
2603413020
|
-
|
|
|
|
44 - SHIFT-LEVER KNOB
BSD-2603340016.A4
2603340016
|
-
|
|
|
|
47 - SEALING CAP
BSD-2600508029.A26
2600508029
|
-
|
|
|
|
49 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A670
1903230007
|
£1.75
|
£2.10
|
|
|
50 - COMPRESSION SPRING
BSD-2604611030.A10
2604611030
|
-
|
|
|
|
51 - SET SCREW M 5x5 DIN 551-5.8
BSD-2912031147.A2
2912031147
|
-
|
|
|
|
53 - NEEDLE BEARING
BSD-2600914004.A166
2600914004
|
£4.26
|
£5.11
|
|
|
55 - ASSEMBLY OF SERVICE PARTS
BSD-2605700907.A8
2605700907
|
-
|
|
|
|
56 - HOLDING PIN
BSD-2603200009.A4
2603200009
|
-
|
|
|
|
58 - FELT DISC
BSD-2600108020.A115
2600108020
|
-
|
|
|
|
59 - CUPPED WASHER
BSD-2600500008.A50
2600500008
|
-
|
|
|
|
60 - RECEPTACLE
BSD-2600400020.A13
2600400020
|
-
|
|
|
|
61 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A30
2600905007
|
-
|
|
|
|
63 - ARMATURE 220V
BSD-2604010439.A3
2604010439
|
-
|
|
|
|
64 - BALL BEARING 7x22x7
BSD-1900905018.A323
1900905018
|
£18.96
|
£22.75
|
|
|
65 - SHIM
BSD-2600150004.A613
2600150004
|
£2.16
|
£2.59
|
|
|
67 - SHIM 0.5 MM
BSD-2600101020.A474
2600101020
|
£1.75
|
£2.10
|
|
|
67 - SHIM 0.2 MM
BSD-2600101022.A158
2600101022
|
£1.75
|
£2.10
|
|
|
67 - SHIM 0.3 MM
BSD-2600101023.A389
2600101023
|
£1.75
|
£2.10
|
|
|
69 - MOTOR HOUSING
BSD-2605104903.A49
2605104903
|
-
|
|
|
|
71 - POLE SHOE 220V
BSD-2604222289.A3
2604222289
|
-
|
|
|
|
72 - COVER DISC
BSD-2601328018.A45
2601328018
|
-
|
|
|
|
73 - COMPRESSION SPRING
BSD-2604611026.A56
2604611026
|
-
|
|
|
|
78 - SPIRAL SPRING
BSD-2604652004.A15
2604652004
|
-
|
|
|
|
79 - SOCKET HEAD CAP SCREW
BSD-2603410010.A304
2603410010
|
-
|
|
|
|
81 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A285
2910211004
|
-
|
|
|
|
84 - PAN HEAD SCREW
BSD-2603410025.A18
2603410025
|
-
|
|
|
|
86 - ON-OFF SWITCH
BSD-2607200043.A124
2607200043
|
-
|
|
|
|
87 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A290
2603410023
|
-
|
|
|
|
90 - SUPPRESSION FILTER
BSD-2607329051.A137
2607329051
|
-
|
|
|
|
91 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A166
2604460053
|
-
|
|
|
|
92 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A853
2600703011
|
£2.80
|
£3.36
|
|
|
92 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A270
2600703012
|
£2.80
|
£3.36
|
|
|
92 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A821
2600703013
|
£2.61
|
£3.13
|
|
|
93 - CABLE CLIP
BSD-2601035001.A1589
2601035001
|
£1.75
|
£2.10
|
|
|
94 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A345
2910211021
|
£1.75
|
£2.10
|
|
|
96 - HOUSING COVER
BSD-2605132007.A104
2605132007
|
-
|
|
|
|
97 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A714
2910211019
|
£1.75
|
£2.10
|
|
|
100 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A248
2601007003
|
-
|
|
|
|
101 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A121
2917724032
|
-
|
|
|
|
102 - FAN
BSD-2606610016.A4
2606610016
|
-
|
|
|
|
103 - ARMATURE PLATE
BSD-2600121002.A47
2600121002
|
-
|
|
|
|
656 - CHUCK
BSD-1608571028.A10
1608571028
|
-
|
|
|
|
657 - CHUCK WRENCH SG2
BSD-2607950007.A61
2607950007
|
£6.52
|
£7.83
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320906.A61
2604320906
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5027
160111A3H3
|
£2.61
|
£3.13
|
|
