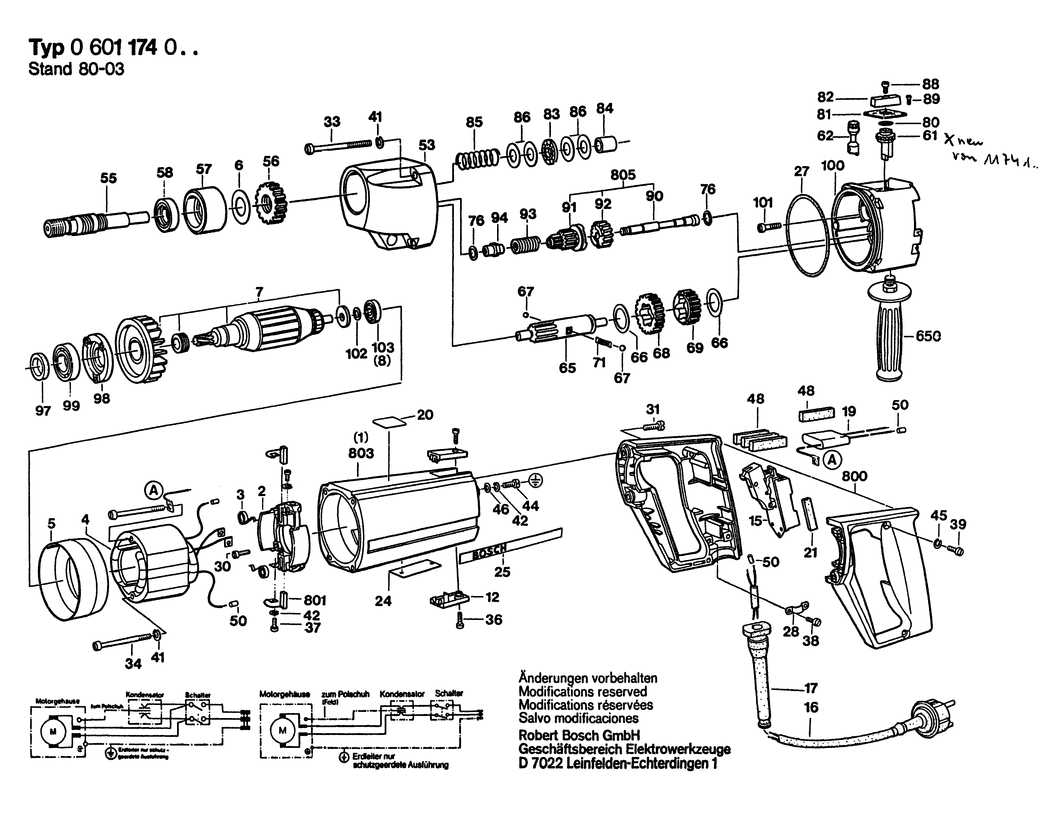

2 - BRUSH HOLDER
BSD-1604336005.A105
1604336005
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652001.A86
1604652001
|
-
|
|
|
|
4 - POLE SHOE 100-120V
BSD-1604220206.A12
1604220206
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A454
1600209002
|
£5.30
|
£6.36
|
|
|
6 - SHIM 0.6 MM
BSD-1600102676.A19
1600102676
|
-
|
|
|
|
7 - ARMATURE 110-115V
BSD-1609991110.A0
1609991110
|
-
|
|
|
|
12 - SEALING CAP
BSD-3605500057.A88
3605500057
|
-
|
|
|
|
15 - SWITCH
BSD-1607200078.A145
1607200078
|
£40.80
|
£48.96
|
|
|
15 - SWITCH
BSD-1607200037.A145
1607200037
|
£45.67
|
£54.80
|
|
|
16 - POWER SUPPLY CORD
BSD-1604460096.A10
1604460096
|
-
|
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A508
3600703011
|
£2.80
|
£3.36
|
|
|
19 - SUPPRESSION CAPACITOR
BSD-1607328012.A103
1607328012
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-1601110058.A141
1601110058
|
£1.75
|
£2.10
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A199
1602381001
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A39
1601110004
|
-
|
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A300
1600210006
|
£1.75
|
£2.10
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A270
1601302014
|
£2.61
|
£3.13
|
|
|
29 - INTERMEDIATE RING
BSD-1600502011.A510
1600502011
|
£2.61
|
£3.13
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A88
2910211019
|
£1.75
|
£2.10
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A152
2910021154
|
£1.75
|
£2.10
|
|
|
33 - SOCKET HEAD CAP SCREW
BSD-2910021181.A45
2910021181
|
-
|
|
|
|
33 - TAPPING SCREW B4.8x85 MM
BSD-1603429001.A67
1603429001
|
-
|
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A54
2910021176
|
-
|
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A806
2910021125
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A355
2910021118
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A735
2910021116
|
£2.16
|
£2.59
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A64
2910011128
|
£1.75
|
£2.10
|
|
|
39 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A41
2910211021
|
£1.75
|
£2.10
|
|
|
41 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A70
2916680006
|
-
|
|
|
|
42 - SPRING WASHER DIN 137-A4
BSD-1600150006.A684
1600150006
|
-
|
|
|
|
44 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A235
2910110116
|
£1.75
|
£2.10
|
|
|
45 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A747
2916690003
|
£1.75
|
£2.10
|
|
|
46 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A364
2916010410
|
-
|
|
|
|
48 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A95
1602381006
|
£1.75
|
£2.10
|
|
|
50 - END SPLICE
BSD-3604477009.A124
3604477009
|
£2.61
|
£3.13
|
|
|
55 - DRILLING SPINDLE 5/8-16 UN-2A
BSD-1603528005.A29
1603528005
|
-
|
|
|
|
56 - CYLINDRICAL GEAR Z=43
BSD-1606317077.A15
1606317077
|
£27.23
|
£32.68
|
|
|
57 - BUSHING
BSD-1605801026.A25
1605801026
|
-
|
|
|
|
58 - ROTARY SHAFT LIP SEAL
BSD-3600283043.A40
3600283043
|
£12.04
|
£14.45
|
|
|
61 - PARTS SET
BSD-1607000126.A35
1607000126
|
-
|
|
|
|
62 - CYLINDRICAL GEAR
BSD-1606325014.A10
1606325014
|
-
|
|
|
|
65 - SPINDLE WITH GEAR Z=15
BSD-1606309062.A26
1606309062
|
-
|
|
|
|
66 - SHIM 0.6 MM
BSD-1600101647.A59
1600101647
|
£2.16
|
£2.59
|
|
|
67 - BALL DIN 5401-5 G28
BSD-1903230009.A491
1903230009
|
£1.75
|
£2.10
|
|
|
68 - CYLINDRICAL GEAR Z=41
BSD-1606317075.A26
1606317075
|
-
|
|
|
|
69 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A49
1606317074
|
£31.64
|
£37.97
|
|
|
71 - COMPRESSION SPRING
BSD-1604611022.A88
1604611022
|
£1.75
|
£2.10
|
|
|
76 - SHIM
BSD-3340101600.A10
3340101600
|
-
|
|
|
|
80 - O-RING 12.0x1.5 MM
BSD-3600210086.A17
3600210086
|
£2.80
|
£3.36
|
|
|
81 - NOTCHED PLATE
BSD-1601038025.A43
1601038025
|
£1.75
|
£2.10
|
|
|
82 - CONTROL LEVER
BSD-1602026044.A55
1602026044
|
£7.36
|
£8.83
|
|
|
83 - NEEDLE-ROLLER BEARING
BSD-1600920003.A38
1600920003
|
-
|
|
|
|
84 - SINTERED-METAL BUSHING
BSD-1600301006.A20
1600301006
|
-
|
|
|
|
85 - COMPRESSION SPRING
BSD-1604616018.A30
1604616018
|
-
|
|
|
|
86 - SUPPORT DISC
BSD-1600103026.A29
1600103026
|
-
|
|
|
|
88 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A47
2910091118
|
£1.75
|
£2.10
|
|
|
89 - COUNTERSUNK-HEAD SCREW AM 4x10 DIN 63-8.8
BSD-2910511120.A23
2910511120
|
-
|
|
|
|
90 - DRIVE SHAFT
BSD-1603520018.A10
1603520018
|
-
|
|
|
|
91 - CYLINDRICAL GEAR
BSD-F000635176.A22
F000635176
|
£40.80
|
£48.96
|
|
|
92 - CYLINDRICAL GEAR Z=30
BSD-1606325022.A3
1606325022
|
-
|
|
|
|
93 - COMPRESSION SPRING
BSD-1604619013.A15
1604619013
|
-
|
|
|
|
94 - THREADED BUSHING
BSD-1600363011.A20
1600363011
|
-
|
|
|
|
97 - FELT DISC
BSD-1600108003.A182
1600108003
|
£1.32
|
£1.58
|
|
|
98 - BEARING COVER
BSD-1600501019.A204
1600501019
|
£23.86
|
£28.63
|
|
|
99 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A32
1600900001
|
-
|
|
|
|
100 - BEARING HOUSING
BSD-1605820192.A7
1605820192
|
-
|
|
|
|
101 - SOCKET HEAD CAP SCREW
BSD-2910021293.A1
2910021293
|
-
|
|
|
|
102 - SHIM 0.10 MM
BSD-1420100023.A130
1420100023
|
-
|
|
|
|
102 - SHIM
BSD-1140100600.A7
1140100600
|
-
|
|
|
|
103 - BALL BEARING 7x22x7
BSD-1900905018.A510
1900905018
|
£18.96
|
£22.75
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A1559
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A1222
1602025030
|
£18.96
|
£22.75
|
|
|
651 - KEY CHUCK dia 3-16 MM. 5/8
BSD-1608571057.A8
1608571057
|
£74.37
|
£89.24
|
|
|
800 - HANDLE
BSD-3605133012.A32
3605133012
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014101.A34
1607014101
|
£11.30
|
£13.56
|
|
|
805 - SET OF GEARS Z=13/22/30
BSD-1607016015.A7
1607016015
|
-
|
|
|
|
807 - SPINDLE BEARING
BSD-1605806321.A18
1605806321
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4147
160111A3H3
|
£2.61
|
£3.13
|
|
