Bosch GSB 13 RE / 3601B17172 / GB 230 Volt Spare Parts

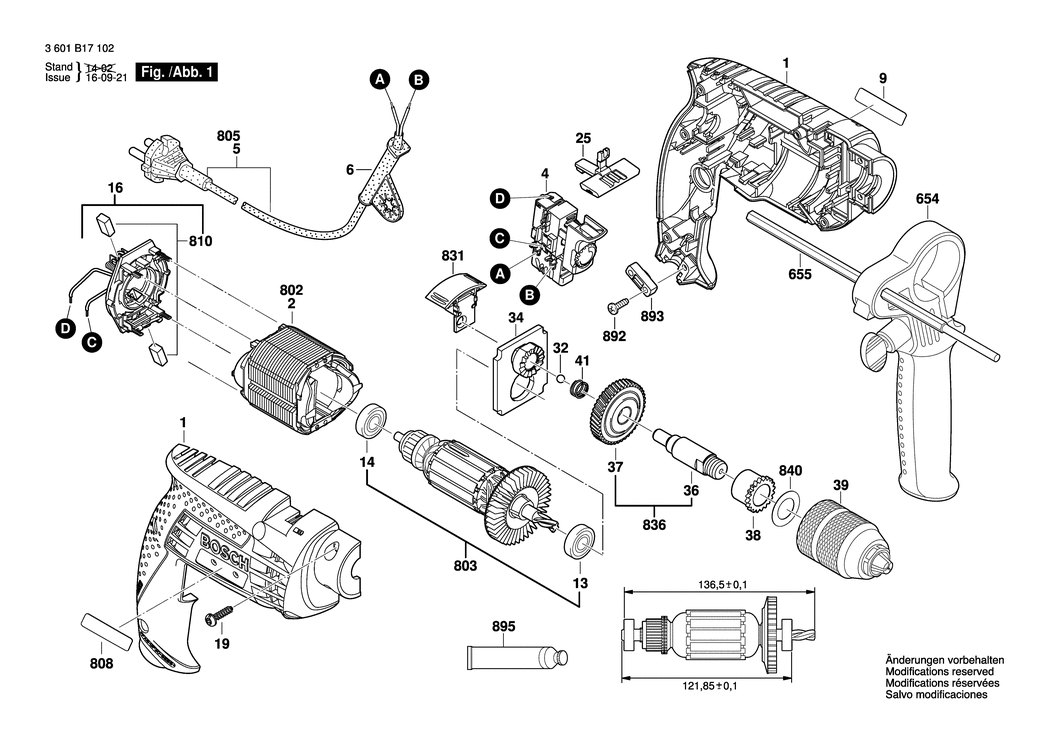

An exploded drawing and listing for the Bosch GSB 13 RE / 3601B17172 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100658.A2 2609100658	£16.41	£19.69
4 - SWITCH BSD-1607200270.A13 1607200270	£18.96	£22.75
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460147.A184 2604460147	£16.41	£19.69
6 - GROMMET dia6.9 MM BSD-2600707059.A23 2600707059	£3.72	£4.47
9 - MANUFACTURER'S NAMEPLATE GSB 13 RE BSD-2609130906.A0 2609130906	£3.72	£4.47
13 - BALL BEARING 8x22x7 BSD-2609110153.A56 2609110153	£5.58	£6.70
14 - BALL BEARING BSD-2609110491.A31 2609110491	£5.30	£6.36
16 - BRUSH PLATE BSD-2609120375.A5 2609120375	£13.12	£15.75
19 - SCREW 4x16 BSD-2603490022.A3164 2603490022	£1.75	£2.10
25 - LEVER BSD-2609100580.A11 2609100580	£2.61	£3.13
32 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A179 1903230010	£1.75	£2.10
34 - BEARING BRACKET BSD-2609199073.A1 2609199073	£10.10	£12.12
36 - DRILLING SPINDLE BSD-2609110441.A13 2609110441	£10.10	£12.12
37 - CONVERSION GEAR BSD-2606320092.A1 2606320092	£10.10	£12.12
38 - SINTERED-METAL BUSHING BSD-2609110442.A1 2609110442	£1.75	£2.10
39 - KEYLESS CHUCK BSD-2608572236.A4 2608572236	£41.62	£49.95
41 - COMPRESSION SPRING BSD-2604616006.A232 2604616006	£1.75	£2.10
654 - AUXILIARY HANDLE BSD-2602025094.A16 2602025094	£7.36	£8.83
655 - DEPTH-GAUGE BSD-2609005615.A253 2609005615	£4.26	£5.11
802 - FIELD 230V BSD-2604220718.A12 2604220718	£18.96	£22.75
803 - ARMATURE 220-240V BSD-2609120232.A6 2609120232	£31.64	£37.97
808 - NAMEPLATE BSD-160111A3Z1.A0 160111A3Z1	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2610391290.A155 2610391290	£8.67	£10.41
810 - CARBON-BRUSH SET 10 x 2 610 391 290 BSD-1607000491.A6 1607000491	£54.42	£65.30
831 - CHANGE-OVER SWITCH BSD-2609160127.A15 2609160127	£2.80	£3.36
836 - DRILLING SPINDLE BSD-2609160123.A2 2609160123	£14.91	£17.89
840 - PLAIN WASHER BSD-2600100105.A14 2600100105	£1.75	£2.10
892 - SCREW 4x16 BSD-2603490022.A3161 2603490022	£1.75	£2.10
893 - CABLE CLIP BSD-2601035001.A3123 2601035001	£1.75	£2.10
895 - GREASE TUBE Albida BSD-3605430003.A72 3605430003	£27.23	£32.68

Attribute Name	Value
Brand	Bosch
