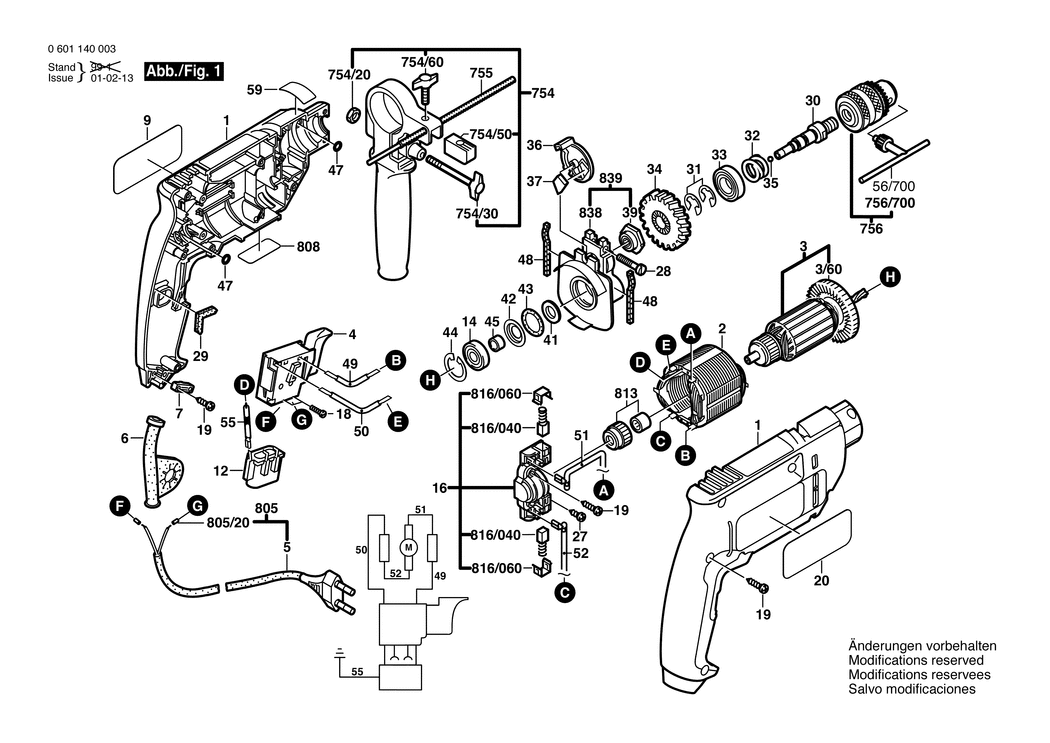

1 - HOUSING SECTION
BSD-2605104436.A0
2605104436
|
£31.64
|
£37.97
|
|
2 - FIELD 240V
BSD-2604220430.A30
2604220430
|
£27.23
|
£32.68
|
|
3 - ARMATURE 230-240V
BSD-2604011050.A0
2604011050
|
-
|
|
|
3/60 - FAN
BSD-2606610029.A399
2606610029
|
£2.61
|
£3.13
|
|
4 - SWITCH
BSD-2607200260.A250
2607200260
|
£11.30
|
£13.56
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A96
2600707059
|
£3.72
|
£4.47
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A232
2600707060
|
£2.61
|
£3.13
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A41
2600707061
|
£2.80
|
£3.36
|
|
7 - CABLE CLIP
BSD-2601035001.A2466
2601035001
|
£1.75
|
£2.10
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118432.A0
2601118432
|
-
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A399
2607329114
|
-
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A272
2600905039
|
£12.04
|
£14.45
|
|
16 - BRUSH PLATE
BSD-2605807060.A13
2605807060
|
-
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2462
2603410001
|
£1.75
|
£2.10
|
|
19 - SCREW 4x16
BSD-2603490022.A2224
2603490022
|
£1.75
|
£2.10
|
|
20 - REFERENCE PLATE
BSD-2601118434.A9
2601118434
|
-
|
|
|
27 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A441
2603490017
|
£2.16
|
£2.59
|
|
28 - SOCKET HEAD CAP SCREW
BSD-2603429005.A34
2603429005
|
£1.75
|
£2.10
|
|
29 - DAMPING PLATE
BSD-2601022000.A167
2601022000
|
£1.75
|
£2.10
|
|
30 - DRILLING SPINDLE 1/2.M6
BSD-2606135034.A2
2606135034
|
-
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A140
2600118001
|
£1.75
|
£2.10
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A97
2600118002
|
£1.75
|
£2.10
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A236
2600118006
|
-
|
|
|
32 - COMPRESSION SPRING
BSD-2604617000.A69
2604617000
|
£2.61
|
£3.13
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A197
1900905122
|
£10.10
|
£12.12
|
|
34 - CYLINDRICAL GEAR Z=42
BSD-2606320050.A0
2606320050
|
£14.75
|
£17.70
|
|
35 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A341
1903230010
|
£1.75
|
£2.10
|
|
36 - INDEXING DISK
BSD-2601990001.A110
2601990001
|
£1.32
|
£1.58
|
|
37 - PRESSURE PLATE
BSD-2601074003.A183
2601074003
|
£1.75
|
£2.10
|
|
39 - SCREEN DISC
BSD-2606490056.A0
2606490056
|
-
|
|
|
41 - FELT WASHER
BSD-2600108014.A20
2600108014
|
-
|
|
|
42 - CUPPED WASHER
BSD-2600500014.A20
2600500014
|
-
|
|
|
43 - O-RING 18x3 MM
BSD-1900210117.A109
1900210117
|
£3.72
|
£4.47
|
|
44 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A137
2916660008
|
£2.16
|
£2.59
|
|
45 - RECEPTACLE
BSD-2600400008.A659
2600400008
|
£1.75
|
£2.10
|
|
47 - O-RING 5.0x1.5 MM
BSD-1900210000.A98
1900210000
|
£1.75
|
£2.10
|
|
48 - FELT STRIP
BSD-2601005011.A174
2601005011
|
-
|
|
|
49 - CONNECTING CABLE L=133 MM
BSD-2604448136.A11
2604448136
|
£1.75
|
£2.10
|
|
50 - CONNECTING CABLE L=83 MM
BSD-2604448129.A0
2604448129
|
-
|
|
|
51 - CONNECTING CABLE L=73 MM
BSD-2604448123.A21
2604448123
|
-
|
|
|
52 - CONNECTING CABLE L=88 MM
BSD-2604448130.A61
2604448130
|
£1.75
|
£2.10
|
|
55 - EARTH CONDUCTOR
BSD-2604448103.A32
2604448103
|
-
|
|
|
59 - STICKER
BSD-2601110580.A6
2601110580
|
-
|
|
|
754 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A57
1619P10682
|
£12.49
|
£14.99
|
|
754/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A68
2915011007
|
-
|
|
|
754/30 - WING SCREW M6x(15)55
BSD-1613480007.A41
1613480007
|
£1.75
|
£2.10
|
|
754/50 - CLAMPING PLATE M6
BSD-2608040014.A96
2608040014
|
-
|
|
|
754/60 - WING SCREW M6x20 MM
BSD-1613480008.A422
1613480008
|
£1.75
|
£2.10
|
|
755 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A284
1613001005
|
-
|
|
|
756 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A2
1608571080
|
£27.23
|
£32.68
|
|
756/700 - CHUCK WRENCH SG2
BSD-2607950007.A742
2607950007
|
£6.52
|
£7.83
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A32
1607000385
|
£14.91
|
£17.89
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4223
160111A3H3
|
£2.61
|
£3.13
|
|
813 - NEEDLE BEARING
BSD-2600917902.A55
2600917902
|
-
|
|
|
816/040 - CARBON-BRUSH SET
BSD-2604321913.A16
2604321913
|
-
|
|
|
816/060 - RATCHET CAP
BSD-2601322017.A103
2601322017
|
£1.75
|
£2.10
|
|
838 - BEARING BRACKET
BSD-2605807915.A66
2605807915
|
-
|
|
|
