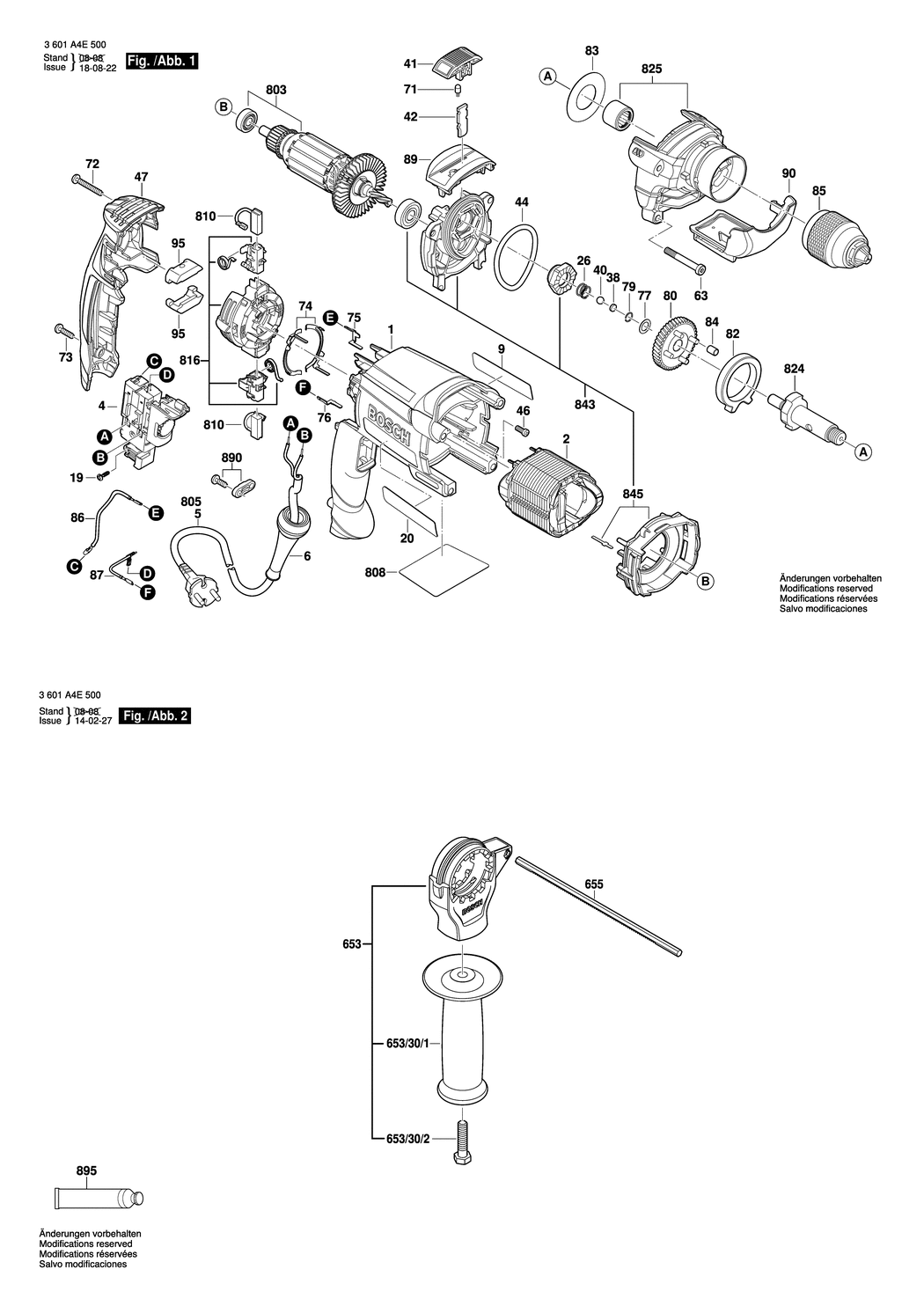

1 - MOTOR HOUSING
BSD-1618B00A04.A1
1618B00A04
|
£31.64
|
£37.97
|
|
|
2 - FIELD 230-240V
BSD-2604220689.A8
2604220689
|
£21.52
|
£25.83
|
|
|
4 - SWITCH
BSD-2607200680.A1
2607200680
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460244.A45
2604460244
|
£27.23
|
£32.68
|
|
|
6 - CABLE SLEEVE dia6.4-dia7.0x66 MM
BSD-2600707075.A20
2600707075
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1618B0002F.A3
1618B0002F
|
£2.80
|
£3.36
|
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A529
2603490017
|
£2.16
|
£2.59
|
|
|
20 - REFERENCE PLATE
BSD-1618B00400.A1
1618B00400
|
£2.80
|
£3.36
|
|
|
26 - COMPRESSION SPRING
BSD-2604616006.A187
2604616006
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.0 MM
BSD-2600000021.A44
2600000021
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.35 MM
BSD-2600000030.A29
2600000030
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.7 MM
BSD-2600000031.A113
2600000031
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A664
1903230009
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A258
1903230010
|
£1.75
|
£2.10
|
|
|
40 - BALL 5.25 MM
BSD-2603230007.A78
2603230007
|
£1.75
|
£2.10
|
|
|
41 - SLIDE SWITCH
BSD-1618B00800.A8
1618B00800
|
£1.75
|
£2.10
|
|
|
42 - PRESSURE PLATE
BSD-2601074008.A2
2601074008
|
£1.75
|
£2.10
|
|
|
44 - O-RING
BSD-2600206024.A1
2600206024
|
£1.75
|
£2.10
|
|
|
46 - TAPPING SCREW
BSD-2603435086.A133
2603435086
|
£1.75
|
£2.10
|
|
|
47 - HOUSING COVER
BSD-1618B00A00.A3
1618B00A00
|
£12.04
|
£14.45
|
|
|
63 - HEADLESS SCREW
BSD-2603435085.A12
2603435085
|
£1.75
|
£2.10
|
|
|
71 - RATCHET CAP
BSD-2600590006.A593
2600590006
|
£1.75
|
£2.10
|
|
|
72 - TORX OVAL-HEAD SCREW 4x40
BSD-2603490027.A55
2603490027
|
£1.75
|
£2.10
|
|
|
73 - SCREW 4x16
BSD-2603490022.A2730
2603490022
|
£1.75
|
£2.10
|
|
|
74 - SWITCH CONTACT
BSD-2601324062.A4
2601324062
|
£1.75
|
£2.10
|
|
|
75 - CONTACT
BSD-2601099259.A17
2601099259
|
£1.75
|
£2.10
|
|
|
76 - CONTACT
BSD-2601099260.A2
2601099260
|
£2.16
|
£2.59
|
|
|
77 - SHIM 0.3 MM
BSD-2600101047.A95
2600101047
|
£1.75
|
£2.10
|
|
|
79 - RETAINING RING DIN 7993-A8
BSD-2916540005.A22
2916540005
|
£1.75
|
£2.10
|
|
|
80 - CARRIER
BSD-2606320106.A3
2606320106
|
£18.96
|
£22.75
|
|
|
82 - RETAINING SNAP RING
BSD-2600202056.A0
2600202056
|
£5.58
|
£6.70
|
|
|
83 - FRICTION WASHER
BSD-2600101115.A0
2600101115
|
£1.75
|
£2.10
|
|
|
84 - ROLLER BODY
BSD-2602329038.A0
2602329038
|
£1.75
|
£2.10
|
|
|
85 - KEYLESS CHUCK
BSD-2608572142.A0
2608572142
|
£52.15
|
£62.58
|
|
|
86 - CONNECTING CABLE
BSD-2604448331.A1
2604448331
|
£1.75
|
£2.10
|
|
|
87 - CONNECTING CABLE 48 mm
BSD-2604448334.A13
2604448334
|
£2.16
|
£2.59
|
|
|
89 - BULB SHIELD
BSD-1618B00A03.A1
1618B00A03
|
£3.72
|
£4.47
|
|
|
90 - BULB SHIELD
BSD-2605510270.A0
2605510270
|
-
|
|
|
|
95 - CLIP
BSD-2601329118.A0
2601329118
|
£1.75
|
£2.10
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025175.A4
2602025175
|
£16.41
|
£19.69
|
|
|
653/30/1 - HANDLE
BSD-2602025180.A20
2602025180
|
-
|
|
|
|
653/30/2 - HEX SCREW M8x45
BSD-2911061252.A0
2911061252
|
£1.32
|
£1.58
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A388
1613001009
|
£3.72
|
£4.47
|
|
|
803 - ARMATURE 230-240V
BSD-2604011913.A3
2604011913
|
£37.72
|
£45.27
|
|
|
808 - NAMEPLATE
BSD-2601115877.A0
2601115877
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1617000525.A62
1617000525
|
£11.30
|
£13.56
|
|
|
810 - CARBON-BRUSH SET 10 x 1 617 000 525
BSD-1607000485.A125
1607000485
|
£72.18
|
£86.62
|
|
|
816 - BRUSH PLATE
BSD-1614336061.A90
1614336061
|
£18.96
|
£22.75
|
|
|
824 - DRILLING SPINDLE
BSD-2606135940.A3
2606135940
|
£21.52
|
£25.83
|
|
|
825 - GEAR HOUSING
BSD-2605806883.A4
2605806883
|
£23.86
|
£28.63
|
|
|
843 - BEARING BRACKET
BSD-2605700945.A4
2605700945
|
£27.23
|
£32.68
|
|
|
845 - AIR GUIDE PLATE
BSD-2600148011.A1
2600148011
|
£5.30
|
£6.36
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A318
2607001305
|
£4.26
|
£5.11
|
|
|
895 - GREASE TUBE Albida
BSD-3605430003.A41
3605430003
|
£27.23
|
£32.68
|
|
