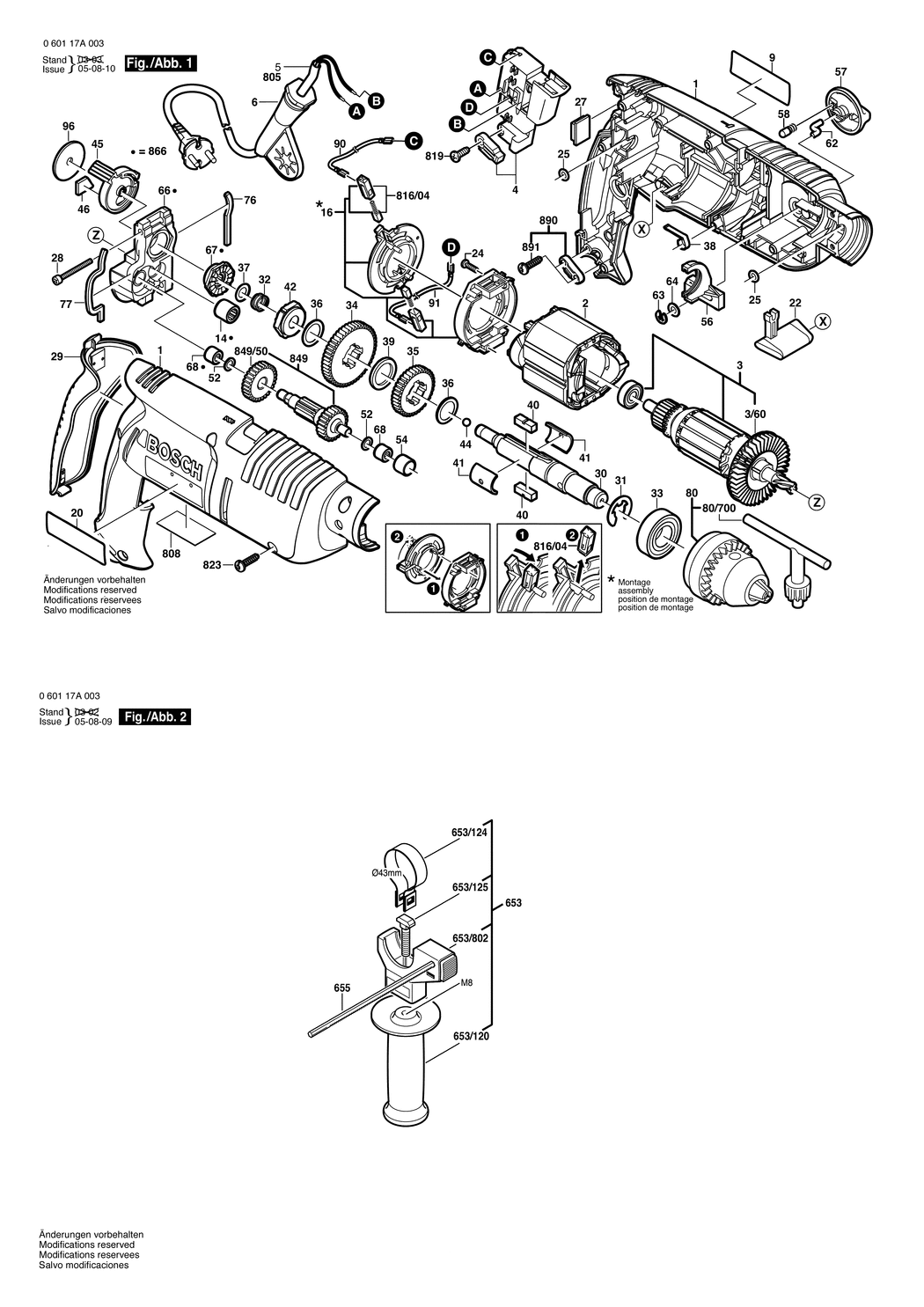

1 - HOUSING SECTION
BSD-2605104760.A9
2605104760
|
£37.27
|
£44.72
|
|
|
2 - FIELD 230-240V
BSD-2604220689.A25
2604220689
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 230-240V
BSD-2604011166.A35
2604011166
|
£45.67
|
£54.80
|
|
|
3/60 - FAN
BSD-2606610029.A9
2606610029
|
£2.61
|
£3.13
|
|
|
4 - SWITCH
BSD-2607200526.A8
2607200526
|
-
|
|
|
|
5 - POWER SUPPLY CORD I/BR 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460287.A2
2604460287
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A6
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116358.A3
2601116358
|
£2.52
|
£3.02
|
|
|
14 - NEEDLE BEARING
BSD-2600914019.A100
2600914019
|
£5.30
|
£6.36
|
|
|
16 - BRUSH PLATE
BSD-2604337061.A33
2604337061
|
£14.91
|
£17.89
|
|
|
20 - REFERENCE PLATE
BSD-2601116360.A9
2601116360
|
£4.75
|
£5.70
|
|
|
22 - DUMMY PLUG
BSD-2601099109.A0
2601099109
|
£2.33
|
£2.80
|
|
|
24 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A193
2910611002
|
£1.75
|
£2.10
|
|
|
25 - O-RING 5.0x1.5 MM
BSD-1900210000.A577
1900210000
|
£1.75
|
£2.10
|
|
|
27 - DAMPING ELEMENT
BSD-2603239024.A6
2603239024
|
£1.75
|
£2.10
|
|
|
28 - OVAL-HEAD SCREW
BSD-2603429006.A7
2603429006
|
£1.32
|
£1.58
|
|
|
29 - HANDLE COVER
BSD-2608040177.A8
2608040177
|
£5.87
|
£7.04
|
|
|
30 - DRILLING SPINDLE
BSD-2606135116.A8
2606135116
|
£18.96
|
£22.75
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A118
2600118001
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A119
2600118002
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A118
2600118006
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-2604616006.A157
2604616006
|
£1.75
|
£2.10
|
|
|
33 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A443
1900905163
|
£11.30
|
£13.56
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606317082.A25
2606317082
|
£13.12
|
£15.75
|
|
|
35 - CYLINDRICAL GEAR
BSD-2606317083.A31
2606317083
|
£11.30
|
£13.56
|
|
|
36 - SHIM 0.5 MM
BSD-2600100695.A225
2600100695
|
£1.75
|
£2.10
|
|
|
37 - SHIM 0.3 MM
BSD-2600101047.A492
2600101047
|
£1.75
|
£2.10
|
|
|
38 - CONTACT STRAP
BSD-2601329072.A9
2601329072
|
-
|
|
|
|
39 - RETAINING WASHER
BSD-2600101084.A54
2600101084
|
£1.75
|
£2.10
|
|
|
40 - FLAT KEY
BSD-2602300034.A35
2602300034
|
-
|
|
|
|
41 - GUIDING PLATE
BSD-2601098031.A41
2601098031
|
£1.75
|
£2.10
|
|
|
42 - CATCH DISK
BSD-2600190070.A35
2600190070
|
£5.58
|
£6.70
|
|
|
44 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A585
1903230010
|
£1.75
|
£2.10
|
|
|
45 - INDEXING DISK
BSD-2601990041.A4
2601990041
|
£1.75
|
£2.10
|
|
|
46 - PRESSURE PLATE
BSD-2601074003.A57
2601074003
|
£1.75
|
£2.10
|
|
|
52 - SHIM 0.3 MM
BSD-2600100607.A966
2600100607
|
£1.75
|
£2.10
|
|
|
54 - BEARING SLEEVE
BSD-2600400027.A107
2600400027
|
£4.26
|
£5.11
|
|
|
56 - FORK LEVER
BSD-2601990009.A36
2601990009
|
£2.29
|
£2.75
|
|
|
57 - ROTARY KNOB
BSD-2602026119.A4
2602026119
|
-
|
|
|
|
58 - RATCHET CAP
BSD-2600590006.A1173
2600590006
|
£1.75
|
£2.10
|
|
|
62 - DRIVER PIN
BSD-2601335001.A5
2601335001
|
£2.16
|
£2.59
|
|
|
63 - LOCKING WASHER 4 DIN 6799
BSD-2916080907.A6
2916080907
|
£2.16
|
£2.59
|
|
|
64 - SHIM WASHER
BSD-2600100618.A236
2600100618
|
£1.75
|
£2.10
|
|
|
66 - BEARING BRACKET
BSD-2605807085.A11
2605807085
|
£19.45
|
£23.34
|
|
|
67 - CATCH DISK
BSD-2600190071.A32
2600190071
|
£6.52
|
£7.83
|
|
|
68 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A529
2600914010
|
£2.80
|
£3.36
|
|
|
76 - FELT STRIP
BSD-2601005011.A37
2601005011
|
-
|
|
|
|
77 - FELT STRIP
BSD-2601005021.A20
2601005021
|
£1.32
|
£1.58
|
|
|
80 - KEY CHUCK
BSD-2608571065.A22
2608571065
|
£37.27
|
£44.72
|
|
|
80/700 - CHUCK WRENCH SG2
BSD-2607950007.A1034
2607950007
|
£6.52
|
£7.83
|
|
|
90 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A127
2604448228
|
£2.16
|
£2.59
|
|
|
91 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A49
1614431025
|
£2.61
|
£3.13
|
|
|
96 - PLAIN WASHER
BSD-2600100066.A57
2600100066
|
£1.75
|
£2.10
|
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-2602025118.A128
2602025118
|
£14.91
|
£17.89
|
|
|
653/120 - AUXILIARY HANDLE M8
BSD-1612025019.A49
1612025019
|
£6.52
|
£7.83
|
|
|
653/124 - CLAMPING BAND dia43 MM
BSD-1611316006.A392
1611316006
|
£2.61
|
£3.13
|
|
|
653/125 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A190
1613490002
|
£4.26
|
£5.11
|
|
|
653/802 - SUPPORT CLAMP dia43 MM
BSD-2608040176.A125
2608040176
|
£6.52
|
£7.83
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A679
1613001009
|
£3.72
|
£4.47
|
|
|
808 - MARKING PLATE
BSD-2601116375.A0
2601116375
|
£2.33
|
£2.80
|
|
|
816/04 - BRUSH HOLDER
BSD-1607000CJ1.A47
1607000CJ1
|
£5.87
|
£7.04
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A179
2910611006
|
£1.75
|
£2.10
|
|
|
823 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A472
2910611020
|
£1.75
|
£2.10
|
|
|
849 - TOOTHED SHAFT
BSD-2606309935.A4
2606309935
|
£21.52
|
£25.83
|
|
|
849/50 - HELICAL GEAR Z=29
BSD-2606319080.A6
2606319080
|
£6.52
|
£7.83
|
|
|
866 - BEARING BRACKET
BSD-2605807934.A16
2605807934
|
-
|
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A129
2607001305
|
£4.26
|
£5.11
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A183
2603410046
|
£2.16
|
£2.59
|
|
