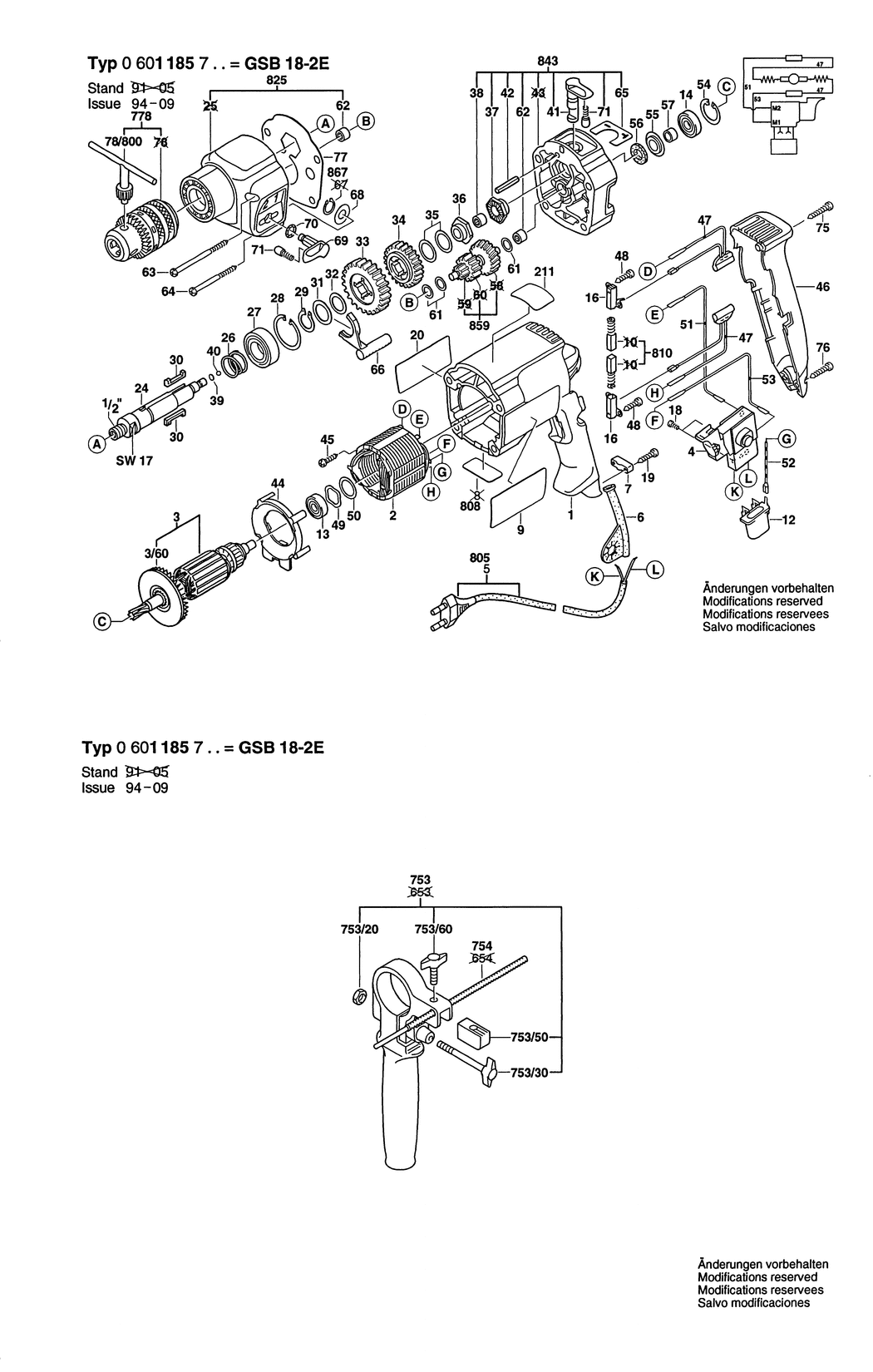

1 - MOTOR HOUSING
BSD-2605104309.A23
2605104309
|
£23.86
|
£28.63
|
|
2 - FIELD 220-240V
BSD-1604220254.A93
1604220254
|
£21.68
|
£26.01
|
|
3 - ARMATURE 230-240V
BSD-2604010744.A7
2604010744
|
-
|
|
|
3/60 - FAN
BSD-2606610029.A414
2606610029
|
£2.61
|
£3.13
|
|
4 - SWITCH
BSD-2607200184.A20
2607200184
|
-
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A137
2600707059
|
£3.72
|
£4.47
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A73
2600707061
|
£2.80
|
£3.36
|
|
7 - CABLE CLIP
BSD-2601035001.A2452
2601035001
|
£1.75
|
£2.10
|
|
9 - STICKER
BSD-2601118173.A1
2601118173
|
-
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A431
2607329114
|
-
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A479
1900905018
|
£18.96
|
£22.75
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A242
2600905039
|
£12.04
|
£14.45
|
|
16 - BRUSH HOLDER
BSD-2604337003.A78
2604337003
|
£2.16
|
£2.59
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2431
2603410001
|
£1.75
|
£2.10
|
|
19 - SCREW 4x16
BSD-2603490022.A2252
2603490022
|
£1.75
|
£2.10
|
|
20 - STICKER
BSD-2601118171.A6
2601118171
|
-
|
|
|
24 - DRILLING SPINDLE 1/2
BSD-2606135013.A32
2606135013
|
£21.42
|
£25.71
|
|
26 - COMPRESSION SPRING
BSD-2604616002.A212
2604616002
|
£1.75
|
£2.10
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A28
1900905163
|
£11.30
|
£13.56
|
|
28 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A133
2916660014
|
£1.75
|
£2.10
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A54
2916650008
|
£1.75
|
£2.10
|
|
30 - FLAT KEY
BSD-2602300028.A161
2602300028
|
-
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A68
2600101671
|
£1.75
|
£2.10
|
|
32 - SHIM 1.0 MM
BSD-2600101515.A241
2600101515
|
£1.95
|
£2.34
|
|
33 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A130
2606317045
|
£14.72
|
£17.67
|
|
34 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A53
2606317037
|
-
|
|
|
35 - SHIM 0.5 MM
BSD-2600101616.A14
2600101616
|
-
|
|
|
35 - SHIM 0.3 MM
BSD-2600101617.A307
2600101617
|
£1.75
|
£2.10
|
|
36 - CATCH DISK
BSD-2600190052.A131
2600190052
|
£7.78
|
£9.33
|
|
37 - CATCH DISK
BSD-2600190057.A49
2600190057
|
-
|
|
|
38 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A59
2600917003
|
£2.80
|
£3.36
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A162
2600000014
|
£1.75
|
£2.10
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A163
2600000014
|
£1.75
|
£2.10
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A319
1903230010
|
£1.75
|
£2.10
|
|
41 - ROTARY KNOB
BSD-2602026017.A148
2602026017
|
£7.36
|
£8.83
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A21
2917780105
|
£1.75
|
£2.10
|
|
44 - COVER DISC
BSD-2601328033.A208
2601328033
|
-
|
|
|
45 - TAPPING SCREW
BSD-2603435086.A142
2603435086
|
£1.75
|
£2.10
|
|
46 - HOUSING COVER
BSD-2605132049.A55
2605132049
|
£7.36
|
£8.83
|
|
47 - SUPPRESSION FILTER
BSD-2604465068.A51
2604465068
|
-
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A462
2603490017
|
£2.16
|
£2.59
|
|
49 - SHIM
BSD-2600150004.A501
2600150004
|
£2.16
|
£2.59
|
|
50 - SHIM WASHER 0.5 MM
BSD-2600101667.A16
2600101667
|
£1.75
|
£2.10
|
|
50 - SHIM WASHER 0.3 MM
BSD-2600101027.A325
2600101027
|
£1.75
|
£2.10
|
|
51 - CABLE L=130 MM
BSD-2604448005.A58
2604448005
|
£1.75
|
£2.10
|
|
52 - EARTH CONDUCTOR
BSD-2604448097.A34
2604448097
|
£1.75
|
£2.10
|
|
53 - CONNECTING CABLE L=110 MM
BSD-2604448146.A12
2604448146
|
£1.75
|
£2.10
|
|
54 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A97
2916660008
|
£2.16
|
£2.59
|
|
55 - CUPPED WASHER
BSD-2600500002.A481
2600500002
|
£1.75
|
£2.10
|
|
56 - FELT WASHER
BSD-2600108077.A347
2600108077
|
£1.75
|
£2.10
|
|
57 - RECEPTACLE
BSD-2600400008.A698
2600400008
|
£1.75
|
£2.10
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A460
2600100607
|
£1.75
|
£2.10
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A204
2600914010
|
£2.80
|
£3.36
|
|
63 - HEADLESS SCREW
BSD-2603435070.A70
2603435070
|
£2.16
|
£2.59
|
|
64 - HEADLESS SCREW 65 MM
BSD-2603435071.A25
2603435071
|
-
|
|
|
65 - STICKER
BSD-2601110076.A192
2601110076
|
-
|
|
|
66 - ADJUSTING SLIDE
BSD-2602033006.A69
2602033006
|
£2.80
|
£3.36
|
|
68 - SHIM WASHER
BSD-2600100618.A124
2600100618
|
£1.75
|
£2.10
|
|
69 - ROTARY KNOB
BSD-2602026038.A23
2602026038
|
-
|
|
|
70 - PARTS SET
BSD-2607010226.A56
2607010226
|
£2.33
|
£2.80
|
|
71 - RATCHET CAP
BSD-2600590006.A362
2600590006
|
£1.75
|
£2.10
|
|
75 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A826
2603490024
|
£1.75
|
£2.10
|
|
77 - GASKET
BSD-2601073012.A72
2601073012
|
£1.75
|
£2.10
|
|
78/800 - CHUCK WRENCH SG2
BSD-2607950007.A694
2607950007
|
£6.52
|
£7.83
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A13
1619P10682
|
£12.49
|
£14.99
|
|
753/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A81
2915011007
|
-
|
|
|
753/30 - WING SCREW M6x(15)55
BSD-1613480007.A15
1613480007
|
£1.75
|
£2.10
|
|
753/50 - CLAMPING PLATE M6
BSD-2608040014.A66
2608040014
|
-
|
|
|
753/60 - WING SCREW M6x20 MM
BSD-1613480008.A448
1613480008
|
£1.75
|
£2.10
|
|
754 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A288
1613001005
|
-
|
|
|
778 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A27
1608571080
|
£27.23
|
£32.68
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A36
1607000385
|
£14.91
|
£17.89
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4082
160111A3H3
|
£2.61
|
£3.13
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A283
2604321905
|
£11.30
|
£13.56
|
|
825 - GEAR HOUSING
BSD-2605806990.A31
2605806990
|
-
|
|
|
843 - INTERMEDIATE FLANGE
BSD-2605700936.A107
2605700936
|
£46.82
|
£56.18
|
|
859 - TOOTHED SHAFT Z= 10/22/29
BSD-2606100903.A77
2606100903
|
-
|
|
|
867 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A625
2916080007
|
£2.61
|
£3.13
|
|
