Bosch GSB 18-2 RE / 0601185550 / I 230 Volt Spare Parts

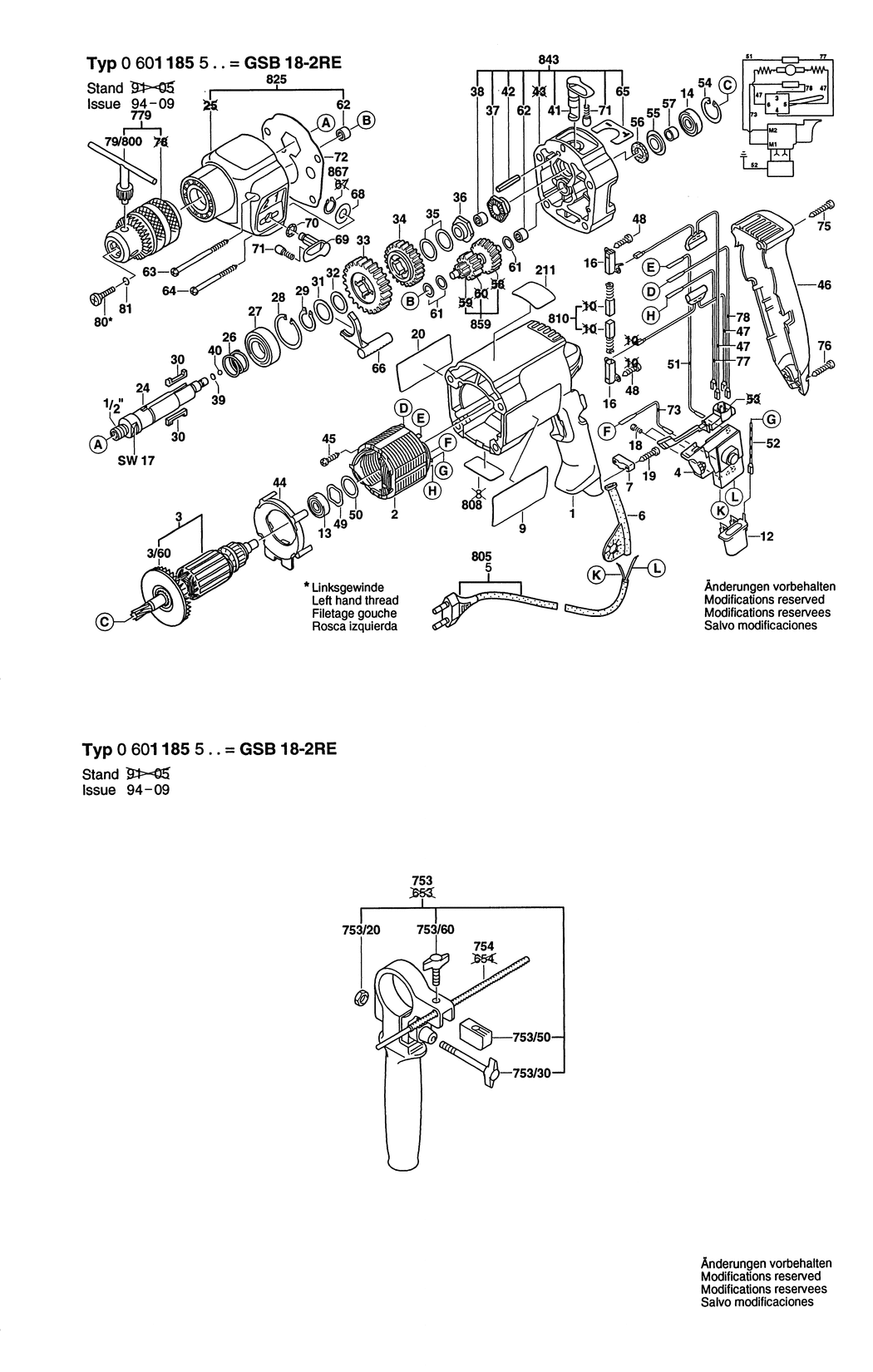

An exploded drawing and listing for the Bosch GSB 18-2 RE / 0601185550 / I 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104309.A24 2605104309	£23.86	£28.63
2 - FIELD 220-240V BSD-1604220254.A94 1604220254	£21.68	£26.01
3 - ARMATURE 230-240V BSD-2604010739.A20 2604010739	-
3/60 - FAN BSD-2606610029.A412 2606610029	£2.61	£3.13
4 - SWITCH BSD-2607200209.A65 2607200209	£40.80	£48.96
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460283.A24 2604460283	£12.04	£14.45
6 - GROMMET dia6.9 MM BSD-2600707059.A136 2600707059	£3.72	£4.47
6 - GROMMET dia8.8 MM BSD-2600707061.A74 2600707061	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A2453 2601035001	£1.75	£2.10
9 - STICKER BSD-2601118172.A4 2601118172	-
12 - SUPPRESSION FILTER BSD-2607329114.A429 2607329114	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A482 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A240 2600905039	£12.04	£14.45
16 - BRUSH HOLDER BSD-2604337003.A77 2604337003	£2.16	£2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2429 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A2251 2603490022	£1.75	£2.10
20 - STICKER BSD-2601118171.A4 2601118171	-
24 - DRILLING SPINDLE 1/2.SW 17 BSD-2606135032.A4 2606135032	-
26 - COMPRESSION SPRING BSD-2604616002.A211 2604616002	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A25 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A136 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A57 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300028.A163 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A66 2600101671	£1.75	£2.10
32 - SHIM 1.0 MM BSD-2600101515.A239 2600101515	£1.95	£2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A133 2606317045	£14.72	£17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A50 2606317037	-
35 - SHIM 0.5 MM BSD-2600101616.A16 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A305 2600101617	£1.75	£2.10
36 - CATCH DISK BSD-2600190052.A133 2600190052	£7.78	£9.33
37 - CATCH DISK BSD-2600190057.A47 2600190057	-
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A57 2600917003	£2.80	£3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A139 2600000012	£1.75	£2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A159 2600000014	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A322 1903230010	£1.75	£2.10
41 - ROTARY KNOB BSD-2602026017.A146 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A18 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A210 2601328033	-
45 - TAPPING SCREW BSD-2603435086.A141 2603435086	£1.75	£2.10
46 - HOUSING COVER BSD-2605132049.A53 2605132049	£7.36	£8.83
47 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A102 2604465097	£5.58	£6.70
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A463 2603490017	£2.16	£2.59
49 - SHIM BSD-2600150004.A499 2600150004	£2.16	£2.59
50 - SHIM WASHER 0.5 MM BSD-2600101667.A18 2600101667	£1.75	£2.10
50 - SHIM WASHER 0.3 MM BSD-2600101027.A327 2600101027	£1.75	£2.10
51 - CABLE L=130 MM BSD-2604448005.A59 2604448005	£1.75	£2.10
52 - EARTH CONDUCTOR BSD-2604448097.A32 2604448097	£1.75	£2.10
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A94 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A479 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A349 2600108077	£1.75	£2.10
57 - RECEPTACLE BSD-2600400008.A700 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A462 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A206 2600914010	£2.80	£3.36
63 - HEADLESS SCREW BSD-2603435070.A69 2603435070	£2.16	£2.59
64 - HEADLESS SCREW 65 MM BSD-2603435071.A26 2603435071	-
65 - STICKER BSD-2601110076.A194 2601110076	-
66 - ADJUSTING SLIDE BSD-2602033006.A68 2602033006	£2.80	£3.36
68 - SHIM WASHER BSD-2600100618.A123 2600100618	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026038.A24 2602026038	-
70 - PARTS SET BSD-2607010226.A57 2607010226	£2.33	£2.80
71 - RATCHET CAP BSD-2600590006.A363 2600590006	£1.75	£2.10
72 - GASKET BSD-2601073012.A70 2601073012	£1.75	£2.10
73 - CONNECTING CABLE L=110 MM BSD-2604448146.A9 2604448146	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A827 2603490024	£1.75	£2.10
77 - CONNECTING CABLE L=68 MM BSD-2604448100.A103 2604448100	£1.75	£2.10
78 - CONNECTING CABLE L=98 MM BSD-2604448074.A64 2604448074	£2.16	£2.59
79/800 - CHUCK WRENCH SG2 BSD-2607950007.A695 2607950007	£6.52	£7.83
80 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11) BSD-2603421208.A47 2603421208	-
81 - RETAINING RING BSD-2604601004.A10 2604601004	£1.75	£2.10
85 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A127 2604465086	£5.58	£6.70
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A15 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A83 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A14 1613480007	£1.75	£2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A67 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A449 1613480008	£1.75	£2.10
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A289 1613001005	-
779 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A425 1608571069	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A4081 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604321905.A284 2604321905	£11.30	£13.56
825 - GEAR HOUSING BSD-2605806990.A30 2605806990	-
843 - INTERMEDIATE FLANGE BSD-2605700936.A108 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A78 2606100903	-
867 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A626 2916080007	£2.61	£3.13
