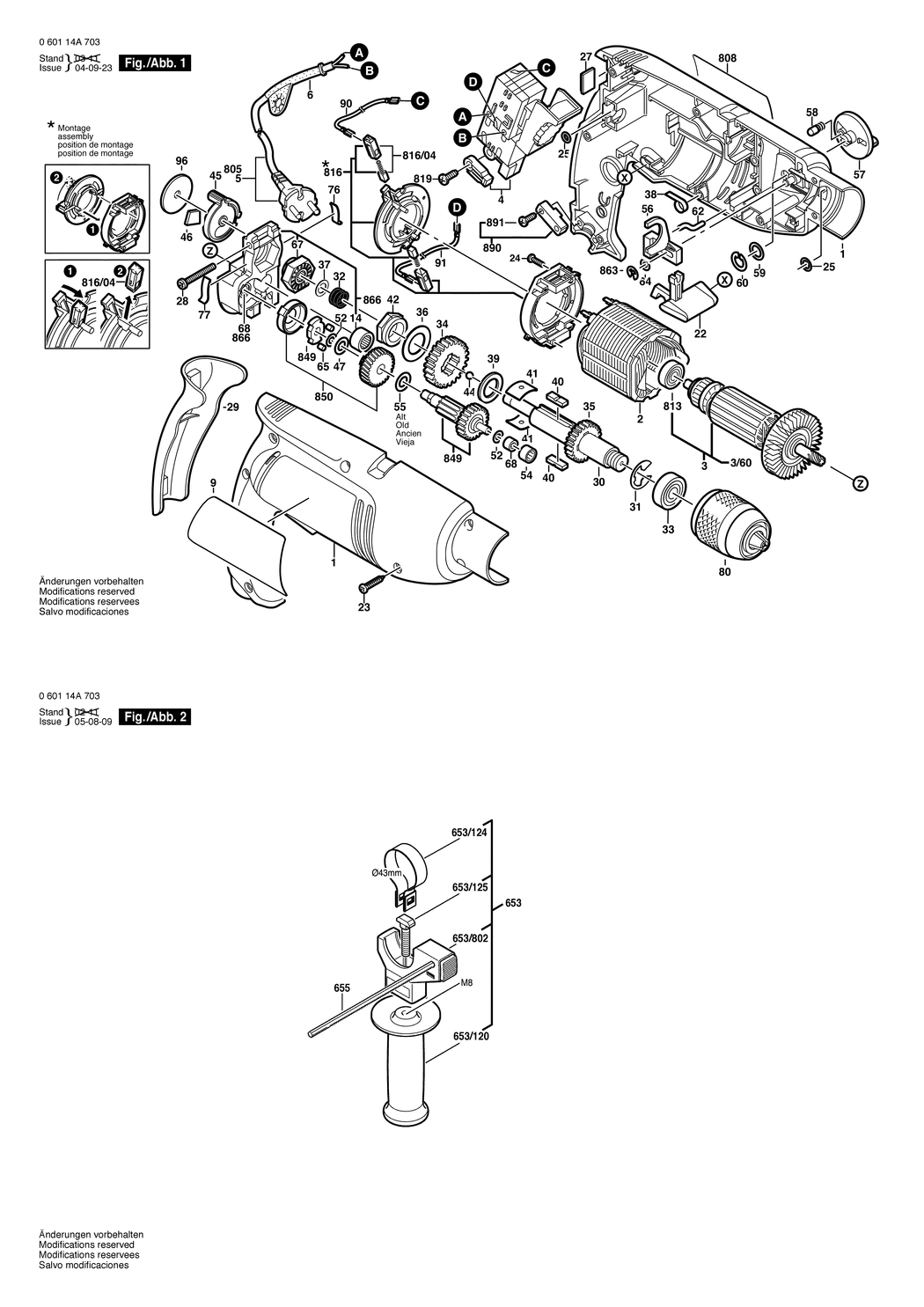

1 - HOUSING SECTION
BSD-2605104683.A9
2605104683
|
£27.31
|
£32.77
|
|
2 - FIELD 230-240V
BSD-2604220689.A17
2604220689
|
£21.52
|
£25.83
|
|
3 - ARMATURE 230-240V
BSD-2604011166.A21
2604011166
|
£45.67
|
£54.80
|
|
3/60 - FAN
BSD-2606610029.A221
2606610029
|
£2.61
|
£3.13
|
|
4 - SWITCH
BSD-2607200556.A29
2607200556
|
£27.23
|
£32.68
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460432.A137
1604460432
|
£11.30
|
£13.56
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A135
2600707066
|
£2.48
|
£2.97
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601117631.A2
2601117631
|
-
|
|
|
14 - NEEDLE BEARING
BSD-2600914019.A27
2600914019
|
£5.30
|
£6.36
|
|
22 - CHANGE-OVER SWITCH
BSD-2602098008.A113
2602098008
|
£1.75
|
£2.10
|
|
23 - SCREW 4x16
BSD-2603490022.A1522
2603490022
|
£1.75
|
£2.10
|
|
24 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A235
2910611002
|
£1.75
|
£2.10
|
|
25 - O-RING 5.0x1.5 MM
BSD-1900210000.A513
1900210000
|
£1.75
|
£2.10
|
|
27 - DAMPING ELEMENT
BSD-2603239024.A36
2603239024
|
£1.75
|
£2.10
|
|
28 - OVAL-HEAD SCREW
BSD-2603429006.A18
2603429006
|
£1.32
|
£1.58
|
|
29 - HANDLE COVER
BSD-2608040109.A62
2608040109
|
£4.26
|
£5.11
|
|
30 - DRILLING SPINDLE
BSD-2606135094.A4
2606135094
|
-
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A59
2600118001
|
£1.75
|
£2.10
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A141
2600118002
|
£1.75
|
£2.10
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A8
2600118006
|
-
|
|
|
32 - COMPRESSION SPRING
BSD-2604616006.A65
2604616006
|
£1.75
|
£2.10
|
|
33 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A584
1900905163
|
£11.30
|
£13.56
|
|
34 - CYLINDRICAL GEAR
BSD-2606317082.A2
2606317082
|
£13.12
|
£15.75
|
|
35 - CYLINDRICAL GEAR
BSD-2606317083.A54
2606317083
|
£11.30
|
£13.56
|
|
36 - SHIM 0.5 MM
BSD-2600100695.A261
2600100695
|
£1.75
|
£2.10
|
|
37 - SHIM 0.3 MM
BSD-2600101047.A360
2600101047
|
£1.75
|
£2.10
|
|
38 - CONTACT STRAP
BSD-2601329072.A18
2601329072
|
-
|
|
|
39 - RETAINING WASHER
BSD-2600101084.A32
2600101084
|
£1.75
|
£2.10
|
|
40 - FLAT KEY
BSD-2602300034.A49
2602300034
|
-
|
|
|
41 - GUIDING PLATE
BSD-2601098031.A48
2601098031
|
£1.75
|
£2.10
|
|
42 - CATCH DISK
BSD-2600190070.A18
2600190070
|
£5.58
|
£6.70
|
|
44 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A479
1903230010
|
£1.75
|
£2.10
|
|
45 - INDEXING DISK
BSD-2601990001.A64
2601990001
|
£1.32
|
£1.58
|
|
46 - PRESSURE PLATE
BSD-2601074003.A70
2601074003
|
£1.75
|
£2.10
|
|
47 - SHIM 0.2 MM
BSD-1600100632.A27
1600100632
|
£1.75
|
£2.10
|
|
52 - SHIM 0.3 MM
BSD-2600100607.A586
2600100607
|
£1.75
|
£2.10
|
|
54 - BEARING SLEEVE
BSD-2600400027.A83
2600400027
|
£4.26
|
£5.11
|
|
55 - SHIM 0.5 MM
BSD-2600100637.A6
2600100637
|
£1.75
|
£2.10
|
|
56 - FORK LEVER
BSD-2601990009.A48
2601990009
|
£2.29
|
£2.75
|
|
57 - ROTARY HEAD
BSD-2602026091.A12
2602026091
|
-
|
|
|
58 - RATCHET CAP
BSD-2600590006.A735
2600590006
|
£1.75
|
£2.10
|
|
59 - SHIM 0.3 MM
BSD-2600100576.A72
2600100576
|
-
|
|
|
60 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A587
2916650001
|
£2.61
|
£3.13
|
|
62 - DRIVER PIN
BSD-2601335001.A26
2601335001
|
£2.16
|
£2.59
|
|
64 - SHIM WASHER
BSD-2600100618.A338
2600100618
|
£1.75
|
£2.10
|
|
65 - ROLLER BODY
BSD-2609007376.A33
2609007376
|
£1.75
|
£2.10
|
|
67 - CATCH DISK
BSD-2600190071.A46
2600190071
|
£6.52
|
£7.83
|
|
68 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A651
2600914010
|
£2.80
|
£3.36
|
|
76 - FELT STRIP
BSD-2601005011.A6
2601005011
|
-
|
|
|
77 - FELT STRIP
BSD-2601005021.A4
2601005021
|
£1.32
|
£1.58
|
|
80 - KEYLESS CHUCK
BSD-2608572142.A30
2608572142
|
£52.15
|
£62.58
|
|
90 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A100
2604448228
|
£2.16
|
£2.59
|
|
91 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A56
1614431025
|
£2.61
|
£3.13
|
|
96 - PLAIN WASHER
BSD-2600100066.A29
2600100066
|
£1.75
|
£2.10
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-2602025118.A138
2602025118
|
£14.91
|
£17.89
|
|
653/120 - AUXILIARY HANDLE M8
BSD-1612025019.A16
1612025019
|
£6.52
|
£7.83
|
|
653/124 - CLAMPING BAND dia43 MM
BSD-1611316006.A421
1611316006
|
£2.61
|
£3.13
|
|
653/125 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A175
1613490002
|
£4.26
|
£5.11
|
|
653/802 - SUPPORT CLAMP dia43 MM
BSD-2608040176.A101
2608040176
|
£6.52
|
£7.83
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A555
1613001009
|
£3.72
|
£4.47
|
|
808 - NAMEPLATE
BSD-2601117662.A0
2601117662
|
-
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A192
2600905032
|
£5.30
|
£6.36
|
|
816 - BRUSH PLATE
BSD-2604337061.A50
2604337061
|
£14.91
|
£17.89
|
|
816/04 - BRUSH HOLDER
BSD-1607000CJ1.A21
1607000CJ1
|
£5.87
|
£7.04
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A30
2910611006
|
£1.75
|
£2.10
|
|
849 - TOOTHED SHAFT
BSD-2606309936.A12
2606309936
|
-
|
|
|
850 - CARRIER
BSD-2606440900.A4
2606440900
|
-
|
|
|
863 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A309
2916080007
|
£2.61
|
£3.13
|
|
866 - BEARING BRACKET
BSD-2605807934.A8
2605807934
|
-
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A119
2607001305
|
£4.26
|
£5.11
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A113
2603410046
|
£2.16
|
£2.59
|
|
