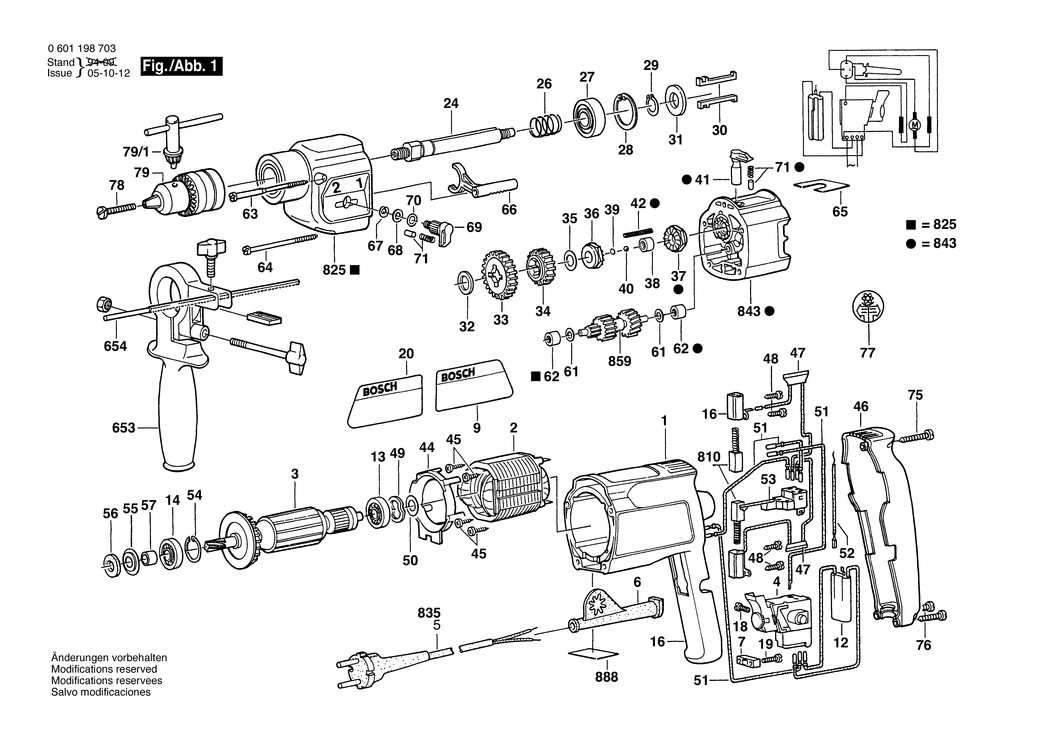

An exploded drawing and listing for the Bosch GSB 20-2 RE / 0601198741 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104116.A61 2605104116 -
2 - FIELD 110-120V BSD-2604220428.A15 2604220428 £27.23 £32.68
3 - ARMATURE 110V BSD-2604010581.A1 2604010581 -
4 - ON-OFF SWITCH BSD-2607200372.A13 2607200372 -
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A67 3604460069 £37.72 £45.27
6 - GROMMET dia6.9 MM BSD-2600707059.A328 2600707059 £3.72 £4.47
6 - GROMMET dia8.8 MM BSD-2600707061.A163 2600707061 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A1678 2601035001 £1.75 £2.10
9 - STICKER BSD-2601110312.A1 2601110312 -
12 - SUPPRESSION FILTER BSD-2607329096.A124 2607329096 £7.36 £8.83
13 - BALL BEARING 7x22x7 BSD-1900905018.A299 1900905018 £18.96 £22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A329 2600905021 £8.67 £10.41
16 - BRUSH HOLDER BSD-2604337003.A2 2604337003 £2.16 £2.59
16 - CONNECTING CABLE L=88 MM BSD-2604448034.A149 2604448034 £1.75 £2.10
16 - CONNECTING CABLE L=52MM BSD-2604448016.A40 2604448016 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1985 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2115 2603490022 £1.75 £2.10
20 - STICKER BSD-2601110093.A29 2601110093 -
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A67 2606135013 £21.42 £25.71
26 - COMPRESSION SPRING BSD-2604616002.A139 2604616002 £1.75 £2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A233 1900905163 £11.30 £13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A205 2916660014 £1.75 £2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A196 2916650008 £1.75 £2.10
30 - FLAT KEY BSD-2602300028.A59 2602300028 -
31 - RETAINING WASHER BSD-2600101671.A209 2600101671 £1.75 £2.10
32 - SHIM 1.0 MM BSD-2600101515.A129 2600101515 £1.95 £2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A54 2606317045 £14.72 £17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A92 2606317037 -
35 - SHIM 0.5 MM BSD-2600101616.A165 2600101616 -
35 - SHIM 0.3 MM BSD-2600101617.A165 2600101617 £1.75 £2.10
36 - CATCH DISK BSD-2600190052.A9 2600190052 £7.78 £9.33
37 - CATCH DISK BSD-2600190051.A37 2600190051 -
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A299 2600917003 £2.80 £3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A160 2600000012 £1.75 £2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A198 2600000014 £1.75 £2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A56 1903230010 £1.75 £2.10
41 - ROTARY KNOB BSD-2602026017.A135 2602026017 £7.36 £8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A71 2917780105 £1.75 £2.10
44 - COVER DISC BSD-2601328033.A292 2601328033 -
45 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A656 2603435015 £2.16 £2.59
46 - HOUSING COVER BSD-2605132040.A41 2605132040 -
47 - SUPPRESSOR BOX L=93/85 MM BSD-2604465071.A42 2604465071 -
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A705 2603490017 £2.16 £2.59
49 - SHIM BSD-2600150004.A665 2600150004 £2.16 £2.59
50 - SHIM 0.5 MM BSD-2600101020.A521 2600101020 £1.75 £2.10
50 - SHIM 0.2 MM BSD-2600101022.A111 2600101022 £1.75 £2.10
50 - SHIM 0.3 MM BSD-2600101023.A436 2600101023 £1.75 £2.10
51 - CABLE L=130 MM BSD-2604448005.A253 2604448005 £1.75 £2.10
52 - CABLE BSD-2604448003.A61 2604448003 -
53 - CHANGE-OVER SWITCH BSD-2607200206.A86 2607200206 -
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A335 2916660008 £2.16 £2.59
55 - CUPPED WASHER BSD-2600500002.A594 2600500002 £1.75 £2.10
56 - FELT WASHER BSD-2600108077.A433 2600108077 £1.75 £2.10
57 - RECEPTACLE BSD-2600400008.A532 2600400008 £1.75 £2.10
61 - SHIM 0.3 MM BSD-2600100607.A153 2600100607 £1.75 £2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A127 2600914010 £2.80 £3.36
63 - TAPPING SCREW 79 MM BSD-2603435012.A19 2603435012 -
64 - HEADLESS SCREW 65 MM BSD-2603435071.A50 2603435071 -
65 - STICKER BSD-2601110076.A163 2601110076 -
66 - ADJUSTING SLIDE BSD-2602033006.A100 2602033006 £2.80 £3.36
67 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A376 2916080007 £2.61 £3.13
68 - SHIM WASHER BSD-2600100618.A24 2600100618 £1.75 £2.10
69 - ROTARY KNOB BSD-2602026038.A47 2602026038 -
70 - PARTS SET BSD-2607010226.A11 2607010226 £2.33 £2.80
71 - RATCHET CAP BSD-2600590006.A80 2600590006 £1.75 £2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A702 2603490024 £1.75 £2.10
76 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A495 2603490023 £1.75 £2.10
77 - STICKER BSD-2601110230.A172 2601110230 -
78 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A384 2603421226 £1.75 £2.10
79 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A342 1608571069 £23.86 £28.63
79/1 - CHUCK WRENCH SG2 BSD-2607950007.A117 2607950007 £6.52 £7.83
653 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A161 1619P10682 £12.49 £14.99
654 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A211 1613001005 -
655 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A656 2915011007 -
656 - WING SCREW M6x(15)55 BSD-1613480007.A165 1613480007 £1.75 £2.10
810 - CARBON-BRUSH SET BSD-2604321905.A80 2604321905 £11.30 £13.56
825 - GEAR HOUSING BSD-2605806990.A7 2605806990 -
843 - INTERMEDIATE FLANGE BSD-2605700936.A66 2605700936 £46.82 £56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A52 2606100903 -
888 - NAMEPLATE BSD-160111A3H3.A4982 160111A3H3 £2.61 £3.13
