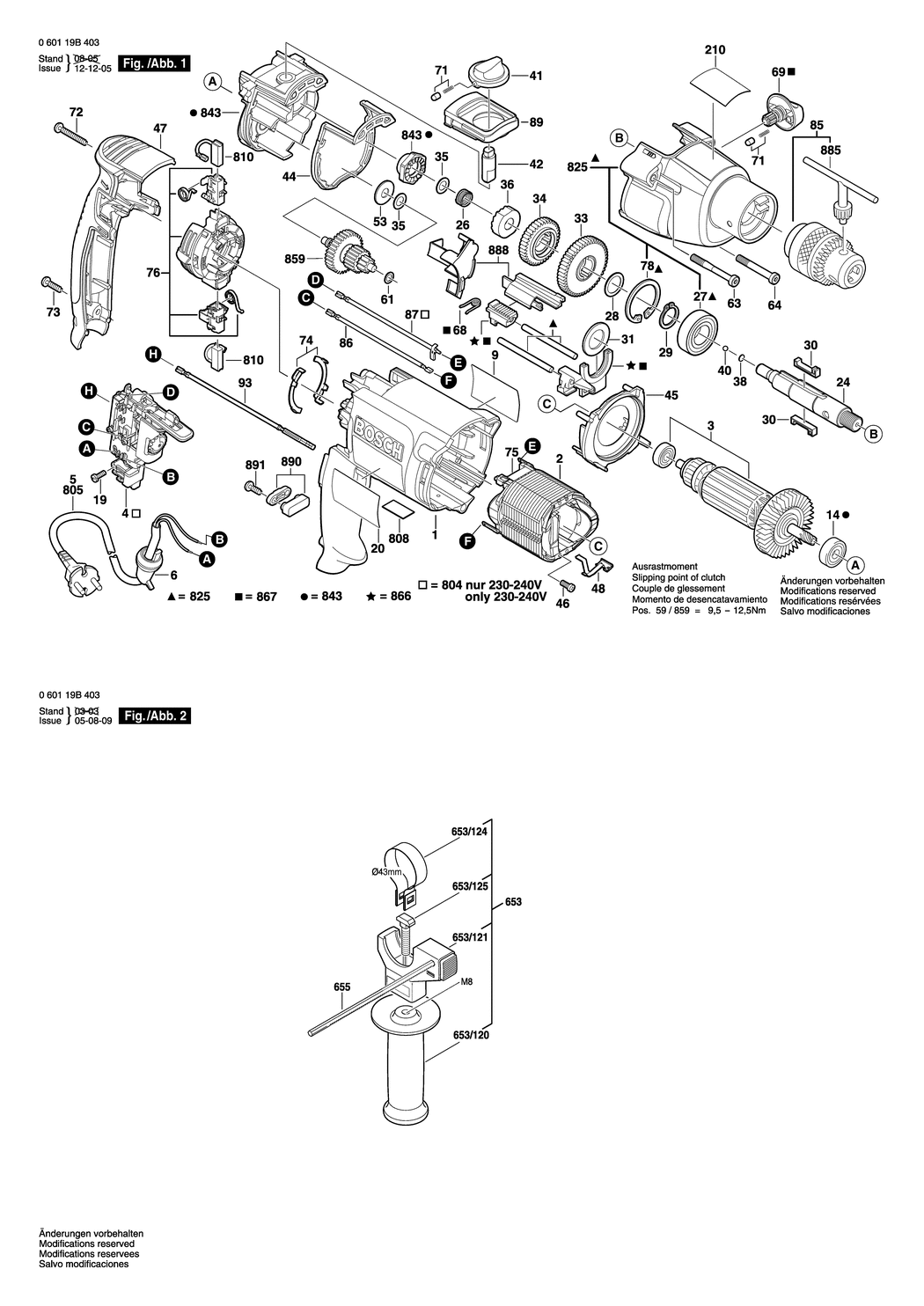

1 - MOTOR HOUSING
BSD-2605105032.A7
2605105032
|
£27.23
|
£32.68
|
|
2 - FIELD 120V
BSD-2609120464.A0
2609120464
|
£21.52
|
£25.83
|
|
3 - ARMATURE 120V
BSD-2604011323.A1
2604011323
|
£36.63
|
£43.96
|
|
4 - ON-OFF SWITCH
BSD-2607200590.A0
2607200590
|
£21.52
|
£25.83
|
|
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460204.A27
2604460204
|
£31.64
|
£37.97
|
|
6 - GROMMET
BSD-2600707072.A5
2600707072
|
£2.61
|
£3.13
|
|
9 - MANUFACTURER'S NAMEPLATE GSB 20-2 RE
BSD-2601116316.A6
2601116316
|
£3.34
|
£4.01
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A243
2600905095
|
£12.04
|
£14.45
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A675
2603490017
|
£2.16
|
£2.59
|
|
20 - REFERENCE PLATE
BSD-2601116317.A1
2601116317
|
£3.72
|
£4.47
|
|
24 - DRILLING SPINDLE
BSD-2606135130.A11
2606135130
|
£21.68
|
£26.01
|
|
26 - COMPRESSION SPRING
BSD-2604616013.A28
2604616013
|
£2.61
|
£3.13
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A265
1900905163
|
£11.30
|
£13.56
|
|
28 - SHIM 0.5 MM
BSD-2600100695.A146
2600100695
|
£1.75
|
£2.10
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A221
2916650008
|
£1.75
|
£2.10
|
|
30 - FLAT KEY
BSD-2602300032.A73
2602300032
|
£3.72
|
£4.47
|
|
31 - RETAINING WASHER
BSD-2600101671.A205
2600101671
|
£1.75
|
£2.10
|
|
33 - CYLINDRICAL GEAR
BSD-2606317084.A76
2606317084
|
£13.12
|
£15.75
|
|
34 - CYLINDRICAL GEAR
BSD-2606317098.A59
2606317098
|
£12.04
|
£14.45
|
|
35 - SHIM 0.3 MM
BSD-2600101047.A166
2600101047
|
£1.75
|
£2.10
|
|
36 - CATCH DISK
BSD-2600190090.A32
2600190090
|
£2.52
|
£3.02
|
|
38 - SHIM WASHER 1.0 MM
BSD-2600000021.A112
2600000021
|
£1.75
|
£2.10
|
|
38 - SHIM WASHER 1.35 MM
BSD-2600000030.A86
2600000030
|
£1.75
|
£2.10
|
|
38 - SHIM WASHER 1.7 MM
BSD-2600000031.A48
2600000031
|
£1.75
|
£2.10
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A856
1903230009
|
£1.75
|
£2.10
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A16
1903230010
|
£1.75
|
£2.10
|
|
40 - BALL 5.25 MM
BSD-2603230007.A51
2603230007
|
£1.75
|
£2.10
|
|
41 - ROTARY KNOB
BSD-2602026118.A2
2602026118
|
£3.34
|
£4.01
|
|
42 - CONTROL SHAFT
BSD-2603120064.A45
2603120064
|
£2.80
|
£3.36
|
|
44 - SEAL
BSD-2601015091.A8
2601015091
|
£3.72
|
£4.47
|
|
45 - AIR GUIDE PLATE
BSD-2600148008.A4
2600148008
|
£3.80
|
£4.56
|
|
46 - TAPPING SCREW
BSD-2603435086.A10
2603435086
|
£1.75
|
£2.10
|
|
47 - HOUSING COVER
BSD-2605132055.A5
2605132055
|
£13.12
|
£15.75
|
|
48 - CONTACT SPRING
BSD-2601324048.A5
2601324048
|
£1.95
|
£2.34
|
|
53 - DISC SPRING
BSD-2600550008.A137
2600550008
|
£1.75
|
£2.10
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A159
2600100607
|
£1.75
|
£2.10
|
|
63 - HEADLESS SCREW
BSD-2603435084.A10
2603435084
|
£1.75
|
£2.10
|
|
64 - HEADLESS SCREW
BSD-2603435085.A91
2603435085
|
£1.75
|
£2.10
|
|
68 - COMPRESSION SPRING
BSD-2604616014.A66
2604616014
|
£1.75
|
£2.10
|
|
69 - ROTARY KNOB
BSD-2602026117.A45
2602026117
|
£2.16
|
£2.59
|
|
71 - RATCHET CAP
BSD-2600590006.A66
2600590006
|
£1.75
|
£2.10
|
|
72 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A58
2603490025
|
£1.75
|
£2.10
|
|
73 - SCREW 4x16
BSD-2603490022.A2136
2603490022
|
£1.75
|
£2.10
|
|
74 - SWITCH CONTACT
BSD-1611329024.A59
1611329024
|
£1.75
|
£2.10
|
|
75 - ADAPTER MODULE
BSD-1600A0032J.A9
1600A0032J
|
£1.75
|
£2.10
|
|
76 - BRUSH PLATE
BSD-1614336061.A42
1614336061
|
£18.96
|
£22.75
|
|
78 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A233
2916660014
|
£1.75
|
£2.10
|
|
85 - KEY CHUCK
BSD-2608571060.A14
2608571060
|
£52.15
|
£62.58
|
|
86 - CONNECTING CABLE L=80 MM
BSD-1614448014.A62
1614448014
|
£2.61
|
£3.13
|
|
89 - BULB SHIELD
BSD-2605510206.A10
2605510206
|
£2.61
|
£3.13
|
|
93 - EARTH CONDUCTOR
BSD-2604448269.A3
2604448269
|
-
|
|
|
210 - REFERENCE PLATE
BSD-2601116318.A9
2601116318
|
£1.95
|
£2.34
|
|
653 - AUXILIARY HANDLE
BSD-2602025139.A5
2602025139
|
£14.91
|
£17.89
|
|
653/120 - AUXILIARY HANDLE M8
BSD-1612025019.A98
1612025019
|
£6.52
|
£7.83
|
|
653/121 - SUPPORT CLAMP
BSD-2608040235.A7
2608040235
|
£5.87
|
£7.04
|
|
653/124 - CLAMPING BAND dia43 MM
BSD-1611316006.A362
1611316006
|
£2.61
|
£3.13
|
|
653/125 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A650
1613490002
|
£4.26
|
£5.11
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A453
1613001009
|
£3.72
|
£4.47
|
|
808 - NAMEPLATE
BSD-2601116364.A0
2601116364
|
-
|
|
|
810 - CARBON-BRUSH SET
BSD-1617000525.A127
1617000525
|
£11.30
|
£13.56
|
|
825 - GEAR HOUSING
BSD-2605806892.A7
2605806892
|
-
|
|
|
843 - BEARING BRACKET
BSD-2605700943.A8
2605700943
|
£33.74
|
£40.49
|
|
859 - TRANSMISSION
BSD-2606309933.A11
2606309933
|
£31.64
|
£37.97
|
|
866 - ADJUSTING SLIDE
BSD-2602033018.A40
2602033018
|
£4.26
|
£5.11
|
|
867 - TOOTHED RACK
BSD-2606308925.A5
2606308925
|
£5.58
|
£6.70
|
|
885 - CHUCK WRENCH SG2
BSD-2607950007.A109
2607950007
|
£6.52
|
£7.83
|
|
888 - HOLDING PLATE
BSD-2601328900.A45
2601328900
|
£2.80
|
£3.36
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A281
2607001305
|
£4.26
|
£5.11
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A100
2603410046
|
£2.16
|
£2.59
|
|
