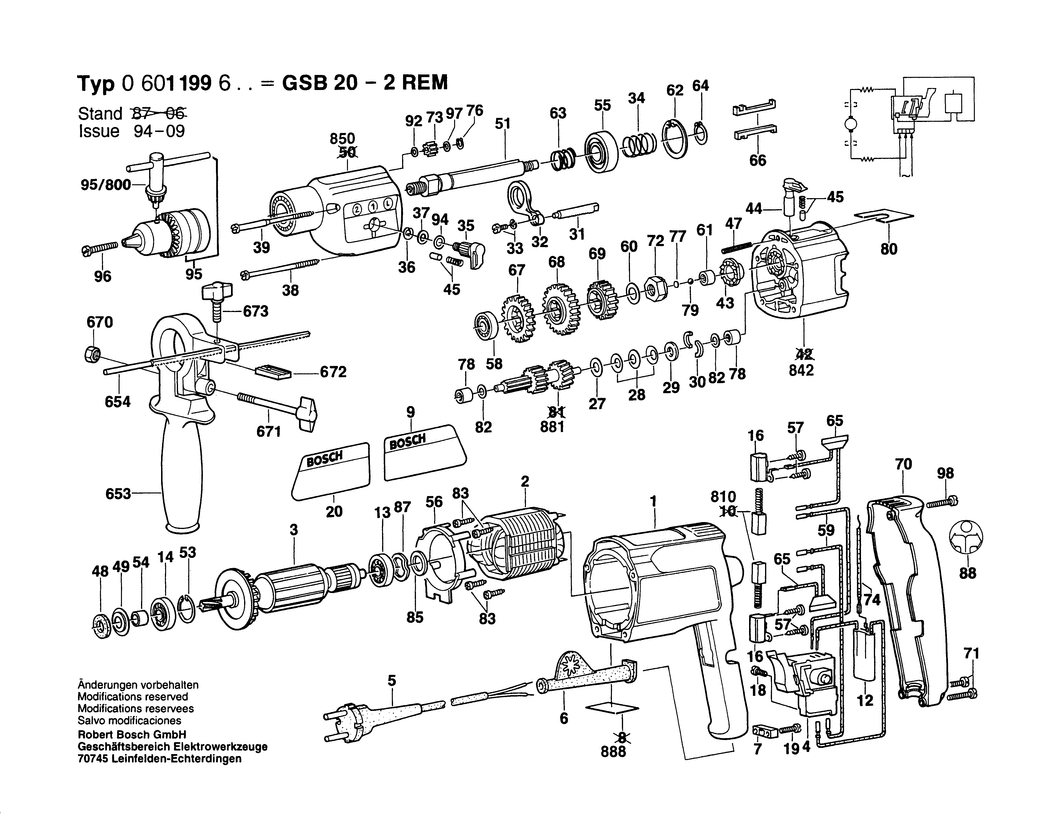

1 - MOTOR HOUSING
BSD-2605104116.A79
2605104116
|
-
|
|
|
2 - FIELD 220-230V
BSD-2604220491.A42
2604220491
|
£21.68
|
£26.01
|
|
3 - ARMATURE 220-240V
BSD-2604010524.A38
2604010524
|
-
|
|
|
4 - SWITCH
BSD-1617200089.A13
1617200089
|
-
|
|
|
5 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A158
2604460053
|
-
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A316
2600707059
|
£3.72
|
£4.47
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A150
2600707060
|
£2.61
|
£3.13
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A154
2600707061
|
£2.80
|
£3.36
|
|
7 - CABLE CLIP
BSD-2601035001.A1669
2601035001
|
£1.75
|
£2.10
|
|
9 - STICKER
BSD-2601110599.A3
2601110599
|
-
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329096.A140
2607329096
|
£7.36
|
£8.83
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A314
1900905018
|
£18.96
|
£22.75
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A341
2600905021
|
£8.67
|
£10.41
|
|
16 - BRUSH HOLDER
BSD-2604337003.A12
2604337003
|
£2.16
|
£2.59
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1969
2603410001
|
£1.75
|
£2.10
|
|
19 - SCREW 4x16
BSD-2603490022.A2124
2603490022
|
£1.75
|
£2.10
|
|
20 - STICKER
BSD-2601110093.A42
2601110093
|
-
|
|
|
27 - SHIM 0.5 MM
BSD-2600100682.A46
2600100682
|
-
|
|
|
27 - SHIM 0.3 MM
BSD-2600100683.A18
2600100683
|
-
|
|
|
27 - SHIM 0.2 MM
BSD-2600100684.A43
2600100684
|
-
|
|
|
28 - DISC SPRING
BSD-2600550008.A151
2600550008
|
£1.75
|
£2.10
|
|
29 - COVER DISC
BSD-2600114001.A35
2600114001
|
-
|
|
|
30 - LOCKING WASHER
BSD-2600116001.A56
2600116001
|
-
|
|
|
31 - TOOTHED RACK
BSD-2603070014.A5
2603070014
|
-
|
|
|
32 - FORK LEVER
BSD-2602033003.A32
2602033003
|
-
|
|
|
33 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A31
2914501011
|
£1.75
|
£2.10
|
|
34 - COMPRESSION SPRING
BSD-2604615010.A13
2604615010
|
-
|
|
|
35 - ROTARY KNOB
BSD-2602026034.A15
2602026034
|
-
|
|
|
36 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A231
2916080910
|
£2.16
|
£2.59
|
|
37 - SHIM 0.5 MM
BSD-2600101612.A270
2600101612
|
£1.75
|
£2.10
|
|
38 - HEADLESS SCREW 74 MM
BSD-2603435019.A42
2603435019
|
-
|
|
|
39 - TAPPING SCREW 79 MM
BSD-2603435012.A31
2603435012
|
-
|
|
|
43 - CATCH DISK
BSD-2600190051.A31
2600190051
|
-
|
|
|
44 - ROTARY KNOB
BSD-2602026017.A127
2602026017
|
£7.36
|
£8.83
|
|
45 - RATCHET CAP
BSD-2600590006.A45
2600590006
|
£1.75
|
£2.10
|
|
47 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A90
2917780105
|
£1.75
|
£2.10
|
|
48 - FELT WASHER
BSD-2600108077.A448
2600108077
|
£1.75
|
£2.10
|
|
49 - CUPPED WASHER
BSD-2600500002.A604
2600500002
|
£1.75
|
£2.10
|
|
51 - DRILLING SPINDLE 1/2
BSD-2606135026.A11
2606135026
|
-
|
|
|
53 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A332
2916660008
|
£2.16
|
£2.59
|
|
54 - RECEPTACLE
BSD-2600400008.A522
2600400008
|
£1.75
|
£2.10
|
|
55 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A250
1900905163
|
£11.30
|
£13.56
|
|
56 - COVER DISC
BSD-2601328033.A277
2601328033
|
-
|
|
|
57 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A690
2603490017
|
£2.16
|
£2.59
|
|
58 - GROOVE BALL BEARING
BSD-2600900006.A28
2600900006
|
-
|
|
|
59 - CABLE L=130 MM
BSD-2604448005.A263
2604448005
|
£1.75
|
£2.10
|
|
60 - SHIM 0.3 MM
BSD-2600101617.A175
2600101617
|
£1.75
|
£2.10
|
|
61 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A281
2600917003
|
£2.80
|
£3.36
|
|
62 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A215
2916660014
|
£1.75
|
£2.10
|
|
63 - COMPRESSION SPRING
BSD-2604616002.A156
2604616002
|
£1.75
|
£2.10
|
|
64 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A200
2916650008
|
£1.75
|
£2.10
|
|
65 - SUPPRESSION FILTER
BSD-2604465068.A83
2604465068
|
-
|
|
|
66 - FLAT KEY
BSD-2602300027.A21
2602300027
|
-
|
|
|
67 - CYLINDRICAL GEAR Z=43
BSD-2606317038.A21
2606317038
|
-
|
|
|
68 - CYLINDRICAL GEAR Z=48
BSD-2606317036.A22
2606317036
|
-
|
|
|
69 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A110
2606317037
|
-
|
|
|
70 - HOUSING COVER
BSD-2605132040.A32
2605132040
|
-
|
|
|
71 - TAPPING SCREW DIN 7985-M3x10-4.8
BSD-2910644052.A4
2910644052
|
-
|
|
|
72 - CATCH DISK
BSD-2600190052.A18
2600190052
|
£7.78
|
£9.33
|
|
73 - CYLINDRICAL GEAR Z=15
BSD-2606317039.A18
2606317039
|
-
|
|
|
74 - CABLE
BSD-2604448003.A51
2604448003
|
-
|
|
|
76 - SPRING RETAINING RING DIN 471-8x0.8 FSt
BSD-2916640005.A148
2916640005
|
£1.75
|
£2.10
|
|
77 - SHIM WASHER 0.2 MM
BSD-2600000012.A179
2600000012
|
£1.75
|
£2.10
|
|
77 - SHIM WASHER 0.5 MM
BSD-2600000014.A177
2600000014
|
£1.75
|
£2.10
|
|
78 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A117
2600914010
|
£2.80
|
£3.36
|
|
79 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A32
1903230010
|
£1.75
|
£2.10
|
|
80 - STICKER
BSD-2601110076.A154
2601110076
|
-
|
|
|
82 - SHIM 0.3 MM
BSD-2600100607.A183
2600100607
|
£1.75
|
£2.10
|
|
83 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A644
2603435015
|
£2.16
|
£2.59
|
|
85 - SHIM 0.5 MM
BSD-2600101020.A505
2600101020
|
£1.75
|
£2.10
|
|
85 - SHIM 0.2 MM
BSD-2600101022.A127
2600101022
|
£1.75
|
£2.10
|
|
85 - SHIM 0.3 MM
BSD-2600101023.A420
2600101023
|
£1.75
|
£2.10
|
|
87 - SHIM
BSD-2600150004.A654
2600150004
|
£2.16
|
£2.59
|
|
88 - STICKER
BSD-2601110230.A189
2601110230
|
-
|
|
|
92 - SHIM 0.5 MM
BSD-2600100623.A19
2600100623
|
-
|
|
|
94 - O-RING 12.0x1.0 MM
BSD-1600210024.A69
1600210024
|
-
|
|
|
95 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A356
1608571069
|
£23.86
|
£28.63
|
|
95/800 - CHUCK WRENCH SG2
BSD-2607950007.A93
2607950007
|
£6.52
|
£7.83
|
|
96 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A380
2603421226
|
£1.75
|
£2.10
|
|
97 - SHIM
BSD-2600150018.A10
2600150018
|
-
|
|
|
98 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A722
2603490024
|
£1.75
|
£2.10
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A173
1619P10682
|
£12.49
|
£14.99
|
|
654 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A199
1613001005
|
-
|
|
|
670 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A642
2915011007
|
-
|
|
|
671 - WING SCREW M6x(15)55
BSD-1613480007.A171
1613480007
|
£1.75
|
£2.10
|
|
672 - CLAMPING PLATE M6
BSD-2608040014.A159
2608040014
|
-
|
|
|
673 - WING SCREW M6x20 MM
BSD-1613480008.A265
1613480008
|
£1.75
|
£2.10
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A75
2604321905
|
£11.30
|
£13.56
|
|
842 - INTERMEDIATE FLANGE
BSD-2605700938.A1
2605700938
|
-
|
|
|
850 - GEAR HOUSING
BSD-2605806970.A12
2605806970
|
-
|
|
|
881 - OVERLOAD CLUTCH
BSD-2606309907.A19
2606309907
|
-
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4996
160111A3H3
|
£2.61
|
£3.13
|
|
