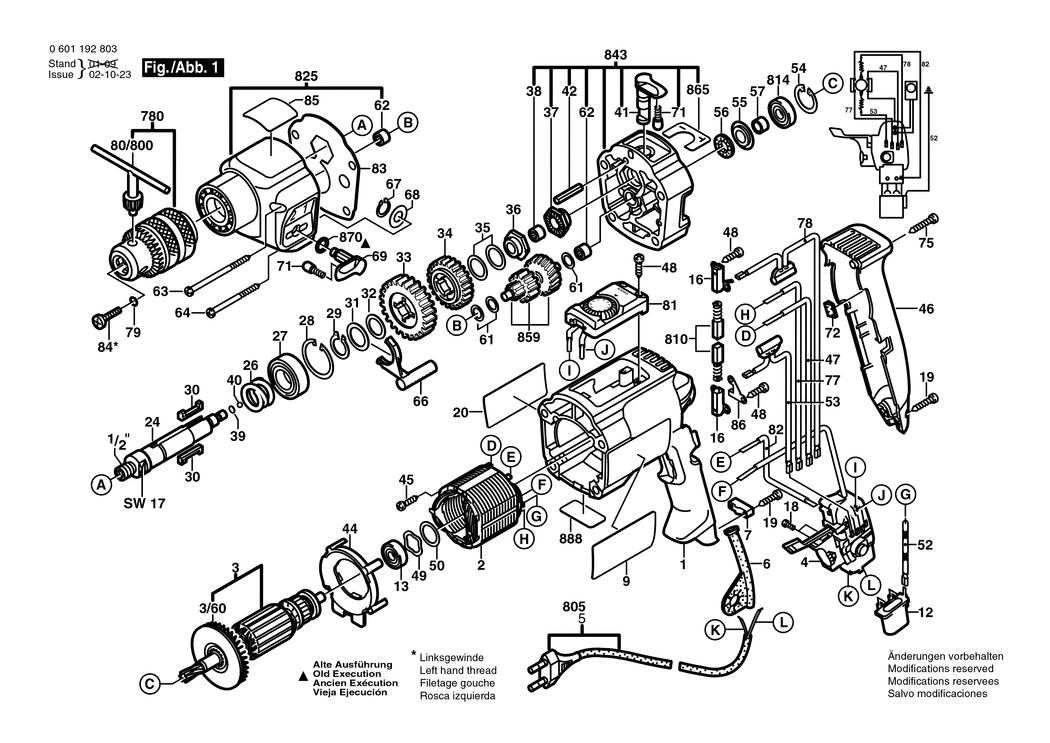

1 - MOTOR HOUSING
BSD-2605104314.A0
2605104314
|
-
|
|
|
2 - FIELD 220-240V
BSD-2604220436.A26
2604220436
|
-
|
|
|
3 - ARMATURE 230-240V
BSD-2604010865.A5
2604010865
|
-
|
|
|
3/60 - FAN
BSD-2606610029.A13
2606610029
|
£2.61
|
£3.13
|
|
4 - ON-OFF SWITCH
BSD-2607200238.A15
2607200238
|
-
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A651
2600707059
|
£3.72
|
£4.47
|
|
7 - CABLE CLIP
BSD-2601035001.A1103
2601035001
|
£1.75
|
£2.10
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118693.A7
2601118693
|
-
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A98
2607329114
|
-
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A1127
1900905018
|
£18.96
|
£22.75
|
|
16 - BRUSH HOLDER
BSD-2604337016.A12
2604337016
|
£1.75
|
£2.10
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1004
2603410001
|
£1.75
|
£2.10
|
|
19 - SCREW 4x16
BSD-2603490022.A352
2603490022
|
£1.75
|
£2.10
|
|
20 - REFERENCE PLATE
BSD-2601118697.A7
2601118697
|
-
|
|
|
24 - DRILLING SPINDLE 1/2.SW 17
BSD-2606135032.A5
2606135032
|
-
|
|
|
26 - COMPRESSION SPRING
BSD-2604616002.A33
2604616002
|
£1.75
|
£2.10
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A427
1900905163
|
£11.30
|
£13.56
|
|
28 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A442
2916660014
|
£1.75
|
£2.10
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A294
2916650008
|
£1.75
|
£2.10
|
|
30 - FLAT KEY
BSD-2602300028.A34
2602300028
|
-
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A229
2600101671
|
£1.75
|
£2.10
|
|
32 - SHIM 1.0 MM
BSD-2600101515.A35
2600101515
|
£1.95
|
£2.34
|
|
33 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A21
2606317045
|
£14.72
|
£17.67
|
|
34 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A187
2606317037
|
-
|
|
|
35 - SHIM 0.5 MM
BSD-2600101616.A207
2600101616
|
-
|
|
|
35 - SHIM 0.3 MM
BSD-2600101617.A112
2600101617
|
£1.75
|
£2.10
|
|
36 - CATCH DISK
BSD-2600190052.A183
2600190052
|
£7.78
|
£9.33
|
|
37 - CATCH DISK
BSD-2600190057.A116
2600190057
|
-
|
|
|
38 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A486
2600917003
|
£2.80
|
£3.36
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A42
2600000014
|
£1.75
|
£2.10
|
|
39 - SHIM WASHER 0.2 MM
BSD-2600000012.A111
2600000012
|
£1.75
|
£2.10
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A598
1903230010
|
£1.75
|
£2.10
|
|
41 - ROTARY KNOB
BSD-2602026017.A70
2602026017
|
£7.36
|
£8.83
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A187
2917780105
|
£1.75
|
£2.10
|
|
44 - COVER DISC
BSD-2601328033.A86
2601328033
|
-
|
|
|
45 - TAPPING SCREW
BSD-2603435086.A352
2603435086
|
£1.75
|
£2.10
|
|
46 - HOUSING COVER
BSD-2605132049.A34
2605132049
|
£7.36
|
£8.83
|
|
47 - CONNECTING CABLE L = 123 MM
BSD-2604448145.A9
2604448145
|
-
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1591
2603490017
|
£2.16
|
£2.59
|
|
49 - SHIM
BSD-2600150004.A291
2600150004
|
£2.16
|
£2.59
|
|
50 - SHIM WASHER 0.3 MM
BSD-2600101027.A196
2600101027
|
£1.75
|
£2.10
|
|
50 - SHIM WASHER 0.5 MM
BSD-2600101667.A80
2600101667
|
£1.75
|
£2.10
|
|
52 - EARTH CONDUCTOR
BSD-2604448103.A75
2604448103
|
-
|
|
|
53 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A44
2604465086
|
£5.58
|
£6.70
|
|
54 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A822
2916660008
|
£2.16
|
£2.59
|
|
55 - CUPPED WASHER
BSD-2600500002.A195
2600500002
|
£1.75
|
£2.10
|
|
56 - FELT WASHER
BSD-2600108077.A47
2600108077
|
£1.75
|
£2.10
|
|
57 - RECEPTACLE
BSD-2600400008.A331
2600400008
|
£1.75
|
£2.10
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A925
2600100607
|
£1.75
|
£2.10
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A505
2600914010
|
£2.80
|
£3.36
|
|
63 - HEADLESS SCREW
BSD-2603435070.A6
2603435070
|
£2.16
|
£2.59
|
|
64 - HEADLESS SCREW 65 MM
BSD-2603435071.A115
2603435071
|
-
|
|
|
66 - ADJUSTING SLIDE
BSD-2602033006.A6
2602033006
|
£2.80
|
£3.36
|
|
67 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A57
2916080007
|
£2.61
|
£3.13
|
|
68 - SHIM WASHER
BSD-2600100618.A271
2600100618
|
£1.75
|
£2.10
|
|
69 - ROTARY KNOB
BSD-2602026038.A91
2602026038
|
-
|
|
|
71 - RATCHET CAP
BSD-2600590006.A1212
2600590006
|
£1.75
|
£2.10
|
|
72 - INSERT
BSD-2601010049.A31
2601010049
|
-
|
|
|
75 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A165
2603490024
|
£1.75
|
£2.10
|
|
77 - CONNECTING CABLE L=78 MM
BSD-2604448137.A20
2604448137
|
-
|
|
|
78 - SUPPRESSION FILTER L= 156 MM
BSD-2604465087.A34
2604465087
|
£5.01
|
£6.01
|
|
79 - RETAINING RING
BSD-2604601004.A439
2604601004
|
£1.75
|
£2.10
|
|
80/800 - CHUCK WRENCH SG2
BSD-2607950007.A1059
2607950007
|
£6.52
|
£7.83
|
|
81 - TORQUE CONTROL 230V
BSD-2607233006.A14
2607233006
|
-
|
|
|
82 - CONNECTING CABLE L=176 MM
BSD-2604448004.A3
2604448004
|
£1.32
|
£1.58
|
|
83 - GASKET
BSD-2601073012.A33
2601073012
|
£1.75
|
£2.10
|
|
84 - COUNTERSUNK-HEAD SCREW M 6x34 MM
BSD-2603421213.A34
2603421213
|
£2.61
|
£3.13
|
|
85 - STICKER
BSD-2601110929.A9
2601110929
|
£1.32
|
£1.58
|
|
86 - PLATE
BSD-2600034003.A4
2600034003
|
-
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A287
1619P10682
|
£12.49
|
£14.99
|
|
753/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A874
2915011007
|
-
|
|
|
753/30 - WING SCREW M6x(15)55
BSD-1613480007.A285
1613480007
|
£1.75
|
£2.10
|
|
753/40 - DRILL HOLDER
BSD-2607000122.A269
2607000122
|
-
|
|
|
753/50 - CLAMPING PLATE M6
BSD-2608040014.A350
2608040014
|
-
|
|
|
753/60 - WING SCREW M6x20 MM
BSD-1613480008.A137
1613480008
|
£1.75
|
£2.10
|
|
754 - DEPTH-GAUGE
BSD-2603001019.A201
2603001019
|
£2.63
|
£3.16
|
|
780 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A52
1608571080
|
£27.23
|
£32.68
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A263
1607000385
|
£14.91
|
£17.89
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A447
2604321905
|
£11.30
|
£13.56
|
|
814 - BALL BEARING 9x24x7
BSD-2600905095.A17
2600905095
|
£12.04
|
£14.45
|
|
825 - GEAR HOUSING
BSD-2605806990.A48
2605806990
|
-
|
|
|
843 - INTERMEDIATE FLANGE
BSD-2605700936.A43
2605700936
|
£46.82
|
£56.18
|
|
859 - TOOTHED SHAFT Z= 10/21/22
BSD-2606100914.A21
2606100914
|
-
|
|
|
865 - STICKER
BSD-2601110076.A45
2601110076
|
-
|
|
|
870 - PARTS SET
BSD-2607010226.A66
2607010226
|
£2.33
|
£2.80
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2391
160111A3H3
|
£2.61
|
£3.13
|
|
