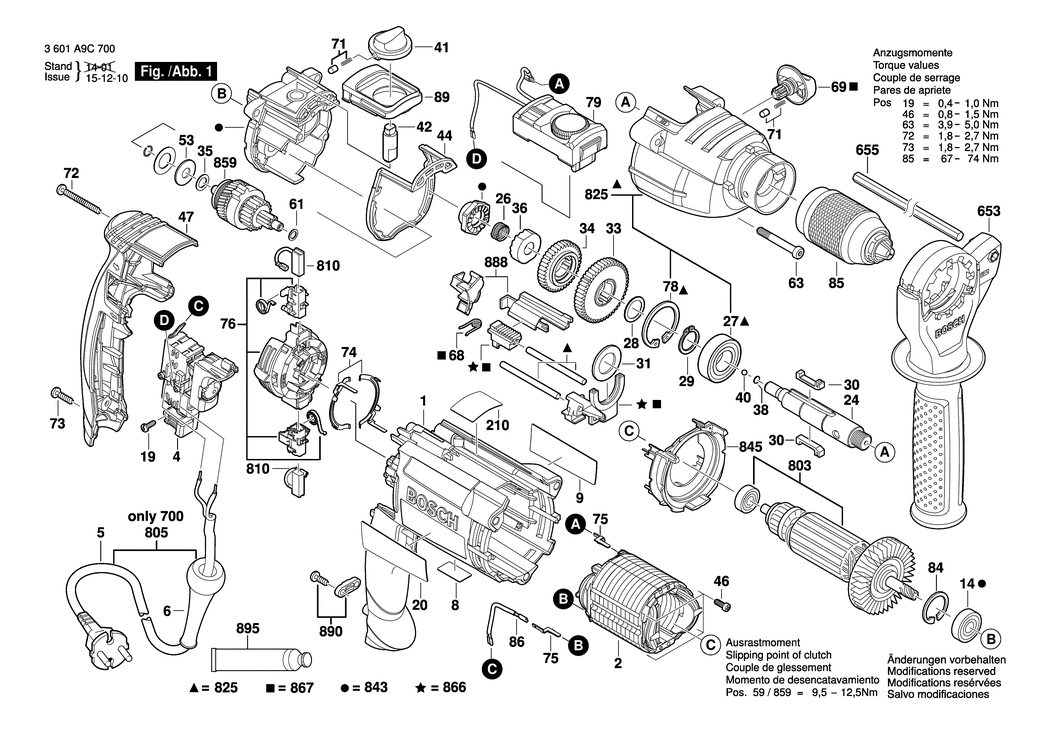

An exploded drawing and listing for the Bosch GSB 21-2 RCT / 3601A9C700 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605105142.A0 2605105142 £23.86 £28.63
2 - FIELD 220-240V BSD-2604220729.A0 2604220729 £23.86 £28.63
4 - SWITCH BSD-2607200679.A0 2607200679 £33.74 £40.49
6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A58 1600703034 £2.61 £3.13
8 - NAMEPLATE BSD-2601115956.A0 2601115956 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE GSB 21-2 RCT BSD-2601115962.A6 2601115962 £2.61 £3.13
14 - BALL BEARING 9x24x7 BSD-2600905095.A115 2600905095 £12.04 £14.45
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A122 2603490017 £2.16 £2.59
20 - REFERENCE PLATE BSD-2601115957.A0 2601115957 £2.61 £3.13
24 - DRILLING SPINDLE BSD-2606135148.A13 2606135148 £23.86 £28.63
26 - COMPRESSION SPRING BSD-2604616013.A66 2604616013 £2.61 £3.13
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A188 1900905163 £11.30 £13.56
28 - SHIM 0.5 MM BSD-2600100695.A92 2600100695 £1.75 £2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A109 2916650008 £1.75 £2.10
30 - FLAT KEY BSD-2602300032.A27 2602300032 £3.72 £4.47
31 - RETAINING WASHER BSD-2600101671.A12 2600101671 £1.75 £2.10
33 - CYLINDRICAL GEAR BSD-2606317086.A14 2606317086 £8.67 £10.41
34 - CYLINDRICAL GEAR BSD-2606317098.A26 2606317098 £12.04 £14.45
35 - SHIM 0.3 MM BSD-2600101047.A138 2600101047 £1.75 £2.10
36 - CATCH DISK BSD-2600190105.A35 2600190105 £2.61 £3.13
38 - SHIM WASHER 1.0 MM BSD-2600000021.A56 2600000021 £1.75 £2.10
38 - SHIM WASHER 1.35 MM BSD-2600000030.A64 2600000030 £1.75 £2.10
38 - SHIM WASHER 1.7 MM BSD-2600000031.A77 2600000031 £1.75 £2.10
40 - BALL DIN 5401-5 G28 BSD-1903230009.A673 1903230009 £1.75 £2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A246 1903230010 £1.75 £2.10
40 - BALL 5.25 MM BSD-2603230007.A94 2603230007 £1.75 £2.10
41 - ROTARY KNOB BSD-2602026168.A6 2602026168 £2.16 £2.59
42 - CONTROL SHAFT BSD-2603120064.A21 2603120064 £2.80 £3.36
44 - SEAL BSD-2601015091.A26 2601015091 £3.72 £4.47
46 - TAPPING SCREW BSD-2603435086.A76 2603435086 £1.75 £2.10
47 - HOUSING COVER BSD-2605132070.A9 2605132070 £13.12 £15.75
53 - DISC SPRING BSD-2600550008.A68 2600550008 £1.75 £2.10
61 - SHIM 0.3 MM BSD-2600100607.A548 2600100607 £1.75 £2.10
63 - HEADLESS SCREW BSD-2603435085.A44 2603435085 £1.75 £2.10
68 - COMPRESSION SPRING BSD-2604616014.A26 2604616014 £1.75 £2.10
69 - ROTARY KNOB BSD-2602026117.A14 2602026117 £2.16 £2.59
71 - RATCHET CAP BSD-2600590006.A631 2600590006 £1.75 £2.10
72 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A15 2603490027 £1.75 £2.10
73 - SCREW 4x16 BSD-2603490022.A3045 2603490022 £1.75 £2.10
74 - SWITCH CONTACT BSD-2601324062.A22 2601324062 £1.75 £2.10
75 - CONTACT BSD-2601099260.A26 2601099260 £2.16 £2.59
76 - BRUSH PLATE BSD-1614336086.A9 1614336086 £18.96 £22.75
78 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A31 2916660014 £1.75 £2.10
79 - SPEED GOVERNOR 230-240V BSD-2607230134.A3 2607230134 £48.38 £58.06
84 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A222 2916660008 £2.16 £2.59
85 - KEYLESS CHUCK HSB 4 BSD-2608572143.A27 2608572143 £63.50 £76.20
86 - CONNECTING CABLE L=80 MM BSD-1614448014.A37 1614448014 £2.61 £3.13
89 - BULB SHIELD BSD-2605510206.A45 2605510206 £2.61 £3.13
210 - REFERENCE PLATE BSD-2601115906.A19 2601115906 £2.61 £3.13
653 - AUXILIARY HANDLE BSD-2602025184.A18 2602025184 £23.86 £28.63
655 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A432 1613001009 £3.72 £4.47
803 - ARMATURE 220-240V BSD-2604011403.A3 2604011403 £59.53 £71.44
805 - POWER SUPPLY CORD BSD-2604460912.A0 2604460912 £21.68 £26.01
810 - CARBON-BRUSH SET BSD-1617000525.A99 1617000525 £11.30 £13.56
810 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A143 1607000485 £72.18 £86.62
825 - GEAR HOUSING BSD-2605806882.A18 2605806882 £48.38 £58.06
843 - BEARING BRACKET BSD-2605700946.A7 2605700946 £40.80 £48.96
845 - AIR-DEFLECTOR RING BSD-2600148016.A11 2600148016 £2.80 £3.36
859 - TRANSMISSION BSD-2606309941.A3 2606309941 £45.67 £54.80
866 - ADJUSTING SLIDE BSD-2602033018.A13 2602033018 £4.26 £5.11
867 - TOOTHED RACK BSD-2606308925.A38 2606308925 £5.58 £6.70
888 - HOLDING PLATE BSD-2601328900.A15 2601328900 £2.80 £3.36
890 - FASTENING PARTS KIT BSD-2607001305.A343 2607001305 £4.26 £5.11
895 - GREASE TUBE Albida BSD-3605430003.A105 3605430003 £27.23 £32.68
