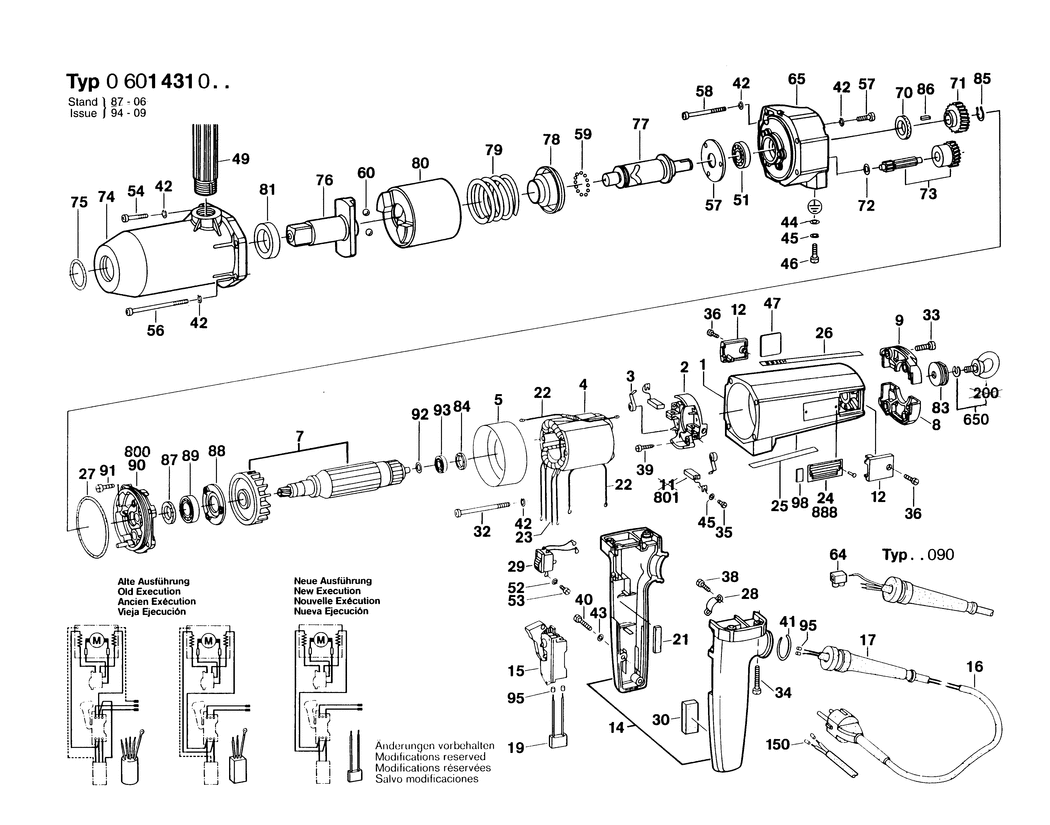

1 - MOTOR HOUSING
BSD-3605108095.A0
3605108095
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A82
1604336006
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652015.A680
1604652015
|
£2.80
|
£3.36
|
|
|
4 - FIELD 220-230V
BSD-1604220088.A7
1604220088
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A318
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE 240V
BSD-1604010102.A0
1604010102
|
-
|
|
|
|
8 - SEALING CAP
BSD-3605500058.A69
3605500058
|
£13.12
|
£15.75
|
|
|
9 - SEALING CAP
BSD-3605500059.A33
3605500059
|
£14.91
|
£17.89
|
|
|
12 - SEALING CAP
BSD-3605500057.A49
3605500057
|
-
|
|
|
|
14 - HANDLE
BSD-3605132030.A1
3605132030
|
£46.82
|
£56.18
|
|
|
15 - SWITCH
BSD-1607200025.A0
1607200025
|
-
|
|
|
|
16 - POWER SUPPLY CORD
BSD-1604461011.A0
1604461011
|
-
|
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A106
3600703011
|
£2.80
|
£3.36
|
|
|
17 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A126
1600703009
|
£5.58
|
£6.70
|
|
|
19 - SUPPRESSION FILTER
BSD-1607328034.A225
1607328034
|
£4.26
|
£5.11
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A42
1602381001
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A111
1601110005
|
-
|
|
|
|
26 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A329
1601110003
|
-
|
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A177
1600210006
|
£1.75
|
£2.10
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A616
1601302014
|
£2.61
|
£3.13
|
|
|
29 - REVERSING SWITCH
BSD-1607200046.A6
1607200046
|
-
|
|
|
|
32 - SOCKET HEAD CAP SCREW
BSD-2910021181.A75
2910021181
|
-
|
|
|
|
32 - SOCKET HEAD CAP SCREW
BSD-1603410008.A108
1603410008
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A271
2910011162
|
£1.75
|
£2.10
|
|
|
34 - HEX SOCKET HEAD CAP SCREW
BSD-3603414028.A87
3603414028
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A906
2910021118
|
£1.75
|
£2.10
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A509
2910021125
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A472
2910021116
|
£2.16
|
£2.59
|
|
|
39 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A981
2910211019
|
£1.75
|
£2.10
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A434
2910021122
|
£2.16
|
£2.59
|
|
|
41 - RETAINING RING 32 DIN 9045
BSD-2916600017.A0
2916600017
|
£1.32
|
£1.58
|
|
|
42 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A181
2916680006
|
-
|
|
|
|
43 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A51
2916681005
|
£1.75
|
£2.10
|
|
|
44 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A251
2916010410
|
-
|
|
|
|
45 - SPRING WASHER DIN 137-A4
BSD-1600150006.A547
1600150006
|
-
|
|
|
|
46 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A371
2910110116
|
£1.75
|
£2.10
|
|
|
49 - HANDLE 400 MM
BSD-1600763010.A71
1600763010
|
£40.80
|
£48.96
|
|
|
51 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A125
1900900303
|
-
|
|
|
|
52 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A171
2916060003
|
£1.32
|
£1.58
|
|
|
53 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8
BSD-2910011046.A23
2910011046
|
-
|
|
|
|
54 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9
BSD-2910151164.A27
2910151164
|
£1.75
|
£2.10
|
|
|
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x85-8.8
BSD-2910141183.A8
2910141183
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A434
2910011157
|
-
|
|
|
|
58 - HEX SOCKET HEAD CAP SCREW M 5x65 DIN 912-8.8
BSD-2910141179.A16
2910141179
|
£5.30
|
£6.36
|
|
|
59 - BALL DIN 5401-5 G28
BSD-1903230009.A789
1903230009
|
£1.75
|
£2.10
|
|
|
60 - BALL DIN 5401-9 MM III-ST
BSD-1903230015.A14
1903230015
|
£2.61
|
£3.13
|
|
|
64 - INSULATION TUBING
BSD-5635211252.A1
5635211252
|
-
|
|
|
|
65 - BEARING HOUSING
BSD-3605820051.A1
3605820051
|
-
|
|
|
|
66 - HOLDING BELT
BSD-1604700002.A30
1604700002
|
-
|
|
|
|
67 - BEARING COVER
BSD-1605808044.A17
1605808044
|
-
|
|
|
|
70 - FELT WASHER
BSD-1600205016.A16
1600205016
|
-
|
|
|
|
71 - CYLINDRICAL GEAR Z=37
BSD-1606320054.A1
1606320054
|
-
|
|
|
|
72 - SHIM 0.5 MM
BSD-1600100631.A118
1600100631
|
£1.75
|
£2.10
|
|
|
73 - MULTIPLATE CLUTCH
BSD-1606401008.A2
1606401008
|
-
|
|
|
|
74 - SPINDLE BEARING
BSD-3605806119.A6
3605806119
|
£156.22
|
£187.46
|
|
|
75 - O-RING 35.0x3.0 MM
BSD-3600210131.A26
3600210131
|
£3.72
|
£4.47
|
|
|
76 - COUPLING HALF
BSD-1606455054.A21
1606455054
|
£195.26
|
£234.31
|
|
|
77 - DRIVE SHAFT
BSD-1603124087.A6
1603124087
|
-
|
|
|
|
78 - BUSHING
BSD-1605801021.A18
1605801021
|
-
|
|
|
|
79 - COMPRESSION SPRING
BSD-1604624007.A6
1604624007
|
-
|
|
|
|
80 - STRIKER
BSD-1608710027.A6
1608710027
|
-
|
|
|
|
81 - SPACER RING
BSD-3600202019.A18
3600202019
|
£23.86
|
£28.63
|
|
|
83 - THREADED RING
BSD-1603343006.A10
1603343006
|
-
|
|
|
|
84 - RUBBER RING
BSD-1600206010.A10
1600206010
|
-
|
|
|
|
85 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A102
2916650006
|
£1.75
|
£2.10
|
|
|
86 - PARALLEL KEY
BSD-1902300082.A4
1902300082
|
-
|
|
|
|
87 - FELT DISC
BSD-1600108003.A212
1600108003
|
£1.32
|
£1.58
|
|
|
88 - BEARING COVER
BSD-1600501019.A274
1600501019
|
£23.86
|
£28.63
|
|
|
89 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A1
1600900001
|
-
|
|
|
|
90 - BEARING FLANGE
BSD-3605820072.A16
3605820072
|
-
|
|
|
|
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A764
2910021125
|
£1.75
|
£2.10
|
|
|
92 - SHIM 0.10 MM
BSD-1420100023.A209
1420100023
|
-
|
|
|
|
92 - SHIM 0.2 MM
BSD-1600100632.A333
1600100632
|
£1.75
|
£2.10
|
|
|
93 - GROOVE BALL BEARING 7x22x7
BSD-1900900224.A37
1900900224
|
£6.52
|
£7.83
|
|
|
95 - END SPLICE
BSD-3604477009.A73
3604477009
|
£2.61
|
£3.13
|
|
|
650 - LIFTING EYE BOLT DIN 580-M 8
BSD-2912521237.A48
2912521237
|
£11.78
|
£14.13
|
|
|
651 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A57
2916680009
|
-
|
|
|
|
700 - INTERMEDIATE PIECE
BSD-1609386021.A5
1609386021
|
-
|
|
|
|
800 - BEARING FLANGE
BSD-1605820038.A2
1605820038
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014102.A125
1607014102
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3709
160111A3H3
|
£2.61
|
£3.13
|
|
