Bosch ---- / 0601578101 / EU 110 Volt Spare Parts

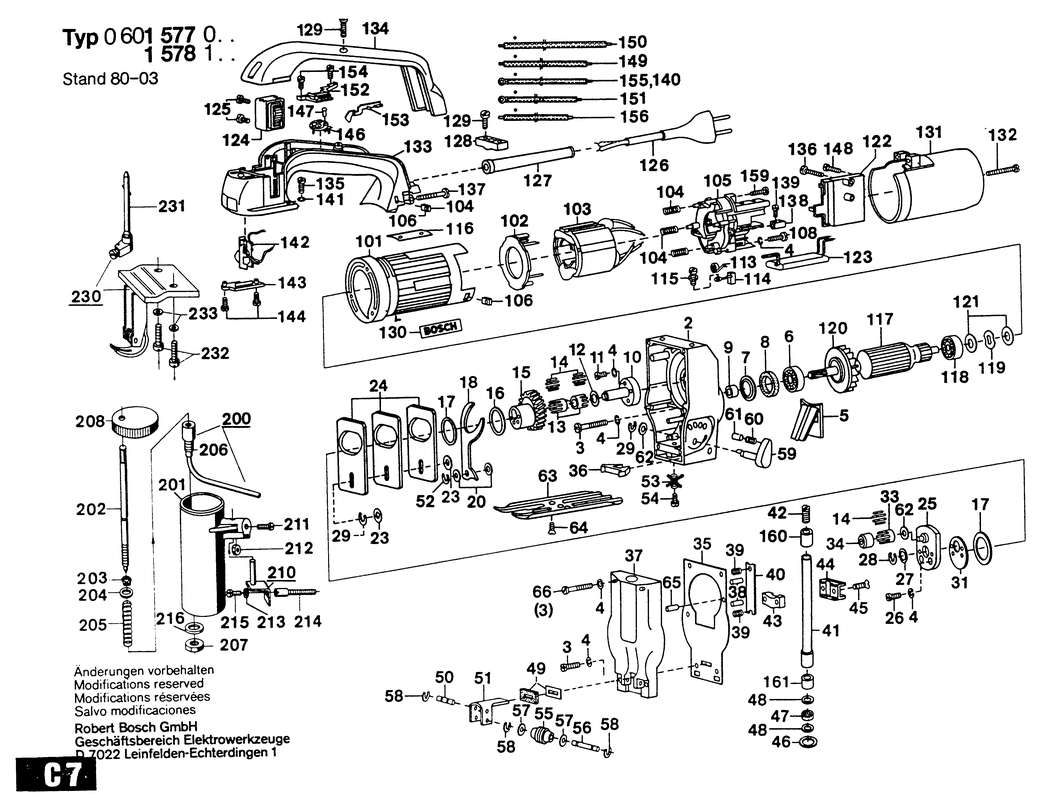

An exploded drawing and listing for the Bosch ---- / 0601578101 / EU 110 Volt

	Ex VAT	Inc VAT
2 - GEAR HOUSING BSD-2605806917.A7 2605806917	-
3 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A235 2910021122	£2.16	£2.59
4 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A624 2916690003	£1.75	£2.10
5 - HOUSING COVER BSD-2605500017.A1 2605500017	-
6 - GROOVE BALL BEARING 10 MM DIN 625 BSD-2600905007.A118 2600905007	-
7 - CUPPED WASHER BSD-2600500008.A3 2600500008	-
8 - FELT DISC BSD-2600108020.A3 2600108020	-
9 - RECEPTACLE BSD-2600400020.A76 2600400020	-
10 - BEARING BOLT BSD-2603123009.A7 2603123009	-
11 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A165 2910021118	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A32 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913027.A7 2600913027	-
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A17 2603201037	£2.61	£3.13
15 - CYLINDRICAL GEAR Z=50 BSD-2606319037.A12 2606319037	-
16 - SHIM 1.0 MM BSD-2600102653.A70 2600102653	£1.75	£2.10
16 - SHIM 0.5 MM BSD-2600102652.A158 2600102652	£1.75	£2.10
18 - FORK LEVER BSD-2601923000.A11 2601923000	-
20 - SHIM 0.3 MM BSD-2600100515.A90 2600100515	£2.61	£3.13
20 - SHIM 0.5 MM BSD-2600100516.A135 2600100516	£2.16	£2.59
23 - SHIM 0.1 MM BSD-2600100625.A19 2600100625	-
23 - SHIM 0.2 MM BSD-2600100626.A219 2600100626	-
23 - SHIM 0.3 MM BSD-2600100627.A19 2600100627	-
23 - SHIM 0.5 MM BSD-2600100628.A279 2600100628	£1.75	£2.10
24 - COUNTERWEIGHT BSD-2601015030.A20 2601015030	-
25 - ECCENTRIC DISC BSD-2601072004.A13 2601072004	-
26 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910020120.A7 2910020120	-
27 - SHIM 0.2 MM BSD-2600100575.A83 2600100575	£2.16	£2.59
27 - SHIM 0.3 MM BSD-2600100576.A232 2600100576	-
27 - SHIM 0.5 MM BSD-2600100577.A86 2600100577	£1.75	£2.10
28 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A39 2916080910	£2.16	£2.59
29 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A20 2916080008	-
31 - ECCENTRIC DISC 0.3 MM BSD-2601072006.A1 2601072006	-
31 - ECCENTRIC DISC 0.5 MM BSD-2601072007.A13 2601072007	-
33 - NEEDLE-ROLLER CAGE BSD-2600913010.A12 2600913010	-
34 - NEEDLE BEARING BSD-2600917900.A94 2600917900	£8.67	£10.41
35 - SEALING PLATE BSD-2601015039.A10 2601015039	-
36 - AIR ELIMINATOR BSD-2602389001.A9 2602389001	-
37 - GEAR COVER BSD-2605808902.A7 2605808902	-
37 - GEAR COVER BSD-2605808901.A19 2605808901	-
38 - NEEDLE ROLLER A 3x15.8G2DIN5402 BSD-1903201044.A43 1903201044	£2.33	£2.80
39 - COMPRESSION SPRING BSD-2604613000.A29 2604613000	£1.75	£2.10
40 - GUIDE BSD-2601032014.A16 2601032014	-
42 - CLAMP SCREW BSD-2603400000.A13 2603400000	£4.26	£5.11
43 - CLAMPING SADDLE BSD-2602329011.A52 2602329011	£4.75	£5.70
44 - SLIDING PIECE 31/35 MM BSD-2601321022.A14 2601321022	-
45 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A258 2603421040	£1.75	£2.10
46 - SHIM 0.5 MM BSD-2600101612.A224 2600101612	£1.75	£2.10
47 - SEAL RING 0.5 MM BSD-2600290017.A145 2600290017	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A222 2600112031	£1.75	£2.10
49 - SEALING PLATE BSD-2601015900.A7 2601015900	-
50 - PIVOT PIN BSD-2603105015.A10 2603105015	-
51 - GUIDE ROLLER BSD-2607001018.A17 2607001018	-
52 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A554 2916080007	£2.61	£3.13
54 - SOCKET HEAD CAP SCREW DIN 84-AM5x6-5.8 BSD-2910011148.A9 2910011148	£1.75	£2.10
55 - AXLE BSD-2600326900.A14 2600326900	-
58 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A31 2916080005	-
59 - SWITCH HANDLE BSD-2607200042.A24 2607200042	-
60 - COMPRESSION SPRING BSD-2604611023.A5 2604611023	-
61 - RATCHET SLEEVE BSD-2600506002.A5 2600506002	-
62 - SHIM 0.5 MM BSD-2600100568.A120 2600100568	£1.75	£2.10
62 - SHIM 1.0 MM BSD-2600100569.A154 2600100569	£1.75	£2.10
62 - SHIM 0.3 MM BSD-2600100570.A164 2600100570	£1.75	£2.10
63 - BASE PLATE BSD-2601016038.A2 2601016038	-
64 - COUNTERSUNK-HEAD SCREW M 5x10 DIN 963-5.8 BSD-2910771152.A11 2910771152	-
65 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A130 1903201042	£2.16	£2.59
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A83 2910021132	£1.75	£2.10
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A236 2910021122	£2.16	£2.59
73 - HEX NUT DIN 439-BM 4-04 BSD-2915051104.A84 2915051104	-
101 - GEAR HOUSING BSD-2607010003.A49 2607010003	-
102 - COVER DISC BSD-2600522009.A76 2600522009	-
103 - POLE SHOE 110V BSD-2604220250.A13 2604220250	-
104 - COMPRESSION SPRING BSD-2604611024.A65 2604611024	£2.16	£2.59
105 - COMMUTATOR END SHIELD BSD-2607010004.A10 2607010004	-
106 - SQUARE NUT M4 BSD-2603320001.A154 2603320001	£1.75	£2.10
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A725 2910021125	£1.75	£2.10
113 - SPIRAL SPRING BSD-2604652000.A111 2604652000	-
114 - CARBON-BRUSH SET BSD-2604320902.A15 2604320902	-
115 - SOCKET HEAD CAP SCREW BSD-2603410010.A186 2603410010	-
116 - NAMEPLATE BSD-2601100038.A41 2601100038	-
117 - ARMATURE 110-115V BSD-2604010388.A2 2604010388	-
118 - GROOVE BALL BEARING 6x19x6 BSD-1900905019.A141 1900905019	£14.91	£17.89
119 - SHIM BSD-2600150003.A86 2600150003	£2.16	£2.59
120 - FAN BSD-2606610013.A98 2606610013	-
121 - SHIM 0.5 MM BSD-2600101657.A130 2600101657	-
121 - SHIM 0.2 MM BSD-2600101655.A130 2600101655	-
121 - SHIM 0.3 MM BSD-2600101656.A51 2600101656	-
122 - SPEED GOVERNOR 100-115V BSD-2607230005.A2 2607230005	-
123 - SUPPRESSION CAPACITOR BSD-2607329070.A1 2607329070	-
124 - ON-OFF SWITCH BSD-2607200048.A79 2607200048	-
125 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A103 2603410023	-
127 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A602 2600703012	£2.80	£3.36
127 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A611 2600703013	£2.61	£3.13
127 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A608 2600703011	£2.80	£3.36
128 - CABLE CLIP BSD-2601035001.A2282 2601035001	£1.75	£2.10
129 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A266 2910211019	£1.75	£2.10
130 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A120 1601110013	-
131 - HOUSING COVER BSD-2605500028.A11 2605500028	-
132 - TAPPING SCREW DIN 7971-3.9x38 BSD-2910215093.A41 2910215093	-
133 - MODIFICATION SET 100-115V BSD-2607001029.A0 2607001029	-
133 - STRAP-SHAPED HANDLE BSD-2602025027.A6 2602025027	-
134 - STRAP-SHAPED HANDLE BSD-2602025026.A13 2602025026	-
135 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A164 2910021154	£1.75	£2.10
136 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A123 2910211022	£1.75	£2.10
137 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8 BSD-2910021134.A205 2910021134	£1.75	£2.10
138 - CONNECTING TERMINAL BSD-2604490003.A2 2604490003	-
139 - SOCKET HEAD CAP SCREW BSD-2603410009.A9 2603410009	£1.32	£1.58
140 - CONNECTING CABLE L = 58 MM BSD-2604412016.A1 2604412016	-
141 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A136 2916690004	£1.75	£2.10
142 - NON-WW POTENTIOMETER BSD-2604505009.A2 2604505009	-
143 - FIXING PLATE BSD-2600099000.A2 2600099000	-
144 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A346 2910211005	£1.75	£2.10
146 - NON-WW POTENTIOMETER BSD-2604505004.A11 2604505004	-
147 - ROUND-HEAD GROOVED PIN BSD-2603133000.A6 2603133000	-
148 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8 BSD-2910011047.A6 2910011047	-
149 - CONNECTING CABLE L = 303 MM BSD-2604412013.A12 2604412013	-
150 - CONNECTING CABLE L = 368 MM BSD-2604412011.A1 2604412011	-
151 - ELEC. CABLE W/CONNECTION L = 273 MM BSD-2604440001.A12 2604440001	-
152 - ON-OFF SWITCH BSD-2607200141.A4 2607200141	-
153 - SWITCH-PAWL BSD-2602098003.A1 2602098003	-
154 - TAPPING SCREW DIN 7971-BZ2.2x6.5 BSD-2910211001.A6 2910211001	-
155 - CONNECTING CABLE L = 303 MM BSD-2604440004.A1 2604440004	-
156 - CONNECTING CABLE L = 243 MM BSD-2604412009.A12 2604412009	-
159 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A7 2910211004	-
160 - SINTERED-METAL BUSHING BSD-2600301046.A199 2600301046	£3.72	£4.47
161 - BUSHING BSD-2600301045.A28 2600301045	£2.80	£3.36
200 - COOLANT TANK BSD-2605405005.A11 2605405005	-
201 - COOLANT TANK BSD-2605405004.A2 2605405004	-
202 - VALVE NEEDLE BSD-2603102003.A6 2603102003	-
203 - SPRING RETAINING RING DIN 471-6x0.7-FSt BSD-2916640003.A34 2916640003	-
204 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A60 2916011013	£1.75	£2.10
205 - COMPRESSION SPRING BSD-2604610002.A10 2604610002	-
206 - VALVE BOTTOM BSD-2600760001.A6 2600760001	-
207 - HEX NUT DIN 439-BM8-04 BSD-2915051107.A24 2915051107	£1.75	£2.10
208 - RESERVOIR CAP BSD-2600502005.A10 2600502005	-
210 - RETAINING BRACKET BSD-2601331016.A9 2601331016	-
211 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A114 2910011122	-
212 - HEX NUT DIN 439-BM 4-04 BSD-2915051104.A83 2915051104	-
213 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A628 2916690003	£1.75	£2.10
214 - STUD BOLT BSD-2603465007.A3 2603465007	-
215 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A162 2910021118	£1.75	£2.10
216 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A26 2916011015	£1.75	£2.10
231 - SUPPORT CLAMP BSD-2608598001.A12 2608598001	-
232 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A263 2910011157	-
233 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A130 2916690004	£1.75	£2.10
654 - SAW BLADE SET T 101 B BSD-2608630030.A8 2608630030	£8.01	£9.61
655 - SAW BLADE SET HCS BSD-2608630033.A5 2608630033	£4.02	£4.82
656 - SAW BLADE SET BSD-2608630040.A8 2608630040	£6.22	£7.47
657 - SAW BLADE SET BSD-2608631013.A5 2608631013	£7.72	£9.26
841 - LIFTING ROD BSD-2600780913.A86 2600780913	-
