Bosch ---- / 0601581042 / GB 240 Volt Spare Parts

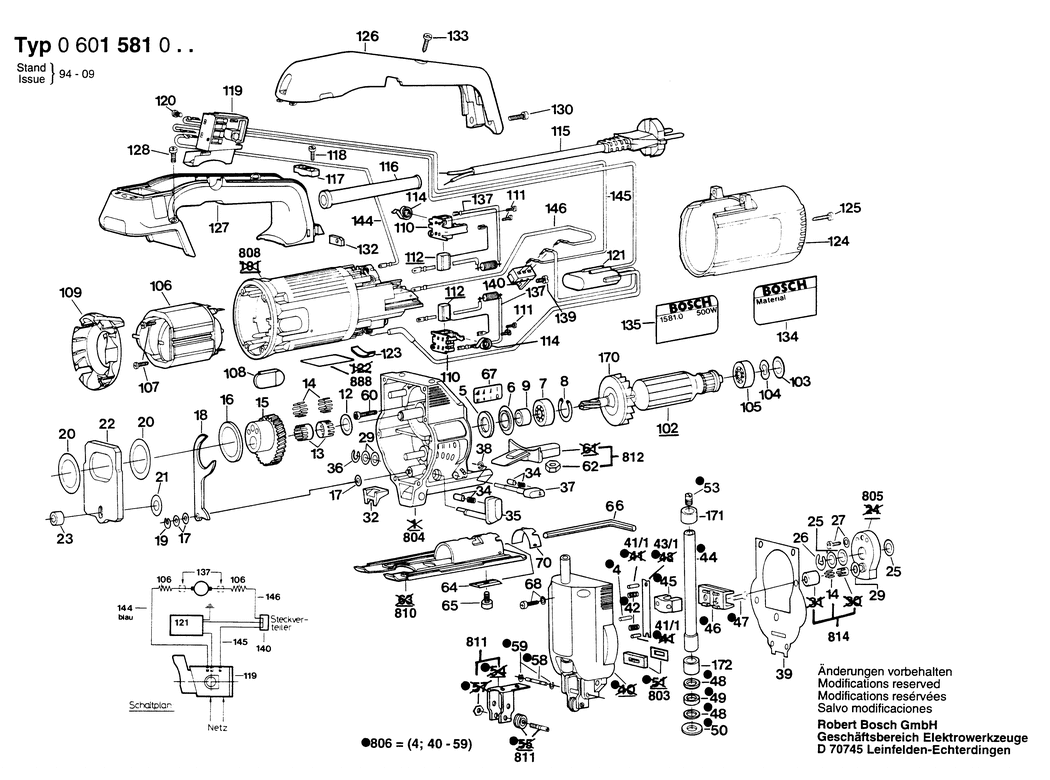

An exploded drawing and listing for the Bosch ---- / 0601581042 / GB 240 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A23 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A461 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A529 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A368 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING BSD-2616660008.A8 2616660008	-
9 - RECEPTACLE BSD-2600400008.A491 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A108 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A8 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A83 2603201037	£2.61	£3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A127 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A26 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A15 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A210 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A158 2601923004	£2.80	£3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A405 2916080007	£2.61	£3.13
20 - SHIM 0.5 MM BSD-2600102652.A202 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A54 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A184 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A56 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A216 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A126 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A171 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A20 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A297 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A20 2600100577	£1.75	£2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A177 2916080910	£2.16	£2.59
27 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A398 2603410049	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A35 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A298 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A115 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A133 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A140 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A36 2602026036	-
36 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A85 2916080908	£1.75	£2.10
37 - ROTARY KNOB BSD-2602026037.A148 2602026037	£2.80	£3.36
38 - SPRING RETAINING RING BSD-2600116009.A99 2600116009	£1.75	£2.10
39 - SEAL BSD-2601015050.A161 2601015050	£2.61	£3.13
41/1 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A41 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A118 2604613000	£1.75	£2.10
43/1 - GUIDE BRACKET BSD-1616B00224.A41 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-2600780913.A57 2600780913	-
45 - CLAMPING SADDLE BSD-2602329011.A140 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A38 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A171 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A172 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A205 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A319 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A100 2603400000	£4.26	£5.11
58 - BEARING BOLT BSD-2603105029.A15 2603105029	-
59 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A33 2916080906	£1.75	£2.10
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A579 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A549 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A3 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A481 2910141197	£1.75	£2.10
66 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1029 1907950006	£4.26	£5.11
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A400 2603410049	£1.75	£2.10
70 - SCALE PLATE BSD-2601328044.A35 2601328044	£2.61	£3.13
102 - ARMATURE 230-240V BSD-2604010578.A58 2604010578	£48.38	£58.06
103 - SHIM 0.3 MM BSD-2600101023.A501 2600101023	£1.75	£2.10
103 - SHIM 0.2 MM BSD-2600101022.A45 2600101022	£1.75	£2.10
103 - SHIM 0.5 MM BSD-2600101020.A587 2600101020	£1.75	£2.10
104 - SHIM BSD-2600150004.A701 2600150004	£2.16	£2.59
105 - BALL BEARING 7x22x7 BSD-1900905018.A164 1900905018	£18.96	£22.75
106 - FIELD 240V BSD-2604220462.A18 2604220462	£33.74	£40.49
107 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A619 2603435015	£2.16	£2.59
108 - PLUG BSD-2603231032.A5 2603231032	-
109 - COVER DISC BSD-2601328045.A244 2601328045	£2.16	£2.59
110 - BRUSH HOLDER BSD-1600A003G4.A72 1600A003G4	£3.72	£4.47
111 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A557 2603490017	£2.16	£2.59
112 - CARBON-BRUSH SET BSD-2604320912.A163 2604320912	£10.10	£12.12
114 - SPIRAL SPRING BSD-2604652009.A57 2604652009	£1.75	£2.10
115 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A74 2604460205	£27.23	£32.68
116 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A889 2600703011	£2.80	£3.36
116 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A151 2600703012	£2.80	£3.36
116 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A864 2600703013	£2.61	£3.13
117 - CABLE CLIP BSD-2601035001.A1805 2601035001	£1.75	£2.10
118 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1020 2910211019	£1.75	£2.10
119 - SWITCH BSD-2607200260.A408 2607200260	£11.30	£13.56
120 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1824 2603410001	£1.75	£2.10
121 - SUPPRESSION FILTER BSD-2607329105.A51 2607329105	-
123 - INTERMEDIATE PIECE BSD-1600026000.A39 1600026000	£1.75	£2.10
124 - HOUSING COVER BSD-2600508038.A14 2600508038	-
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A48 2910601321	-
126 - STRAP-SHAPED HANDLE BSD-2602025040.A51 2602025040	£11.78	£14.13
127 - STRAP-SHAPED HANDLE BSD-2602025043.A5 2602025043	£11.78	£14.13
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A120 2603410054	£2.61	£3.13
130 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A5 2914501021	£1.75	£2.10
132 - SQUARE NUT M4 BSD-2603320001.A197 2603320001	£1.75	£2.10
133 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A578 2603490024	£1.75	£2.10
134 - STICKER BSD-2601110237.A10 2601110237	-
135 - STICKER BSD-2601110319.A1 2601110319	-
137 - SUPPRESSOR BOX BSD-2604465106.A134 2604465106	£4.26	£5.11
140 - STRAP-SHAPED HANDLE BSD-2607001037.A9 2607001037	-
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A114 2604448012	£1.32	£1.58
145 - CONNECTING CABLE L = 288 MM BSD-2604448062.A20 2604448062	£1.32	£1.58
148 - INSULATION TUBING BSD-2600409017.A3 2600409017	£1.75	£2.10
170 - FAN BSD-2606610049.A69 2606610049	£2.16	£2.59
171 - SINTERED-METAL BUSHING BSD-2600301046.A137 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A90 2600301045	£2.80	£3.36
803 - SEALING PLATE BSD-2601015901.A5 2601015901	£2.80	£3.36
803 - SEALING PLATE BSD-2601015900.A21 2601015900	-
804 - GEAR HOUSING BSD-2605808915.A74 2605808915	£37.72	£45.27
805 - ECCENTRIC DISC BSD-2601072901.A200 2601072901	£7.36	£8.83
806 - GEAR COVER BSD-2605808914.A2 2605808914	-
807 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A135 2916080005	-
808 - MOTOR HOUSING BSD-2605108904.A1 2605108904	£23.86	£28.63
810 - BASE PLATE BSD-2601016900.A15 2601016900	-
811 - ROLLER LEVER BSD-2601321901.A9 2601321901	-
812 - FAN COVER BSD-2605500900.A145 2605500900	£4.26	£5.11
814 - NEEDLE BEARING BSD-2600917900.A200 2600917900	£8.67	£10.41
888 - NAMEPLATE BSD-160111A3H3.A5418 160111A3H3	£2.61	£3.13
