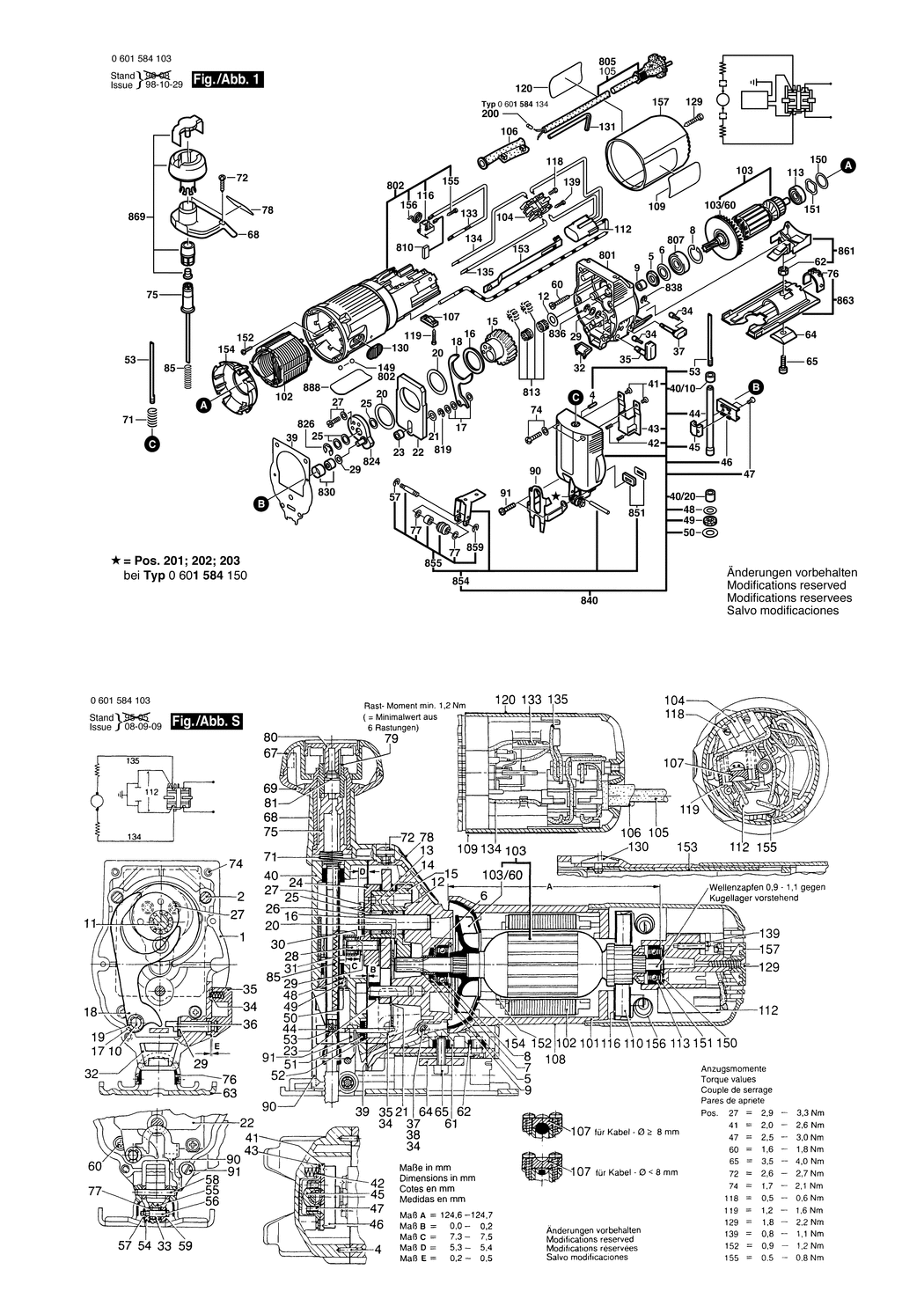

An exploded drawing and listing for the Bosch GST 85 P / 0601584132 / CH 230 Volt
Ex VAT Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A39 1903201042 £2.16 £2.59
5 - FELT WASHER BSD-2600108077.A477 2600108077 £1.75 £2.10
6 - CUPPED WASHER BSD-2600500002.A545 2600500002 £1.75 £2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A405 2916660008 £2.16 £2.59
9 - RECEPTACLE BSD-2600400008.A507 2600400008 £1.75 £2.10
12 - SHIM 0.5 MM BSD-2600101616.A114 2600101616 -
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A147 1619P02581 £21.68 £26.01
16 - SHIM 1.0 MM BSD-2600102653.A4 2600102653 £1.75 £2.10
17 - SHIM 0.3 MM BSD-2600100515.A19 2600100515 £2.61 £3.13
17 - SHIM 0.5 MM BSD-2600100516.A206 2600100516 £2.16 £2.59
18 - FORK LEVER BSD-2601923004.A181 2601923004 £2.80 £3.36
20 - SHIM 0.5 MM BSD-2600102652.A226 2600102652 £1.75 £2.10
21 - SHIM 0.1 MM BSD-2600100625.A65 2600100625 -
21 - SHIM 0.2 MM BSD-2600100626.A173 2600100626 -
21 - SHIM 0.3 MM BSD-2600100627.A60 2600100627 -
21 - SHIM 0.5 MM BSD-2600100628.A212 2600100628 £1.75 £2.10
22 - COUNTERWEIGHT BSD-2601098003.A145 2601098003 £8.67 £10.41
23 - SPACER SLEEVE BSD-2600309009.A181 2600309009 £1.75 £2.10
25 - SHIM 0.2 MM BSD-2600100575.A31 2600100575 £2.16 £2.59
25 - SHIM 0.3 MM BSD-2600100576.A286 2600100576 -
25 - SHIM 0.5 MM BSD-2600100577.A31 2600100577 £1.75 £2.10
27 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A40 2914551176 £1.75 £2.10
29 - SHIM 0.5 MM BSD-2600100568.A38 2600100568 £1.75 £2.10
29 - SHIM 1.0 MM BSD-2600100569.A295 2600100569 £1.75 £2.10
29 - SHIM 0.3 MM BSD-2600100607.A111 2600100607 £1.75 £2.10
32 - AIR ELIMINATOR BSD-2602305042.A113 2602305042 £1.75 £2.10
34 - RATCHET CAP BSD-2600590006.A160 2600590006 £1.75 £2.10
35 - ROTARY KNOB BSD-2602026036.A44 2602026036 -
37 - ROTARY KNOB BSD-2602026037.A140 2602026037 £2.80 £3.36
39 - SEAL BSD-2601015050.A170 2601015050 £2.61 £3.13
40/10 - SINTERED-METAL BUSHING BSD-2600301046.A157 2600301046 £3.72 £4.47
40/20 - BUSHING BSD-2600301045.A70 2600301045 £2.80 £3.36
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A47 2603410048 £1.75 £2.10
42 - COMPRESSION SPRING BSD-2604613000.A100 2604613000 £1.75 £2.10
43 - GUIDE BRACKET BSD-1616B00224.A20 1616B00224 £11.32 £13.58
44 - LIFTING ROD BSD-1619P12765.A108 1619P12765 £16.41 £19.69
45 - CLAMPING SADDLE BSD-2602329011.A108 2602329011 £4.75 £5.70
46 - SLIDING PIECE BSD-1619P12767.A124 1619P12767 £9.47 £11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A165 2603421040 £1.75 £2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A153 2600112031 £1.75 £2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A227 2600290017 £1.75 £2.10
50 - SHIM 0.5 MM BSD-2600101612.A313 2600101612 £1.75 £2.10
53 - CLAMP SCREW BSD-2603490011.A18 2603490011 £6.52 £7.83
57 - LOCKING WASHER BSD-2600116011.A19 2600116011 £2.16 £2.59
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A548 2603490024 £1.75 £2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A556 2915011007 -
64 - PROFILE BEADING BSD-2601030019.A8 2601030019 £2.61 £3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A498 2910141197 £1.75 £2.10
68 - FLANGED FITTING BSD-2605702016.A34 2605702016 £7.36 £8.83
71 - COMPRESSION SPRING BSD-2604617003.A13 2604617003 -
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A126 2603410054 £2.61 £3.13
74 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A391 2603410049 £1.75 £2.10
75 - COUPLING HALF BSD-2606491015.A39 2606491015 £6.52 £7.83
76 - SCALE PLATE BSD-2601328044.A55 2601328044 £2.61 £3.13
77 - SHIM 0.2 MM BSD-2600100032.A43 2600100032 £1.75 £2.10
78 - STICKER BSD-2601110930.A41 2601110930 £1.32 £1.58
85 - COMPRESSION SPRING BSD-2604610040.A57 2604610040 £1.75 £2.10
90 - SAFETY DEVICE BSD-2601322021.A135 2601322021 £4.26 £5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A174 2910011128 £1.75 £2.10
102 - FIELD 220-240V BSD-2604220709.A108 2604220709 £27.23 £32.68
103 - ARMATURE 230-240V BSD-2604010578.A43 2604010578 £48.38 £58.06
103/60 - FAN BSD-2606610049.A78 2606610049 £2.16 £2.59
104 - SWITCH BSD-2607200674.A196 2607200674 £16.41 £19.69
105 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A100 1604460427 £12.04 £14.45
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A48 2600703027 £1.75 £2.10
107 - CABLE CLIP BSD-2601035001.A1822 2601035001 £1.75 £2.10
109 - MANUFACTURER'S NAMEPLATE BSD-2601118482.A3 2601118482 £2.52 £3.02
112 - SUPPRESSION FILTER BSD-2607329104.A19 2607329104 £10.10 £12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A172 1900905018 £18.96 £22.75
116 - BRUSH HOLDER BSD-1600A003G4.A90 1600A003G4 £3.72 £4.47
116 - BRUSH HOLDER BSD-2601323022.A24 2601323022 £2.80 £3.36
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1818 2603410001 £1.75 £2.10
119 - SCREW 4x16 BSD-2603490022.A1974 2603490022 £1.75 £2.10
120 - REFERENCE PLATE BSD-2601118526.A39 2601118526 -
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A59 2910601321 -
130 - SWITCH HANDLE BSD-2602026015.A42 2602026015 £1.75 £2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1037 1907950006 £4.26 £5.11
133 - SUPPRESSION FILTER BSD-1619P15513.A19 1619P15513 £4.75 £5.70
134 - CONNECTING CABLE L=86MM BSD-2604448044.A52 2604448044 £1.75 £2.10
135 - CONNECTING CABLE L=136MM BSD-2604448056.A31 2604448056 -
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A307 2910611006 £1.75 £2.10
149 - PLUG BSD-2603231032.A21 2603231032 -
150 - SHIM WASHER 0.3 MM BSD-2600101027.A249 2600101027 £1.75 £2.10
150 - SHIM 0.2 MM BSD-2600101022.A41 2600101022 £1.75 £2.10
150 - SHIM 0.5 MM BSD-2600101020.A591 2600101020 £1.75 £2.10
151 - SHIM BSD-2600150004.A684 2600150004 £2.16 £2.59
152 - TAPPING SCREW BSD-2603435086.A44 2603435086 £1.75 £2.10
153 - ADJUSTING SLIDE BSD-2602319005.A119 2602319005 £1.75 £2.10
154 - COVER DISC BSD-2601328045.A219 2601328045 £2.16 £2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A539 2603490017 £2.16 £2.59
156 - SPIRAL SPRING BSD-2604652009.A68 2604652009 £1.75 £2.10
157 - HOUSING COVER BSD-2600508036.A13 2600508036 £10.10 £12.12
801 - GEAR HOUSING BSD-2605808917.A77 2605808917 £63.50 £76.20
802 - MOTOR HOUSING BSD-2605108904.A17 2605108904 £23.86 £28.63
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A414 2600905039 £12.04 £14.45
810 - CARBON-BRUSH SET BSD-2604320912.A146 2604320912 £10.10 £12.12
810 - CARBON-BRUSH SET 10 x 2 604 320 912 BSD-1607000486.A14 1607000486 £63.50 £76.20
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A36 2607001130 £5.58 £6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A386 2916080007 £2.61 £3.13
824 - ECCENTRIC DISC BSD-2601072901.A184 2601072901 £7.36 £8.83
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A202 2916080910 £2.16 £2.59
830 - NEEDLE BEARING BSD-2600917900.A184 2600917900 £8.67 £10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A116 2916080008 -
838 - SPRING RETAINING RING BSD-2600116009.A90 2600116009 £1.75 £2.10
840 - GEAR COVER BSD-2605808921.A2 2605808921 £81.81 £98.17
851 - SEALING PLATE BSD-2601015901.A19 2601015901 £2.80 £3.36
854 - ROLLER LEVER BSD-2601321902.A152 2601321902 -
855 - ROLLER SET BSD-1619P01375.A3 1619P01375 £11.30 £13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A156 2916080005 -
861 - FAN COVER BSD-2605500900.A154 2605500900 £4.26 £5.11
863 - BASE PLATE BSD-2601016903.A31 2601016903 £16.41 £19.69
869 - HANDLE BSD-2602026900.A38 2602026900 -
888 - NAMEPLATE BSD-160111A3H3.A5407 160111A3H3 £2.61 £3.13
