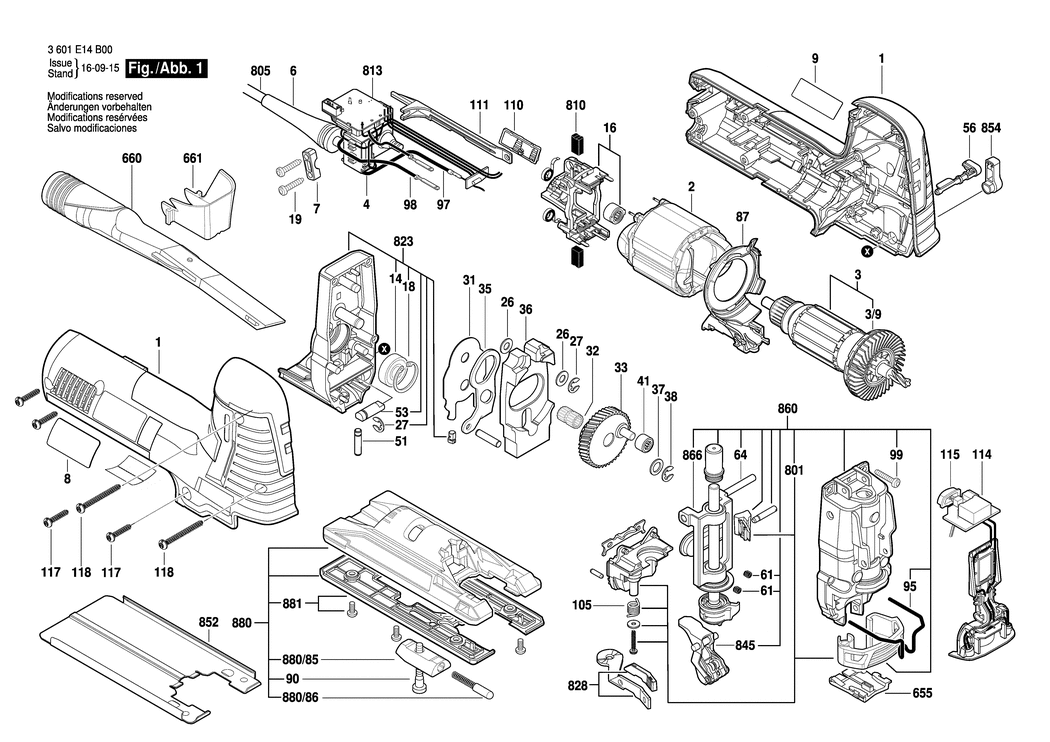

1 - HOUSING SECTION
BSD-2605105198.A0
2605105198
|
£37.27
|
£44.72
|
|
|
2 - FIELD 230-240V
BSD-2604220740.A22
2604220740
|
£37.26
|
£44.71
|
|
|
3 - ARMATURE 230-240V
BSD-2604011420.A18
2604011420
|
£54.42
|
£65.30
|
|
|
3/9 - FAN
BSD-2606610089.A43
2606610089
|
£5.30
|
£6.36
|
|
|
4 - SWITCH
BSD-2607200684.A13
2607200684
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A623
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035004.A76
2601035004
|
£2.16
|
£2.59
|
|
|
8 - NAMEPLATE
BSD-2601112506.A0
2601112506
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE ST 140 E
BSD-2601112558.A0
2601112558
|
£1.75
|
£2.10
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905112.A41
2600905112
|
£12.04
|
£14.45
|
|
|
16 - BRUSH PLATE
BSD-2605807137.A23
2605807137
|
£21.68
|
£26.01
|
|
|
18 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A495
2916660008
|
£2.16
|
£2.59
|
|
|
19 - SCREW 4x16
BSD-2603490022.A583
2603490022
|
£1.75
|
£2.10
|
|
|
26 - SHIM
BSD-2600100040.A85
2600100040
|
£1.75
|
£2.10
|
|
|
27 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A192
2916080908
|
£1.75
|
£2.10
|
|
|
31 - SHIM
BSD-2600101124.A15
2600101124
|
£1.75
|
£2.10
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913040.A73
2600913040
|
£5.58
|
£6.70
|
|
|
33 - ECCENTRIC COG WHEEL
BSD-2606320107.A9
2606320107
|
£21.52
|
£25.83
|
|
|
35 - FORK LEVER
BSD-2601923015.A39
2601923015
|
£2.80
|
£3.36
|
|
|
36 - COUNTERWEIGHT
BSD-2601098120.A5
2601098120
|
£18.96
|
£22.75
|
|
|
37 - SHIM 0.3 MM
BSD-2600101047.A406
2600101047
|
£1.75
|
£2.10
|
|
|
38 - LOCKING WASHER DIN 6799-6-FST
BSD-2916080909.A31
2916080909
|
£1.75
|
£2.10
|
|
|
41 - NEEDLE BEARING
BSD-2600917900.A351
2600917900
|
£8.67
|
£10.41
|
|
|
51 - BEARING BOLT
BSD-2603105131.A54
2603105131
|
£2.16
|
£2.59
|
|
|
53 - CONTROL SHAFT
BSD-2603124157.A13
2603124157
|
£5.30
|
£6.36
|
|
|
56 - ROTARY KNOB
BSD-2602026170.A27
2602026170
|
£1.75
|
£2.10
|
|
|
61 - COMPRESSION SPRING
BSD-2604610140.A38
2604610140
|
£1.75
|
£2.10
|
|
|
64 - STRAIGHT PIN
BSD-2601322045.A7
2601322045
|
£1.75
|
£2.10
|
|
|
87 - AIR-DEFLECTOR RING
BSD-2605500206.A14
2605500206
|
£10.10
|
£12.12
|
|
|
90 - HEX SOCKET HEAD CAP SCREW DIN 7984 M6x30-8.8
BSD-2910131205.A21
2910131205
|
£2.16
|
£2.59
|
|
|
95 - PROTECTING COVER
BSD-2603101060.A33
2603101060
|
£4.26
|
£5.11
|
|
|
97 - EARTH CONDUCTOR
BSD-2604448351.A12
2604448351
|
£2.61
|
£3.13
|
|
|
98 - CONNECTING CABLE
BSD-1619P07299.A12
1619P07299
|
£2.61
|
£3.13
|
|
|
99 - THREAD-FORMING TAP. SCREW
BSD-2603410051.A76
2603410051
|
£1.75
|
£2.10
|
|
|
105 - TORSION SPRING
BSD-2604690060.A16
2604690060
|
£1.75
|
£2.10
|
|
|
110 - OPERATING ELEMENT
BSD-2602026169.A4
2602026169
|
£2.80
|
£3.36
|
|
|
111 - ADJUSTING SLIDE
BSD-2601099223.A5
2601099223
|
£3.72
|
£4.47
|
|
|
114 - EL LUMA MODULE 230V
BSD-1607233384.A5
1607233384
|
£31.64
|
£37.97
|
|
|
115 - HEADLAMP SWITCH
BSD-2600030033.A0
2600030033
|
£5.30
|
£6.36
|
|
|
117 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1132
2603490023
|
£1.75
|
£2.10
|
|
|
118 - TORX OVAL-HEAD SCREW 4x40
BSD-2603490027.A73
2603490027
|
£1.75
|
£2.10
|
|
|
655 - SPLINTERING PROTECTOR
BSD-2601016093.A51
2601016093
|
£4.26
|
£5.11
|
|
|
660 - SUCTION SOCKET
BSD-2605730061.A5
2605730061
|
£18.96
|
£22.75
|
|
|
661 - COVERING HOOD
BSD-2605510296.A6
2605510296
|
£3.72
|
£4.47
|
|
|
801 - EJECTION LEVER
BSD-2607990068.A5
2607990068
|
£11.30
|
£13.56
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A290
1607000386
|
£21.52
|
£25.83
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320918.A19
2604320918
|
£12.04
|
£14.45
|
|
|
813 - SPEED GOVERNOR 230V
BSD-160723358B.A0
160723358B
|
£59.53
|
£71.44
|
|
|
823 - GEAR HOUSING
BSD-2605806869.A1
2605806869
|
£120.11
|
£144.13
|
|
|
828 - TENSIONING LEVER
BSD-2602098026.A0
2602098026
|
£7.36
|
£8.83
|
|
|
845 - ROLLER LEVER
BSD-2601321909.A15
2601321909
|
£46.37
|
£55.64
|
|
|
852 - WORK BOARD
BSD-2601098121.A24
2601098121
|
£18.96
|
£22.75
|
|
|
854 - ROTARY KNOB
BSD-2602026909.A29
2602026909
|
£2.61
|
£3.13
|
|
|
860 - GEAR COVER
BSD-2605808935.A9
2605808935
|
£156.22
|
£187.46
|
|
|
866 - LIFTING ROD
BSD-1600A00HG1.A0
1600A00HG1
|
£63.50
|
£76.20
|
|
|
880 - BASE PLATE
BSD-2601016911.A10
2601016911
|
£48.38
|
£58.06
|
|
|
880/85 - CLAMPING PIECE
BSD-2602317067.A20
2602317067
|
£4.26
|
£5.11
|
|
|
880/86 - RATCHET CAP
BSD-2600590018.A27
2600590018
|
£2.80
|
£3.36
|
|
|
881 - WORK BOARD
BSD-2601099900.A37
2601099900
|
£14.91
|
£17.89
|
|
